Audi A8 D3 facelift 2 (2007-2010) left rear seat lumbar support height adjustment switch Wiring diagrams
This page contains all the electrical diagrams for the component. left rear seat lumbar support height adjustment switch, in which he is found in the car Audi A8 D3 facelift 2 (2007-2010). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
left rear seat lumbar support height adjustment switch wiring diagram (1 of 2)
4 PIN CONNECTOR, MULTIMEDIA SIGNAL SPLITTER
ABS CONTROL MODULE
BRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
COMFORT SYSTEM CENTRAL CONTROL MODULE
COOLER
ELECTRONIC MECHANICAL PARKING BRAKE CONTROL MODULE
FUEL PUMP CONTROL MODULE
ILLUMINATION, STORAGE COMPARTMENT ILLUMINATION,, CUP HOLDER ILLUMINATION
INCLINATION/ANTI-THEFT CONTROL MODULE
LEFT REAR LID TAIL LAMP CONTROL MODULE
LEFT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT SWITCH
RIGHT REAR SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT SWITCH
SUPPRESSOR, ABS CONTROL MODULE
TRANSFER FUEL PUMP (FP), FUEL PUMP (FP)
YEL WIRE
Go to component -> Ground distribution circuit (1 of 3) -> LEFT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT SWITCH

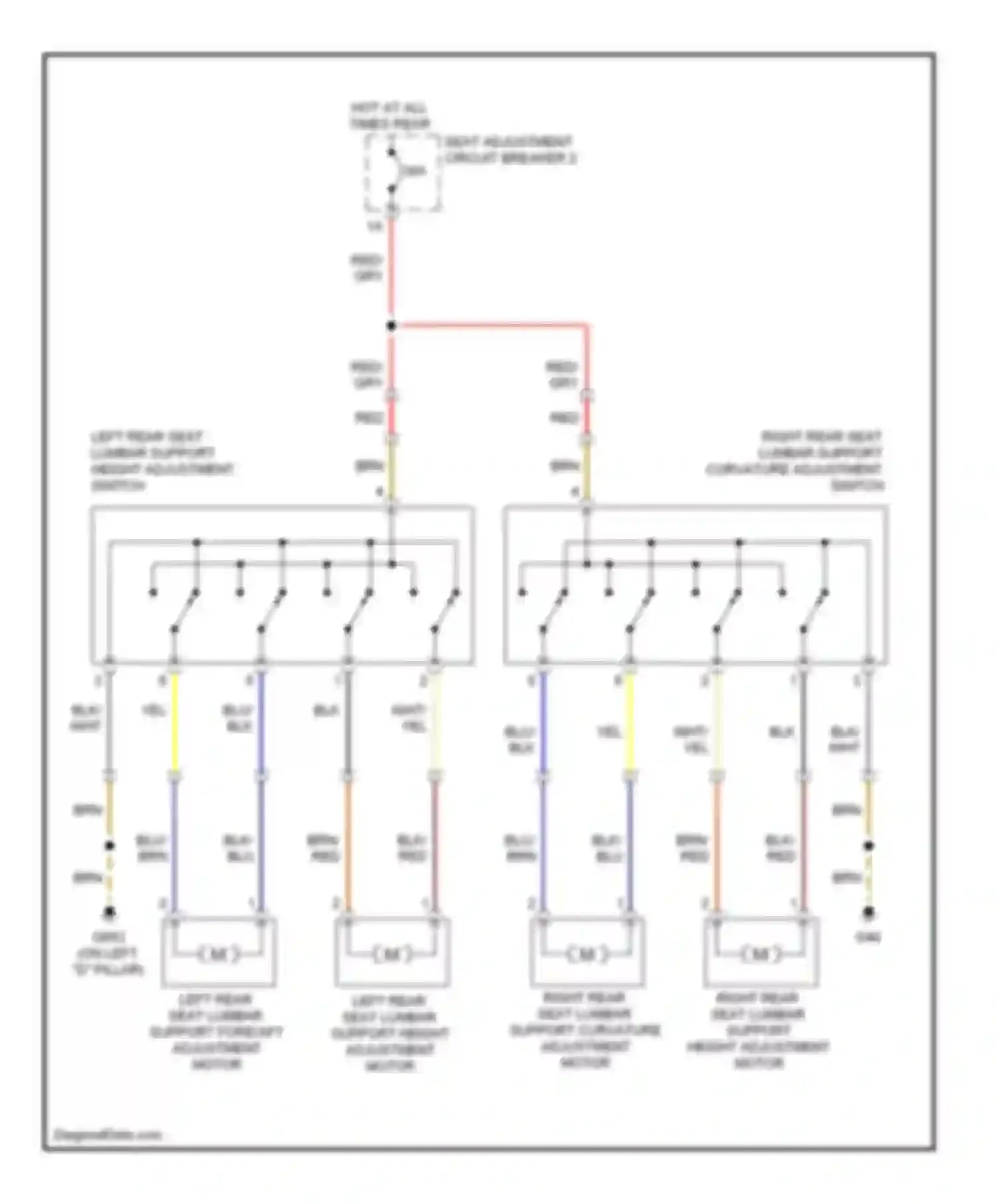

left rear seat lumbar support height adjustment switch wiring diagram (2 of 2)
BLK WIRE
BLU WIRE
BRN WIRE
GRY WIRE
HOT AT ALL TIMES REAR SEAT ADJUSTMENT CIRCUIT BREAKER 2
LEFT REAR SEAT LUMBAR SUPPORT FORE/AFT ADJUSTMENT MOTOR
LEFT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR
LEFT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT SWITCH
RED WIRE
RIGHT REAR SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR
RIGHT REAR SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT SWITCH
RIGHT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR
WHT WIRE
YEL WIRE
Go to component -> Rear lumbar circuit -> LEFT REAR SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT SWITCH
