Audi A8 D2 (1994-1999) left rear reading light Wiring diagram
This page shows the only wiring diagram for the component.left rear reading light, which is found in the car Audi A8 D2 (1994-1999). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

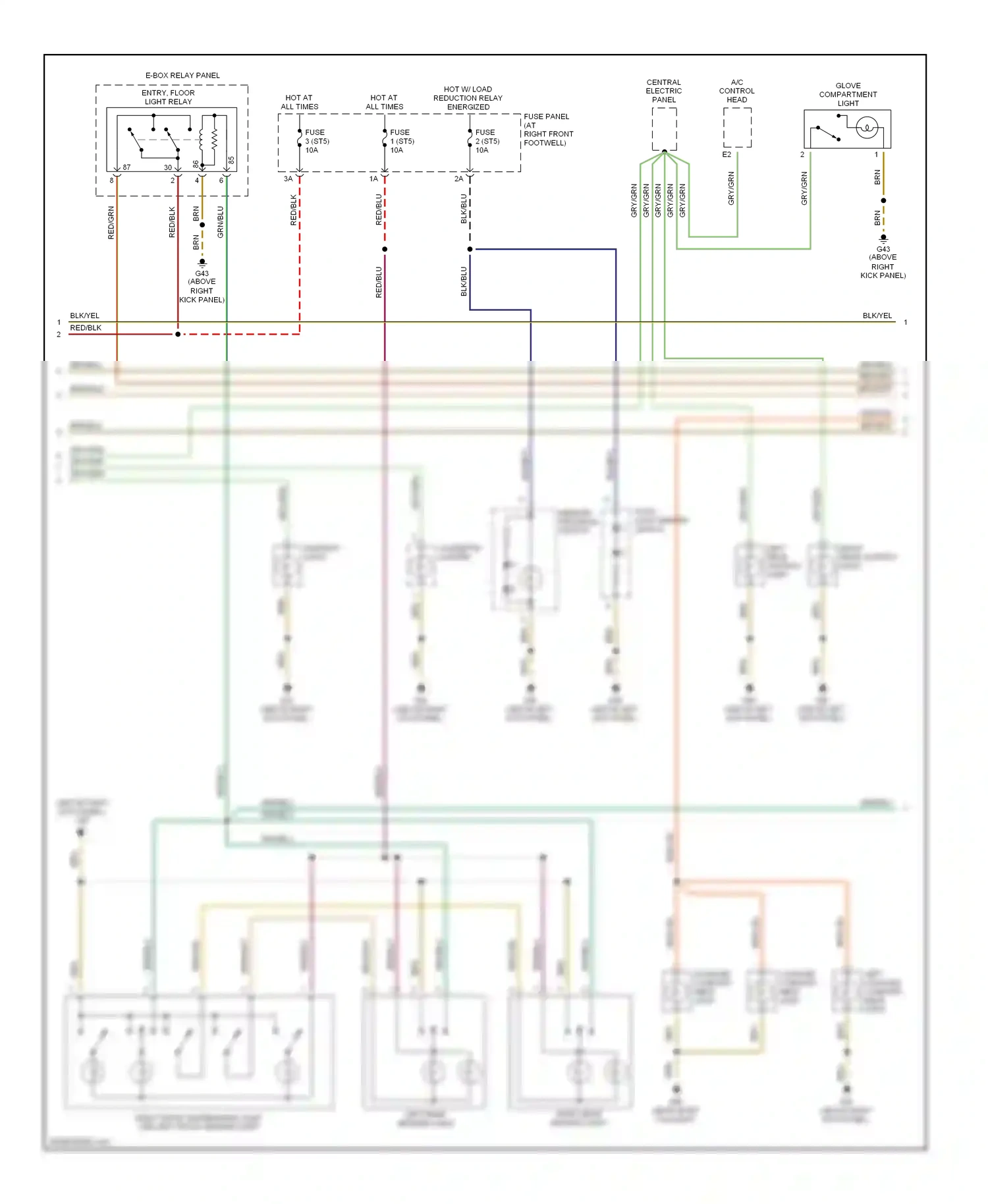

Wiring diagram left rear reading light (1 of 1)
A/C CONTROL HEAD
ASHTRAY LIGHT
BLK/BLU WIRE
BLK/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/WHT WIRE
BRN/YEL WIRE
CENTRAL ELECTRIC PANEL
CIGARETTE LIGHTER
E-BOX RELAY PANEL
ENTRY, FLOOR LIGHT RELAY
FOLD- AWAY MIRROR SWITCH
FUSE
FUSE PANEL (AT RIGHT FRONT FOOTWELL)
GLOVE COMPARTMENT LIGHT
GRN/BLU WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
HOT W/ LOAD REDUCTION RELAY ENERGIZED
LEFT LUGGAGE COMPART- MENT LIGHT
LEFT REAR ASHTRAY LIGHT
LEFT REAR READING LIGHT
LUGGAGE COMPART- MENT LIGHT
MEMORY PROGRAM SWITCH
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT FRONT MAP/READING LIGHT AND LEFT FRONT READING LIGHT
RIGHT REAR ASHTRAY LIGHT
Go to component: -> Interior lights circuit (2 of 3) -> LEFT REAR READING LIGHT
