Wiring Diagrams for Audi A6 C8 facelift (2022-2024)

Active bodyworks circuit

Automatic a/c circuit, w/ climatronic & rear controls Automatic a/c circuit, w/ climatronic w/o rear controls Automatic a/c circuit, w/o climatronic Auxiliary heater circuit

Anti-lock brakes circuit

Anti-theft circuit

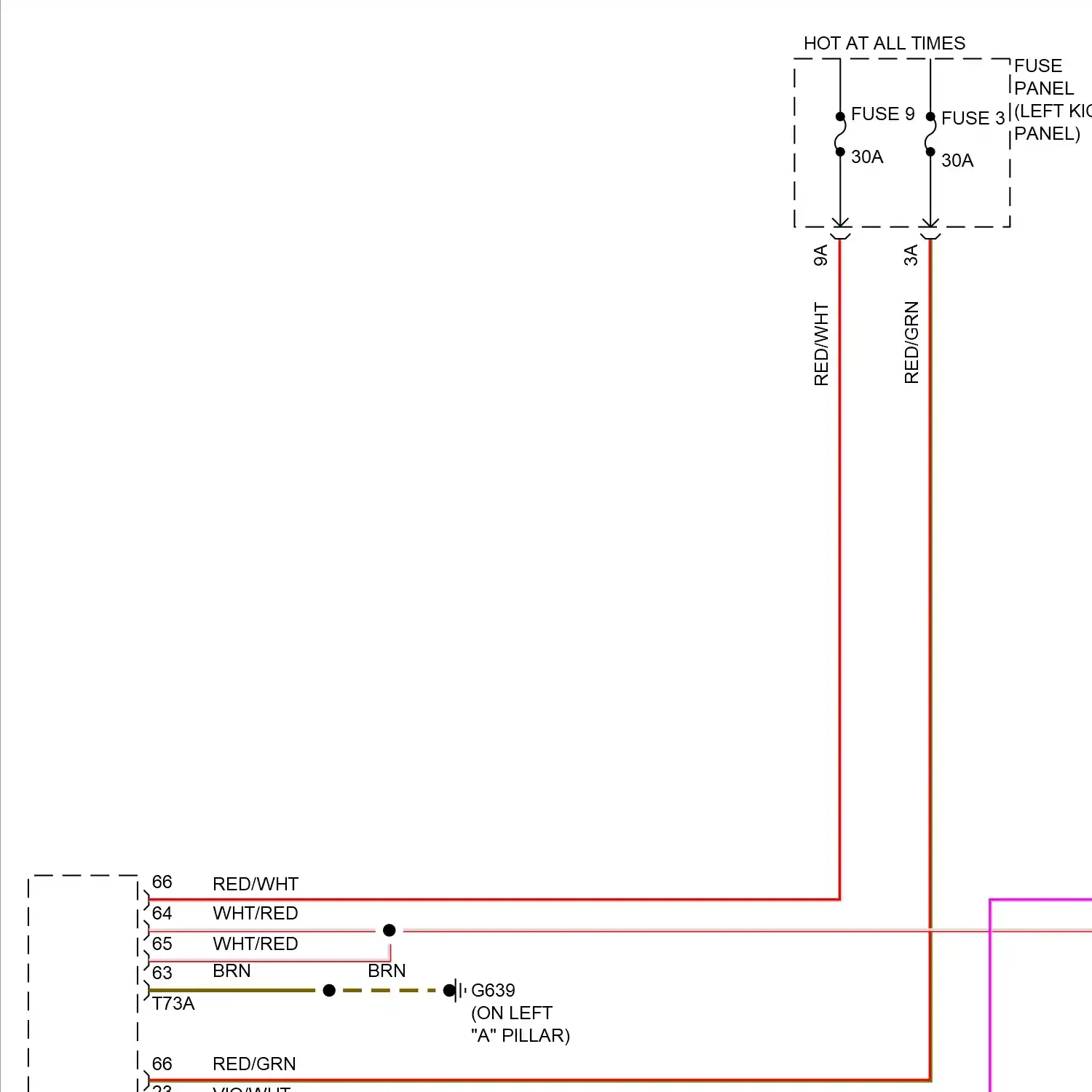

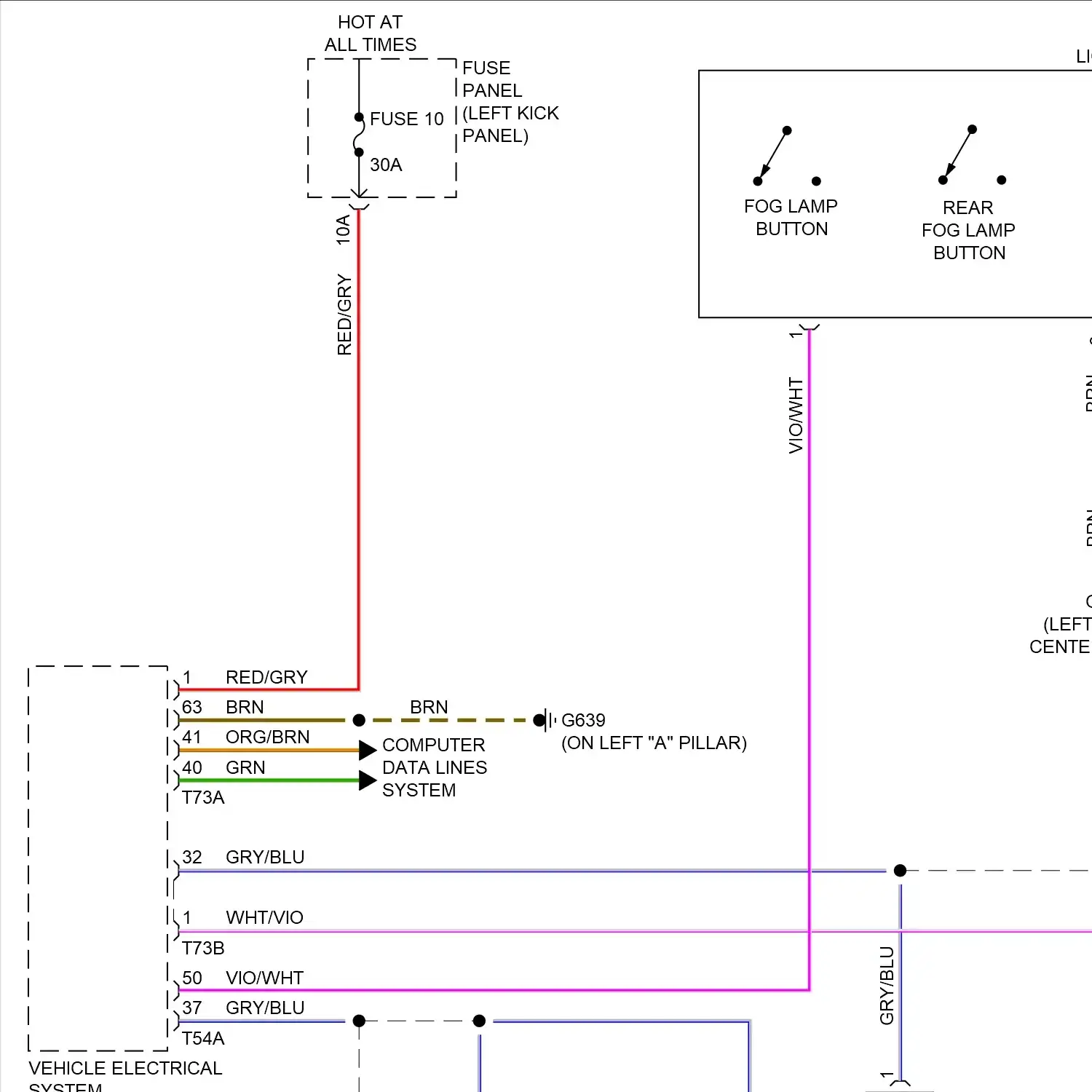

Comfort system central control module circuit Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Heated windshield circuit Rear defogger & heated mirrors circuit

Active steering control module circuit Electromechanical power steering circuit Power tilt steering column circuit Rear axle steering circuit

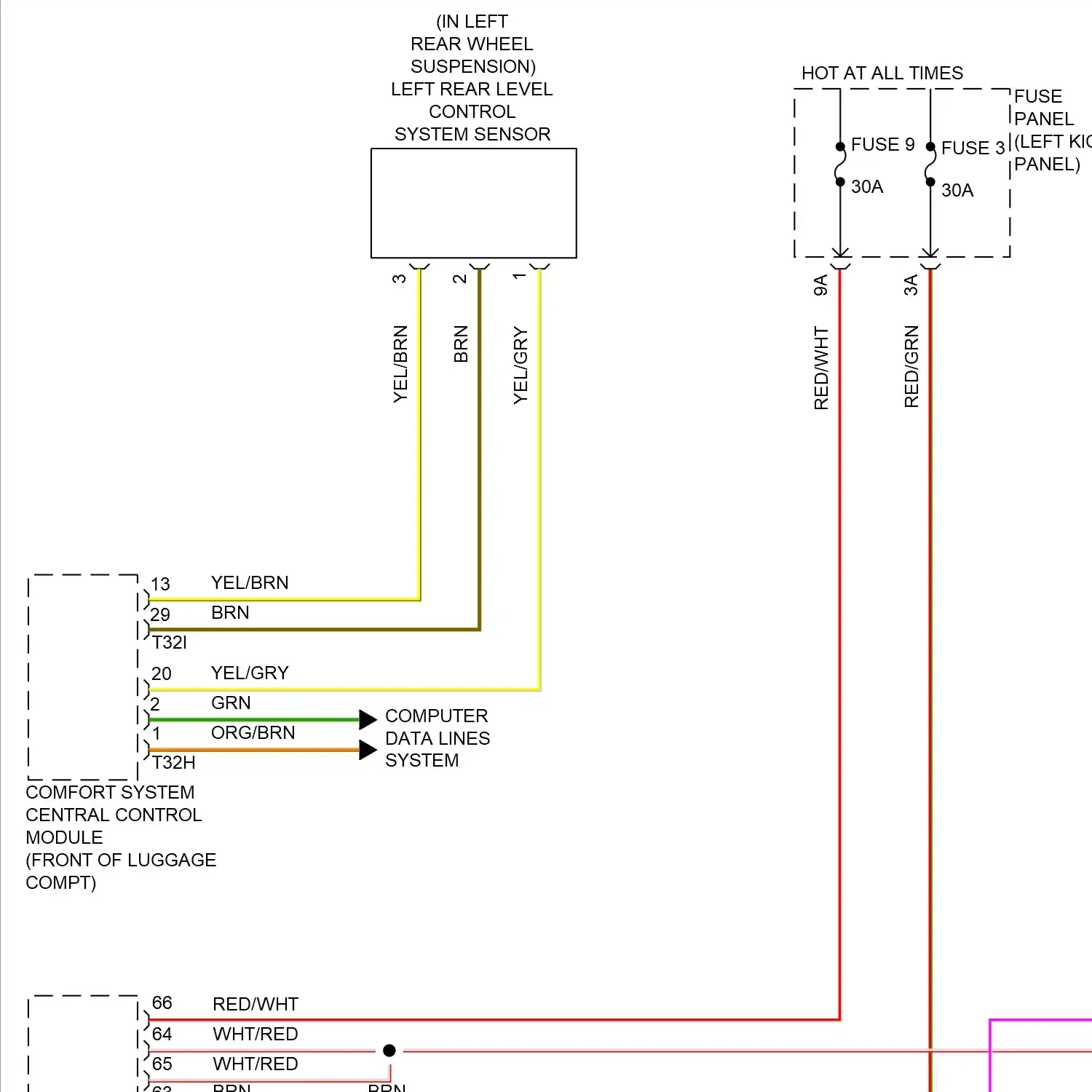

Electronic suspension circuit

Wiring diagram engine performance 3.0l turbo hybrid

Backup lamps circuit Exterior lamps circuit, w/ matrix beam Exterior lamps circuit, w/ multiple matrix beam Exterior lamps circuit, w/o matrix beam

Ground distribution circuit

Headlights circuit, w/ multiple matrix beam Headlights circuit, w/o multiple matrix beam & high beam control Headlights circuit, w/o multiple matrix beam w/ high beam control

Horn circuit

Instrument cluster circuit, w/ fpk active info display Instrument cluster circuit, w/o fpk active info display Night vision circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit, w/ comfort seats Driver"s memory seat circuit, w/o comfort seats Memory mirrors circuit Passenger"s memory seat circuit, w/ comfort seats Passenger"s memory seat circuit, w/o comfort seats Steering column memory circuit

Emergency call circuit, w/ connect plus Emergency call circuit, w/o connect plus Lane change assistance circuit Lane departure warning circuit Navigation circuit, w/ amplifier & bang & olufsen sound Navigation circuit, w/ amplifier w/o bang & olufsen sound Navigation circuit, w/o amplifier Object detection circuit Parking assistant circuit, w/o parallel parking Parking assistant circuit, w/ parallel parking & driver assistance Parking assistant circuit, w/ parallel parking w/o driver assistance Peripheral camera circuit Rear camera circuit

Power distribution circuit

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

Front heated seats circuit, w/o ventilation w/ sport seats Front heated seats circuit, w/o ventilation w/ standard & comfort seats Front heated seats circuit, w/ ventilation Heated steering wheel circuit Lumbar circuit Passenger power seat circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit

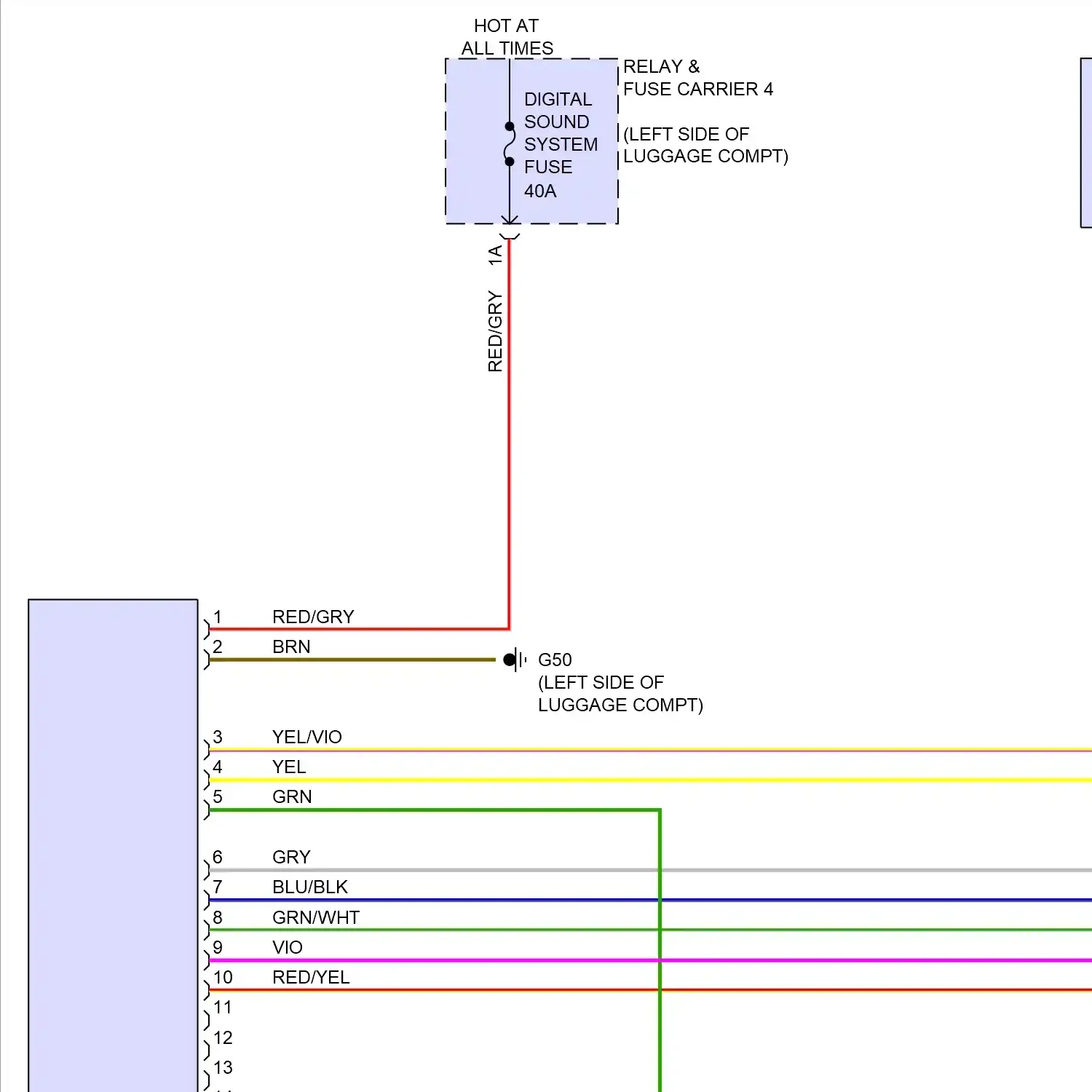

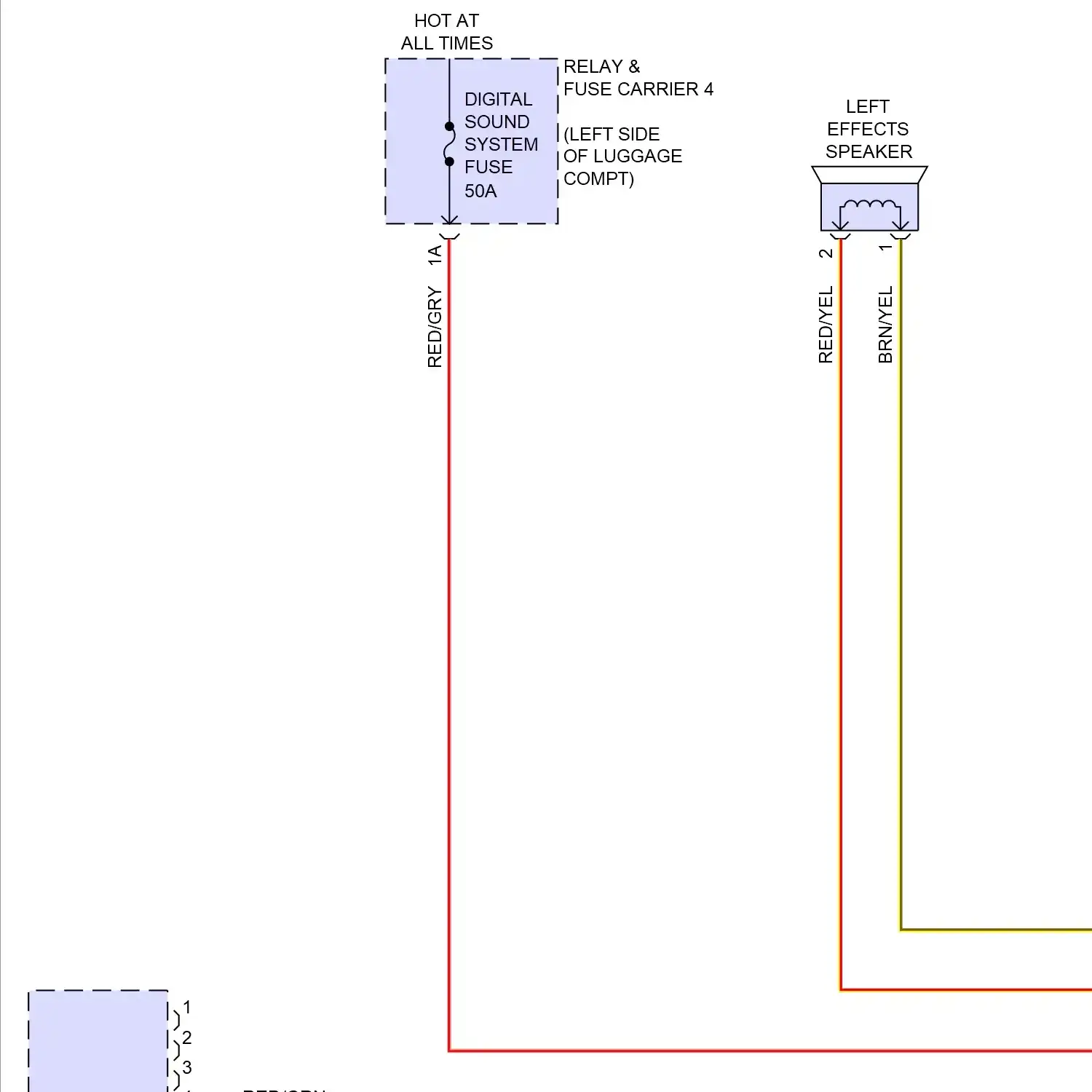

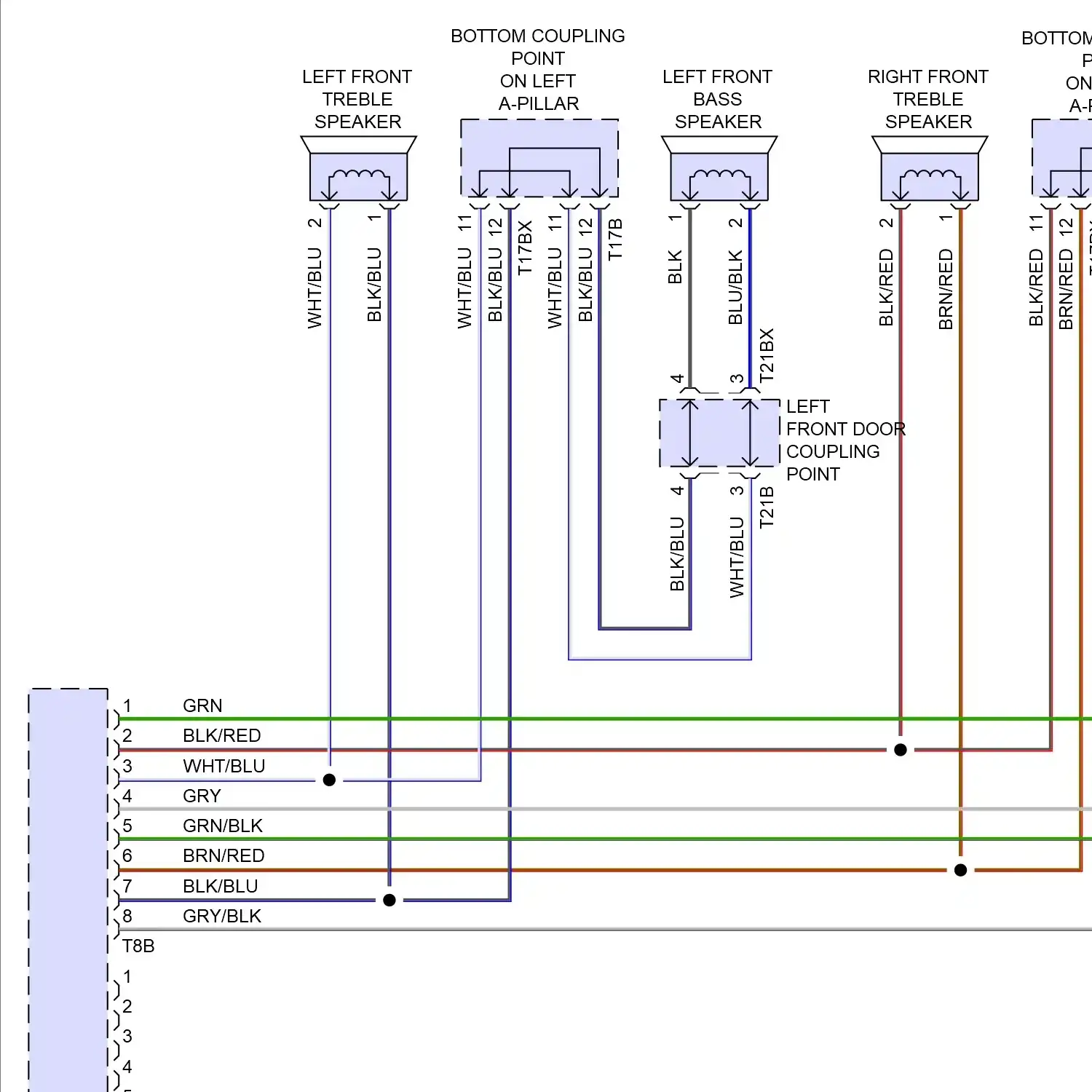

Dvd player circuit Most data bus circuit Radio circuit, w/ amplifier & bang & olufsen sound Radio circuit, w/ amplifier w/o bang & olufsen sound Radio circuit, w/o amplifier Tv tuner circuit

Park brake release circuit Shift interlock circuit Steering column circuit

Charging circuit Starting circuit

Supplemental restraints circuit

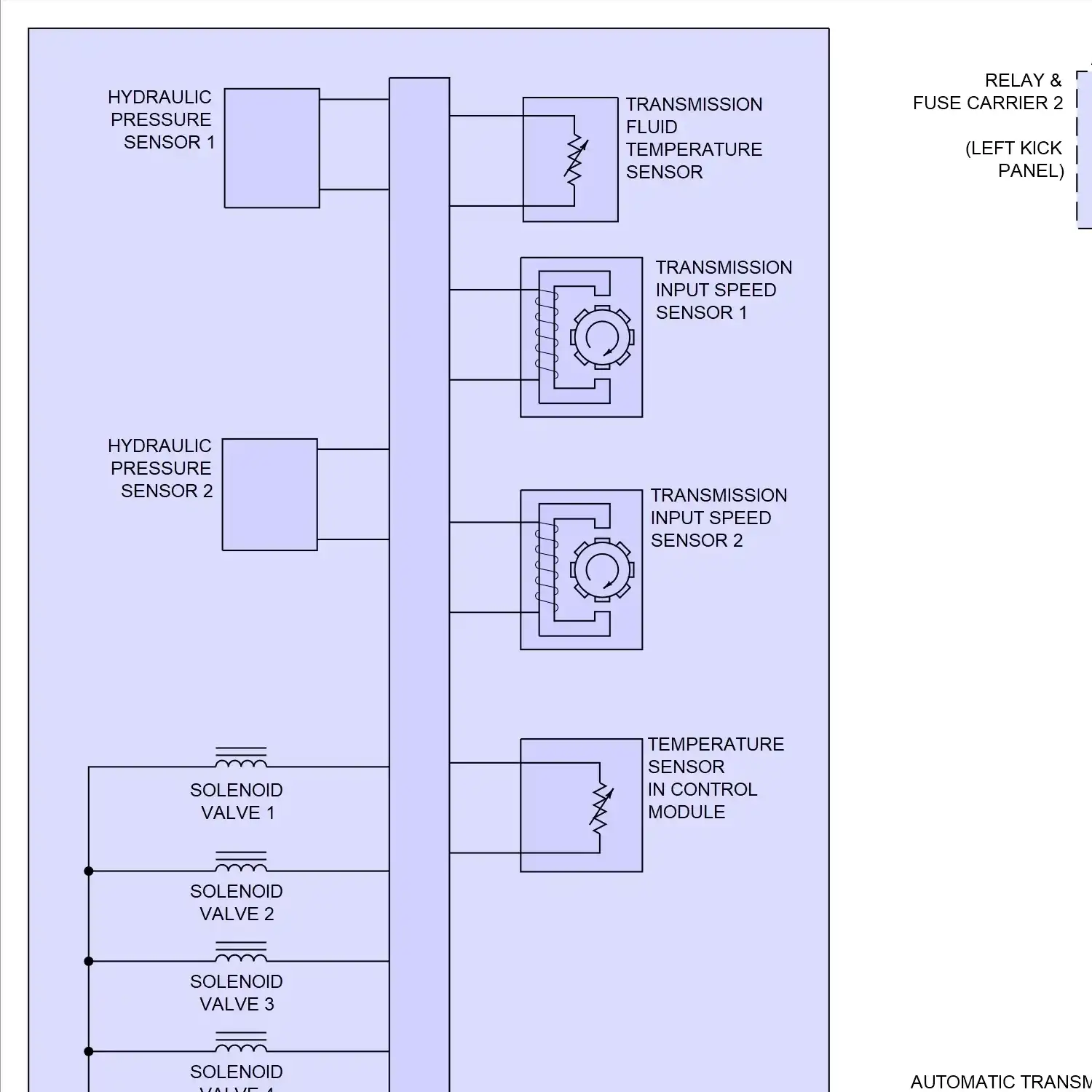

A/t circuit Awd circuit, w/o torque vectoring Awd circuit, w/ torque vectoring

Trunk & fuel door release circuit

Brake wear sensor circuit Chime circuit Tire pressure monitoring circuit

Jet heater circuit Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEM AUXILIARY BATTERY BATTERY INTERRUPT IGNITER BATTERY JUMP START TERMINAL CELLULAR TELEPHONE AMPLIFIER CRANKCASE VENTILATION THERMAL RESISTOR 2 DRIVER SIDE WINDSHIELD WIPER ARM THERMAL RESISTOR 1 FRONT PASSENGER SIDE WINDSHIELD WIPER ARM THERMAL RESISTOR 1 HIGH TONE HORN HIGH-VOLTAGE BATTERY CHARGER 1 IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE IGNITION COIL 7 W/ POWER OUTPUT STAGE IGNITION COIL 8 W/ POWER OUTPUT STAGE LEFT WASHER NOZZLE HEATER LOW TONE HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION STARTER GENERATOR TELEMATICS EMERGENCY BATTERY W/ AMPLIFIER W/O BANG, OLUFSEN SOUND W/ AMPLIFIER, BANG, OLUFSEN SOUND

ACTIVE ACCELERATOR PEDAL MOTOR ACTIVE STEERING MOTOR ACTIVE STEERING SAFETY LOCK ACTUATOR ADAPTER CABLE ENGINE PRE-WIRING COUPLING POINT 1 ADJUSTMENT MOTOR ADJUSTMENT MOTOR 2 ALL WHEEL DRIVE CLUTCH ACTUATOR ALL WHEEL DRIVE CLUTCH ACTUATOR 2 CYLINDER 1 INTAKE CAM ACTUATOR 1 CYLINDER 2 INTAKE CAM ACTUATOR 1 CYLINDER 3 INTAKE CAM ACTUATOR 1 CYLINDER 4 INTAKE CAM ACTUATOR 1 CYLINDER 5 INTAKE CAM ACTUATOR 1 CYLINDER 6 INTAKE CAM ACTUATOR 1 DEFROSTER DOOR MOTOR DRIVER BACKREST ADJUSTMENT MOTOR DRIVER DOOR CENTRAL LOCKING SAFE MOTOR DRIVER DOOR CLOSING AID MOTOR DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SEAT DEPTH ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR DRIVER SIDE CENTRAL LOCKING MOTOR DRIVER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR DRIVER SIDE REAR CHILD SAFETY LOCK MOTOR DRIVER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR DRIVER SIDE REAR DOOR CLOSING AID MOTOR ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM POWER DISTRIBUTION SYSTEM ENGINE CONTROLS, INSTRUMENT CLUSTER SYSTEMS ENGINE COUPLING POINT 2 ENGINE ELECTRONICS IND ENGINE ELECTRONICS IND LAMP ENGINE PRE-WIRING COUPLING POINT 1 ENGINE PRE-WIRING COUPLING POINT 2 ENGINE SOUND GENERATOR ACTUATOR 1 FOLDING MOTOR FRAGRANCE DIFFUSER SYSTEM ACTUATOR FRESH AIR DOOR MOTOR FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER CENTRAL LOCKING SAFE MOTOR FRONT PASSENGER CLOSING AID MOTOR FRONT PASSENGER SEAT ANGLE ADJUSTMENT MOTOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/ BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SIDE CENTRAL LOCKING MOTOR FUEL FILLER DOOR LOCK MOTOR HOT W/ MOTRONIC ENGINE LEFT B-PILLAR/FOOTWELL SHUT-OFF DOOR MOTOR LEFT CENTER VENT MOTOR LEFT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT LEFT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT LEFT ELECTRO-HYDRAULIC ENGINE MOUNT SOLENOID VALVE LEFT FOOTWELL DOOR MOTOR LEFT FRONT TREBLE SPEAKER, MOTOR LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR LEFT PARKING BRAKE MOTOR LEFT REAR AIR DISTRIBUTION MOTOR LEFT REAR AIR DOOR MOTOR LEFT SIDE VENT ADJUSTMENT MOTOR LEFT TEMPERATURE CONTROL DOOR MOTOR LEVEL CONTROL SYSTEM COMPRESSOR MOTOR LUGGAGE COMPARTMENT COVER MOTOR 1 MAP CONTROLLED ENGINE COOLING THERMOSTAT PASSENGER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR PASSENGER SIDE REAR CHILD SAFETY LOCK MOTOR PASSENGER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR PASSENGER SIDE REAR DOOR CLOSING AID MOTOR REAR AIR DISTRIBUTION DOOR MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR REAR LID CLOSING AID MOTOR REAR LID MOTOR 1 REAR LID MOTOR 2 REAR OF ENGINE COMPT) REAR TEMPERATURE CONTROL DOOR MOTOR REAR WINDOW SHADE MOTOR REAR WINDOW WIPER MOTOR RECIRCULATION DOOR MOTOR RIGHT B-PILLAR/FOOTWELL SHUT-OFF DOOR MOTOR RIGHT CENTER VENT MOTOR RIGHT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT RIGHT ELECTRO-HYDRAULIC ENGINE MOUNT SOLENOID VALVE RIGHT FOOTWELL DOOR MOTOR RIGHT FRONT TREBLE SPEAKER, MOTOR RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR AIR DISTRIBUTION MOTOR RIGHT REAR AIR DOOR MOTOR RIGHT SIDE VENT ADJUSTMENT MOTOR RIGHT TEMPERATURE CONTROL DOOR MOTOR STEERING COLUMN FORWARD/BACK ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR

ANTENNA AMPLIFIER ANTENNA AMPLIFIER 2 CLOSE RANGE COMMUNICATION ANTENNA DIGITAL RADIO ANTENNA EMERGENCY CALL MODULE ANTENNA 2 FRONT ACCESS/START AUTHORIZATION ANTENNA GPS ANTENNA INSTRUMENT PANEL LTE ANTENNA 2 LEFT ACCESS/START AUTHORIZATION ANTENNA LTE ANTENNA 1 LTE ANTENNA 2 LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA NEAR FIELD COMMUNICATION ANTENNA 2 RADIO ANTENNA 2 RIGHT ACCESS/START AUTHORIZATION ANTENNA RIGHT REAR BUMPER EMERGENCY CALL MODULE ANTENNA RIGHT REAR BUMPER LTE ANTENNA 1 RIGHT REAR BUMPER LTE ANTENNA 2 ROOF ANTENNA SATELLITE ANTENNA TV ANTENNA 1 TV ANTENNA 2 TV ANTENNA 3 TV ANTENNA AMPLIFIER 2 VEHICLE INTERIOR ACCESS/START SYSTEM ANTENNA 1 VEHICLE INTERIOR COMMUNICATION ANTENNA WINDSHIELD ANTENNA SUPPRESSION FILTER

A/C COMPRESSOR REGULATOR VALVE ACCESS/START AUTHORIZATION BUTTON ASR/ESP BUTTON AUTO HOLD BUTTON AUTOMATIC HIGH BEAM BUTTON AUXILIARY COOLANT HEATER BUTTON DEFROST BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER POWER WINDOW BUTTON DRIVER SEAT MEMORY BUTTON DRIVER SIDE REAR INTERIOR LOCKING BUTTON DRIVER SIDE REAR POWER WINDOW BUTTON DRIVER SIDE REAR WINDOW REGULATOR MOTOR DRIVER WINDOW REGULATOR MOTOR DRIVING PROFILE SELECTION BUTTON ELECTRO- MECHANICAL PARKING BRAKE BUTTON EMERGENCY CALL BUTTON EMERGENCY FLASHER BUTTON EVAP CANISTER PURGE REGULATOR VALVE 1 FOG LAMP BUTTON FRONT INTERIOR LAMP BUTTON FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER MEMORY SEAT BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER SEAT ANGLE ADJUSTMENT BUTTON FRONT PASSENGER WINDOW REGULATOR MOTOR FUEL FILLER DOOR RELEASE BUTTON INTERIOR MONITORING, VEHICLE INCLINATION DEACTIVATION BUTTON LEFT CHILD SAFETY LOCK BUTTON LEFT FRONT READING LAMP BUTTON LEFT SEAT HEATING BUTTON LUGGAGE COMPARTMENT REAR LID LOCK BUTTON MEMORY SEAT POSITION 1 BUTTON MEMORY SEAT POSITION 2 BUTTON MEMORY SEAT POSITIONS 1, 2 BUTTON PARALLEL PARKING ASSISTANCE BUTTON PARKING AID BUTTON PARKING BRAKE BUTTON PASSENGER SIDE REAR INTERIOR LOCKING BUTTON PASSENGER SIDE REAR POWER WINDOW BUTTON PASSENGER SIDE REAR WINDOW REGULATOR MOTOR PUSH BUTTON PUSH BUTTON ILLUMINATION BULB REAR FOG LAMP BUTTON REAR LID HANDLE RELEASE BUTTON REAR LID LOCKING MECHANISM BUTTON REAR LID REMOTE RELEASE BUTTON REAR READING LAMP FRONT BUTTON REAR WINDOW DEFOGGER BUTTON RIGHT CHILD SAFETY LOCK BUTTON RIGHT FRONT READING LAMP BUTTON RIGHT SEAT HEATING BUTTON ROAD SIDE ASSISTANCE BUTTON ROOF SHADE BUTTON 1 STEERING WHEEL HEATING BUTTON SUNROOF BUTTON TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON VALET PARKING LOCK BUTTON WASTEGATE BYPASS REGULATOR VALVE

DRIVER ASSISTANCE SYSTEMS FRONT CAMERA FRONT PERIPHERAL CAMERA LEFT PERIPHERAL CAMERA NIGHT VISION SYSTEM CAMERA REAR PERIPHERAL CAMERA REAR VIEW CAMERA REAR VIEW CAMERA COUPLING POINT REARVIEW CAMERA COUPLING POINT RIGHT PERIPHERAL CAMERA W/ DRIVER ASSISTANCE SYSTEMS FRONT CAMERA W/ MULTI-FUNCTION CAMERA W/O DRIVER ASSISTANCE SYSTEMS FRONT CAMERA W/O MULTI-FUNCTION CAMERA

4-PIN CONNECTOR 4-PIN CONNECTOR IN THE STEERING WHEEL DIAGNOSTIC CONNECTOR LEFT HEADLAMP 2-PIN CONNECTOR LEFT HEADLAMP 4 PIN CONNECTOR LEFT HEADLAMP 8-PIN CONNECTOR LEFT HEADLAMP 12 PIN CONNECTOR LEFT HEADLAMP 16-PIN CONNECTOR LEFT HEADLAMP 24-PIN CONNECTOR RIGHT HEADLAMP 2-PIN CONNECTOR RIGHT HEADLAMP 4 PIN CONNECTOR RIGHT HEADLAMP 8-PIN CONNECTOR RIGHT HEADLAMP 12 PIN CONNECTOR RIGHT HEADLAMP 16-PIN CONNECTOR RIGHT HEADLAMP 24-PIN CONNECTOR SOCKET ILLUMINATION BULB STEERING WHEEL 4-PIN CONNECTOR

ABS CONTROL MODULE ABS CONTROL MODULE FUSE 1 ABS CONTROL MODULE FUSE 2 ACTIVE STEERING CONTROL MODULE ADAPTIVE CRUISE CONTROL MODULE AIR BAG CONTROL MODULE ALL- WHEEL DRIVE CONTROL MODULE ASSEMBLY MOUNT CONTROL MODULE AUTOMATIC HIGH BEAM ASSIST CONTROL MODULE AUTOMATIC TRANSMISSION CONTROL MODULE FUSE AUXILIARY HEATER CONTROL MODULE BATTERY MONITORING CONTROL MODULE BRAKE BOOSTER CONTROL MODULE CLOSE RANGE COMMUNICATION CONTROL MODULE CLOSE RANGE COMMUNICATION CONTROL MODULE 2 COMFORT SYSTEM CENTRAL CONTROL MODULE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED DIFFERENTIAL LOCK CONTROL MODULE DIGITAL SOUND SYSTEM CONTROL MODULE DISPLAY UNIT INSTRUMENT CLUSTER CONTROL MODULE DRIVER ASSISTANCE SYSTEMS CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER SIDE REAR DOOR CONTROL MODULE DRIVETRAIN CONTROL MODULE ELECTRIC COMPRESSOR CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION CONTROL MODULE UNIT EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE SOUND GENERATOR CONTROL MODULE ENGINE/ MOTOR CONTROL MODULE ENGINE/MOTOR CONTROL MODULE FRAGRANCE DIFFUSER SYSTEM CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER MEMORY SEAT CONTROL MODULE FUEL PUMP CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE IONIZER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LASER DISTANCE REGULATION CONTROL MODULE LEFT FRONT SEAT BELT TENSIONER CONTROL MODULE LEFT REAR SEAT BELT TENSIONER CONTROL MODULE MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MULTI-FUNCTION STEERING WHEEL CONTROL MODULE NEAR FIELD COMMUNICATION CONTROL MODULE NEAR FIELD COMMUNICATION CONTROL MODULE 2 NIGHT VISION SYSTEM CONTROL MODULE PASSENGER SIDE REAR DOOR CONTROL MODULE POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE POWER REAR LID OPENING CONTROL MODULE POWER STEERING CONTROL MODULE RADIATOR FAN CONTROL MODULE RADIATOR FAN CONTROL MODULE 2 REAR AXLE STEERING CONTROL MODULE REAR LID CONTROL MODULE REAR SUNROOF CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE SHIELD RIGHT FRONT SEAT BELT TENSIONER CONTROL MODULE RIGHT REAR SEAT BELT TENSIONER CONTROL MODULE ROOF ANTENNA CONTROL MODULE ROOF ELECTRONICS CONTROL MODULE SEAT OCCUPANT DETECTION SYSTEM CONTROL MODULE SPIRAL SPRING STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE STRUCTURE BORNE SOUND CONTROL MODULE SUNROOF CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE W/ STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE W/O STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE WINDSHIELD DEFOGGER CONTROL MODULE WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE WINDSHIELD WASHER PUMP CONTROL MODULE WINDSHIELD WIPER MOTOR WIPER MOTOR CONTROL MODULE WIPER MOTOR CONTROL MODULE

CONTROL UNIT) DISPLAY UNIT DRIVER DOOR LOCK UNIT DRIVER SIDE REAR DOOR LOCK UNIT DRIVING, CONVENIENCE FUNCTIONS CONTROL UNIT 1 EXHAUST DOOR CONTROL UNIT EXHAUST DOOR CONTROL UNIT 2 FRAGRANCE DIFFUSER SYSTEM FUNCTIONAL UNIT FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR LOCK UNIT FRONT ROOF MODULE MICROPHONE UNIT FUEL DELIVERY UNIT FUEL DELIVERY UNIT SHIELD LUGGAGE COMPARTMENT COVER DRIVE UNIT PASSENGER SIDE REAR DOOR LOCK UNIT REAR LID DRIVE UNIT REAR LID DRIVE UNIT 2 REAR LID LOCK UNIT

AUXILIARY HEATER FUSE AUXILIARY HEATER FUSE 2 DIGITAL SOUND SYSTEM FUSE ENGINE ELECTRONICS FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE PANEL A FUSE PANEL B FUSE PANEL C FUSE PANEL D FUSE PANEL E FUSE PANEL F FUSE PANEL G FUSE PANEL H FUSE PANEL J FUSE PANEL M FUSE PANEL N RADIATOR FAN FUSE RADIATOR FAN SECOND SPEED FUSE REAR WINDOW DEFOGGER FUSE SELF-LEVELING SUSPENSION FUSE

AUXILIARY AIR HEATER HEATING ELEMENT AUXILIARY HEATER HEATING ELEMENT DRIVER BACKREST HEATING ELEMENT DRIVER SEAT BOLSTER HEATER DRIVER SEAT HEATING ELEMENT FRONT HEATING, AIR CONDITIONING COUPLING POINT FRONT PASSENGER BACKREST HEATING ELEMENT FRONT PASSENGER SEAT BOLSTER HEATER FRONT PASSENGER SEAT HEATING ELEMENT LEFT REAR BACKREST HEATING ELEMENT LEFT REAR BENCH SEAT HEATING ELEMENT POSITIVE CRANKCASE VENTILATION HEATING ELEMENT RIGHT REAR BACKREST HEATING ELEMENT RIGHT REAR BENCH SEAT HEATING ELEMENT W/ AUXILIARY HEATER

ABS INDICATOR AIR BAG INDICATOR LAMP BRAKE SYSTEM INDICATOR CENTER LOCKING- SAFE- INDICATOR LAMP CENTRAL LOCKING SAFE INDICATOR LAMP CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP DRIVER SIDE INDICATOR LAMP EMERGENCY FLASHER INDICATOR FOG LAMP INDICATOR LAMP FRONT PASSENGER AIR BAG DISABLED INDICATOR LAMP FRONT PASSENGER SIDE MEMORY SEAT INDICATOR LAMP INDICATOR LAMP INTERIOR MONITORING- OFF-INDICATOR LAMP LANE CHANGE ASSISTANCE INDICATOR LAMP LEFT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP LEFT REAR INTERIOR LOCKING INDICATOR LAMP LEFT TURN SIGNAL INDICATOR PARALLEL PARKING ASSISTANCE INDICATOR LAMP PARKING AID INDICATOR LAMP PARKING BRAKE INDICATOR REAR FOG LAMP INDICATOR LAMP RIGHT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP RIGHT EMERGENCY FLASHER INDICATOR RIGHT REAR INTERIOR LOCKING INDICATOR LAMP VALET PARKING INDICATOR LAMP

CENTER CONSOLE CONTOUR ILLUMINATION LAMP 1 CENTER CONSOLE CONTOUR ILLUMINATION LAMP 2 CENTER INSTRUMENT PANEL VENT ILLUMINATION BULB CENTER REAR SEAT BELT LATCH LAMP CIGARETTE LIGHTER ILLUMINATION BULB DRIVER EXIT WARNING LAMP DRIVER SIDE DOOR AMBIENT LIGHTING LAMP DRIVER SIDE ENTRY LAMP DRIVER SIDE EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR DOOR AMBIENT LIGHT LAMP DRIVER SIDE REAR ENTRY LAMP DRIVER SIDE REAR EXIT WARNING LAMP DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER VANITY MIRROR LAMP FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 2 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 3 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 4 FRONT PASSENGER EXIT WARNING LAMP FRONT PASSENGER EXTERIOR DOOR HANDLE ILLUMINATION LAMP FRONT PASSENGER SIDE DOOR CONTOUR ILLUMINATION LAMP FRONT PASSENGER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP FRONT PASSENGER VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH-MOUNTED BRAKE LAMP HIGH-MOUNTED BRAKE LAMP SUPPRESSOR ILLUMINATION BULB INSTRUMENT PANEL AMBIENT LIGHTING LAMP 1 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 2 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 3 INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 1 INTERIOR LIGHTS, NAVIGATION SYSTEMS LANE CHANGE ASSISTANCE WARNING LAMP LEFT BACKUP LAMP LEFT BRAKE LAMP/TURN SIGNAL LAMP LEFT BRAKE LAMP/TURN SIGNAL LAMP 2 LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP LEFT FRONT DOOR CONTOUR ILLUMINATION LAMP LEFT FRONT FOOTWELL ILLUMINATION BULB LEFT FRONT READING LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB LEFT LICENSE PLATE LAMP LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR AIR VENT ILLUMINATION BULB LEFT REAR DOOR AMBIENT LIGHTING BULB 1 LEFT REAR DOOR CONTOUR ILLUMINATION LAMP LEFT REAR DOOR CONTOUR ILLUMINATION LAMP 2 LEFT REAR FOOTWELL LAMP LEFT REAR READING LAMP LEFT STATIONARY CORNERING LAMP LEFT TAIL LAMP LEFT TAIL LAMP 2 PASSENGER SIDE DOOR AMBIENT LIGHTING LAMP PASSENGER SIDE ENTRY LAMP PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR DOOR AMBIENT LIGHT LAMP PASSENGER SIDE REAR ENTRY LAMP PASSENGER SIDE REAR EXIT WARNING LAMP PASSENGER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR SEAT BELT LATCH LAMP PASSENGER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP REAR CENTER AIR VENT ILLUMINATION BULB REAR DRIVER SIDE SEAT BELT LATCH LAMP REAR LID LAMP RIGHT BACKUP LAMP RIGHT BRAKE LAMP/TURN SIGNAL LAMP RIGHT BRAKE LAMP/TURN SIGNAL LAMP 2 RIGHT CENTER ARMREST ILLUMINATION BULB RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP RIGHT FRONT FOOTWELL ILLUMINATION BULB RIGHT FRONT READING LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB RIGHT LICENSE PLATE LAMP RIGHT LUGGAGE COMPARTMENT LAMP RIGHT REAR AIR VENT ILLUMINATION BULB RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 RIGHT REAR DOOR CONTOUR ILLUMINATION LAMP RIGHT REAR DOOR CONTOUR ILLUMINATION LAMP 2 RIGHT REAR FOOTWELL LAMP RIGHT REAR READING LAMP RIGHT STATIONARY CORNERING LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP 2 TURN SIGNAL BULB TURN SIGNAL LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP ALL WHEEL DRIVE PUMP CHARGE AIR COOLING PUMP COOLANT RECIRCULATION PUMP HEADLAMP WASHER SYSTEM PUMP REAR WINDOW WASHER PUMP RECIRCULATION PUMP RECIRCULATION PUMP 5 STARTER/ GENERATOR COOLANT PUMP TRANSFER FUEL PUMP TRANSMISSION ELECTRIC PUMP 2 TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP TRANSMISSION FLUID COOLING PUMP WINDSHIELD WASHER PUMP

ENGINE COMPONENT POWER SUPPLY RELAY HIGH HEAT OUTPUT RELAY HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED LOW HEAT OUTPUT RELAY REAR WINDOW DEFOGGER RELAY RELAY & FUSE CARRIER 1 RELAY & FUSE CARRIER 2 RELAY & FUSE CARRIER 4 RELAY & FUSE CARRIER 4 REAR WINDOW DEFOGGER RELAY REMOTE START A/C RELAY STARTER RELAY 1 STARTER RELAY 1 RELAY & FUSE CARRIER 1 STARTER RELAY 2 TERMINAL 15 POWER SUPPLY RELAY

A/C SYSTEM PARTICULATE MATTER CONCENTRATION SENSOR ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 2 ACTIVE STEERING MOTOR ROTOR POSITION SENSOR ADAPTIVE CRUISE CONTROL RADAR SENSOR HEATING ELEMENT AIR QUALITY SENSOR ALL WHEEL DRIVE CLUTCH POSITION SENSOR ANTI-THEFT ALARM SYSTEM SENSOR BRAKE LAMP POSITION SENSOR BRAKE LAMP SWITCH BRAKE PEDAL POSITION SENSOR BRAKE PEDAL POSITION SENSOR CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 2 CAMSHAFT POSITION SENSOR 3 CAMSHAFT POSITION SENSOR 4 CHARGE AIR PRESSURE SENSOR DRIVE POSITION SENSOR DRIVE SHAFT SPEED SENSOR DRIVER BACKREST ADJUSTMENT SENSOR DRIVER BACKREST ADJUSTMENT SENSOR, DRIVER BACKREST ADJUSTMENT MOTOR DRIVER FRONT AIR BAG CRASH SENSOR DRIVER SEAT DEPTH ADJUSTMENT SENSOR, DRIVER SEAT DEPTH ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT SENSOR DRIVER SEAT HEIGHT ADJUSTMENT SENSOR DRIVER SEAT HEIGHT ADJUSTMENT SENSOR, DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT POSITION SENSOR DRIVER SEAT TILT ADJUSTMENT SENSOR DRIVER SEAT TILT ADJUSTMENT SENSOR, DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SIDE REAR SEAT OCCUPANT DETECTION SENSOR DRIVER SIDE REAR SEAT TEMPERATURE SENSOR DRIVER SIDE REAR THORAX AIR BAG CRASH SENSOR DRIVER THORAX AIR BAG CRASH SENSOR ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ON ENGINE ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET ENGINE COVER TEMPERATURE SENSOR ENGINE SPEED SENSOR ENGINE TEMPERATURE CONTROL SENSOR ENGINE TEMPERATURE SENSOR EPC THROTTLE DRIVE ANGLE SENSOR 1 EPC THROTTLE DRIVE ANGLE SENSOR 2 EVAPORATOR VENT TEMPERATURE SENSOR EXTERIOR AIR QUALITY, HUMIDITY SENSOR FRAGRANCE DIFFUSER SYSTEM TEMPERATURE SENSOR FRONT PASSENGER BACKREST ADJUSTMENT SENSOR FRONT PASSENGER POSITION SENSOR FRONT PASSENGER SEAT ANGLE ADJUSTMENT SENSOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT SENSOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT SENSOR FRONT PASSENGER SEAT HEATING ELEMENT/PASSENGER SEAT OCCUPANT DETECTION SENSOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT PASSENGER SEAT TEMPERATURE SENSOR FRONT PASSENGER THORAX AIR BAG CRASH SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 FUEL PRESSURE SENSOR GEAR POSITION DISTANCE SENSOR 1 GEAR POSITION DISTANCE SENSOR 2 GEAR POSITION DISTANCE SENSOR 3 GEAR POSITION DISTANCE SENSOR 4 HEATED OXYGEN SENSOR HEATED STEERING WHEEL SENSOR HEATER OXYGEN SENSOR HEATING ELEMENT ADAPTIVE CRUISE CONTROL RADAR SENSOR HIGH PRESSURE SENSOR HORIZONTAL POSITION SENSOR HUMIDITY SENSOR HYDRAULIC PRESSURE SENSOR 1 HYDRAULIC PRESSURE SENSOR 2 INSTRUMENT PANEL TEMPERATURE SENSOR INTAKE AIR TEMPERATURE SENSOR INTERIOR MONITORING SENSOR, VEHICLE INCLINATION SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT CENTER VENT POSITION SENSOR LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT FRONT SEAT TEMPERATURE SENSOR DRIVER SEAT HEATING ELEMENT LEFT FRONT TIRE PRESSURE MONITORING SENSOR, ANTENNA LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR LEFT HEADLAMP TEMPERATURE SENSOR 1 LEFT HEADLAMP TEMPERATURE SENSOR 2 LEFT HEADLAMP TEMPERATURE SENSOR 3 LEFT HEADLAMP TEMPERATURE SENSOR 4 LEFT HEADLAMP TEMPERATURE SENSOR 5 LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR BRAKE PAD WEAR SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT REAR FOOTWELL VENT TEMPERATURE SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR LEFT REAR TIRE PRESSURE MONITORING SENSOR, ANTENNA LEFT REAR UPPER BODY VENT POSITION SENSOR LEFT REAR UPPER BODY VENT TEMPERATURE SENSOR LEFT REAR WINDOW BREAKAGE SENSOR LEFT SIDE VENT POSITION SENSOR LEVEL CONTROL PRESSURE SENSOR LIGHT RECOGNITION SENSOR LOW FUEL PRESSURE SENSOR LUGGAGE COMPARTMENT COVER SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR OIL LEVEL THERMAL SENSOR OIL PRESSURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR 2 OIL TEMPERATURE SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN SENSOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER OXYGEN SENSOR HEATER PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR PASSENGER SIDE FRONT AIR BAG CRASH SENSOR PASSENGER SIDE REAR SEAT OCCUPANT DETECTION SENSOR PASSENGER SIDE REAR SEAT TEMPERATURE SENSOR PASSENGER SIDE REAR THORAX AIR BAG CRASH SENSOR RAIN/LIGHT RECOGNITION SENSOR REAR AXLE STEERING SENSOR 1, REAR AXLE STEERING SENSOR 2 REAR BUMPER POWER REAR LID OPENING SENSOR REAR BUMPER POWER REAR LID OPENING SENSOR 2 REAR CENTER SEAT OCCUPANT DETECTION SENSOR REAR LID MOTOR 1 SENSOR REAR LID MOTOR 1 SENSOR 2 RIGHT CENTER VENT POSITION SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT BRAKE PAD WEAR SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR RIGHT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT FRONT TIRE PRESSURE MONITORING SENSOR, ANTENNA RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR RIGHT HEADLAMP TEMPERATURE SENSOR 1 RIGHT HEADLAMP TEMPERATURE SENSOR 2 RIGHT HEADLAMP TEMPERATURE SENSOR 3 RIGHT HEADLAMP TEMPERATURE SENSOR 4 RIGHT HEADLAMP TEMPERATURE SENSOR 5 RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT REAR FOOTWELL VENT TEMPERATURE SENSOR RIGHT REAR LEVEL CONTROL SYSTEM SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR RIGHT REAR TIRE PRESSURE MONITORING SENSOR, ANTENNA RIGHT REAR UPPER BODY VENT POSITION SENSOR RIGHT REAR UPPER BODY VENT TEMPERATURE SENSOR RIGHT SIDE VENT POSITION SENSOR SEAT DEPTH ADJUSTMENT SENSOR SELECTOR LEVER POSITION SENSOR SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SENSOR 1 SENSOR 2 STEERING ANGLE SENSOR STEERING COLUMN AXIAL ADJUSTMENT SENSOR STEERING COLUMN VERTICAL ADJUSTMENT SENSOR STEERING TORQUE SENSOR TANK VENTILATION PRESSURE SENSOR 1 TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP ROTOR POSITION SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR 2 TRANSMISSION INPUT SPEED SENSOR 1 TRANSMISSION INPUT SPEED SENSOR 2 TRANSVERSE SELECTOR LEVER LOCK SENSOR VERTICAL POSITION SENSOR WINDOW DEFOGGER FOR FRONT SENSOR SYSTEM WINDOW DEFOGGER FRONT SENSOR SYSTEM WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER SPEAKER CENTER SPEAKER 2 DRIVER SIDE DOOR SPEAKER TRIM LAMP DRIVER SIDE REAR DOOR SPEAKER TRIM LAMP DUAL SUBWOOFER SPEAKER 1 DUAL SUBWOOFER SPEAKER 2 EMERGENCY CALL MODULE SPEAKER LEFT EFFECTS SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT MIDRANGE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT FRONT TREBLE SPEAKER 2 LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER LEFT REAR TREBLE SPEAKER 2 PASSENGER SIDE DOOR SPEAKER TRIM LAMP PASSENGER SIDE REAR DOOR SPEAKER TRIM LAMP RIGHT EFFECTS SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT FRONT TREBLE SPEAKER +2 RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER RIGHT REAR TREBLE SPEAKER 2

ALARM SYSTEM DEACTIVATION SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LAMP SWITCH BRAKE PEDAL SWITCH CENTER CONSOLE SWITCH MODULE 1 CENTER INSTRUMENT PANEL SWITCH MODULE CENTER SECOND ROW SEAT BELT SWITCH CENTER SWITCH MODULE CRUISE CONTROL SWITCH DRIVER BACKREST ADJUSTMENT SWITCH DRIVER DOOR CONTACT SWITCH DRIVER DOOR EMERGENCY UNLOCK SWITCH DRIVER LOCK CYLINDER CONTACT SWITCH DRIVER SEAT ANGLE ADJUSTMENT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT FORWARD/BACK ADJUSTMENT SWITCH DRIVER SEAT HEIGHT ADJUSTMENT SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT SWITCH MODULE DRIVER SIDE EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE INTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR DOOR CONTACT SWITCH DRIVER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH DRIVER SIDE REAR EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR INTERIOR DOOR HANDLE SWITCH DRIVER SIDE SECOND ROW SEAT BELT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVER'S SEAT LUMBER SUPPORT ADJUSTMENT SWITCH DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 ENGINE HOOD CONTACT SWITCH FRONT PASSENGER BACKREST ADJUSTMENT SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER DOOR EMERGENCY UNLOCK SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER EXTERIOR DOOR HANDLE SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT SWITCH FRONT PASSENGER SEAT HEIGHT ADJUSTMENT SWITCH FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER SEAT LUMBER SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER SEAT SWITCH MODULE FRONT PASSENGER SIDE INTERIOR DOOR HANDLE SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HOOD CONTACT SWITCH 2 LEFT REAR READING LAMP SWITCH LIGHT SWITCH LOCK PAWL CONTACT SWITCH MECHANICAL COOLANT PUMP SWITCH VALVE MIRROR ADJUSTING SWITCH MIRROR SELECTOR SWITCH OIL PRESSURE SWITCH PASSENGER SIDE REAR DOOR CONTACT SWITCH PASSENGER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH PASSENGER SIDE REAR EXTERIOR DOOR HANDLE SWITCH PASSENGER SIDE REAR INTERIOR DOOR HANDLE SWITCH PASSENGER SIDE SECOND ROW SEAT BELT SWITCH REAR LID CONTACT SWITCH RIGHT REAR READING LAMP SWITCH STEERING COLUMN ADJUSTMENT SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD WIPER SWITCH

ALL WHEEL DRIVE CLUTCH VALVE ALL WHEEL DRIVE CLUTCH VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 BANK 1 RECIRCULATION VALVE CAMSHAFT ADJUSTMENT VALVE 1 CAMSHAFT ADJUSTMENT VALVE 2 CRANKCASE VENTILATION VALVE CYLINDER BLOCK COOLANT VALVE DRIVER AIR BAG RELEASE VALVE IGNITER DRIVER SEAT VALVE BLOCK 1 DRIVER SEAT VALVE BLOCK 2 ELECTRICAL COMPRESSOR BYPASS DOOR VALVE EXHAUST CAMSHAFT ADJUSTMENT VALVE 1 EXHAUST CAMSHAFT ADJUSTMENT VALVE 2 FRONT PASSENGER SEAT VALVE BLOCK 1 FRONT PASSENGER SEAT VALVE BLOCK 2 FUEL METERING VALVE LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT DAMPING ADJUSTMENT VALVE LEFT FRONT SUSPENSION STRUT VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR DAMPING ADJUSTMENT VALVE LEFT REAR SUSPENSION STRUT VALVE LEVEL CONTROL ACCUMULATOR VALVE LEVEL CONTROL SYSTEM SOLENOID OIL PRESSURE REGULATION VALVE PARKING LOCK SOLENOID PISTON COOLING NOZZLE CONTROL VALVE RELEASE VALVE IGNITER RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT DAMPING ADJUSTMENT VALVE RIGHT FRONT SUSPENSION STRUT VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR DAMPING ADJUSTMENT VALVE RIGHT REAR SUSPENSION STRUT VALVE SHIFT LOCK SOLENOID SOLENOID VALVE 1 SOLENOID VALVE 2 SOLENOID VALVE 3 SOLENOID VALVE 4 SOLENOID VALVE 5 SOLENOID VALVE 6

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/ BRN WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BLU/YEL) VIO/WHT WIRE BRN BLU/ WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/VIO WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PNK/WHT WIRE RED WIRE RED) WHT/GRY WIRE RED/BLK WIRE RED/BLU WIRE RED/BLU) BLK/GRN WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE TERMINAL 30 WIRE JUNCTION TERMINAL 30 WIRE JUNCTION SUPPRESSOR VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT BRN WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE WIRE JUNCTION YEL WIRE YEL) VIO/WHT WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L TURBO 2.9L TURBO HYBRID 2.9L TURBO HYBRID, 3.0L TURBO HYBRID 2.9L TURBO HYBRID, 4.0L TURBO HYBRID 3.0L TURBO HYBRID 3.0L TURBO HYBRID, 2.9L TURBO HYBRID 4.0L TURBO HYBRID 4.0L TURBO HYBRID, 3.0L TURBO HYBRID 7 SPEED A/T 8 SPEED A/T 8-SPEED A/T 7-SPEED A/T (OR A/C CLUTCH A/C COMPRESSOR ABS IND. AIR BAG IND AIR CONDITIONING SYSTEM AUDIO MUSIC INTERFACE AUTO- HOLD AUTOMATIC DAY/NIGHT MIRROR CIRCUIT AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR AUTOMATIC TRANSMISSION COUPLING POINT AUXILIARY DISPLAY CONTROL HEAD 1 AUXILIARY DISPLAY CONTROL HEAD 1 WIRELESS CONTROL HEAD 1 BOTTOM COUPLING POINT ON LEFT A-PILLAR BOTTOM COUPLING POINT ON RIGHT A-PILLAR BRAKE BOOSTER BRAKE SYSTEM IND CENTER COUPLING POINT ON INSTRUMENT PANEL CENTER REAR OF LUGGAGE COMPT) CHARGING CIRCUIT CIGARETTE LIGHTER COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM COUPLING POINT 2 IN LEFT FRONT DOOR COUPLING POINT 2 IN RIGHT FRONT DOOR COUPLING POINT IN LEFT REAR DOOR COUPLING POINT IN LEFT REAR SEAT COUPLING POINT IN RIGHT REAR DOOR COUPLING POINT IN RIGHT REAR SEAT COUPLING POINT IN THE LEFT FRONT DOOR COUPLING POINT IN THE LEFT REAR DOOR COUPLING POINT IN THE RIGHT FRONT DOOR COUPLING POINT IN THE RIGHT REAR DOOR COUPLING POINT ON LEFT FRONT BUMPER COUPLING POINT ON LEFT REAR BUMPER COUPLING POINT ON ROOF COUPLING STATION IN LEFT FRONT SEAT COUPLING STATION IN RIGHT FRONT SEAT CRUISE CONTROL IND CRUISE CONTROL SYSTEM CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 FUEL INJECTOR DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DIMMING EXTERIOR REAR VIEW MIRROR DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVE ANGLE DRIVER AIR BAG IGNITER DRIVER ASSISTANCE SYSTEM IND DRIVER BELT FORCE LIMITER DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER HEATED SEAT EXTENSION DRIVER KNEE AIR BAG IGNITER DRIVER MULTI-CONTOUR SEAT COMPRESSOR DRIVER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER SEAT ADJUSTMENT CONTROL HEAD DRIVER SEAT BACKREST BLOWER FAN DRIVER SEAT BACKREST COUPLING POINT DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER SEAT BELT TENSIONER IGNITER 2 DRIVER SEAT COUPLING POINT DRIVER SEAT CUSHION BLOWER FAN DRIVER SEAT MEMORY SETTINGS CONTROL HEAD DRIVER SIDE IONIZER DRIVER SIDE REAR DOOR DRIVER SIDE REAR DOOR CONTROL HEAD DRIVER SIDE REAR SEAT BELT TENSIONER IGNITER DRIVER SIDE REAR THORAX AIR BAG IGNITER DRIVER THORAX AIR BAG IGNITER DRIVER VOLUME CONTROL DRIVER'S DOOR HANDLE DRIVER'S FRONT DOOR) DRIVING, CONVENIENCE DUAL SEAT BELT LATCH DVD PLAYER ELECTRIC DRIVE POWER, CONTROL ELECTRONICS ELECTRO- MECHANICAL ELECTRONIC POWER STEERING SYSTEM ELECTRONICS ELECTRIC POWER DRIVE EPC THROTTLE EPC THROTTLE DRIVE EXCEPT 2.0L TURBO EXCEPT 2.9L TURBO HYBRID EXCEPT 4.0L TURBO HYBRID EXTERIOR LAMPS CIRCUIT EXTERIOR REAR VIEW MIRROR ADJUSTER FORWARD /BACK FRAGRANCE DIFFUSER SYSTEM BLOWER FRESH AIR BLOWER FROM COMFORT SYSTEM FRONT INFORMATION DISPLAY CONTROL HEAD FRONT INFORMATION DISPLAY CONTROL HEAD 2 FRONT PARKING AID WARNING BUZZER FRONT PASSENGER BELT FORCE LIMITER FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER HEATED SEAT EXTENSION FRONT PASSENGER KNEE AIR BAG IGNITER FRONT PASSENGER MULTI-CONTOUR SEAT COMPRESSOR FRONT PASSENGER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD FRONT PASSENGER SEAT BACKREST BLOWER FAN FRONT PASSENGER SEAT BACKREST COUPLING POINT FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER SEAT BELT TENSIONER IGNITER 2 FRONT PASSENGER SEAT COUPLING POINT FRONT PASSENGER SEAT CUSHION BLOWER FAN FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD FRONT PASSENGER SIDE IONIZER FRONT PASSENGER THORAX AIR BAG IGNITER FRONT ROOF MODULE FUEL GAUGE FUEL TANK LEAK DETECTION MODULE HEADLIGHTS SYSTEM HEATED STEERING WHEEL HORNS SYSTEM HOT AT ALL TIMES IGNITER 1 IGNITER 2 INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INTERIOR MICROPHONE INTERIOR REAR VIEW MIRROR LANE CHANGE ASSISTANCE IND LEFT COUPLING POINT IN LEFT LUGGAGE COMPARTMENT LEFT FRONT BUMPER COUPLING POINT LEFT FRONT DOOR COUPLING POINT LEFT FRONT DYNAMIC TURN SIGNAL LEFT FRONT HEADLAMP LEFT FRONT MICROPHONE LEFT FRONT SEAT BACKREST FAN 1 LEFT FRONT SEAT BELT LEFT FRONT SEAT CUSHION FAN 1 LEFT HEADLAMP CURRENT CODING RESISTANCE 1 LEFT HEADLAMP CURRENT CODING RESISTANCE 2 LEFT HEADLAMP CURRENT CODING RESISTANCE 3 LEFT HEADLAMP FAN LEFT HIGH BEAM HEADLAMP LEFT LED HEADLAMP POWER OUTPUT MODULE 1 LEFT LED HEADLAMP POWER OUTPUT MODULE 2 LEFT LOW BEAM HEADLAMP LEFT MATRIX HEADLAMP POWER OUTPUT MODULE LEFT MULTI-FUNCTION BUTTONS LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL LEFT REAR BUMPER COUPLING POINT LEFT REAR DOOR COUPLING POINT LEFT REAR SEAT COUPLING STATION LEFT TURN SIGNAL IND LEVEL CONTROL SYSTEM COMPRESSOR ELECTRONICS MOBILE DEVICE CHARGER 1 MOST DATA BUS CIRCUIT NAVIGATION SYSTEM NIGHT VISION CIRCUIT NOT USED OPTIONAL EQUIPMENT PARKING BRAKE PARKING BRAKE IND. PARKING BRAKE SYSTEM IND PASSENGER FRONT DOOR) PASSENGER SIDE REAR DOOR PASSENGER SIDE REAR DOOR CONTROL HEAD PASSENGER SIDE REAR SEAT BELT TENSIONER IGNITER PASSENGER SIDE REAR THORAX AIR BAG IGNITER PASSENGER SIDE SECOND ROW SEAT BELT PASSENGER'S FRONT DOOR) POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM RADIATOR FAN RADIATOR FAN 2 REAR A/C DISPLAY CONTROL HEAD REAR CIGARETTE LIGHTER REAR LID CLOSING AID REAR LID CONTROL HEAD REAR LID WARNING BUZZER REAR SEAT COUPLING POINT REAR WINDOW REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER SUPPRESSOR REAR WINDOW DEFOGGER SUPPRESSOR 2 RIGHT EMERGENCY FLASHER IND RIGHT FRONT BUMPER COUPLING POINT RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT DYNAMIC TURN SIGNAL RIGHT FRONT HEADLAMP RIGHT FRONT MICROPHONE RIGHT FRONT SEAT BACKREST FAN 1 RIGHT FRONT SEAT BELT RIGHT FRONT SEAT CUSHION FAN 1 RIGHT HEADLAMP CURRENT CODING RESISTANCE 1 RIGHT HEADLAMP CURRENT CODING RESISTANCE 2 RIGHT HEADLAMP CURRENT CODING RESISTANCE 3 RIGHT HEADLAMP FAN RIGHT HIGH BEAM HEADLAMP RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 RIGHT LED HEADLAMP POWER OUTPUT MODULE 2 RIGHT LOW BEAM HEADLAMP RIGHT MATRIX HEADLAMP POWER OUTPUT MODULE RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT REAR DOOR RIGHT REAR DOOR COUPLING POINT RIGHT REAR SEAT COUPLING STATION SEATS SYSTEM SELECTOR LEVER SELECTOR LEVER TRANSMISSION RANGE DISPLAY SOUND SYSTEM SOUND SYSTEMS SPIRAL SPRING STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUNROOF ADJUSTER SUPPLEMENTAL RESTRAINTS SYSTEM TO SPARK PLUG 1 TO SPARK PLUG 2 TO SPARK PLUG 3 TO SPARK PLUG 4 TO SPARK PLUG 5 TO SPARK PLUG 6 TO VEHICLE ELECTRICAL SYSTEM TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TV TUNER USB CONNECTION 1 USB DISTRIBUTOR W/ ACCESS/ START AUTHORIZATION SYSTEM W/ ACTIVE STEERING W/ ADAPTIVE CRUISE CONTROL W/ AIR SUSPENSION W/ AMBIENT LIGHTING W/ AUXILIARY LAMPS W/ BANG, OLUFSEN SOUND W/ BANG, OLUFSEN SOUND SYSTEM W/ BOSE SOUND SYSTEM W/ BOSE, BANG, OLUFSEN SOUND SYSTEM W/ CLIMATRONIC W/ COMFORT SEATS W/ CONNECT PLUS W/ DIGITAL RADIO W/ DRIVER ASSISTANCE SYSTEM W/ ELECTRO-MECHANICAL POWER STEERING W/ EMERGENCY CALL MODULE W/ EXTERNAL AUDIO SOURCE CONNECTION W/ FIBER OPTIC CABLE W/ FIBER OPTICS W/ FPK ACTIVE INFO DISPLAY W/ HIGH LINE W/ INTERIOR MONITORING W/ KEYLESS ACCESS W/ LANE CHANGE ASSISTANCE W/ LEVEL CONTROL SYSTEM W/ MEMORY W/ MMI, STANDARD SOUND SYSTEM W/ MOBILE ONLINE SERVICES W/ POWER MEMORY FRONT SEATS W/ REAR AXLE STEERING W/ REAR LID CLOSING AID W/ SAFE FUNCTION W/ DOOR CLOSING AID W/ SEAT VENTILATION W/ STANDARD, BOSE, BANG, OLUFSEN SOUND SYSTEM W/ TRAILER HITCH W/O TRAILER HITCH W/ TV TUNER, BOSE, BANG, OLUFSEN SOUND SYSTEM W/ TV TUNER, STANDARD SOUND SYSTEM W/ VEHICLE POSITIONING SYSTEM, W/O NAVIGATION SYSTEM W/O ACCESS/ START AUTHORIZATION SYSTEM W/O ACTIVE STEERING W/O ACTIVE STEERING, DRIVER ASSISTANCE SYSTEM, ELECTRO-MECHANICAL POWER STEERING W/O ADAPTIVE CRUISE CONTROL W/O CLIMATRONIC W/O COMFORT SEATS W/O CONNECT PLUS W/O DIGITAL RADIO W/O DRIVER ASSISTANCE SYSTEM W/O EMERGENCY CALL MODULE W/O FPK ACTIVE INFO DISPLAY W/O HIGH LINE W/O LANE CHANGE ASSISTANCE W/O LEVEL CONTROL SYSTEM W/O MEMORY W/O REAR AXLE STEERING W/O REAR LID CLOSING AID W/O SEAT VENTILATION W/O SEAT VENTILATION W/ SPORT SEAT W/O SEAT VENTILATION, SPORT SEAT W/O TRAILER HITCH WINDSHIELD DEFOGGER WIPER/WASHER SYSTEM WIRELESS CONTROL HEAD 1
