Audi A6 C8 (2018-2023) steering column vertical adjustment sensor Wiring diagrams

This page contains all the electrical diagrams for the component. steering column vertical adjustment sensor, in which he is found in the car Audi A6 C8 (2018-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

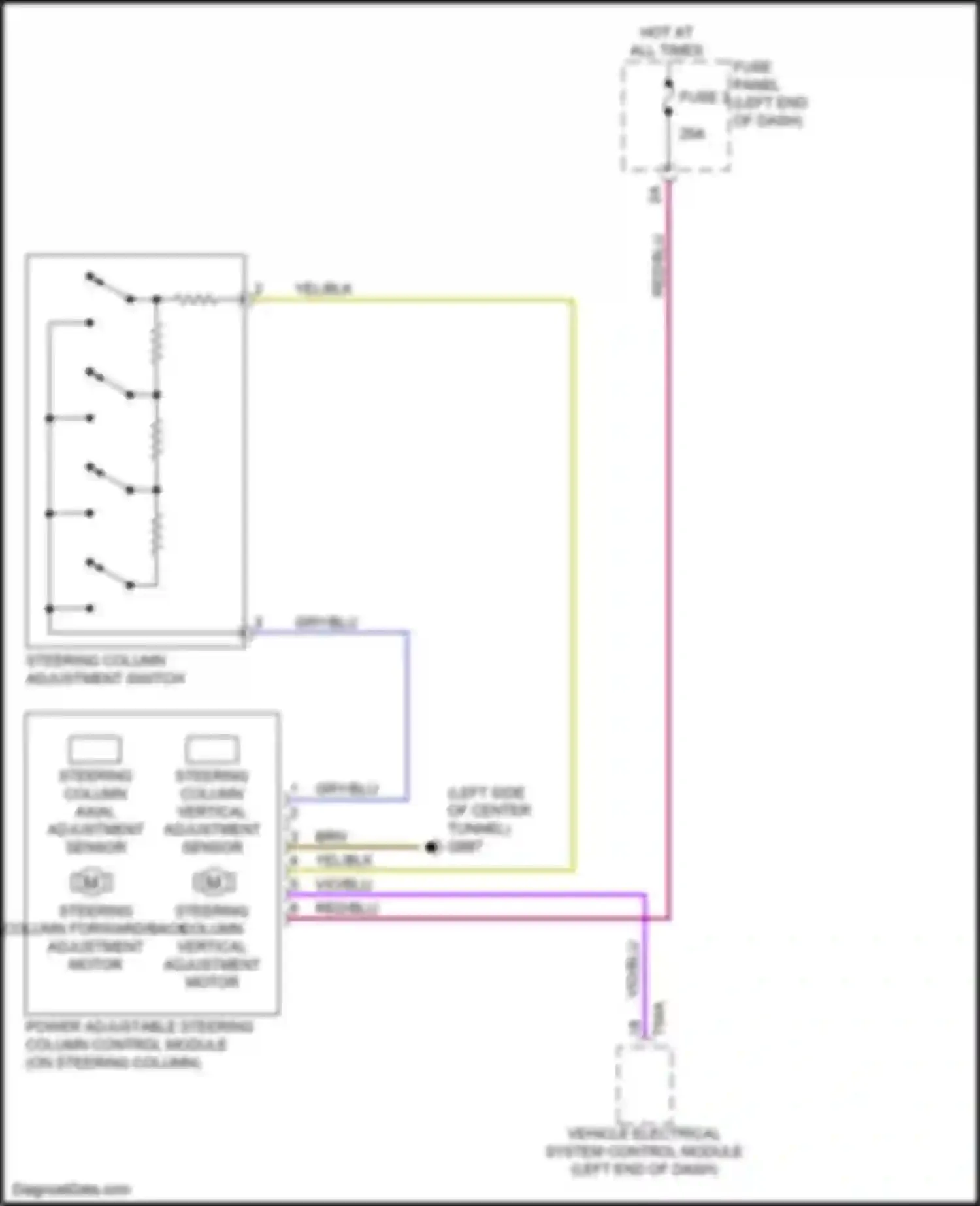

Wiring diagram steering column vertical adjustment sensor (1 of 2)

Wiring diagram steering column vertical adjustment sensor for Audi A6 C8 (2018-2023)

Get access

BRN WIRE FUSE 2 FUSE PANEL F GRY/BLU WIRE HOT AT ALL TIMES POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE RED/BLU WIRE STEERING COLUMN ADJUSTMENT SWITCH STEERING COLUMN AXIAL ADJUSTMENT SENSOR STEERING COLUMN FORWARD/BACK ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT SENSOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/BLU WIRE YEL/BLK WIRE

Go to component: -> Power tilt steering column circuit -> STEERING COLUMN VERTICAL ADJUSTMENT SENSOR

Wiring diagram steering column vertical adjustment sensor (2 of 2)

Wiring diagram steering column vertical adjustment sensor for Audi A6 C8 (2018-2023)

Get access

BLU/BRN WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER DOOR CONTROL MODULE DRIVER SEAT MEMORY BUTTON DRIVER SEAT MEMORY SETTINGS CONTROL HEAD DRIVER SIDE INDICATOR LAMP DRIVER'S FRONT DOOR) FUSE 2 FUSE 5 FUSE PANEL D FUSE PANEL F GRN WIRE GRY WIRE GRY/BLU WIRE GRY/RED WIRE GRY/WHT WIRE HOT AT ALL TIMES LEFT FRONT DOOR COUPLING POINT MEMORY SEAT POSITIONS 1, 2 BUTTON ORG/BRN WIRE POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE RED/BLU WIRE RED/VIO WIRE STEERING COLUMN ADJUSTMENT SWITCH STEERING COLUMN AXIAL ADJUSTMENT SENSOR STEERING COLUMN FORWARD/BACK ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT SENSOR VIO/BLU WIRE YEL/BLK WIRE

Go to component: -> Steering column memory circuit -> STEERING COLUMN VERTICAL ADJUSTMENT SENSOR
