Audi A6 C8 (2018-2023) audio music interface Wiring diagrams
This page contains all the electrical diagrams for the component. audio music interface, in which he is found in the car Audi A6 C8 (2018-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

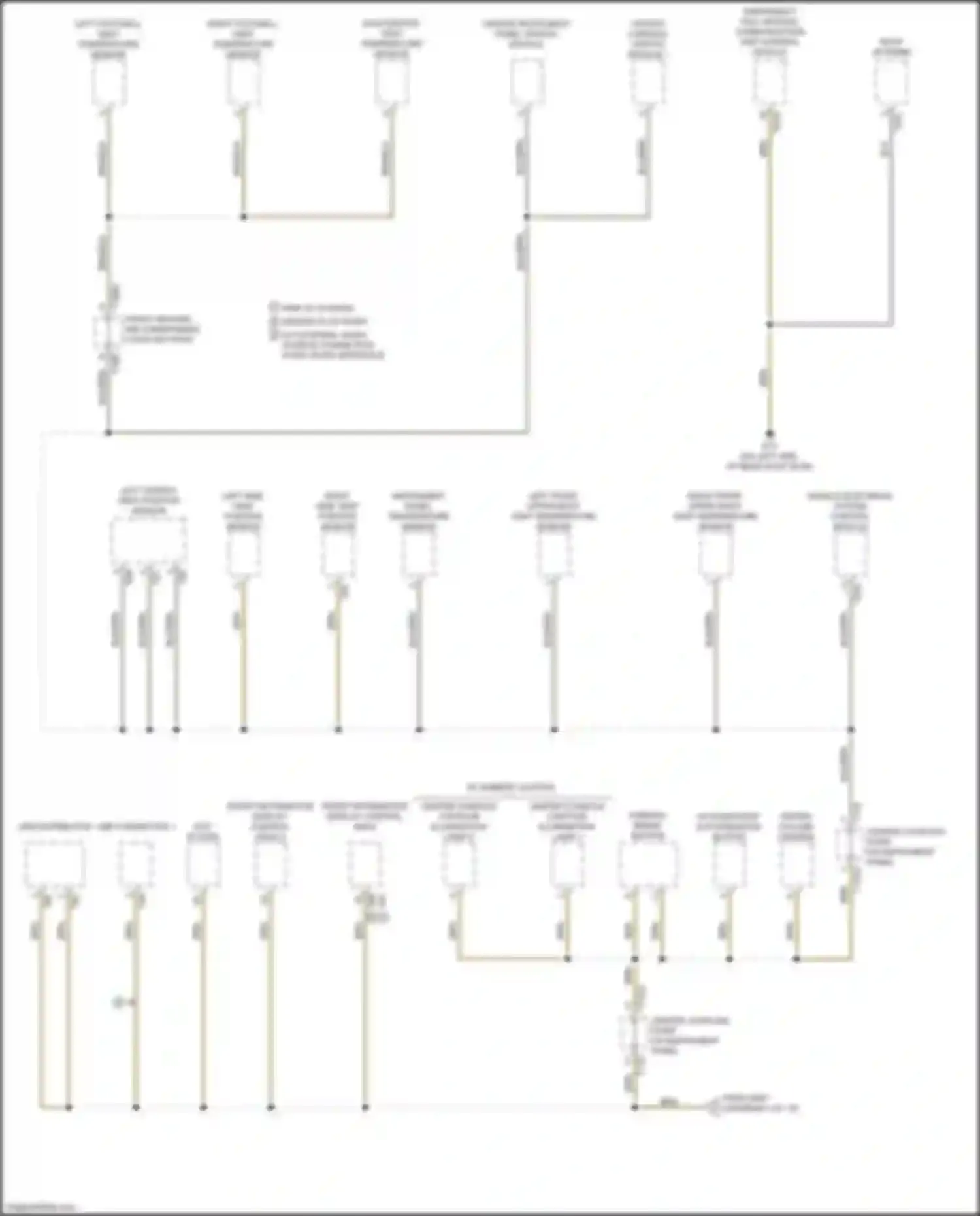

Wiring diagram audio music interface (1 of 7)
ACCESS/START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLK/BRN WIRE
BRN WIRE
BRN/BLK WIRE
CENTER CONSOLE CONTOUR ILLUMINATION LAMP 1
CENTER CONSOLE CONTOUR ILLUMINATION LAMP 2
CENTER CONSOLE SWITCH MODULE 1
CENTER COUPLING POINT ON INSTRUMENT PANEL
CENTER INSTRUMENT PANEL SWITCH MODULE
DRIVER VOLUME CONTROL
DVD PLAYER
EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE
EVAPORATOR VENT TEMPERATURE SENSOR
FRONT HEATING, AIR CONDITIONING COUPLING POINT
FRONT INFORMATION DISPLAY CONTROL HEAD
FRONT INFORMATION DISPLAY CONTROL HEAD 2
HIGH PLUS RADIO
INSTRUMENT PANEL TEMPERATURE SENSOR
LEFT CENTER VENT POSITION SENSOR
LEFT FOOTWELL VENT TEMPERATURE SENSOR
LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR
LEFT SIDE VENT POSITION SENSOR
MEDIUM PLUS RADIO
PARKING BRAKE BUTTON
RIGHT FOOTWELL VENT TEMPERATURE SENSOR
RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR
RIGHT SIDE VENT POSITION SENSOR
ROOF ANTENNA
USB CONNECTION 1
USB DISTRIBUTOR
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
W/ AMBIENT LIGHTING
W/ EXTERNAL AUDIO SOURCE CONNECTION
Go to component -> Ground distribution circuit (5 of 10) -> AUDIO MUSIC INTERFACE

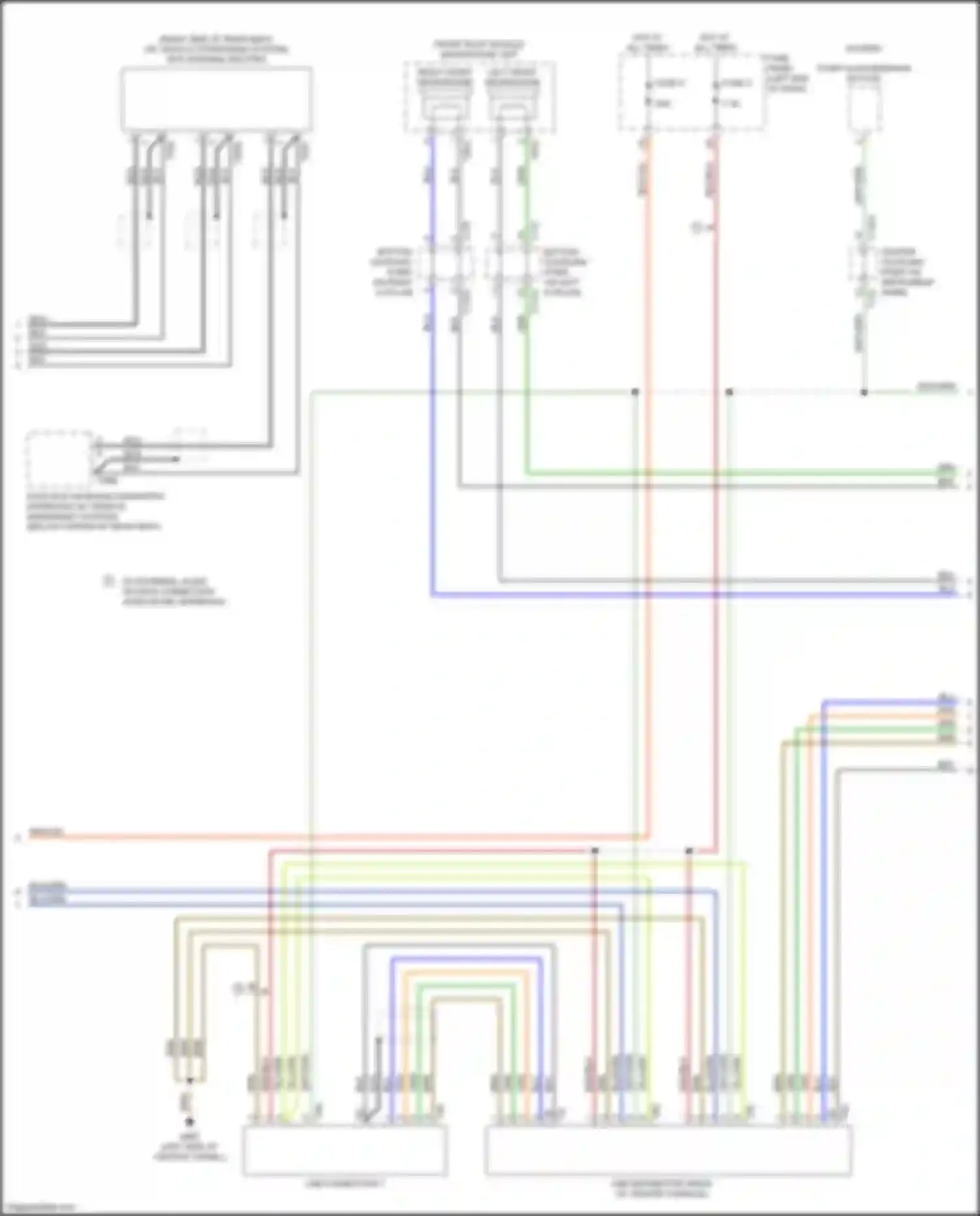

Wiring diagram audio music interface (2 of 7)
ACCESS START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
DATA BUS ON BOARD DIAGNOSTIC INTERFACE (W/ VEHICLE EMERGENCY SYSTEM)
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
RED/BLK WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Navigation circuit, w/ amplifier & bang & olufsen sound (5 of 6) -> AUDIO MUSIC INTERFACE

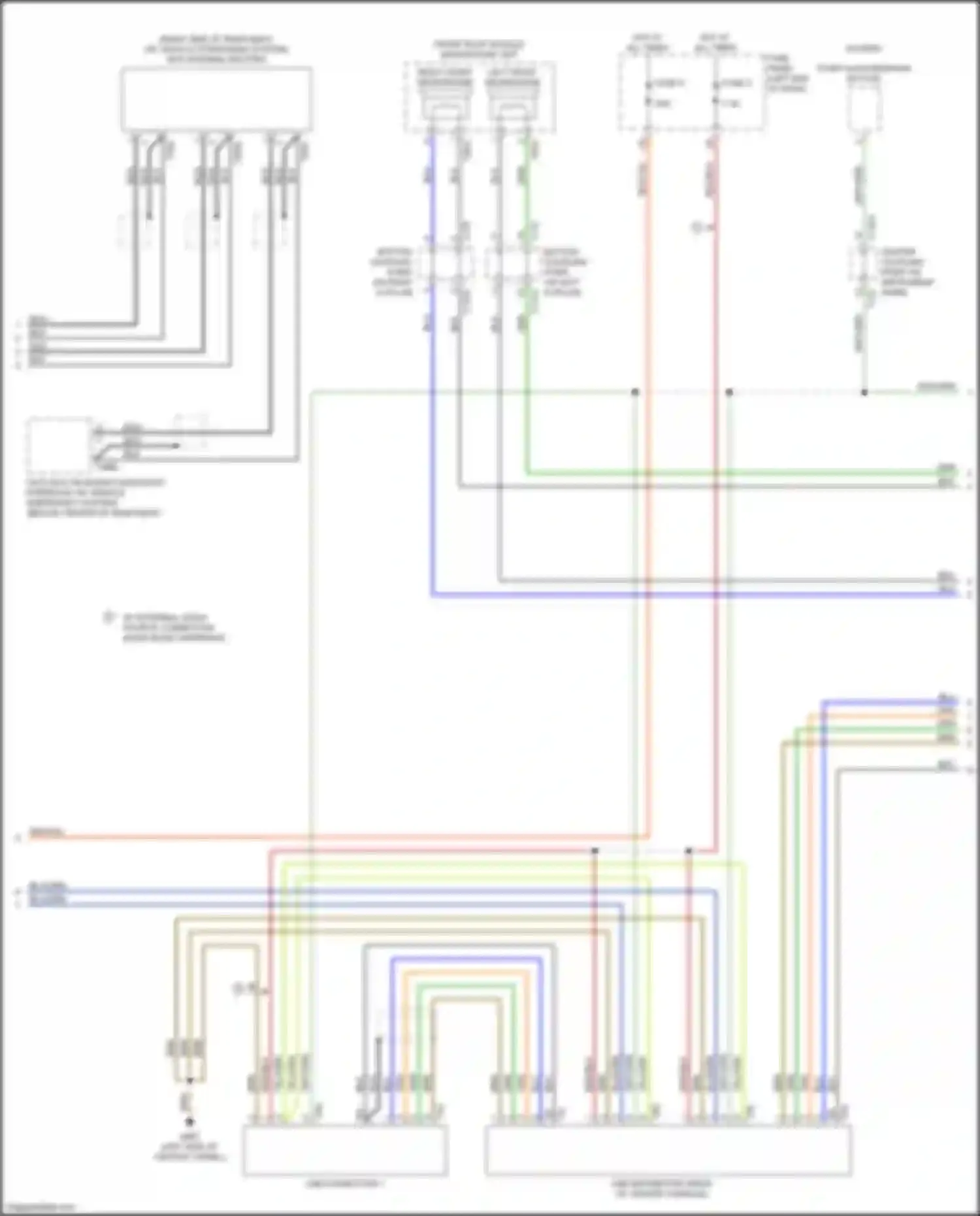

Wiring diagram audio music interface (3 of 7)
ACCESS START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
DATA BUS ON BOARD DIAGNOSTIC INTERFACE (W/ VEHICLE EMERGENCY SYSTEM)
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
RED/BLK WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Navigation circuit, w/ amplifier w/o bang & olufsen sound (4 of 5) -> AUDIO MUSIC INTERFACE

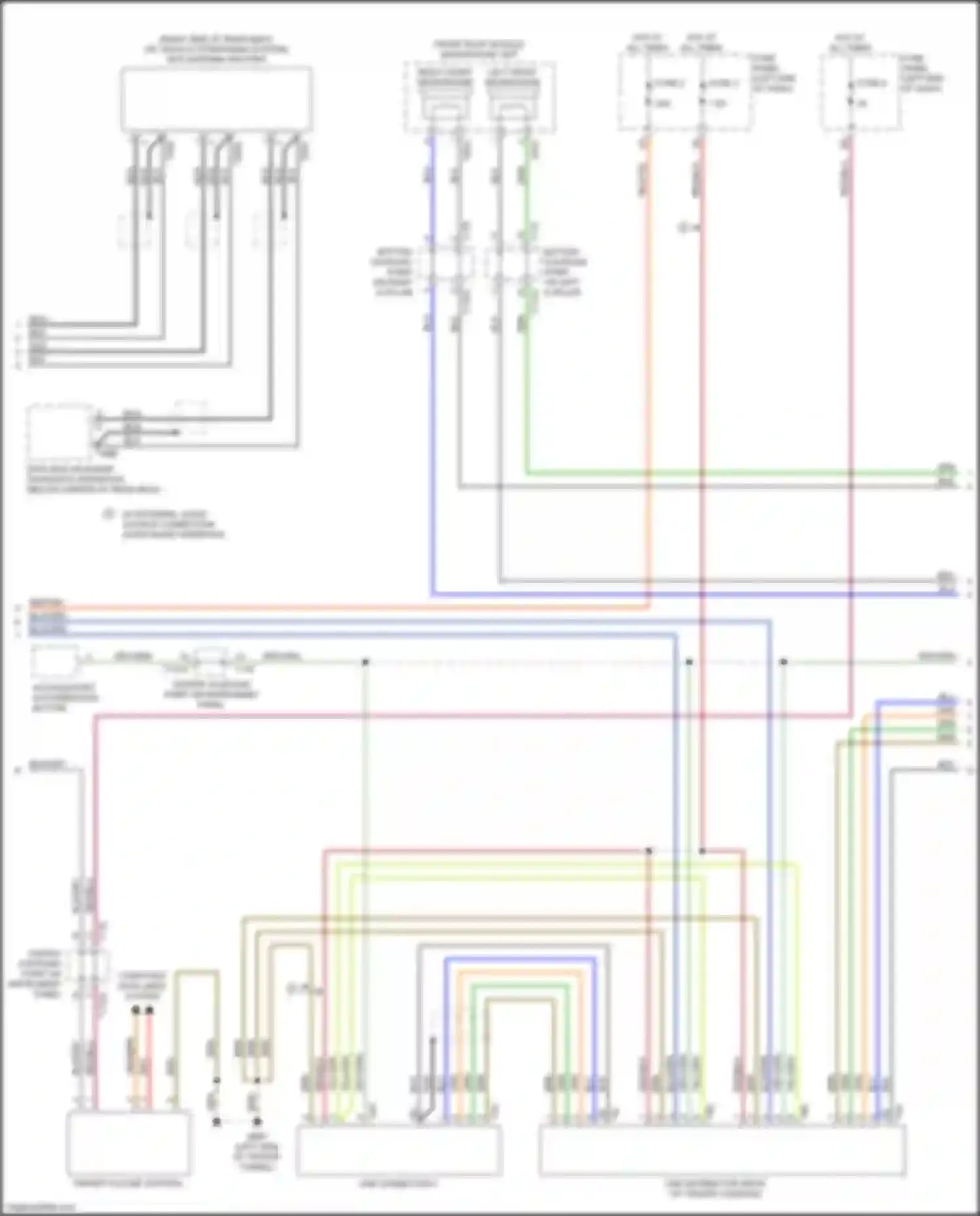

Wiring diagram audio music interface (4 of 7)
ACCESS/START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLK/GRY WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
DATA BUS ON BOARD DIAGNOSTIC INTERFACE
DRIVER VOLUME CONTROL
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE 6
FUSE PANEL F
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
ORG/BRN WIRE
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Navigation circuit, w/o amplifier (3 of 4) -> AUDIO MUSIC INTERFACE
Wiring diagram audio music interface (5 of 7)
ACCESS START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
DATA BUS ON BOARD DIAGNOSTIC INTERFACE (W/ VEHICLE EMERGENCY SYSTEM)
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
RED/BLK WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Radio circuit, w/ amplifier & bang & olufsen sound (5 of 6) -> AUDIO MUSIC INTERFACE
Wiring diagram audio music interface (6 of 7)
ACCESS START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
DATA BUS ON BOARD DIAGNOSTIC INTERFACE (W/ VEHICLE EMERGENCY SYSTEM)
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
RED/BLK WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Radio circuit, w/ amplifier w/o bang & olufsen sound (4 of 5) -> AUDIO MUSIC INTERFACE
Wiring diagram audio music interface (7 of 7)
ACCESS/START AUTHORIZATION BUTTON
AUDIO MUSIC INTERFACE
BLK WIRE
BLK/GRY WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BOTTOM COUPLING POINT ON RIGHT A-PILLAR
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
DATA BUS ON BOARD DIAGNOSTIC INTERFACE
DRIVER VOLUME CONTROL
FRONT ROOF MODULE MICROPHONE UNIT
FUSE 2
FUSE 3
FUSE 6
FUSE PANEL F
FUSE PANEL G
GRN WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT FRONT MICROPHONE
NCA WIRE
ORG/ WIRE
ORG/BRN WIRE
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
RIGHT FRONT MICROPHONE
USB CONNECTION 1
USB DISTRIBUTOR (REAR OF CENTER CONSOLE)
W/ EXTERNAL AUDIO SOURCE CONNECTION
YEL/GRN WIRE
Go to component -> Radio circuit, w/o amplifier (3 of 4) -> AUDIO MUSIC INTERFACE
