Audi A6 C7 (2011-2014) lumbar height Wiring diagram

This page shows the only wiring diagram for the component.lumbar height, which is found in the car Audi A6 C7 (2011-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

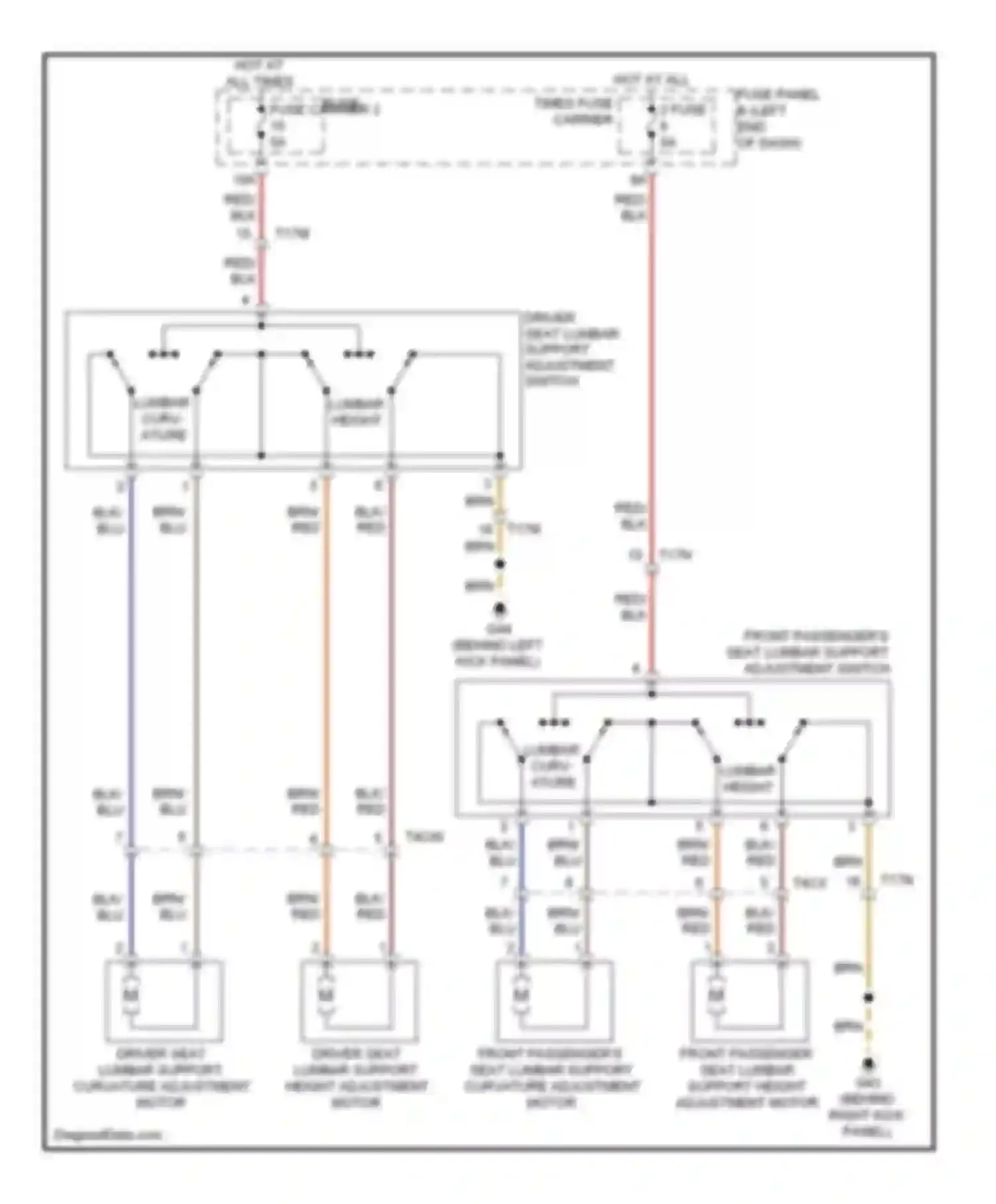

Wiring diagram lumbar height (1 of 1)

Wiring diagram lumbar height for Audi A6 C7 (2011-2014)

Get access

BLK WIRE BLU WIRE BRN WIRE DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER'S SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FUSE PANEL B (LEFT END OF DASH) HOT AT ALL TIMES FUSE CARRIER 2 FUSE HOT AT ALL TIMES FUSE FUSE CARRIER 3 LUMBAR CURV- ATURE LUMBAR HEIGHT RED WIRE

Go to component: -> Lumbar circuit -> LUMBAR HEIGHT
