Audi A6 C5 facelift (2001-2004) driver seat rear height adjusting motor Wiring diagram
This page shows the only wiring diagram for the component.driver seat rear height adjusting motor, which is found in the car Audi A6 C5 facelift (2001-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

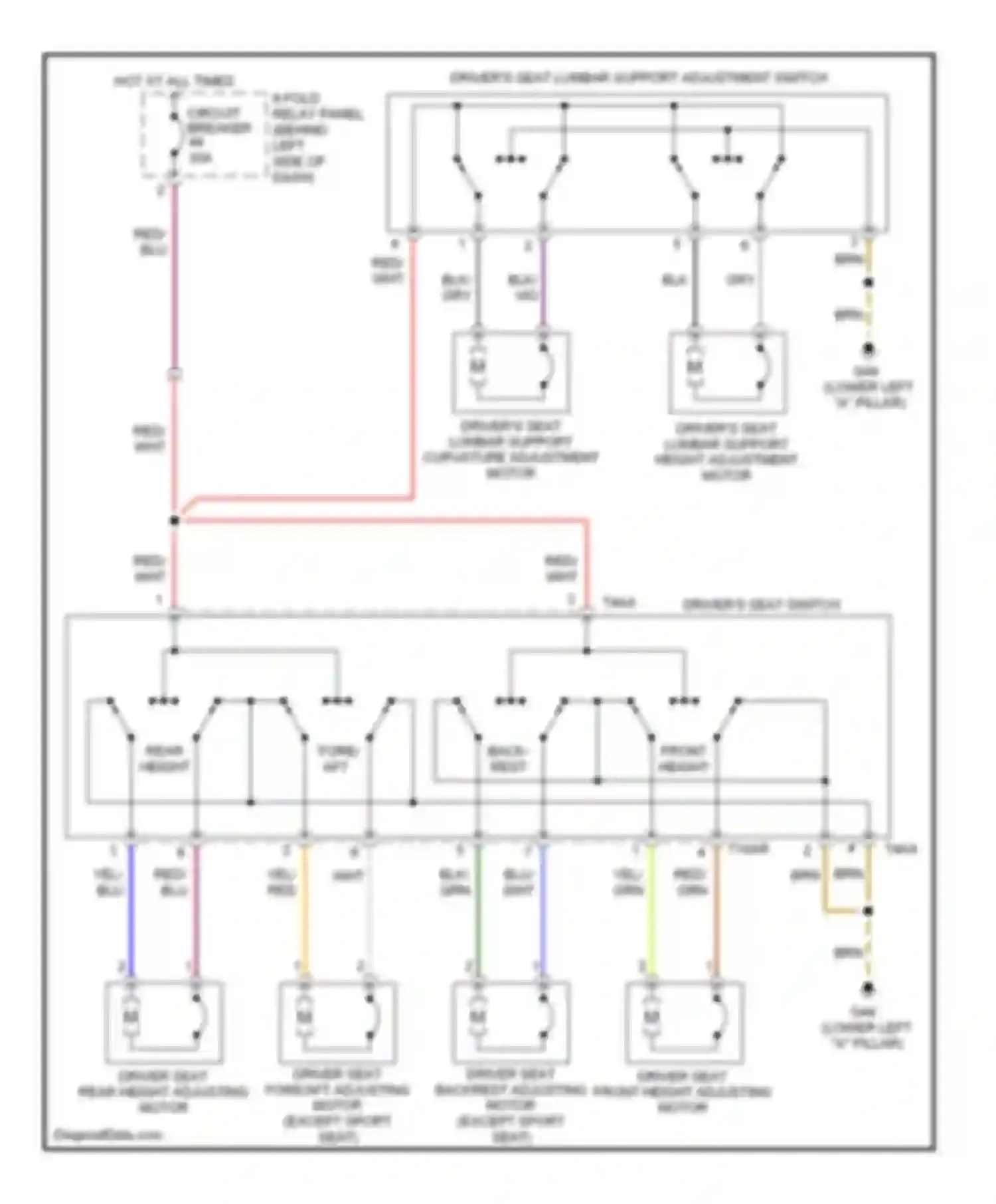

Wiring diagram driver seat rear height adjusting motor (1 of 1)
8-FOLD RELAY PANEL (BEHIND LEFT SIDE OF DASH)
AFT
BACK- REST
BLK WIRE
BLU WIRE
BRN WIRE
CIRCUIT BREAKER
DRIVER SEAT BACKREST ADJUSTING MOTOR (EXCEPT SPORT SEAT)
DRIVER SEAT FORE/AFT ADJUSTING MOTOR (EXCEPT SPORT SEAT)
DRIVER SEAT FRONT HEIGHT ADJUSTING MOTOR
DRIVER SEAT REAR HEIGHT ADJUSTING MOTOR
DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
DRIVER'S SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR
DRIVER'S SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR
DRIVER'S SEAT SWITCH
FORE/
FRONT HEIGHT
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
REAR HEIGHT
RED WIRE
VIO WIRE
WHT WIRE
YEL WIRE
Go to component -> Driver seat circuit -> DRIVER SEAT REAR HEIGHT ADJUSTING MOTOR
