Audi A5 II (2016-2020) Instrument illumination circuit

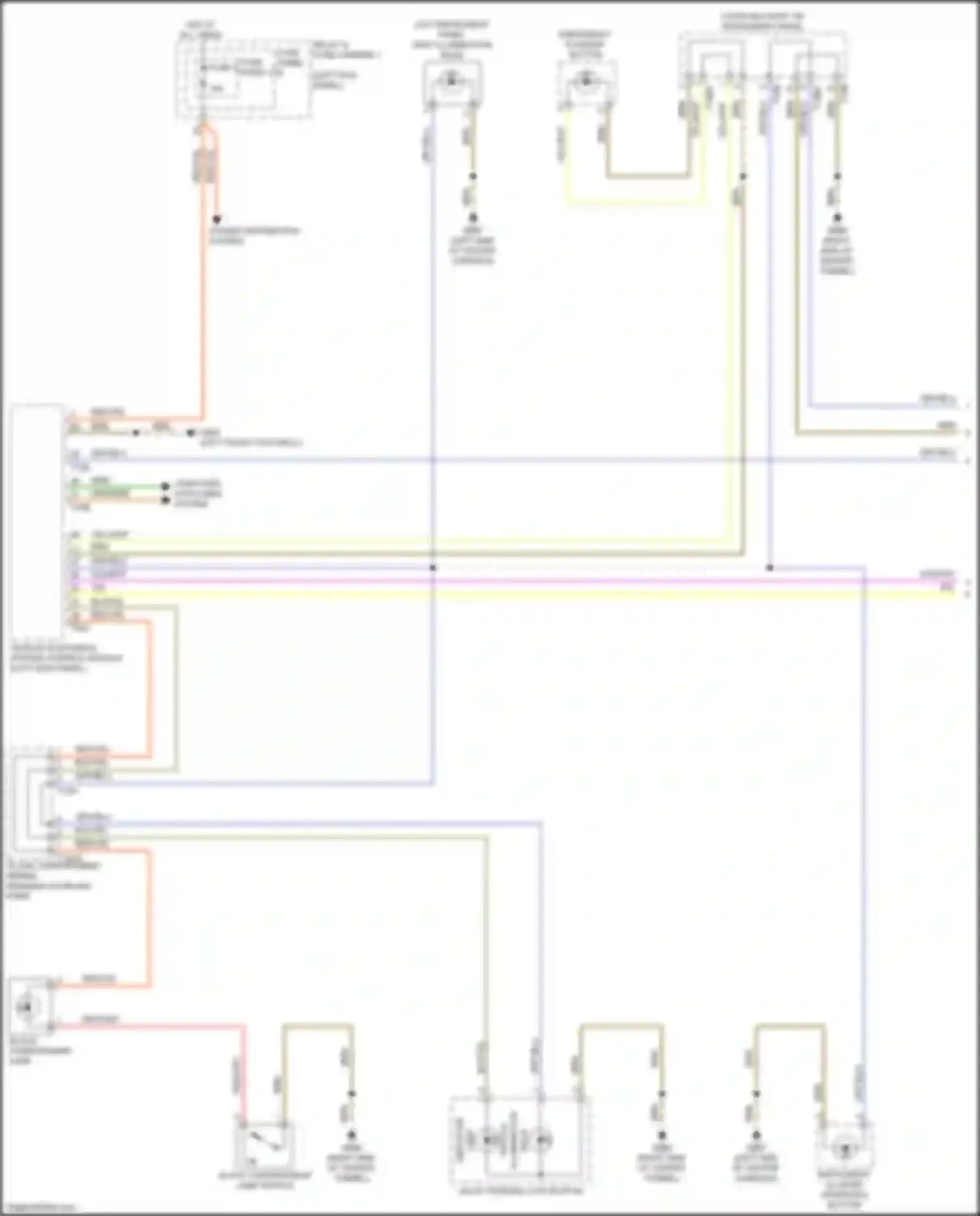

BLK/YEL WIRE BRN WIRE BULB COMPUTER DATA LINES SYSTEM COUPLING POINT ON INSTRUMENT PANEL EMERGENCY FLASHER BUTTON FUSE 2 FUSE PANEL 4 FUSE PANEL B GLOVE COMPARTMENT LAMP GLOVE COMPARTMENT LAMP SWITCH GLOVE COMPARTMENT WIRING HARNESS COUPLING POINT GRN WIRE GRY/BLU WIRE HOT AT ALL TIMES ILLUMINATION INDICATOR INSTRUMENT CLUSTER OPERATION BUTTON LAMP LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB ORG/BRN WIRE POWER DISTRIBUTION SYSTEM RED/GRY WIRE RED/YEL WIRE RELAY & FUSE CARRIER 1 SWITCH VALET PARKING LOCK BUTTON VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/WHT WIRE YEL WIRE YEL/WHT WIRE

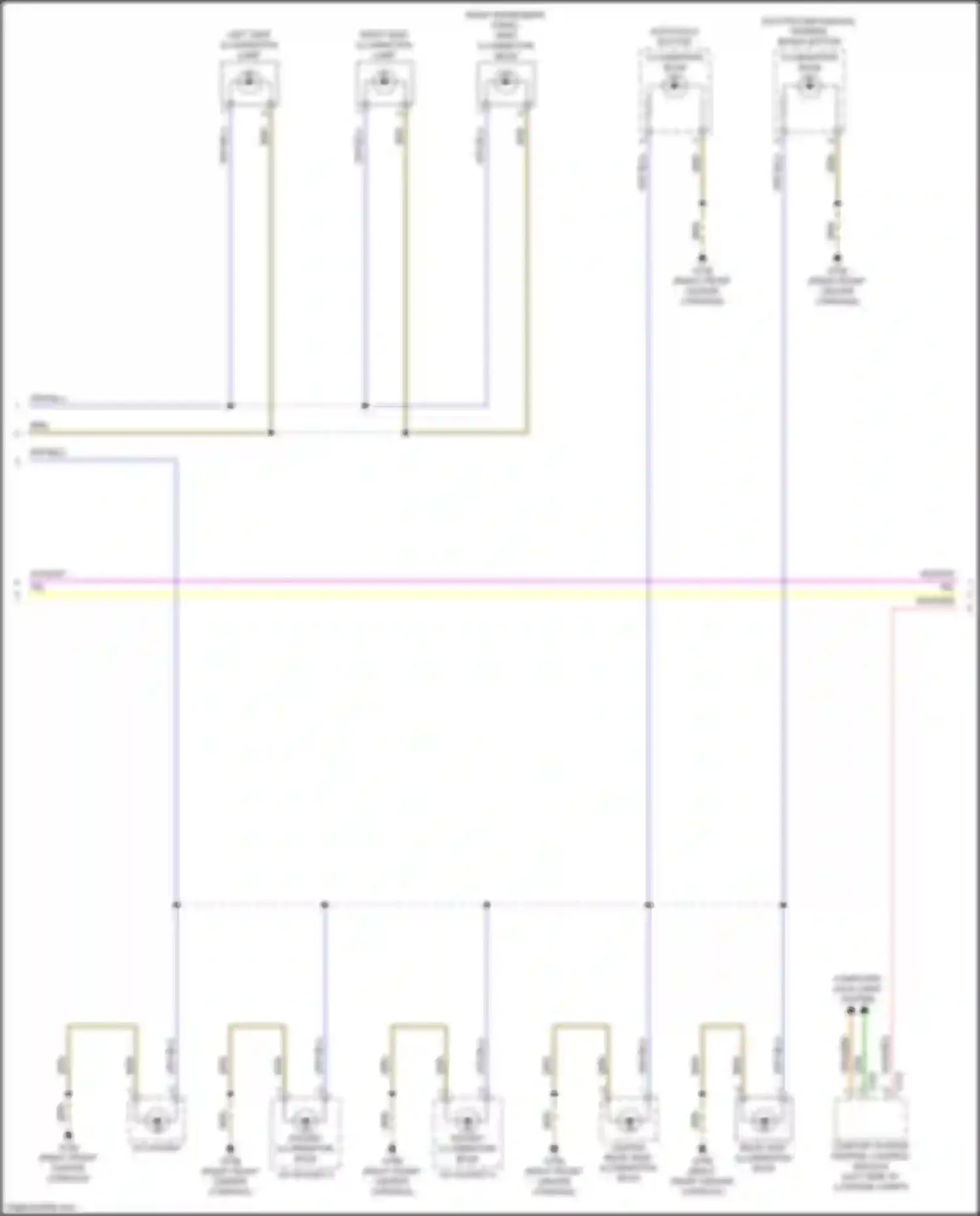

AUTO HOLD BUTTON BRN WIRE CENTER REAR VENT ILLUMINATION BULB COMFORT SYSTEM CENTRAL CONTROL MODULE COMPUTER DATA LINES SYSTEM ELECTRO- MECHANICAL PARKING BRAKE BUTTON GRN WIRE GRY/BLU WIRE ILLUMINATION BULB LEFT VENT ILLUMINATION LAMP ORG/BRN WIRE REAR VENT ILLUMINATION BULB RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB RIGHT VENT ILLUMINATION LAMP SOCKET ILLUMINATION BULB VIO/WHT WIRE WHT/RED WIRE YEL WIRE

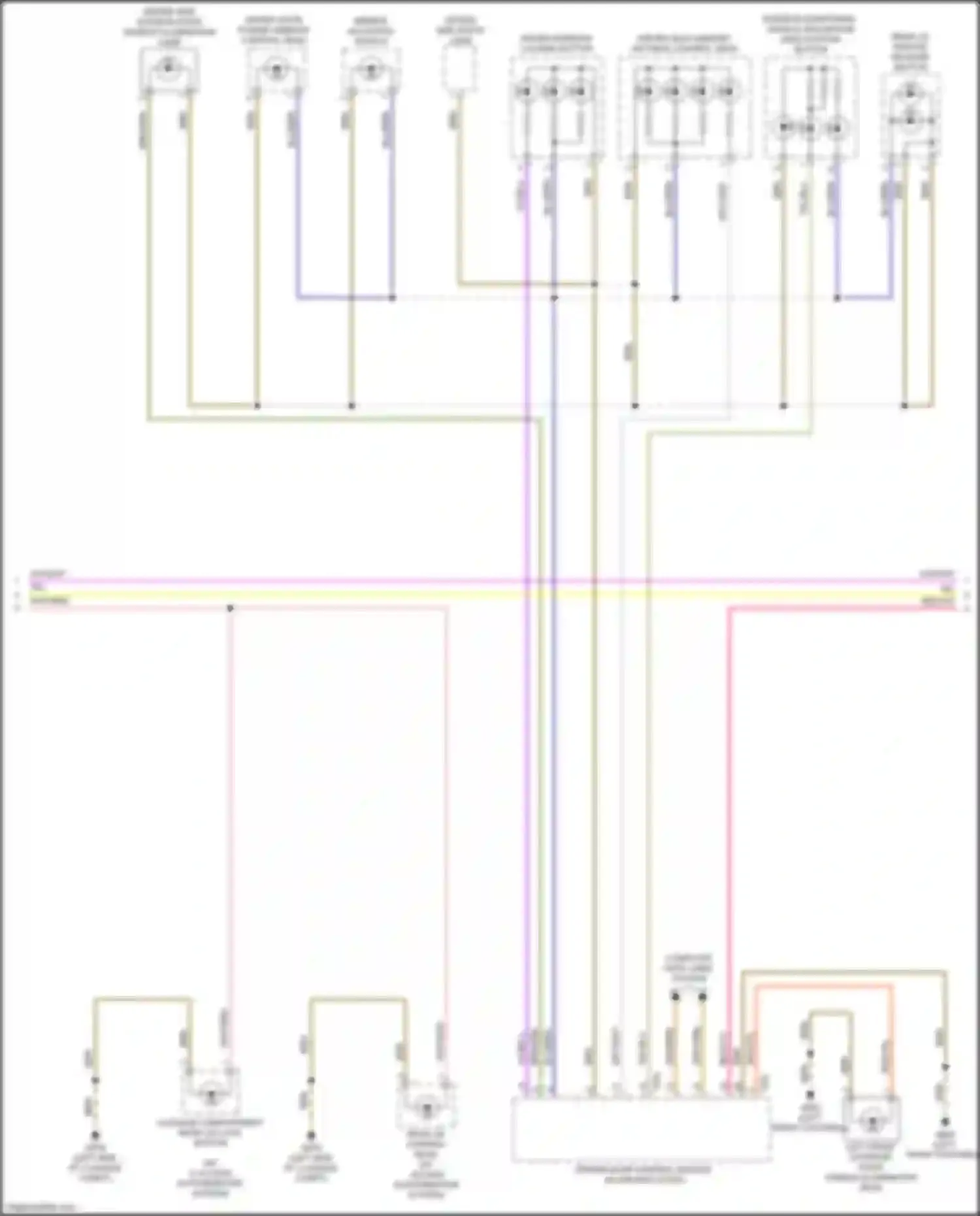

BLU/BRN WIRE BRN WIRE BRN/GRN WIRE COMPUTER DATA LINES SYSTEM DRIVER DOOR CONTROL MODULE (IN DRIVER'S DOOR) DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER INTERIOR LOCKING BUTTON DRIVER SEAT MEMORY SETTINGS CONTROL HEAD DRIVER SIDE ENTRY LAMP DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP GRY/WHT WIRE INTERIOR MONITORING, VEHICLE INCLINATION DEACTIVATION BUTTON LEFT FRONT EXTERIOR DOOR HANDLE ILLUMINATION BULB LUGGAGE COMPARTMENT REAR LID LOCK BUTTON MIRROR ADJUSTING SWITCH ORG/BRN WIRE ORG/GRN WIRE REAR LID CONTROL HEAD REAR LID REMOTE RELEASE BUTTON RED/VIO WIRE RED/YEL WIRE VIO/BLU WIRE VIO/WHT WIRE WHT/RED WIRE YEL WIRE YEL/BLU WIRE

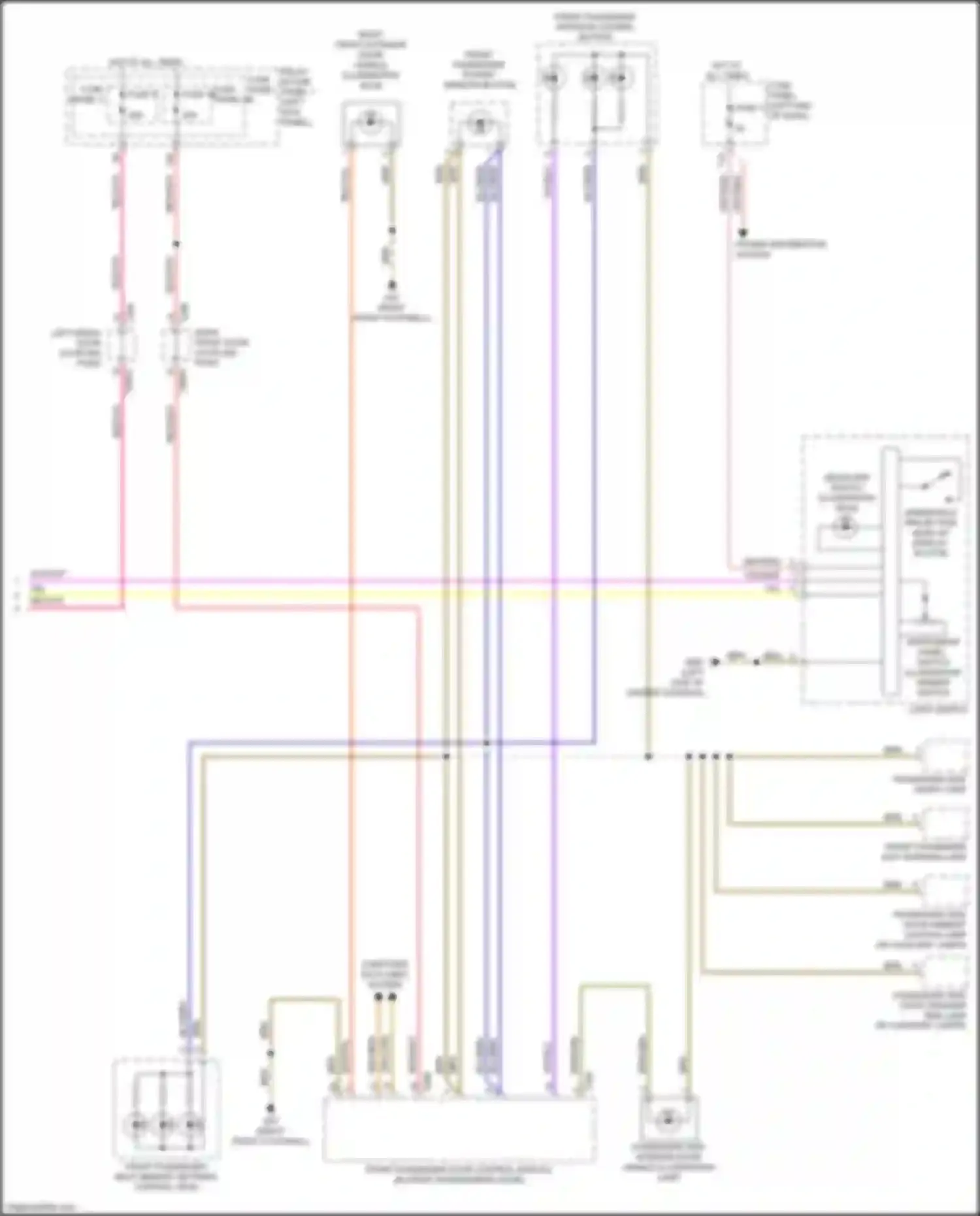

BLU/BRN WIRE BRN WIRE BRN/GRN WIRE COMPUTER DATA LINES SYSTEM FRONT PASSENGER DOOR CONTROL MODULE (IN FRONT PASSENGER'S DOOR) FRONT PASSENGER EXIT WARNING LAMP FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD FUSE 11 FUSE 14 FUSE 5 FUSE PANEL 2 FUSE PANEL 3 FUSE PANEL B FUSE PANEL C GRY/RED WIRE HEADLAMP SWITCH ILLUMINATION BULB HOT AT ALL TIMES INSTRUMENT PANEL, SWITCH ILLUMINATION DIMMER SWITCH LEFT FRONT DOOR COUPLING POINT LIGHT SWITCH ORG/BRN WIRE ORG/GRN WIRE PASSENGER SIDE DOOR AMBIENT LIGHTING LAMP PASSENGER SIDE DOOR SPEAKER TRIM LAMP PASSENGER SIDE ENTRY LAMP PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP POWER DISTRIBUTION SYSTEM RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE RELAY & FUSE PANEL 1 RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT EXTERIOR DOOR HANDLE ILLUMINATION BULB VIO/BLU WIRE VIO/WHT WIRE W/ AUXILIARY LAMPS WINDSHIELD PROJECTION HEAD-UP DISPLAY BUTTON YEL WIRE
