Audi A5 I (2007-2011) brn Wiring diagrams
This page contains all the electrical diagrams for the component. brn, in which he is found in the car Audi A5 I (2007-2011). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

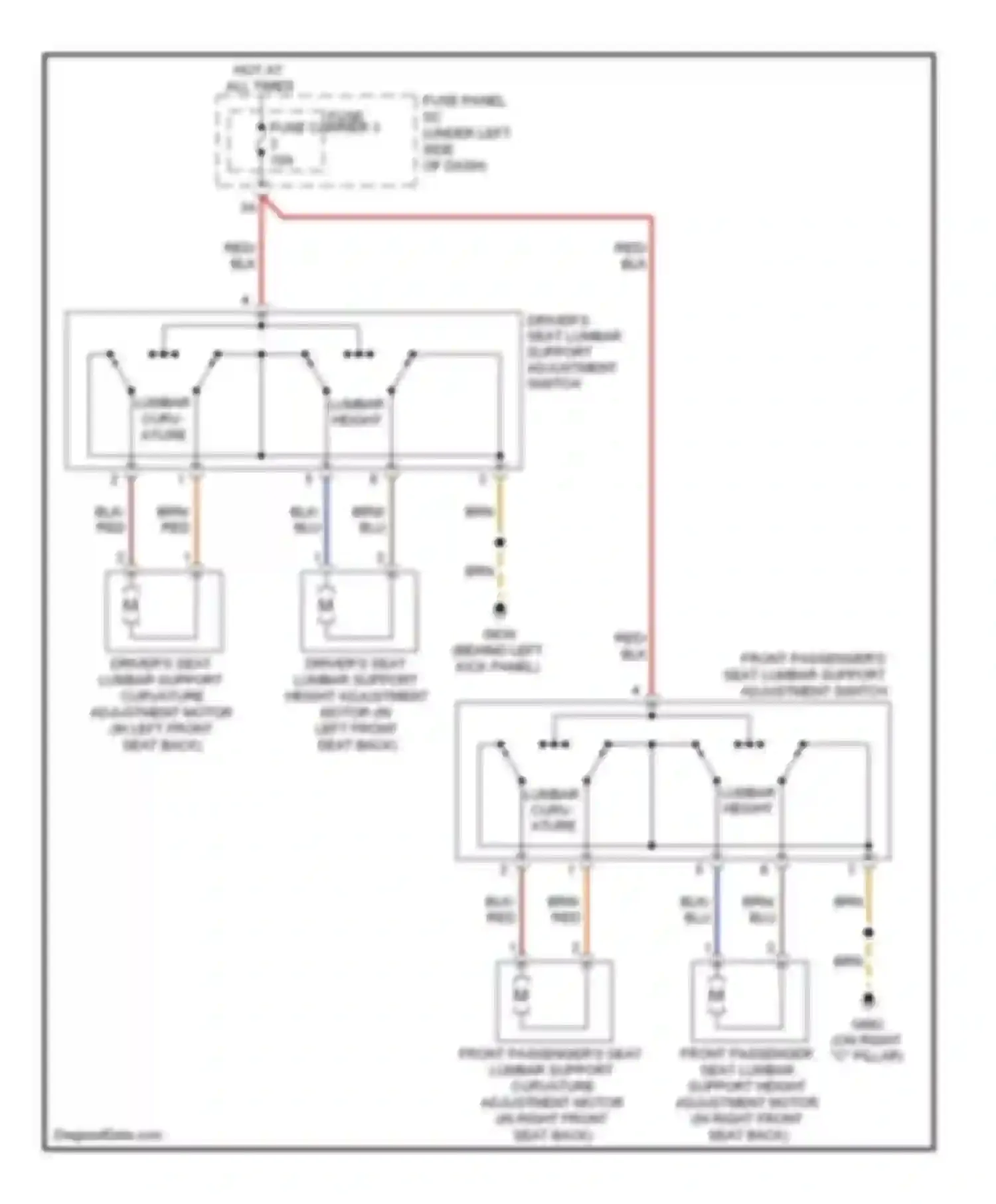

brn wiring diagram (71 of 105)
BLK WIRE
BLU WIRE
BRN WIRE
DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
DRIVER'S SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR (IN LEFT FRONT SEAT BACK)
FRONT PASSENGER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
FUSE
FUSE CARRIER 3
FUSE PANEL SC (UNDER LEFT SIDE OF DASH)
HOT AT ALL TIMES
LUMBAR CURV- ATURE
LUMBAR HEIGHT
RED WIRE
Go to component -> Lumbar circuit, without power seats -> BRN WIRE
brn wiring diagram (72 of 105)
BLK WIRE
BLU WIRE
BRN WIRE
DISCONTINUED, PHASED IN MODIFICATION PHASED IN MODIFICATION
DRIVER'S CIRCUIT BREAKER (BEHIND LEFT KICK PANEL)
DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
DRIVER'S SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR (IN LEFT FRONT SEAT BACK)
FRONT PASSENGER'S CIRCUIT BREAKER (BEHIND LEFT KICK PANEL)
FRONT PASSENGER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
HOT AT ALL TIMES
LUMBAR CURV- ATURE
LUMBAR HEIGHT
RED WIRE
Go to component -> Lumbar circuit, with power seats -> BRN WIRE

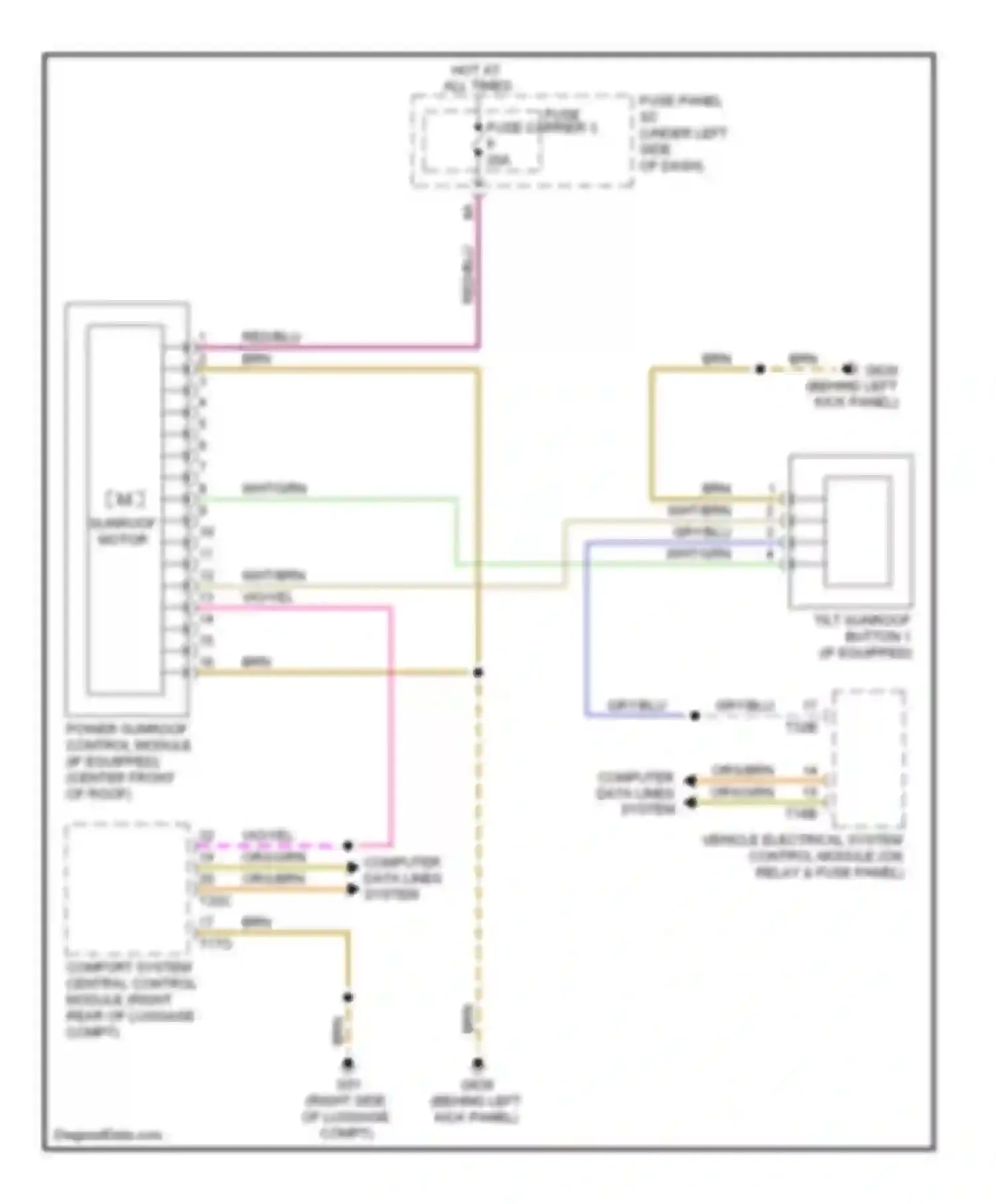

brn wiring diagram (73 of 105)
BRN WIRE
COMFORT SYSTEM CENTRAL CONTROL MODULE (RIGHT REAR OF LUGGAGE COMPT)
COMPUTER DATA LINES SYSTEM
FUSE
FUSE CARRIER 3
FUSE PANEL SC (UNDER LEFT SIDE OF DASH)
GRY/BLU WIRE
HOT AT ALL TIMES
ORG/BRN WIRE
ORG/GRN WIRE
POWER SUNROOF CONTROL MODULE (IF EQUIPPED) (CENTER FRONT OF ROOF)
RED/BLU WIRE
SUNROOF MOTOR
TILT SUNROOF BUTTON 1 (IF EQUIPPED)
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (ON RELAY & FUSE PANEL)
VIO/YEL WIRE
WHT/BRN WIRE
WHT/GRN WIRE
Go to component -> Power top/sunroof circuit -> BRN WIRE
brn wiring diagram (74 of 105)
BLK WIRE
BLK/GRN WIRE
BLU WIRE
BLU/BRN WIRE
BRN WIRE
BRN/GRN WIRE
COMFORT SYSTEM CENTRAL CONTROL MODULE (RIGHT REAR OF LUGGAGE COMPT)
COMPT SF (RIGHT SIDE OF LUGGAGE COMPT)
COMPUTER DATA LINES SYSTEM
DRIVER'S DOOR CONTROL MODULE (IN LEFT FRONT DOOR)
DRIVER'S DOOR POWER WINDOW CONTROL HEAD
DRIVER'S WINDOW REGULATOR MOTOR
FRONT PASSENGER'S DOOR CONTROL MODULE (IN RIGHT FRONT DOOR)
FRONT PASSENGER'S WINDOW REGULATOR MOTOR
FRONT PASSENGER'S WINDOW REGULATOR SWITCH
FUSE 11
FUSE 8
FUSE 9
FUSE CARRIER 2 FUSE 8
FUSE CARRIER 2 FUSE 8 FUSE 11
FUSE CARRIER 3
FUSE PANEL SC (UNDER LEFT SIDE OF DASH)
GRN WIRE
GRN/WHT WIRE
GROUND COMPUTER DATA DISTRIBUTION LINES SYSTEM SYSTEM
GROUND DISTRIBUTION SYSTEM
GRY/VIO WIRE
HOT AT ALL TIMES
LEFT FRONT RIGHT FRONT WINDOW WINDOW REGULATOR REGULATOR SWITCH SWITCH
ORG/BRN WIRE
ORG/GRN WIRE
REAR WINDOW SHADE MOTOR (IF EQUIPPED)
REAR WINDOW SHADE SWITCH
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
RELAY/ FUSE CARRIER LUGGAGE
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (ON RELAY & FUSE PANEL)
VIO WIRE
VIO/BLK WIRE
W/ ADDITIONAL EQUIPMENT
W/O NAVIGATION SYSTEM W/ NAVIGATION SYSTEM
WHT WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Power windows circuit -> BRN WIRE
brn wiring diagram (75 of 105)
18-PIN CONNECTOR (NOT USED)
ANTENNA AMPLIFIER 2
ANTENNA AMPLIFIER 3
BLK WIRE
BLK/RED WIRE
BLU/GRN WIRE
BRN WIRE
BRN/BLU WIRE
BRN/VIO WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
EXTERNAL AUDIO SOURCE CONNECTION
FUSE 1
FUSE 3
FUSE CARRIER 2
FUSE PANEL SD (UNDER RIGHT SIDE OF DASH)
GRN WIRE
GRN/BLU WIRE
GRY WIRE
HOT AT ALL TIMES
NCA WIRE
ORG/BRN WIRE
ORG/VIO WIRE
RADIO
RADIO, TELEPHONE NAVIGATION SYSTEM ANTENNA (W/ ROOF ANTENNA) SATELLITE ANTENNA
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
TELEPHONE TRANSCEIVER (UNDER FRONT PASSENGER'S SEAT)
W/ SPEAKER PHONE
W/O SPEAKER PHONE
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Radio circuit, basic infotainment (1 of 2) -> BRN WIRE
brn wiring diagram (76 of 105)
BLK/RED WIRE
BLU/GRN WIRE
BRN WIRE
BRN/BLU WIRE
BRN/VIO WIRE
BRN/YEL WIRE
FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE (CENTER OF DASH)
GRN/BLU WIRE
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
RED/BLU WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT MID-BASS SPEAKER
RIGHT FRONT TREBLE SPEAKER
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
W/ PLUS
WHT/BLU WIRE
WHT/GRN WIRE
Go to component -> Radio circuit, basic infotainment (2 of 2) -> BRN WIRE
brn wiring diagram (77 of 105)
7 16 18 PIN CONNECTOR (NOT USED)
BLU/GRN WIRE
BRN WIRE
BRN/BLU WIRE
BRN/VIO WIRE
BRN/YEL WIRE
CD CHANGER
COMPUTER DATA LINES SYSTEM
DIGITAL SOUND SYSTEM CONTROL MODULE (LEFT REAR OF LUGGAGE COMPT)
EXTERNAL AUDIO SOURCE CONNECTION (W/ MMI HIGH)
FUSE 1
FUSE 4
FUSE CARRIER 2
FUSE CARRIER 3
FUSE PANEL SD (UNDER RIGHT SIDE OF DASH)
GRN/VIO WIRE
HOT AT ALL TIMES
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
MOST DATA BUS CIRCUIT
NCA WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/VIO WIRE
RED/YEL WIRE
RELAY/FUSE CARRIER LUGGAGE COMPARTMENT SF (RIGHT SIDE OF LUGGAGE COMPT)
RIGHT FRONT MID-BASS SPEAKER
RIGHT FRONT TREBLE SPEAKER
W/ BASIC
W/ HIGH
WHT WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> Radio circuit, basic mmi (1 of 2) -> BRN WIRE
brn wiring diagram (78 of 105)
ANTENNA AMPLIFIER 2
ANTENNA AMPLIFIER 3
BLK WIRE
BLU/GRN WIRE
BRN WIRE
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE (CENTER OF DASH)
FUSE 3
FUSE CARRIER 3
GRN/VIO WIRE
HOT AT ALL TIMES
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
MOST DATA BUS CIRCUIT
NCA WIRE
RADIO
RADIO, TELEPHONE NAVIGATION SYSTEM ANTENNA (W/ ROOF ANTENNA)
REAR VIEW CAMERA SYSTEM CONTROL MODULE (RIGHT REAR OF LUGGAGE COMPT)
RED/VIO WIRE
RELAY/FUSE CARRIER LUGGAGE COMPT SF (RIGHT SIDE OF LUGGAGE COMPT)
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SATELLITE ANTENNA
SATELLITE RADIO
TELEPHONE TRANSCEIVER (UNDER FRONT PASSENGER'S SEAT)
TV TUNER (LEFT REAR OF LUGGAGE COMPT)
W/ MMI BASIC
W/ MMI HIGH
W/ REAR VIEW CAMERA SYSTEM
W/ SPEAKER PHONE
W/O REAR VIEW CAMERA SYSTEM
W/O SPEAKER PHONE
WHT/GRN WIRE
Go to component -> Radio circuit, basic mmi (2 of 2) -> BRN WIRE
brn wiring diagram (79 of 105)
18-PIN CONNECTOR (NOT USED)
ANTENNA AMPLIFIER 2
ANTENNA AMPLIFIER 3
BLK WIRE
BRN WIRE
BRN/BLU WIRE
BRN/GRY WIRE
COMPUTER DATA LINES SYSTEM
EXTERNAL AUDIO SOURCE CONNECTION
FUSE 1
FUSE 3
FUSE CARRIER 2
FUSE PANEL SD (UNDER RIGHT SIDE OF DASH)
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/YEL WIRE
GRY (OR BRN) WIRE
GRY WIRE
HOT AT ALL TIMES
NCA WIRE
ORG/BRN WIRE
ORG/VIO WIRE
RADIO
RADIO, TELEPHONE NAVIGATION
RED/GRN WIRE
RED/GRY WIRE
SYSTEM ANTENNA (W/ ROOF ANTENNA)
TELEPHONE TRANSCEIVER (UNDER FRONT PASSENGER'S SEAT)
W/ SPEAKER PHONE
W/O SPEAKER PHONE
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/YEL WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Radio circuit, premium infotainment (1 of 2) -> BRN WIRE
brn wiring diagram (80 of 105)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
FUSE
FUSE CARRIER 3
FUSE CARRIER 4
GRN WIRE
GRY/BLU WIRE
HEATED SEAT TEMP SENSOR
HEATED SEAT TEMP SENSOR SEAT OCCUPIED SENSOR
HOT AT ALL TIMES
LEFT REAR BACKREST HEATING ELEMENT
LEFT REAR HEATED SEAT REGULATING SWITCH
LEFT REAR SEAT HEATER
RED WIRE
RELAY/ FUSE CARRIER LUGGAGE COMPARTMENT SF (RIGHT SIDE OF LUGGAGE COMPT)
RIGHT REAR BACKREST HEATING ELEMENT
RIGHT REAR HEATED SEAT REGULATING SWITCH
RIGHT REAR SEAT HEATER
SEAT HEATER
SEAT OCCUPIED SENSOR
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (ON RELAY & FUSE PANEL)
VIO WIRE
VIO/RED WIRE
WHT WIRE
WHT/GRN WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> Rear seat heater circuit -> BRN WIRE
