Audi A4 B8 (2007-2012) front passenger's seat multimedia Wiring diagrams
This page contains all the electrical diagrams for the component. front passenger's seat multimedia, in which he is found in the car Audi A4 B8 (2007-2012). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram front passenger's seat multimedia (1 of 11)
ANTENNA AMPLIFIER 2 (RIGHT REAR OF ROOF)
ANTENNA AMPLIFIER 3 (SEDAN: LEFT SIDE OF TRUNK) (AVANT: LEFT SIDE OF CARGO AREA)
BLK WIRE
BLK/GRN WIRE
BLU/GRN WIRE
BRN WIRE
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 5
FUSE 6
FUSE CARRIER 4
FUSE CARRIER 5
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NAVIGATION SYSTEM W/ CD DRIVE CONTROL MODULE (LEFT SIDE OF TRUNK)
NCA WIRE
RADIO
RED/VIO WIRE
RED/YEL WIRE
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SATELLITE ANTENNA
SATELLITE RADIO (LEFT REAR OF TRUNK)
W/ BLUETOOTH CELLULAR TELEPHONE
W/ SPEAKER PHONE
WHT/GRN WIRE
Go to component -> Navigation circuit, mmi 2 basic (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (2 of 11)
BLK/GRN WIRE
BLK/WHT WIRE
BLU/GRN WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
BRN/VIO WIRE
BRN/YEL WIRE
CD CHANGER
CENTER MID/HIGH RANGE SPEAKER
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
EXTERNAL AUDIO SOURCE CONNECTION (W/ MMI HIGH)
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 1
FUSE CARRIER 2
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NCA WIRE
PASSENGER'S SIDE FUSE PANEL (UNDER RIGHT END OF DASH)
RED/BLK WIRE
RED/BLU WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT MID-BASS SPEAKER
RIGHT FRONT TREBLE SPEAKER
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SUBWOOFER
W/ MMI HIGH
WHT/GRN WIRE
WHT/YEL WIRE
Go to component -> Navigation circuit, mmi 2 standard (3 of 3) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (3 of 11)
BLK/GRN WIRE
BLK/WHT WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
CD/DVD CHANGER
COMPUTER DATA LINES SYSTEM
DIGITAL RADIO ANTENNA ANTENNA AMPLIFIER 2 (RIGHT REAR OF ROOF)
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 1
FUSE CARRIER 2
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
INFORMATION ELECTRONICS CONTROL MODULE 1
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/ LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NAVIGATION SYSTEM ANTENNA
NCA WIRE
PASSENGER'S SIDE FUSE PANEL (BEHIND RIGHT END OF DASH)
RADIO, TELEPHONE NAVIGATION SYSTEM ANTENNA (CENTER REAR OF ROOF)
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
SATELLITE ANTENNA
TELEPHONE ANTENNA
TELEPHONE BASE PLATE
W/ BLUETOOTH
W/ REAR VIEW CAMERA
W/ SPEAKER PHONE
Go to component -> Navigation circuit, mmi 3 basic (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA

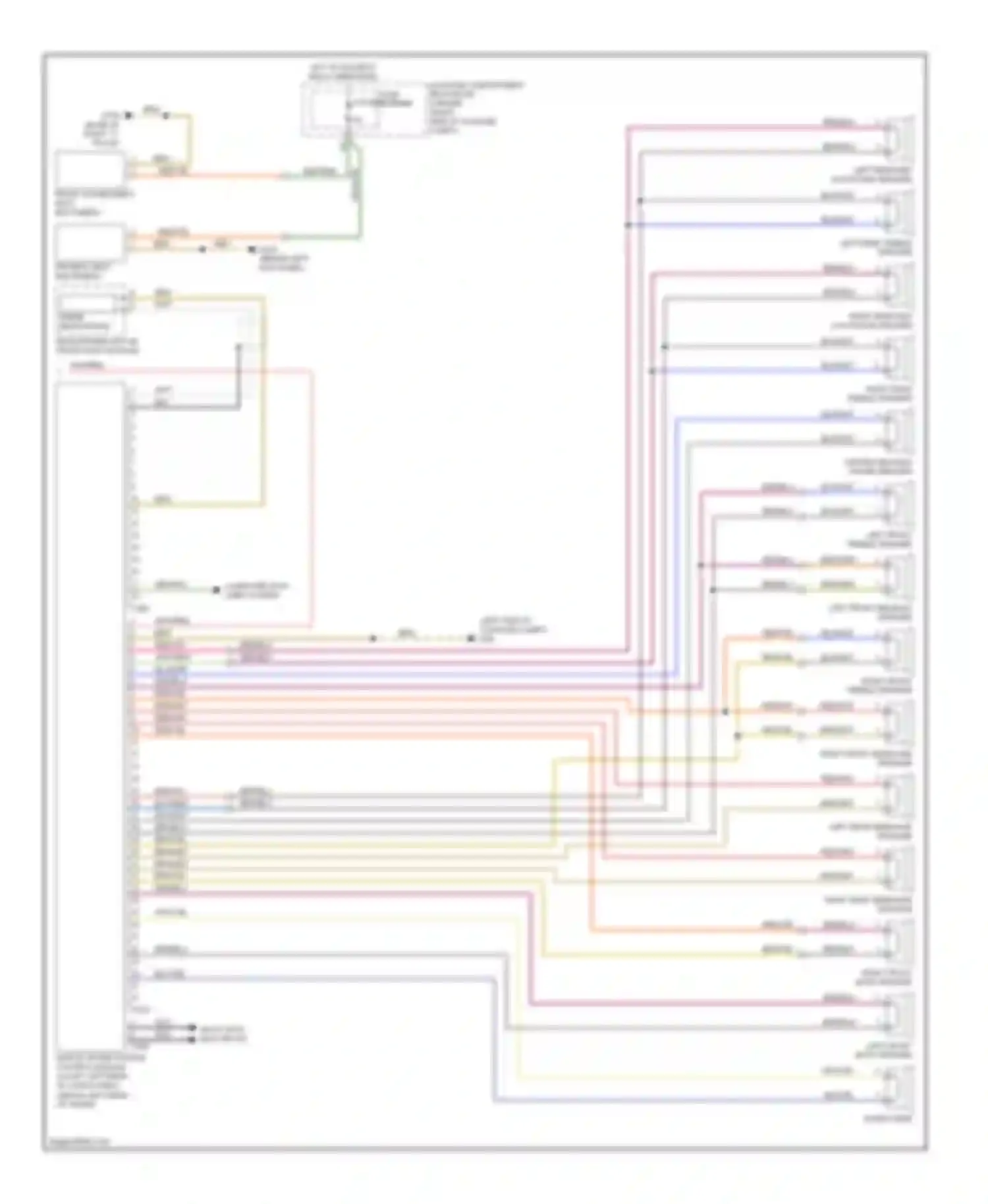

Wiring diagram front passenger's seat multimedia (4 of 11)
BLK WIRE
BLK/GRN WIRE
BLK/WHT WIRE
BLU/GRN WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLU WIRE
BRN/GRN WIRE
BRN/GRY WIRE
BRN/VIO WIRE
BRN/WHT WIRE
BRN/YEL WIRE
CENTER MID/ HIGH RANGE SPEAKER
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT W/ SOCKETS RELAY ENERGIZED
INSIDE MICROPHONE
LEFT FRONT BASS SPEAKER
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/ LOW RANGE SPEAKER
LEFT REAR MIDRANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MICROPHONE UNIT (IN FRONT ROOF MODULE)
MOST DATA BUS CIRCUIT
NCA WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/VIO WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT BASS SPEAKER
RIGHT FRONT MIDRANGE SPEAKER
RIGHT FRONT TREBLE SPEAKER
RIGHT REAR MID/ LOW RANGE SPEAKER
RIGHT REAR MIDRANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SUBWOOFER
WHT WIRE
WHT/GRN WIRE
WHT/RED WIRE
WHT/YEL WIRE
Go to component -> Navigation circuit, mmi 3 premium (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA

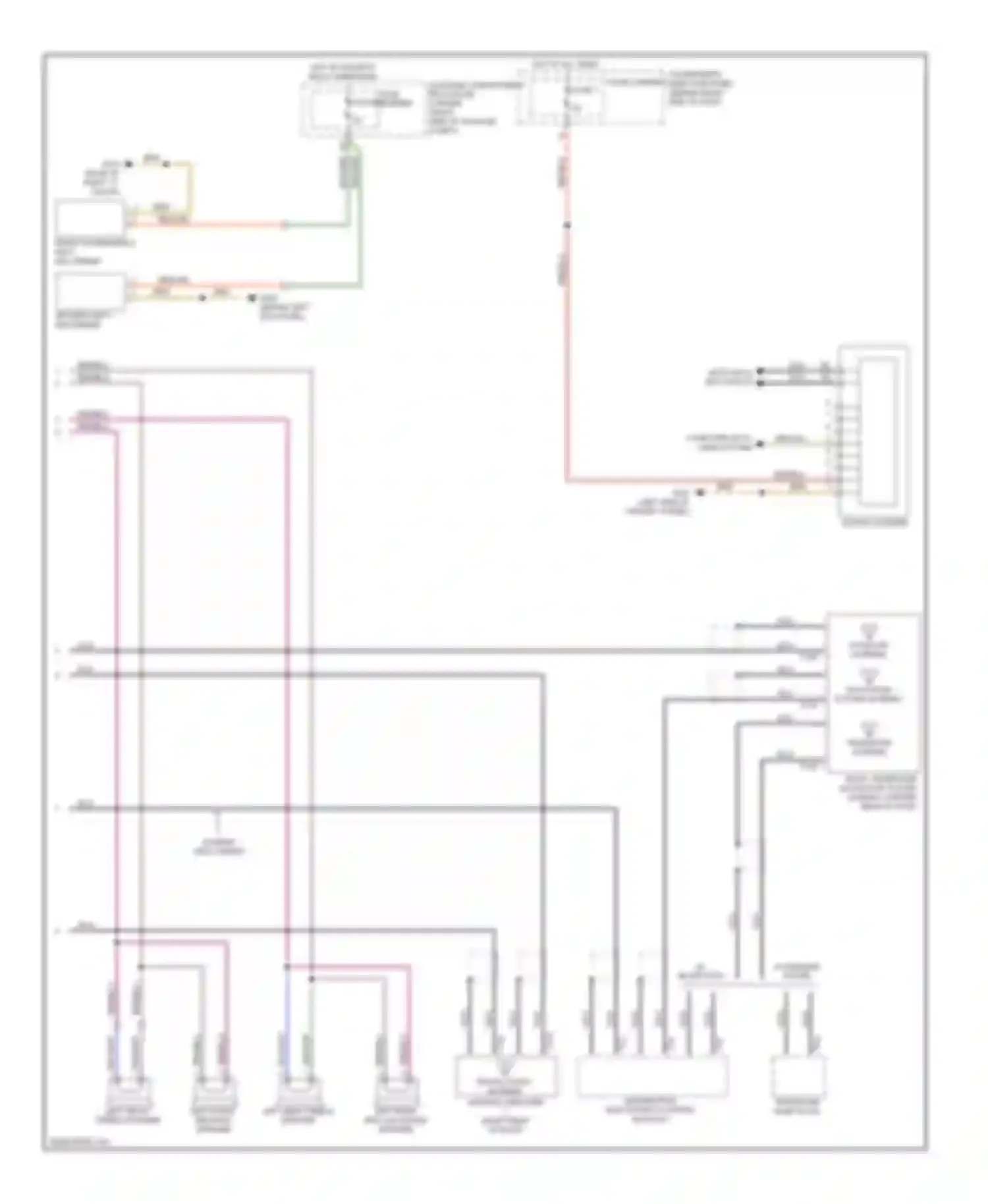

Wiring diagram front passenger's seat multimedia (5 of 11)
BLK/GRN WIRE
BLK/WHT WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
CD/DVD CHANGER
COMPUTER DATA LINES SYSTEM
DIGITAL RADIO ANTENNA ANTENNA AMPLIFIER 2 (RIGHT REAR OF ROOF)
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 1
FUSE CARRIER 2
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
INFORMATION ELECTRONICS CONTROL MODULE 1
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/ LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NAVIGATION SYSTEM ANTENNA
NCA WIRE
PASSENGER'S SIDE FUSE PANEL (BEHIND RIGHT END OF DASH)
RADIO, TELEPHONE NAVIGATION SYSTEM ANTENNA (CENTER REAR OF ROOF)
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
SATELLITE ANTENNA
TELEPHONE ANTENNA
TELEPHONE BASE PLATE
W/ BLUETOOTH
W/ REAR VIEW CAMERA
W/ SPEAKER PHONE
Go to component -> Navigation circuit, mmi 3 standard (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA

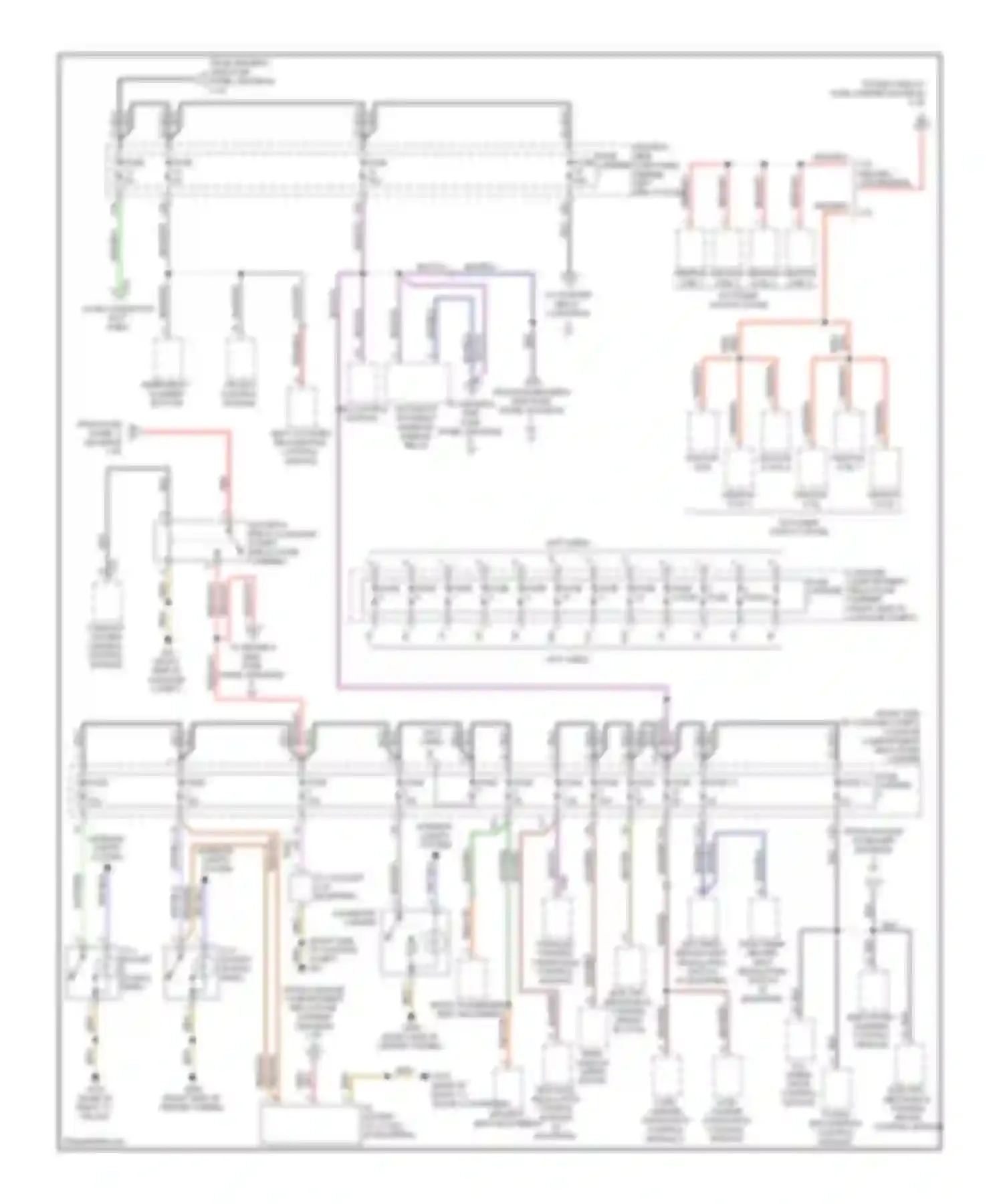

Wiring diagram front passenger's seat multimedia (6 of 11)
12 V SOCKET
12 V SOCKET (IF EQUI- PPED)
12 V SOCKET 3 (IF EQUIPPED)
18-PIN CONNECTOR (NOT USED)
2.0L
3.0L
ABS CONTROL MODULE
AIR BAG CONTROL MODULE
AUTOMATIC DAY/NIGHT INTERIOR MIRROR RELAY
BLK WIRE
BLK/BLU WIRE
BLK/BRN WIRE
BLK/GRN WIRE
BLK/GRY WIRE
BLK/RED WIRE
BLK/VIO WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BRN RED/ WIRE
BRN WIRE
CIGARETTE LIGHTER
COMFORT SYSTEM CENTRAL CONTROL MODULE
DRIVER'S SEAT MULTIMEDIA
DRIVER'S SIDE FUSE PANEL (BEHIND LEFT END OF DASH)
ELECTRO- MECHANICAL PARKING BRAKE CONTROL MODULE
ELECTRONIC DAMPING CONTROL MODULE
EMERGENCY FLASHER BUTTON
FROM DRIVER'S SIDE FUSE PANEL (DIAGRAM 1 OF 6)
FROM FUSE PANEL A (DIAGRAM 1 OF 6)
FROM LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (DIAGRAM 3 OF 6)
FROM PASSENGER'S SIDE FUSE PANEL (DIAGRAM 1 OF 6)
FROM VOLTAGE STABILIZER (DIAGRAM 3 OF 6)
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE
FUSE CARRIER 1 FUSE
FUSE CARRIER 4 FUSE 12
FUSE FUSE
FUSE FUSE FUSE 2 FUSE 1 FUSE 3 FUSE 4
FUSE FUSE FUSE FUSE 10 FUSE 11
GRN/BLK WIRE
GRY WIRE
GRY/BLU WIRE
IGNITION COIL 2
IGNITION COIL 5
IGNITION IGNITION COIL 3 COIL 1
IGNITION IGNITION COIL 6 COIL 4
NCA WIRE
RED BRN/ WIRE
RED WIRE
RED/BLK WIRE
RED/BRN WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/WHT WIRE
RED/YEL WIRE
RELAY/FUSE CARRIER
SEAT OCCUPIED RECOGNITION CONTROL MODULE
SOCKETS RELAY (LUGGAGE COMPT RELAY/ FUSE CARRIER)
TO DRIVER'S SIDE FUSE PANEL (DIAGRAM 6 OF 6)
TO E-BOX RELAY/ FUSE CARRIER (DIAGRAM 5 OF 6)
TO STARTER RELAY 2 (DIAGRAM 5 OF 6)
W/ POWER OUTPUT STAGE
WHT/ VIO WIRE
WHT/BLU WIRE
WHT/GRN WIRE
Go to component -> Power distribution circuit (4 of 6) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (7 of 11)
ANTENNA AMPLIFIER 2 (RIGHT REAR OF ROOF)
ANTENNA AMPLIFIER 3 (SEDAN: LEFT SIDE OF TRUNK) (AVANT: LEFT SIDE OF CARGO AREA)
BLK WIRE
BLK/GRN WIRE
BLU/GRN WIRE
BRN WIRE
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 5
FUSE 6
FUSE CARRIER 4
FUSE CARRIER 5
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NAVIGATION SYSTEM W/ CD DRIVE CONTROL MODULE (LEFT SIDE OF TRUNK)
NCA WIRE
RADIO
RED/VIO WIRE
RED/YEL WIRE
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SATELLITE ANTENNA
SATELLITE RADIO (LEFT REAR OF TRUNK)
W/ BLUETOOTH CELLULAR TELEPHONE
W/ SPEAKER PHONE
WHT/GRN WIRE
Go to component -> Radio circuit, mmi 2 basic (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (8 of 11)
BLK/GRN WIRE
BLK/WHT WIRE
BLU/GRN WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
BRN/VIO WIRE
BRN/YEL WIRE
CD CHANGER
CENTER MID/HIGH RANGE SPEAKER
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
EXTERNAL AUDIO SOURCE CONNECTION (W/ MMI HIGH)
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 1
FUSE CARRIER 2
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NCA WIRE
PASSENGER'S SIDE FUSE PANEL (UNDER RIGHT END OF DASH)
RED/BLK WIRE
RED/BLU WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT MID-BASS SPEAKER
RIGHT FRONT TREBLE SPEAKER
RIGHT REAR MID/LOW RANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SUBWOOFER
W/ MMI HIGH
WHT/GRN WIRE
WHT/YEL WIRE
Go to component -> Radio circuit, mmi 2 standard (3 of 3) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (9 of 11)
BLK/GRN WIRE
BLK/WHT WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
CD/DVD CHANGER
COMPUTER DATA LINES SYSTEM
DIGITAL RADIO ANTENNA ANTENNA AMPLIFIER 2 (RIGHT REAR OF ROOF)
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE 1
FUSE CARRIER 2
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ SOCKETS RELAY ENERGIZED
INFORMATION ELECTRONICS CONTROL MODULE 1
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/ LOW RANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MOST DATA BUS CIRCUIT
NAVIGATION SYSTEM ANTENNA
NCA WIRE
PASSENGER'S SIDE FUSE PANEL (BEHIND RIGHT END OF DASH)
RADIO, TELEPHONE NAVIGATION SYSTEM ANTENNA (CENTER REAR OF ROOF)
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
SATELLITE ANTENNA
TELEPHONE ANTENNA
TELEPHONE BASE PLATE
W/ BLUETOOTH
W/ REAR VIEW CAMERA
W/ SPEAKER PHONE
Go to component -> Radio circuit, mmi 3 basic (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Wiring diagram front passenger's seat multimedia (10 of 11)
BLK WIRE
BLK/GRN WIRE
BLK/WHT WIRE
BLU/GRN WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLU WIRE
BRN/GRN WIRE
BRN/GRY WIRE
BRN/VIO WIRE
BRN/WHT WIRE
BRN/YEL WIRE
CENTER MID/ HIGH RANGE SPEAKER
COMPUTER DATA LINES SYSTEM
DRIVER'S SEAT MULTIMEDIA
FRONT PASSENGER'S SEAT MULTIMEDIA
FUSE CARRIER 4 FUSE 6
GRN/VIO WIRE
HOT W/ SOCKETS RELAY ENERGIZED
INSIDE MICROPHONE
LEFT FRONT BASS SPEAKER
LEFT FRONT MID-BASS SPEAKER
LEFT FRONT TREBLE SPEAKER
LEFT REAR MID/ LOW RANGE SPEAKER
LEFT REAR MIDRANGE SPEAKER
LEFT REAR TREBLE SPEAKER
LUGGAGE COMPARTMENT RELAY/FUSE CARRIER (RIGHT SIDE OF LUGGAGE COMPT)
MICROPHONE UNIT (IN FRONT ROOF MODULE)
MOST DATA BUS CIRCUIT
NCA WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/VIO WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT BASS SPEAKER
RIGHT FRONT MIDRANGE SPEAKER
RIGHT FRONT TREBLE SPEAKER
RIGHT REAR MID/ LOW RANGE SPEAKER
RIGHT REAR MIDRANGE SPEAKER
RIGHT REAR TREBLE SPEAKER
SUBWOOFER
WHT WIRE
WHT/GRN WIRE
WHT/RED WIRE
WHT/YEL WIRE
Go to component -> Radio circuit, mmi 3 premium (2 of 2) -> FRONT PASSENGER'S SEAT MULTIMEDIA
Page 1 of 2
1
2
