Audi A4 B7 (2004-2009) tiptronic switch Wiring diagrams
This page contains all the electrical diagrams for the component. tiptronic switch, in which he is found in the car Audi A4 B7 (2004-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

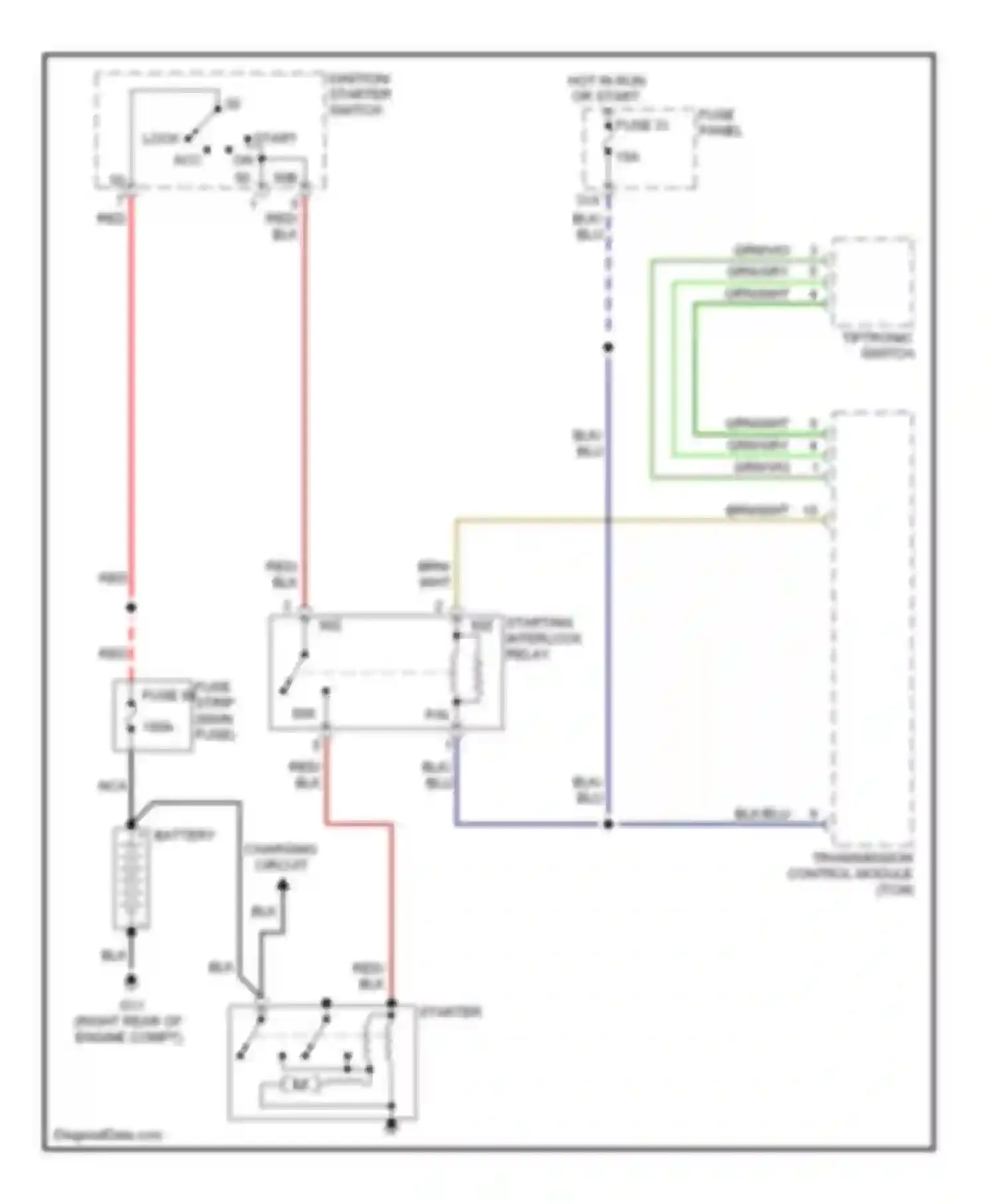

Wiring diagram tiptronic switch (1 of 10)
Go to component -> 2.0l turbo, starting circuit, with 6 speed a/t -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (2 of 10)
Go to component -> 2.0l turbo, starting circuit, with cvt -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (3 of 10)
Go to component -> 3.2l, starting circuit, with a/t -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (4 of 10)
Go to component -> A/t circuit, 6 speed a/t -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (5 of 10)
Go to component -> A/t circuit, with cvt -> TIPTRONIC SWITCH

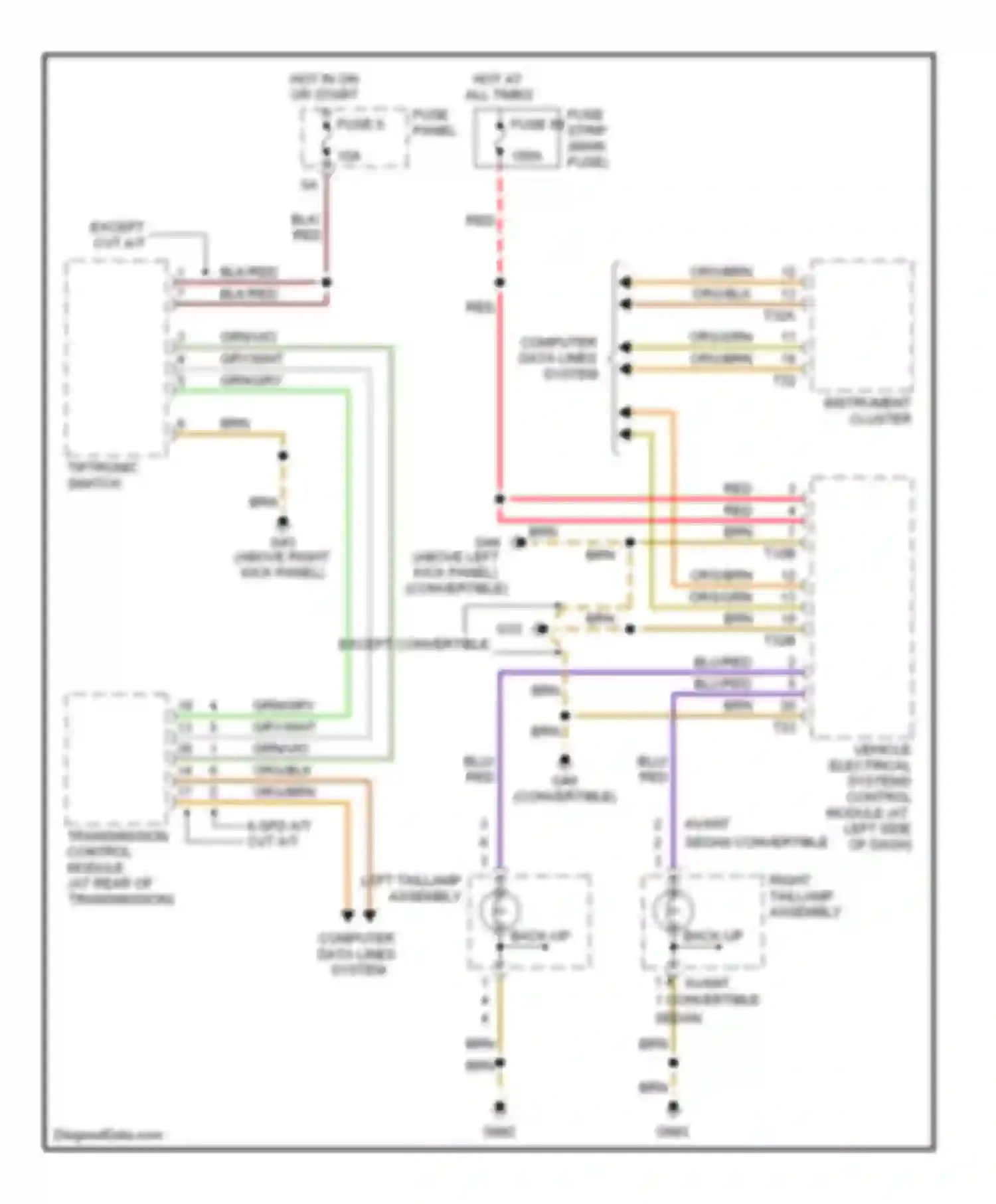

Wiring diagram tiptronic switch (6 of 10)
Go to component -> Back-up lamps circuit -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (7 of 10)
Go to component -> Instrument cluster circuit, convertible -> TIPTRONIC SWITCH
Wiring diagram tiptronic switch (8 of 10)
Go to component -> Instrument cluster circuit, except convertible -> TIPTRONIC SWITCH

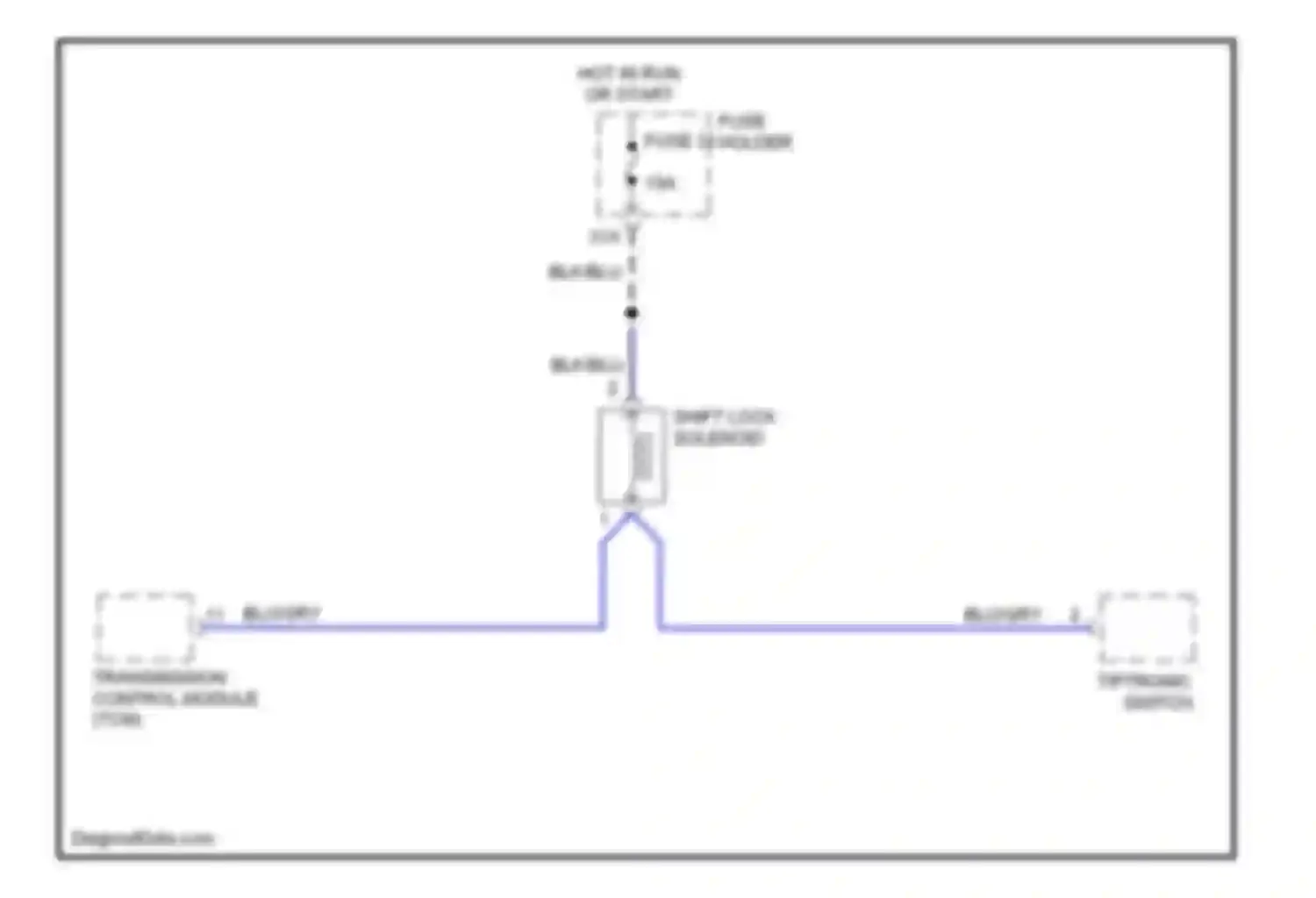

Wiring diagram tiptronic switch (9 of 10)
Go to component -> Shift interlock circuit, 6 speed a/t -> TIPTRONIC SWITCH

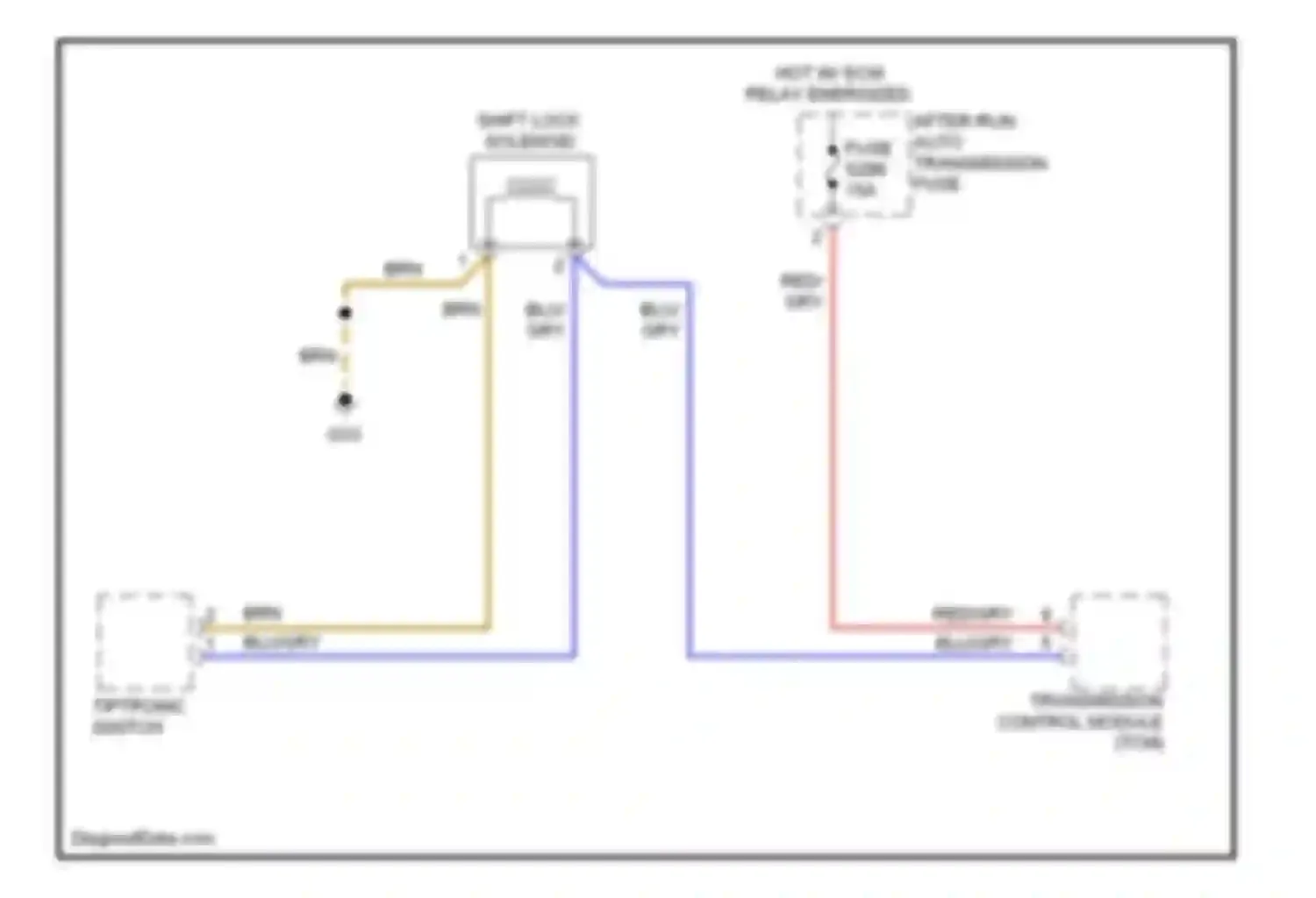

Wiring diagram tiptronic switch (10 of 10)
Go to component -> Shift interlock circuit, with cvt -> TIPTRONIC SWITCH
