Audi A4 B7 (2004-2009) org/grn Wiring diagrams
This page contains all the electrical diagrams for the component. org/grn, in which he is found in the car Audi A4 B7 (2004-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram org/grn (51 of 62)
Go to component -> Convertible top circuit (1 of 2) -> ORG/GRN WIRE
Wiring diagram org/grn (52 of 62)
Go to component -> Front seat heater circuit -> ORG/GRN WIRE
Wiring diagram org/grn (53 of 62)

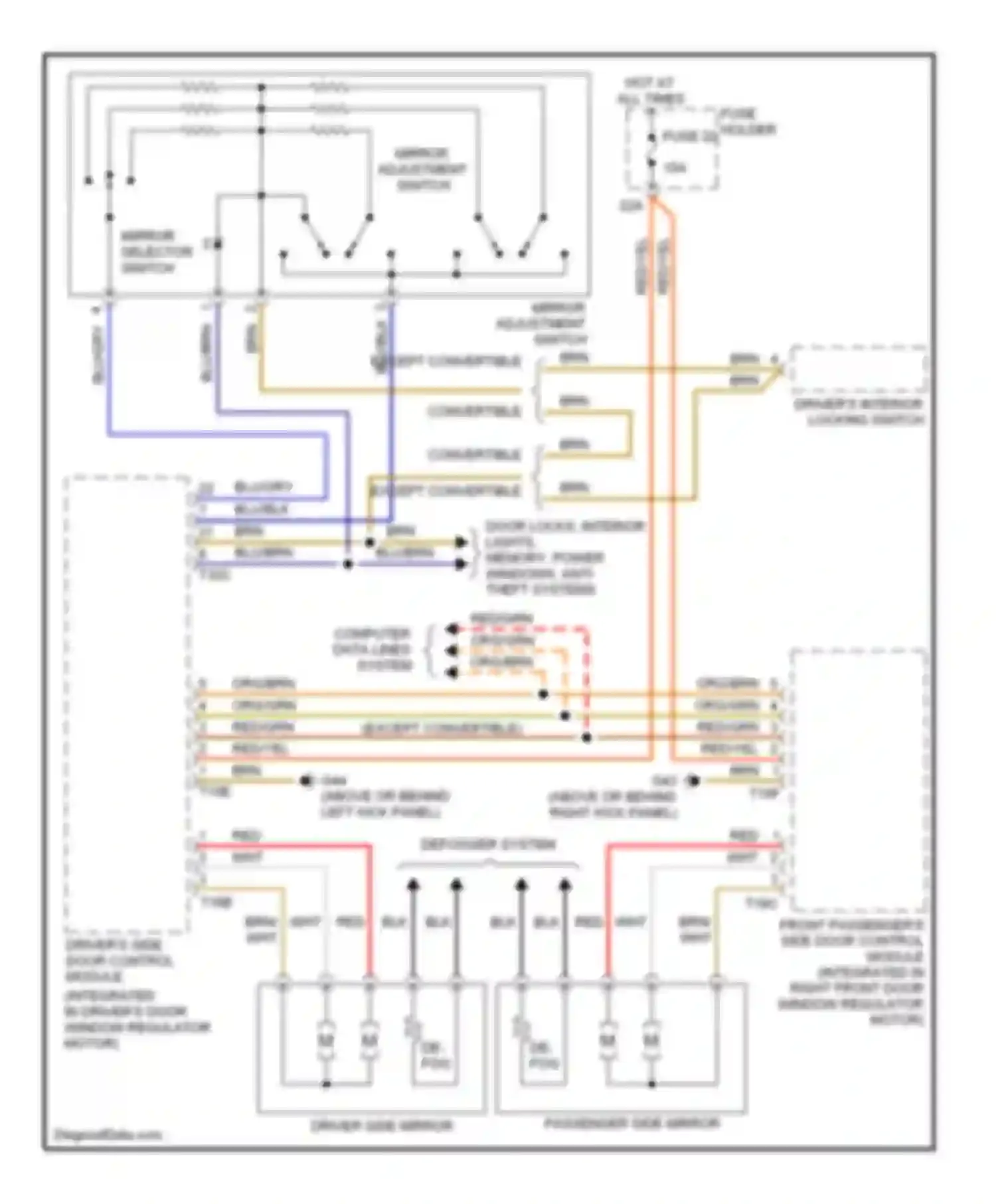

Go to component -> Power mirrors circuit, without auto tilt-down mirrors -> ORG/GRN WIRE
Wiring diagram org/grn (54 of 62)
Go to component -> Power seats circuit, convertible (1 of 2) -> ORG/GRN WIRE
Wiring diagram org/grn (55 of 62)
Go to component -> Power seats circuit, convertible (2 of 2) -> ORG/GRN WIRE
Wiring diagram org/grn (56 of 62)
Go to component -> Power windows circuit, convertible -> ORG/GRN WIRE
Wiring diagram org/grn (57 of 62)
Go to component -> Power windows circuit, except convertible -> ORG/GRN WIRE
Wiring diagram org/grn (58 of 62)
Go to component -> Radio circuit, convertible with amplifier (2 of 2) -> ORG/GRN WIRE
Wiring diagram org/grn (59 of 62)
Go to component -> Radio circuit, convertible with bose (2 of 2) -> ORG/GRN WIRE
Wiring diagram org/grn (60 of 62)
Go to component -> Radio circuit, except convertible with amplifier (2 of 2) -> ORG/GRN WIRE
