Audi A4 B7 (2004-2009) lumbar height Wiring diagrams

This page contains all the electrical diagrams for the component. lumbar height, in which he is found in the car Audi A4 B7 (2004-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram lumbar height (1 of 3)

Wiring diagram lumbar height for Audi A4 B7 (2004-2009)

Get access

BLK WIRE BLU WIRE BRN WIRE DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 2 FUSE 45 FRONT PASSENGER'S SEAT ADJUSTMENT CIRCUIT BREAKER 1 (FUSE 46) HOT AT ALL TIMES LUMBAR CURV- ATURE LUMBAR HEIGHT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTING MOTOR PASSENGER SEAT LUMBAR SUPPORT HEIGHT ADJUSTING MOTOR RED WIRE WHT WIRE

Go to component: -> Lumbar circuit, convertible -> LUMBAR HEIGHT

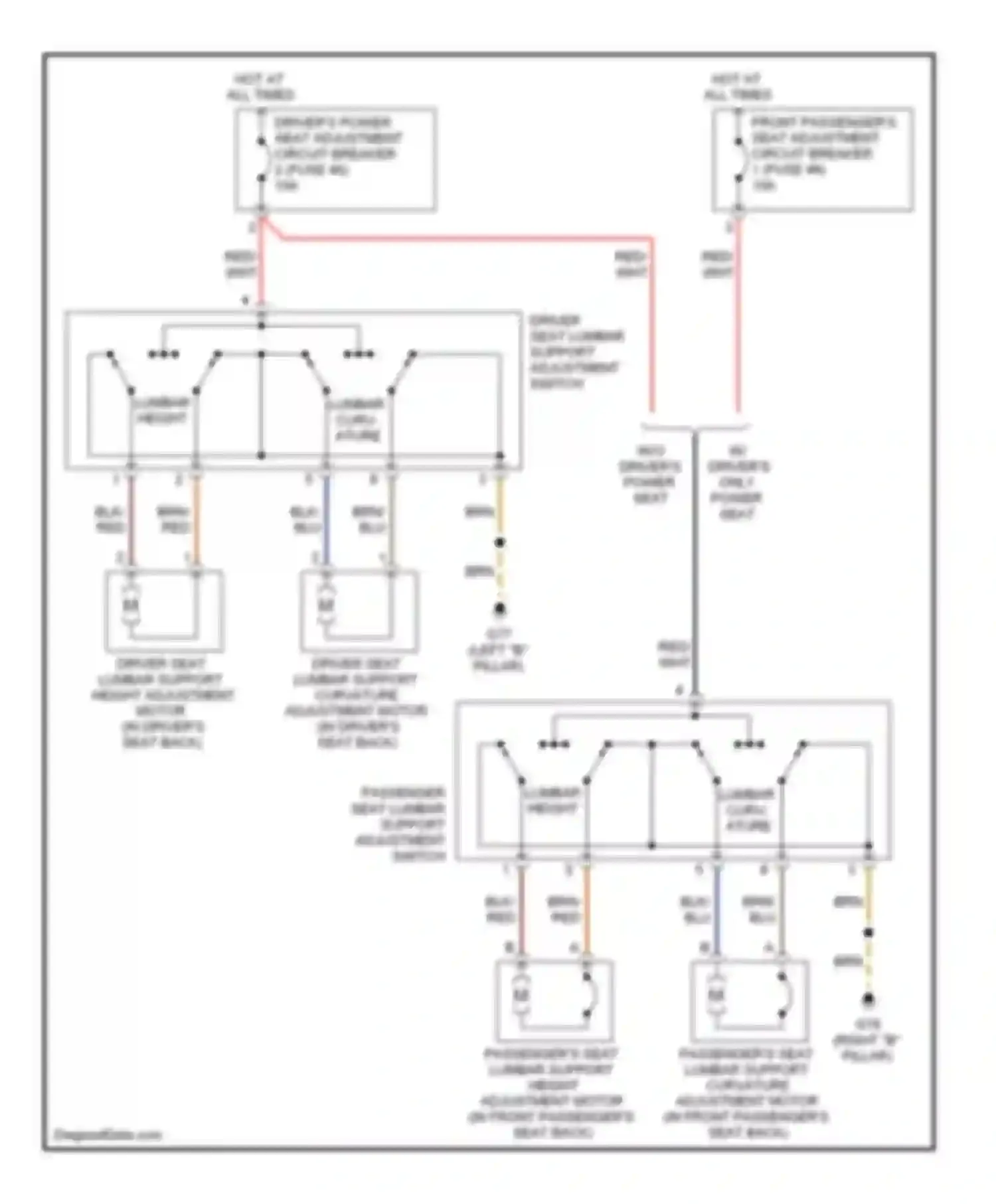

Wiring diagram lumbar height (2 of 3)

Wiring diagram lumbar height for Audi A4 B7 (2004-2009)

Get access

BLK WIRE BLU WIRE BRN WIRE DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR (IN DRIVER'S SEAT BACK) DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR (IN DRIVER'S SEAT BACK) DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 2 FUSE 45 FRONT PASSENGER'S SEAT ADJUSTMENT CIRCUIT BREAKER 1 (FUSE 46) HOT AT ALL TIMES LUMBAR CURV- ATURE LUMBAR HEIGHT LUMBAR PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH HEIGHT RED WIRE W/ DRIVER'S ONLY POWER SEAT W/O DRIVER'S POWER SEAT WHT WIRE

Go to component: -> Lumbar circuit, except convertible -> LUMBAR HEIGHT

Wiring diagram lumbar height (3 of 3)

Wiring diagram lumbar height for Audi A4 B7 (2004-2009)

Get access

BLK WIRE BLU WIRE BRN WIRE DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER'S LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR (IN DRIVER'S SEAT BACK) DRIVER'S LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR (IN DRIVER'S SEAT BACK) DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 2 FUSE 45 DRIVER'S POWER SEAT SWITCH DRIVER'S SEAT FORE/AFT ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT INCLINATION ADJUSTMENT MOTOR DRIVER'S SEAT SEATBACK ADJUSTMENT MOTOR (IN DRIVER'S SEAT BACK) FRONT PASSENGER'S BACKREST ADJUSTING MOTOR (IN FRONT PASSENGER'S SEAT BACK) HOT AT ALL TIMES LUMBAR CURV- ATURE LUMBAR HEIGHT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH PASSENGER'S POWER SEAT SWITCH PASSENGER'S SEAT FORE/AFT ADJUSTMENT MOTOR PASSENGER'S SEAT HEIGHT ADJUSTMENT MOTOR PASSENGER'S SEAT INCLINATION ADJUSTMENT MOTOR RED WIRE WHT WIRE YEL WIRE

Go to component: -> Power seats circuit, except convertible -> LUMBAR HEIGHT
