Audi A4 B6 (2000-2006) automatic day/night interior mirror Wiring diagrams

This page contains all the electrical diagrams for the component. automatic day/night interior mirror, in which he is found in the car Audi A4 B6 (2000-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

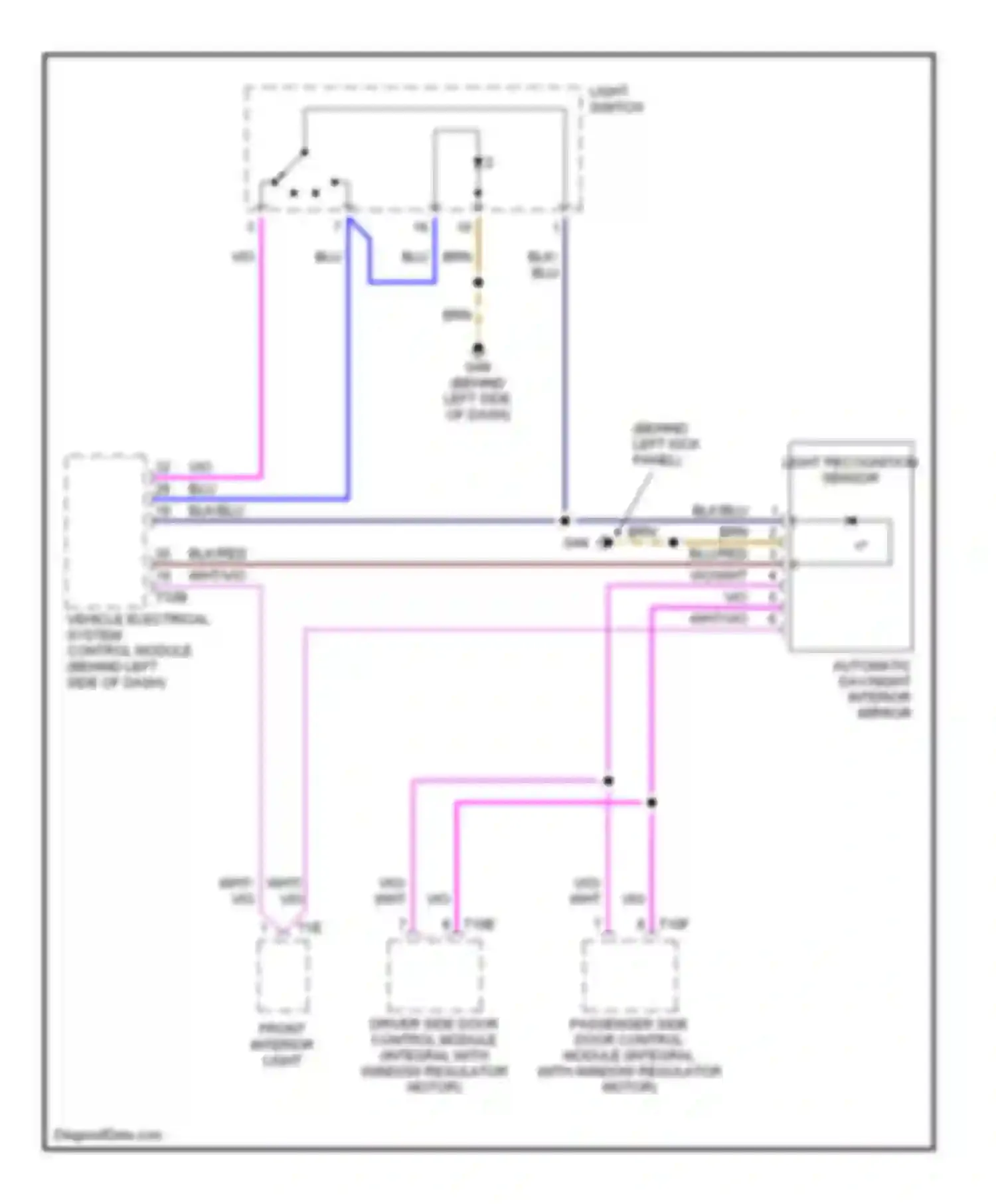

Wiring diagram automatic day/night interior mirror (1 of 2)

Wiring diagram automatic day/night interior mirror for Audi A4 B6 (2000-2006)

Get access

AUTOMATIC DAY/NIGHT INTERIOR MIRROR BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLU WIRE BLU/RED WIRE BRN WIRE DRIVER SIDE DOOR CONTROL MODULE (INTEGRAL WITH WINDOW REGULATOR MOTOR) FRONT INTERIOR LIGHT LIGHT RECOGNITION SENSOR LIGHT SWITCH PASSENGER SIDE DOOR CONTROL MODULE (INTEGRAL WITH WINDOW REGULATOR MOTOR) VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH) VIO WIRE VIO/WHT WIRE WHT WIRE WHT/VIO WIRE

Go to component: -> Automatic day/night mirror circuit, with convertible -> AUTOMATIC DAY/NIGHT INTERIOR MIRROR

Wiring diagram automatic day/night interior mirror (2 of 2)

Wiring diagram automatic day/night interior mirror for Audi A4 B6 (2000-2006)

Get access

AUTOMATIC DAY/NIGHT INTERIOR MIRROR BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLU WIRE BLU/RED WIRE BRN WIRE BRN/BLK WIRE DRIVER SIDE DOOR CONTROL MODULE (INTEGRAL WITH WINDOW REGULATOR MOTOR) FRONT INTERIOR LIGHT LIGHT RECOGNITION SENSOR LIGHT SWITCH PASSENGER SIDE DOOR CONTROL MODULE (INTEGRAL WITH WINDOW REGULATOR MOTOR) VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH) VIO WIRE VIO/WHT WIRE WHT WIRE WHT/VIO WIRE

Go to component: -> Automatic day/night mirror circuit, without convertible -> AUTOMATIC DAY/NIGHT INTERIOR MIRROR
