Audi A4 B5 (1994-1999) fuse/ relay panel Wiring diagrams
This page contains all the electrical diagrams for the component. fuse/ relay panel, in which he is found in the car Audi A4 B5 (1994-1999). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

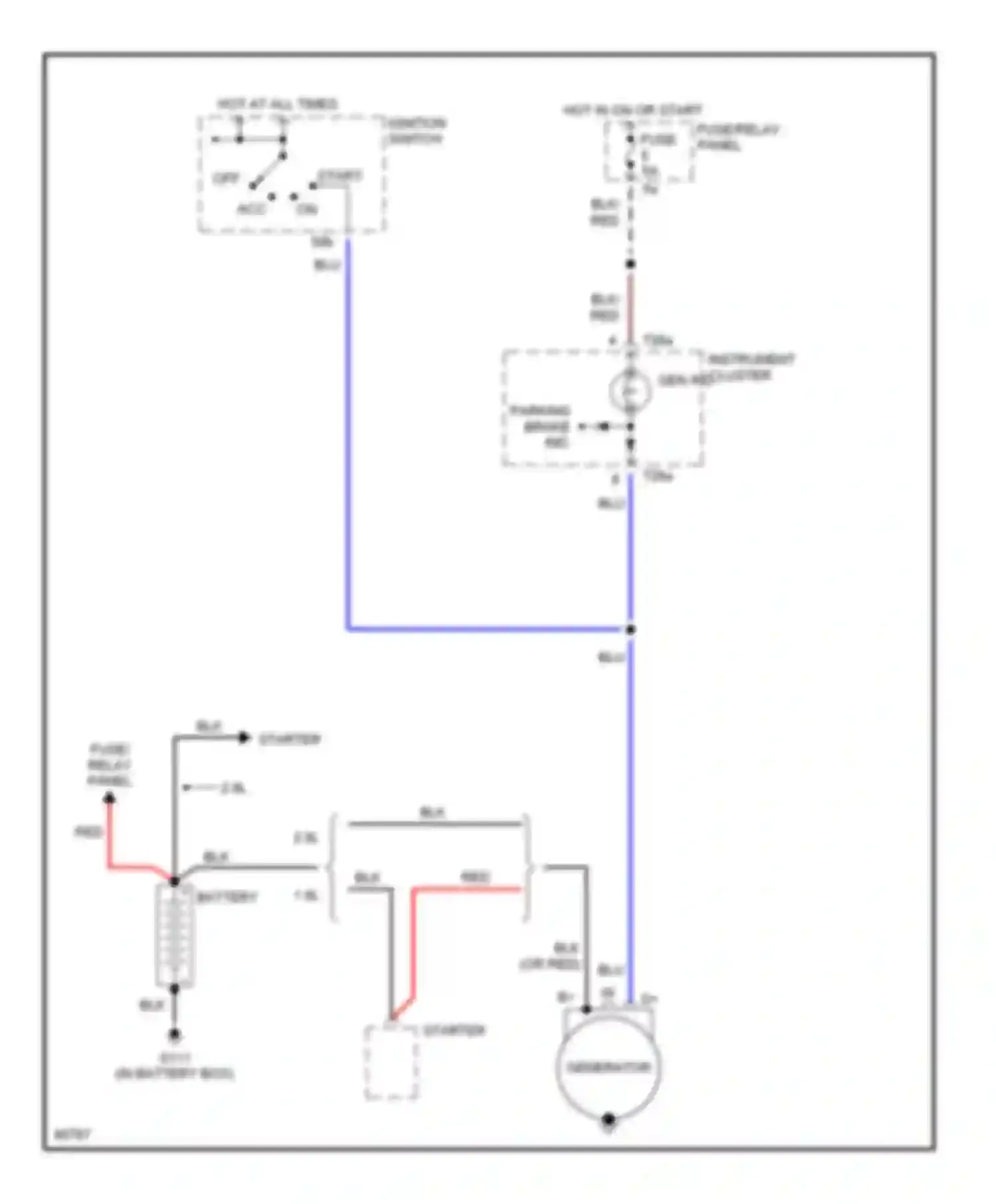

fuse/ relay panel wiring diagram (2 of 4)
A/C CONTROL HEAD
ABS HYDRAULIC UNIT
BLK WIRE
BLU WIRE
BRAKE LIGHT SWITCH
BRN WIRE
CENTRAL ELECTRIC PANEL
CIRCUIT BREAKER 37
CIRCUIT BREAKER 43
CIRCUIT BREAKER 44
DATA LINK CONNECTOR
DUAL HORN RELAY
EMERGENCY FLASHER SWITCH
FRESH AIR BLOWER, A/C CLUTCH RELAY, A/C REFRIGERANT SWITCH
FROM FUEL PUMP RELAY (DIAGRAM 1 OF 2)
FROM IGNITION SWITCH (DIAGRAM 1 OF 2)
FUSE 1
FUSE 12
FUSE 13
FUSE 14
FUSE 15 FUSE 38
FUSE 2
FUSE 24
FUSE 25
FUSE 26
FUSE 39
FUSE 40
FUSE 41
FUSE 51 FUSE 42
FUSE 53
FUSE 9
FUSE PANEL
FUSE/ RELAY PANEL
GRN WIRE
INSTRUMENT CLUSTER, SELECTOR LEVER LIGHT RELAY, TRANSMISSION CONTROL MODULE
LOAD REDUCTION RELAY
POWER SEAT SWITCH
REAR WINDOW DEFOGGER SWITCH
RED WIRE
SECOND SPEED COOLANT FAN CONTROL RELAY, COOLANT FAN CONTROL RELAY
TEMPERATURE/ TRANSMISSION RANGE SWITCH, MIRROR ADJUSTMENT MOTORS
WASHER NOZZLE HEATERS
WASHER/ WIPER INTERMITTENT RELAY
WHT WIRE
WINDOW MOTORS
WINDSHIELD WIPER INTERMITTENT SWITCH
WINDSHIELD WIPER MOTOR
YEL WIRE
Go to component -> Power distribution circuit (2 of 2) -> FUSE/ RELAY PANEL
fuse/ relay panel wiring diagram (3 of 4)
BLK WIRE
BLK/YEL WIRE
BRN WIRE
FUSE ASSEMBLY (BEHIND LEFT SIDE OF DASH)
FUSE/ RELAY PANEL
HOT AT ALL TIMES
HOT IN ON OR ACC
LEFT FRONT WINDOW SWITCH
LEFT WINDOW MOTOR
POWER SUNROOF CONTROL MODULE
POWER WINDOW FUSE 37
RED WIRE
RED/BLK WIRE
RED/BRN WIRE
RED/GRN WIRE
RED/GRY WIRE
WHT/YEL WIRE
WINDOW MOTOR
YEL/BLU WIRE
Go to component -> Power window system wiring diagram (a4 circuit 1 of 2) -> FUSE/ RELAY PANEL
fuse/ relay panel wiring diagram (4 of 4)
BLK WIRE
BRN WIRE
CIRCUIT BREAKER 43
FUSE/ RELAY PANEL
GRN WIRE
GRN/YEL WIRE
GRY WIRE
HOT AT ALL TIMES POWER WINDOW
LEFT REAR DOOR WINDOW MOTOR
LEFT REAR DOOR WINDOW SWITCH (CENTER CONSOLE)
LEFT REAR DOOR WINDOW SWITCH (DOOR)
RED WIRE
RED/BLK WIRE
RED/GRN WIRE
RED/GRY WIRE
RIGHT FRONT DOOR WINDOW SWITCH
RIGHT FRONT DOOR WINDOW SWITCH (RIGHT DOOR)
RIGHT REAR DOOR WINDOW MOTOR
RIGHT REAR DOOR WINDOW SWITCH (CENTER CONSOLE)
RIGHT REAR DOOR WINDOW SWITCH (DOOR)
RIGHT WINDOW MOTOR
WHT WIRE
WHT/BLK WIRE
WHT/VIO WIRE
WHT/YEL WIRE
WINDOW LOCKOUT SWITCH
WINDOW MOTOR
YEL WIRE
Go to component -> Power window system wiring diagram (a4 circuit 2 of 2) -> FUSE/ RELAY PANEL
