Audi A3 8P facelift 2 (2008-2013) driver side outside mirror assembly Wiring diagram
This page shows the only wiring diagram for the component.driver side outside mirror assembly, which is found in the car Audi A3 8P facelift 2 (2008-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

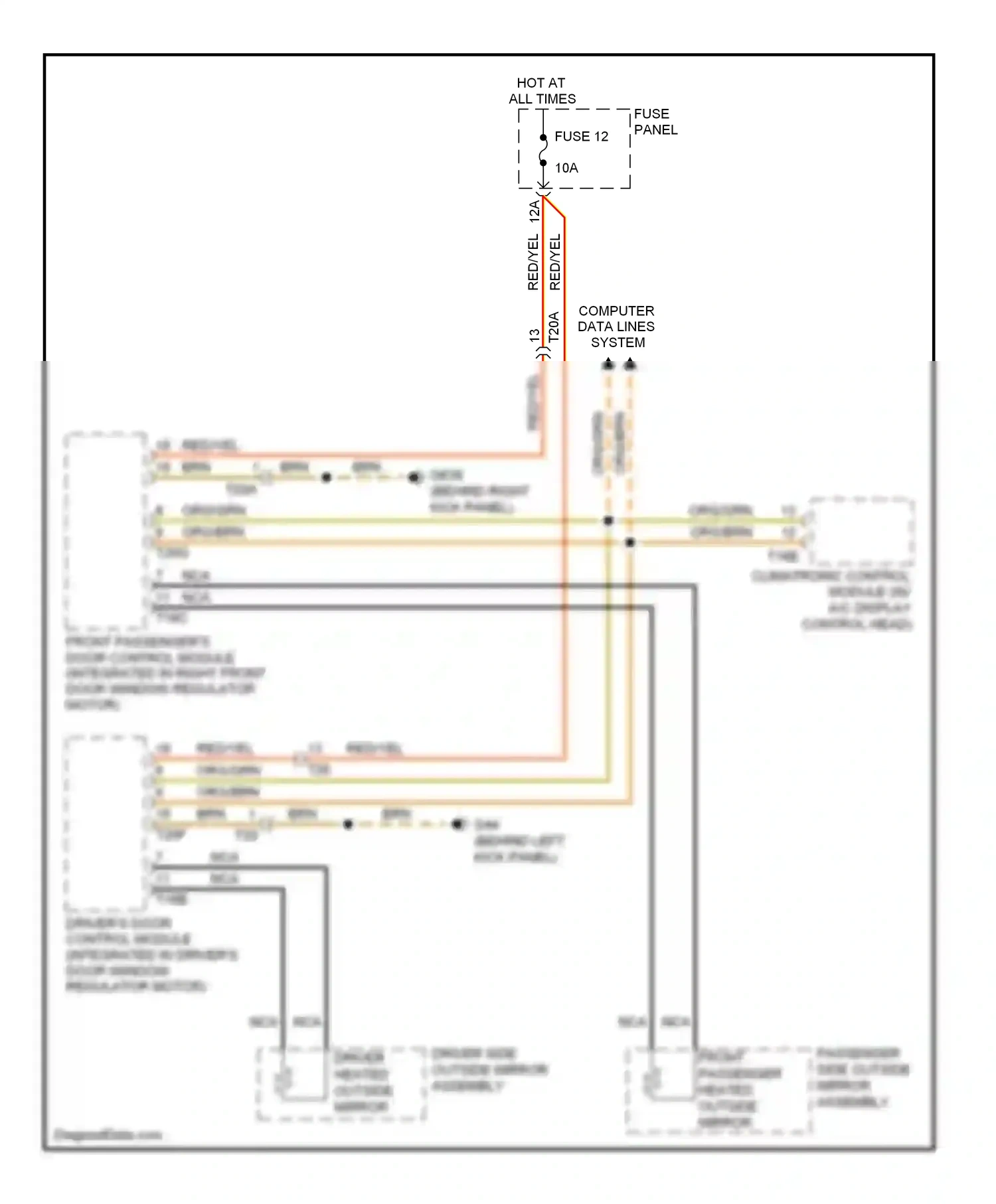

Wiring diagram driver side outside mirror assembly (1 of 1)
BRN WIRE
CLIMATRONIC CONTROL MODULE (W/ A/C DISPLAY CONTROL HEAD)
COMPUTER DATA LINES SYSTEM
DRIVER HEATED OUTSIDE MIRROR
DRIVER SIDE OUTSIDE MIRROR ASSEMBLY
FRONT PASSENGER HEATED OUTSIDE MIRROR
FUSE 12
FUSE PANEL C
HOT AT ALL TIMES
NCA WIRE
ORG/BRN WIRE
ORG/GRN WIRE
PASSENGER SIDE OUTSIDE MIRROR ASSEMBLY
RED/YEL WIRE
Go to component: -> Heated mirrors circuit -> DRIVER SIDE OUTSIDE MIRROR ASSEMBLY
