Acura TSX II (2008-2014) vsp remote sw swd +b fr pre- fr pre+ fr pre sh pnk Wiring diagrams
This page contains all the electrical diagrams for the component. vsp remote sw swd +b fr pre- fr pre+ fr pre sh pnk, in which he is found in the car Acura TSX II (2008-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

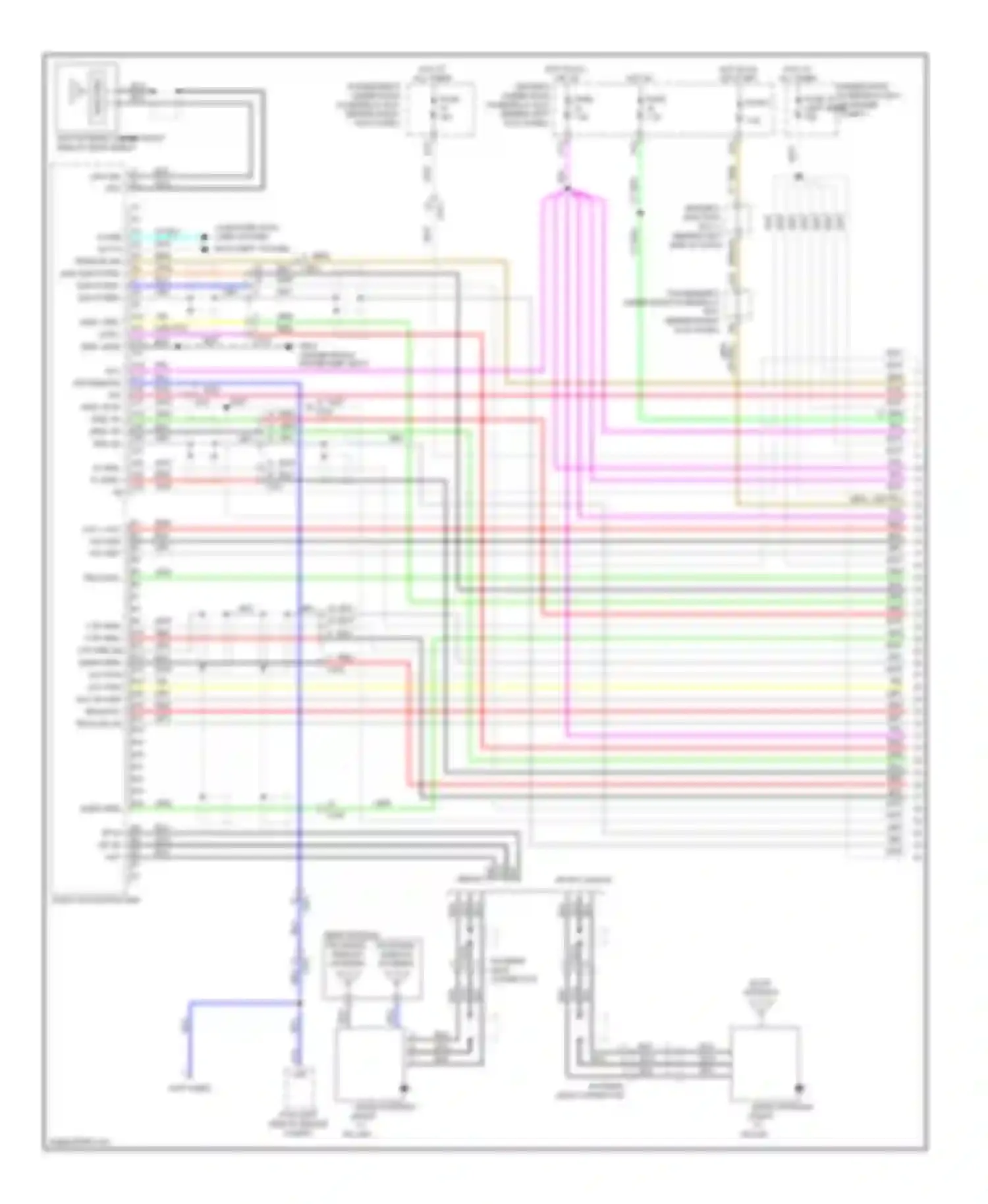

Wiring diagram vsp remote sw swd +b fr pre- fr pre+ fr pre sh pnk (1 of 2)
3.5L
AM SIGNAL WINDOW ANTENNA ANTENNA LEAD CONNECTOR
AM/FM ANTENNA (RIGHT "C" PILLAR)
AMPLIFIER
ANTENNA LEAD CONNECTOR
ANTI-THEFT SYSTEM
AUDIO- NAVIGATION UNIT
AUX L AUX SIG GND AUX DET
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX 1
FL PRE- FL PRE+ +B
FUSE
FUSE 15 (LEFT REAR OF ENGINE COMPT)
FUSE 5
GPS ANTENNA (UNDER RIGHT SIDE OF REAR SHELF)
GPS SIG GPS SH
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON
HOT IN ON OR START
K LINE
LT BLU WIRE
LT GRN WIRE
NCA WIRE
ORG/ WIRE
PASSENGER'S UNDER- DASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
PCM (LEFT SIDE OF ENGINE COMPT)
PNK WIRE
PPL
REAR WINDOW FM SIGNAL WINDOW ANTENNA
RED WIRE
REMOTE SW GND SUR R PRE- SUR R PRE+ SUR R PRE+
RF IN RF SH ANT +B
ROOF ANTENNA
SEDAN
SPORT WAGON
SUBW PRE-
SUR L PRE- SUR L PRE+ MAIN GND PPL
TELM SIG -
UNDER-HOOD FUSE/RELAY BOX
VSP
VSP REMOTE SW SWD +B FR PRE- FR PRE+ FR PRE SH PNK WIRE
WHT WIRE
YEL WIRE
Go to component -> Navigation circuit (1 of 7) -> VSP REMOTE SW SWD +B FR PRE- FR PRE+ FR PRE SH PNK WIRE
