Acura TSX II (2008-2014) rocker arm oil control solenoid Wiring diagram
This page shows the only wiring diagram for the component.rocker arm oil control solenoid, which is found in the car Acura TSX II (2008-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

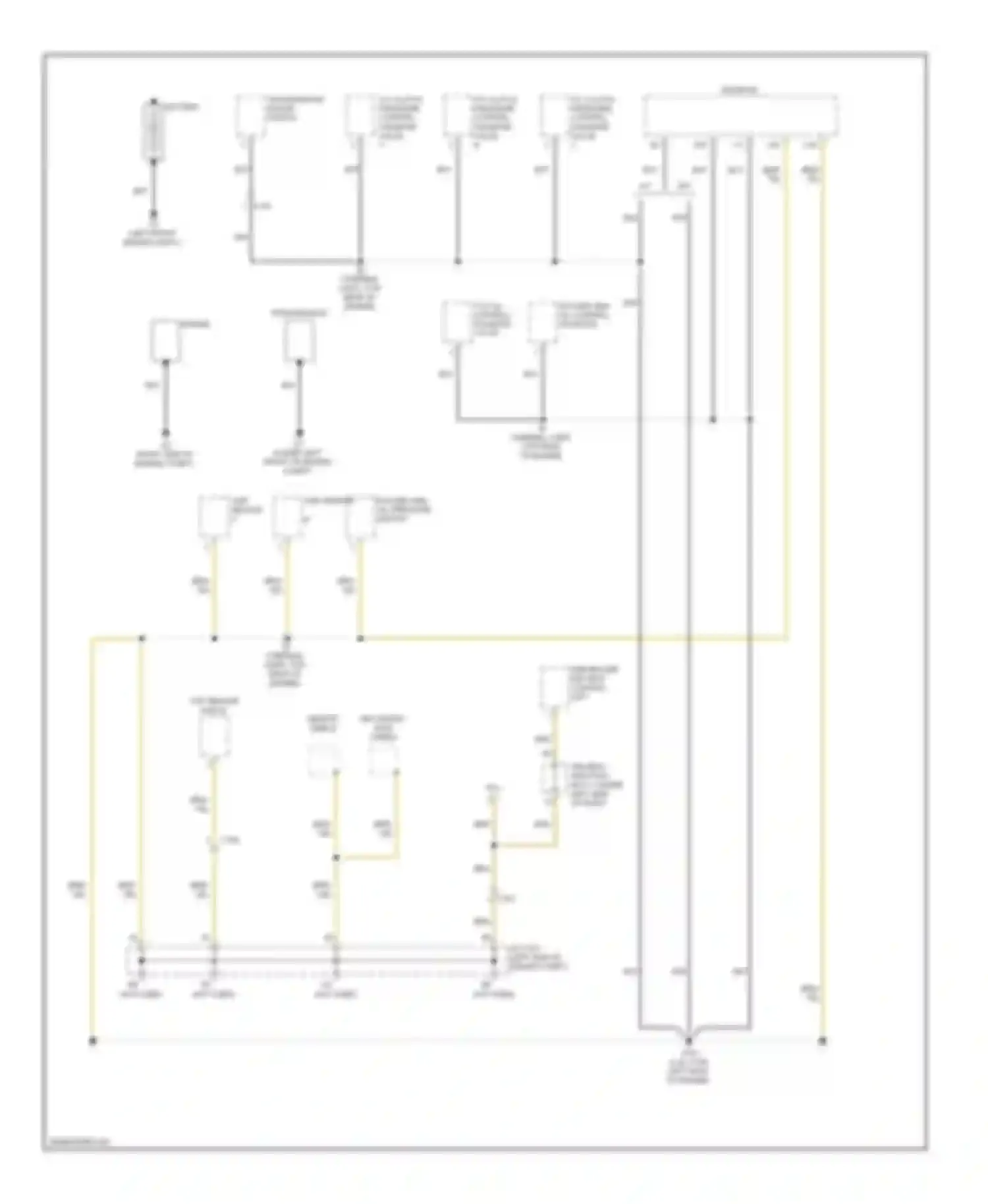

Wiring diagram rocker arm oil control solenoid (1 of 1)
A/T
A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A
A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B
A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C
BATTERY
BLK WIRE
BRN WIRE
CKP SENSOR KNOCK SENSOR SHIELD
CMP CMP SENSOR SENSOR
DLC
DRIVER'S JUNCTION BOX 1 (UNDER LEFT SIDE OF DASH)
ECM/PCM
ENGINE
IMMOBILIZER KEYLESS CONTROL UNIT
M/T
NOT USED NOT USED
ROCKER ARM OIL CONTROL SOLENOID
ROCKER ARM OIL PRESSURE SWITCH
SECONDARY
SHIELD
TRANSMISSION
TRANSMISSION RANGE SWITCH
VTC OIL CONTROL SOLENOID VALVE
YEL WIRE
Go to component -> Ground distribution circuit (1 of 6) -> ROCKER ARM OIL CONTROL SOLENOID
