Acura TSX II (2008-2014) opera rx Wiring diagrams
This page contains all the electrical diagrams for the component. opera rx, in which he is found in the car Acura TSX II (2008-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

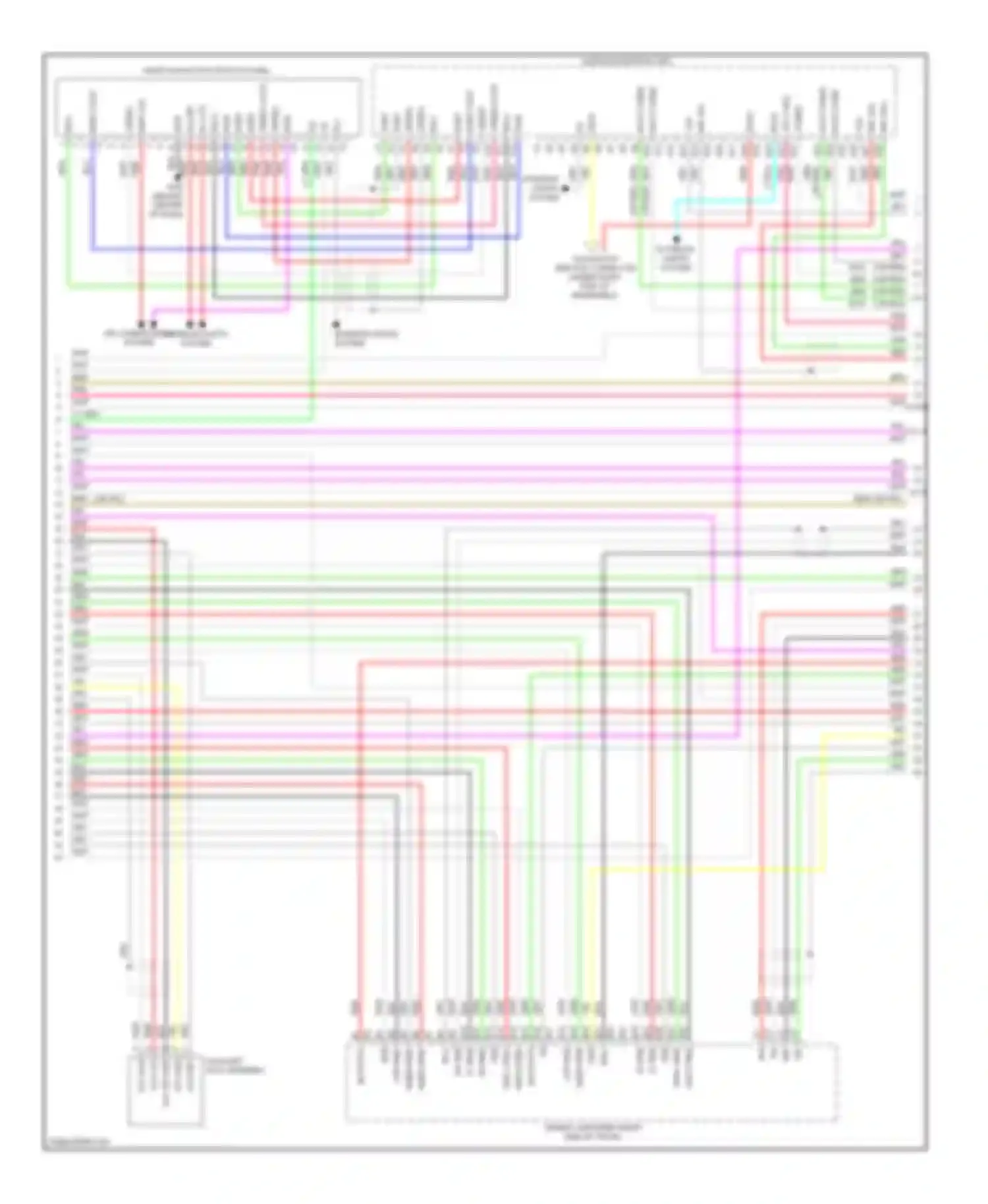

Wiring diagram opera rx (1 of 2)
13 14 15 PNK WIRE
AIR CONDITIONING SYSTEM
AUDIO NAVIGATION SWITCH PANEL
AUDIO- NAVIGATION UNIT
AUX DET
AUX GND
AUX LCH
AUX RCH
AUX SIG GND
AUXILIARY JACK ASSEMBLY
BACK LT-
BLK WIRE
BLU WIRE
BRN WIRE
CTR PRE -
DIAG
DISP CLK
DISP SO
DUET CONT
DUET RX
DUET SH
DUET TX
ELS DATA +
ENC-
FL PRE-
FR PRE-
GRN WIRE
GRY WIRE
ILL-LCD
ILL-LED
JOG
JOG SH
LT BLU WIRE
LT GRN WIRE
MIC SIG
MIC SIG SH
NAVI COMM SH
NAVIGATION SERVICE CONNECTOR (UNDER RIGHT SIDE OF REARSHELF)
OPERA CONT
OPERA RX
OPERA SH
OPERA TX
PNK WIRE
PPL
PPL 16 17
PPL 3 4 5 6 7 8 9
PPL PPL 18 19 20 21
PWR SW
RED WIRE
RG GND
RG L SH
RGL +
STEREO AMPLIFIER (RIGHT SIDE OF TRUNK)
SUBW PRE-
SUR L PRE+
SUR R PRE+
SWD +B
SWD +D
WHT WIRE
YEL WIRE
Go to component -> Navigation circuit (2 of 7) -> OPERA RX
