Acura TSX II (2008-2014) driver's junction box 2 (under left Wiring diagram
This page shows the only wiring diagram for the component.driver's junction box 2 (under left, which is found in the car Acura TSX II (2008-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

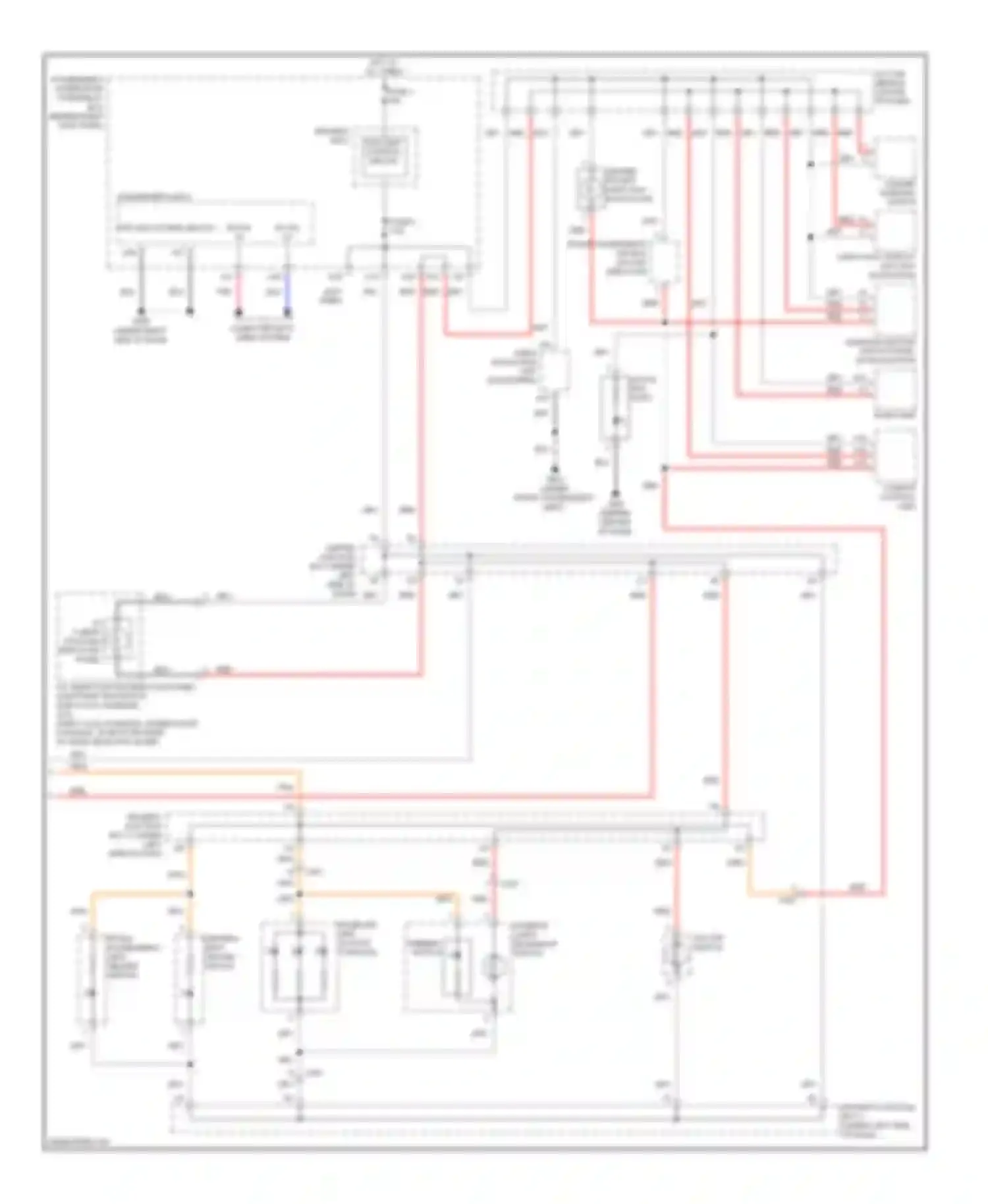

Wiring diagram driver's junction box 2 (under left (1 of 1)
A/T GEAR POSITION INDICATOR PANEL
AMBIENT SWITCH
AUDIO UNIT
AUDIO- HVAC DISPLAY UNIT (W/O NAVIGATION)
AUDIO- NAVIGATION UNIT (IF EQUIPPED)
AUDIO/NAVIGATION SWITCH PANEL (W/ NAVIGATION)
B-CAN HI
B-CAN LO
BLK WIRE
BLU WIRE
CENTER JUNCTION BOX (UNDER LEFT SIDE OF DASH)
CENTER POCKET LIGHT (W/O NAVIGATION)
CLIMATE CONTROL UNIT
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX 2 (UNDER LEFT
DRIVER'S JUNCTION BOX 2 (UNDER LEFT SIDE OF DASH)
DRIVER'S MICU TAILLIGHT CONTROL CIRCUIT
DRIVER'S SEAT HEATER SWITCH
FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR
FRONT PASSENGER'S SEAT HEATER SWITCH
FUSE 2
FUSE 6
GLOVE BOX LIGHT
GND (MICU-P)
GRY WIRE
HAZARD WARNING SWITCH
HOMELINK UNIT (IN ROOF CONSOLE)
HOT AT ALL TIMES
INTERIOR LIGHT MOONROOF SWITCH
ORG/ WIRE
PASSENGER'S MICU
PASSENGER'S UNDER- DASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
PNK WIRE
RED WIRE
SIDE OF DASH)
VSA OFF SWITCH
Go to component -> Instrument illumination circuit (2 of 2) -> DRIVER'S JUNCTION BOX 2 (UNDER LEFT
