Acura TSX I (2003-2008) front passenger's vanity mirror Wiring diagram
This page shows the only wiring diagram for the component.front passenger's vanity mirror, which is found in the car Acura TSX I (2003-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

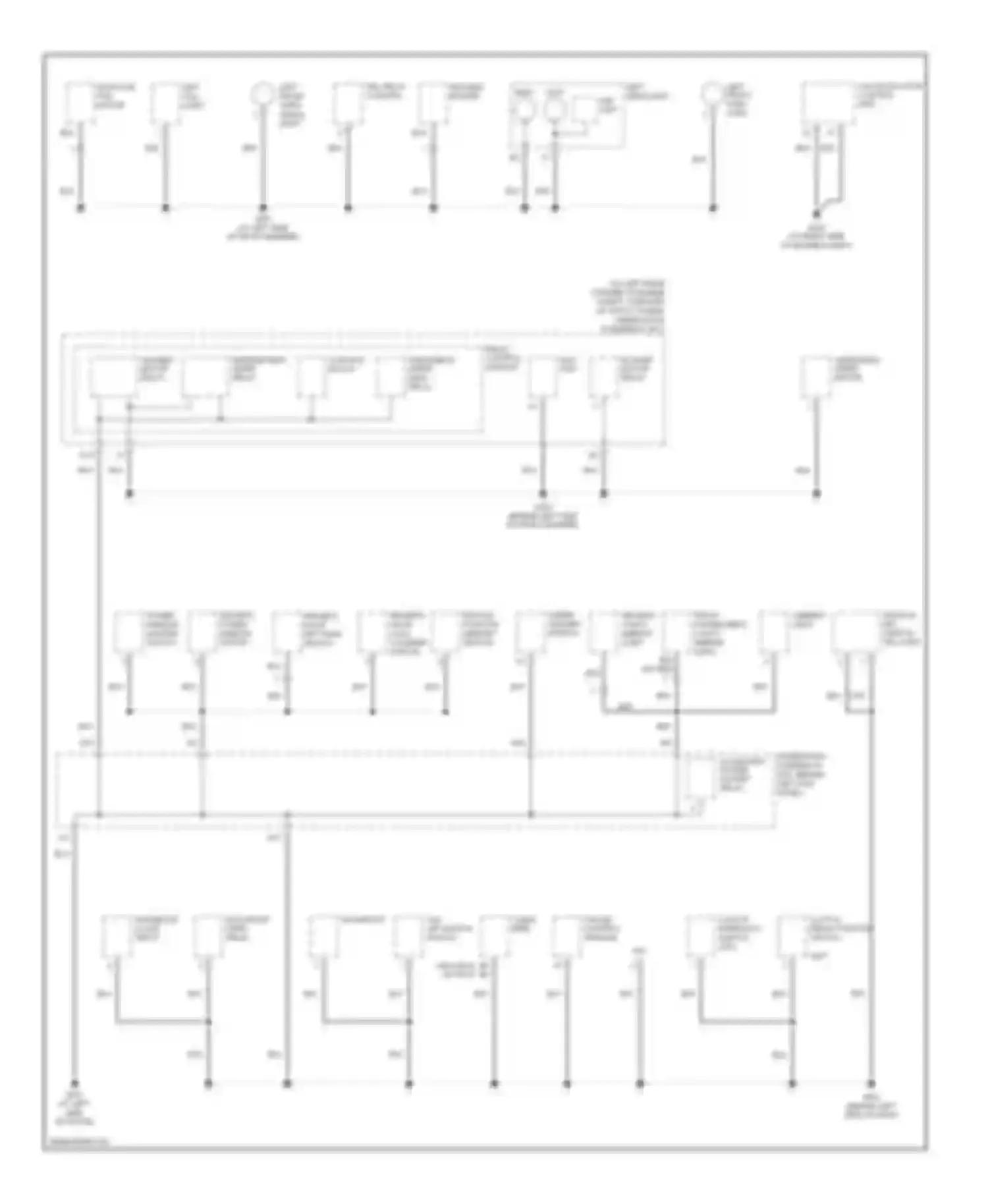

Wiring diagram front passenger's vanity mirror (1 of 1)
ACCESSORY POWER SOCKET RELAY
AMBIENT LIGHT
BLK WIRE
BLOWER MOTOR RELAY
CABLE REEL
CLUTCH INTERLOCK SWITCH (M/T)
CLUTCH PEDAL POSITION SWITCH
CONTROL BLOCK
DLC
DRIVER'S DRIVER'S DOOR DOOR LOCK KEY KNOB CYLINDER SWITCH SWITCH
DRIVER'S POWER WINDOW MOTOR
DRIVER'S VANITY MIRROR LIGHT
DRIVING POSITION MEMORY SWITCH
DRL RELAY (CANADA)
ELD UNIT
FRONT PASSENGER'S VANITY MIRROR
GAUGE CONTROL MODULE
HIGH LOW
IGNITION KEY SWITCH/ KEY LIGHT
INTERMITTENT WIPER RELAY
KEYLESS BUZZER
LEFT FOG LIGHT
LEFT FRONT PARK LIGHT
LEFT FRONT TURN SIGNAL LIGHT
LEFT HEADLIGHT HID UNIT
LIGHT
M/T
MOONROOF CLOSE RELAY
MOONROOF OPEN RELAY
MOONROOF VSA OFF SWITCH SWITCH
POWER WINDOW MASTER SWITCH
RADIATOR FAN MOTOR
RELAY CONTROL MODULE
UNDER-DASH FUSE/RELAY BOX (BEHIND LEFT KICK PANEL)
VSA MODULATOR CONTROL UNIT
W/O NAVI W/ NAVI
WASHER MOTOR RELAY
WINDSHIELD WIPER HIGH RELAY
WINDSHIELD WIPER MOTOR
WIPER/ WASHER SWITCH
Go to component -> Ground distribution circuit (2 of 4) -> FRONT PASSENGER'S VANITY MIRROR
