Car Wiring Diagrams for Adaptive damping circuit for Acura TLX II (2020-2024)

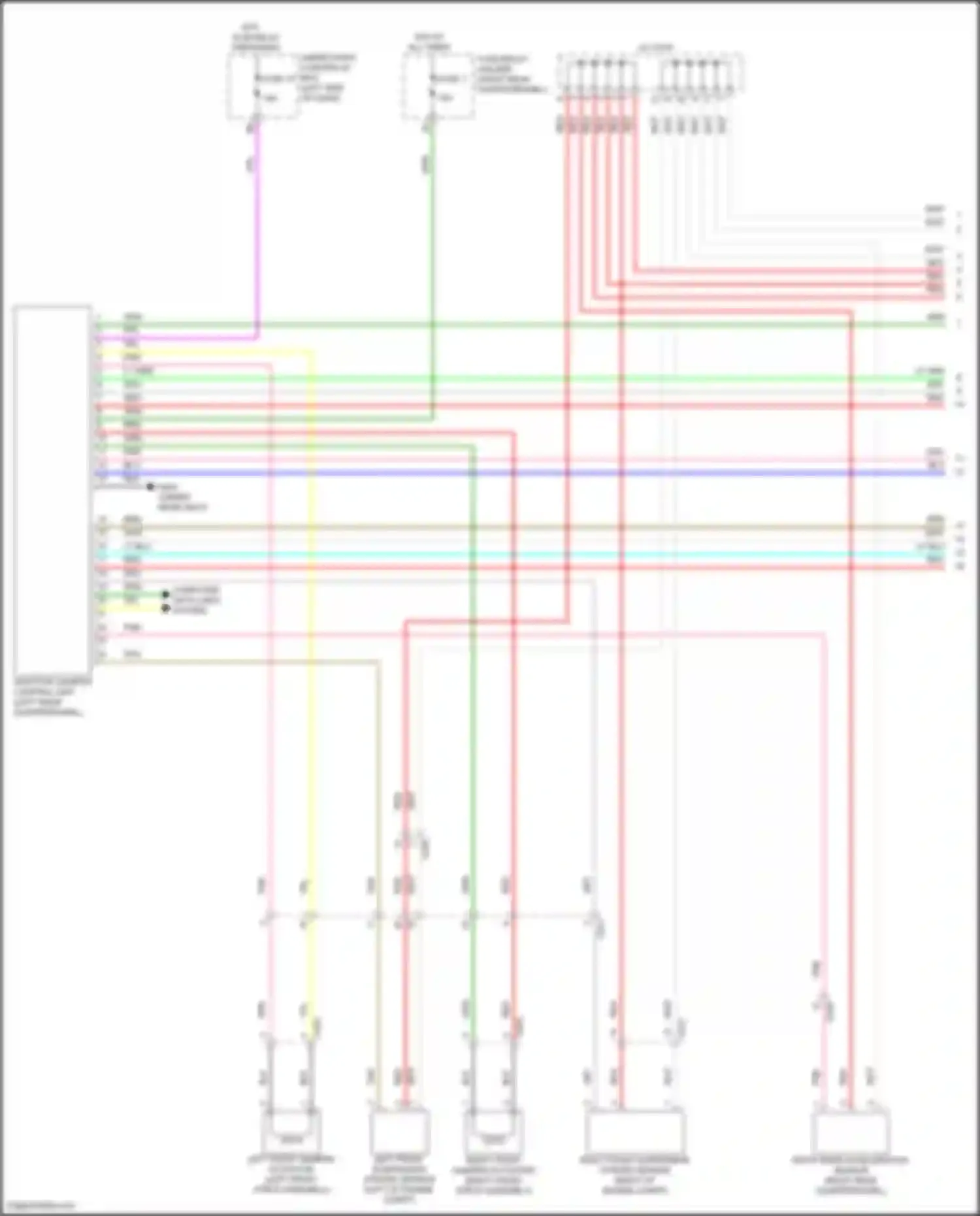

ADAPTIVE DAMPER CONTROL UNIT BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 37 FUSE 7 FUSE/RELAY HOLDER A GRN WIRE GRY WIRE HOT AT ALL TIMES HOT W/ LEFT FRONT DAMPER ACTUATOR LEFT FRONT SUSPENSION STROKE SENSOR LT BLU WIRE LT GRN WIRE PNK WIRE PPL RED WIRE RIGHT FRONT DAMPER ACTUATOR RIGHT FRONT SUSPENSION STROKE SENSOR RIGHT REAR ACCELERATION SENSOR TAN WIRE UNDER-DASH FUSE/RELAY BOX WHT WIRE YEL WIRE

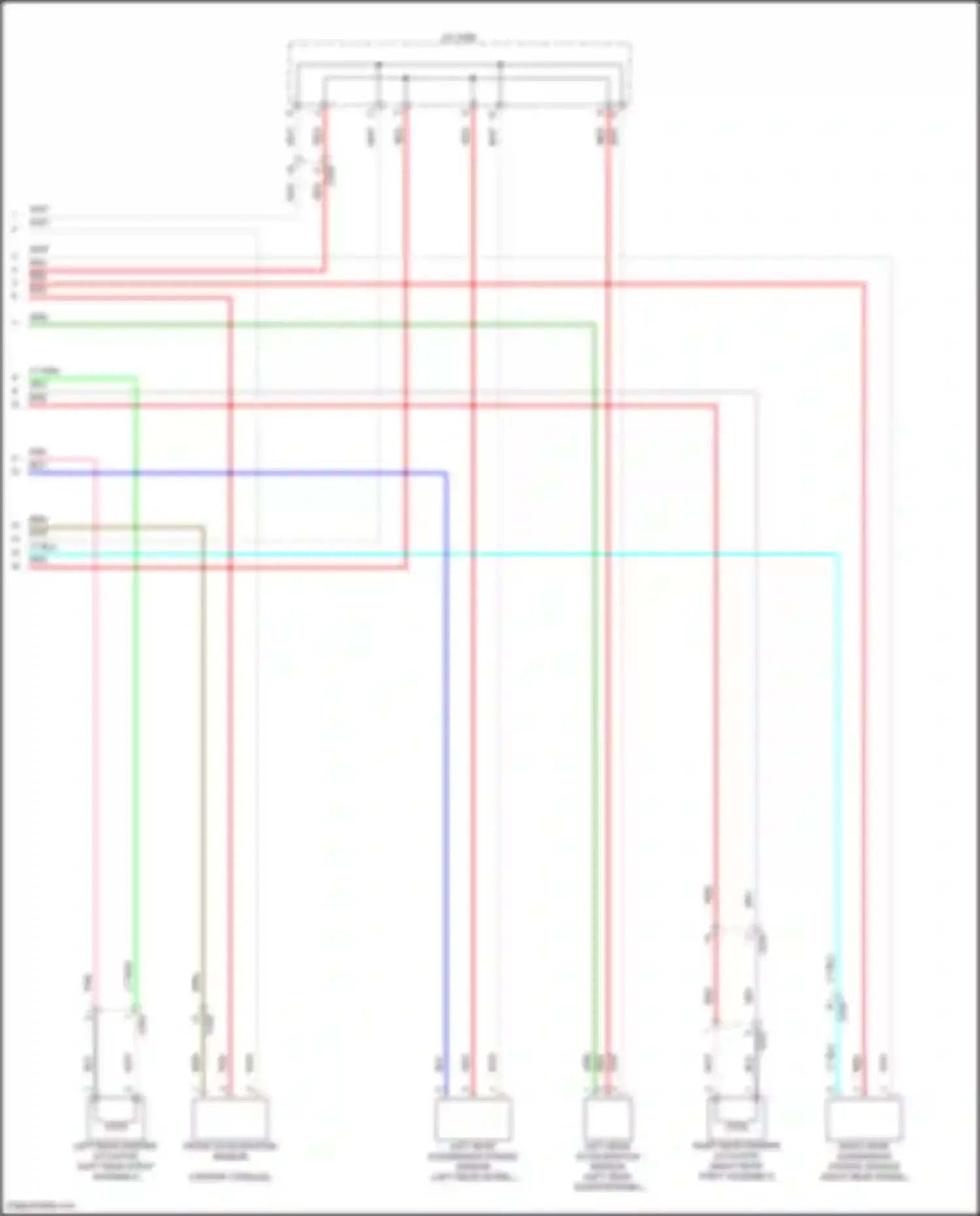

BLK WIRE BLU WIRE BRN WIRE CENTER CONSOLE FRONT ACCELERATION SENSOR GRN WIRE GRY WIRE LEFT REAR ACCELERATION SENSOR LEFT REAR DAMPER ACTUATOR LEFT REAR SUSPENSION STROKE SENSOR LT BLU WIRE LT GRN WIRE PNK WIRE RED WIRE RIGHT REAR DAMPER ACTUATOR RIGHT REAR SUSPENSION STROKE SENSOR WHT WIRE
