Car Wiring Diagrams for Charging circuit for Acura SLX I (1995-1999)

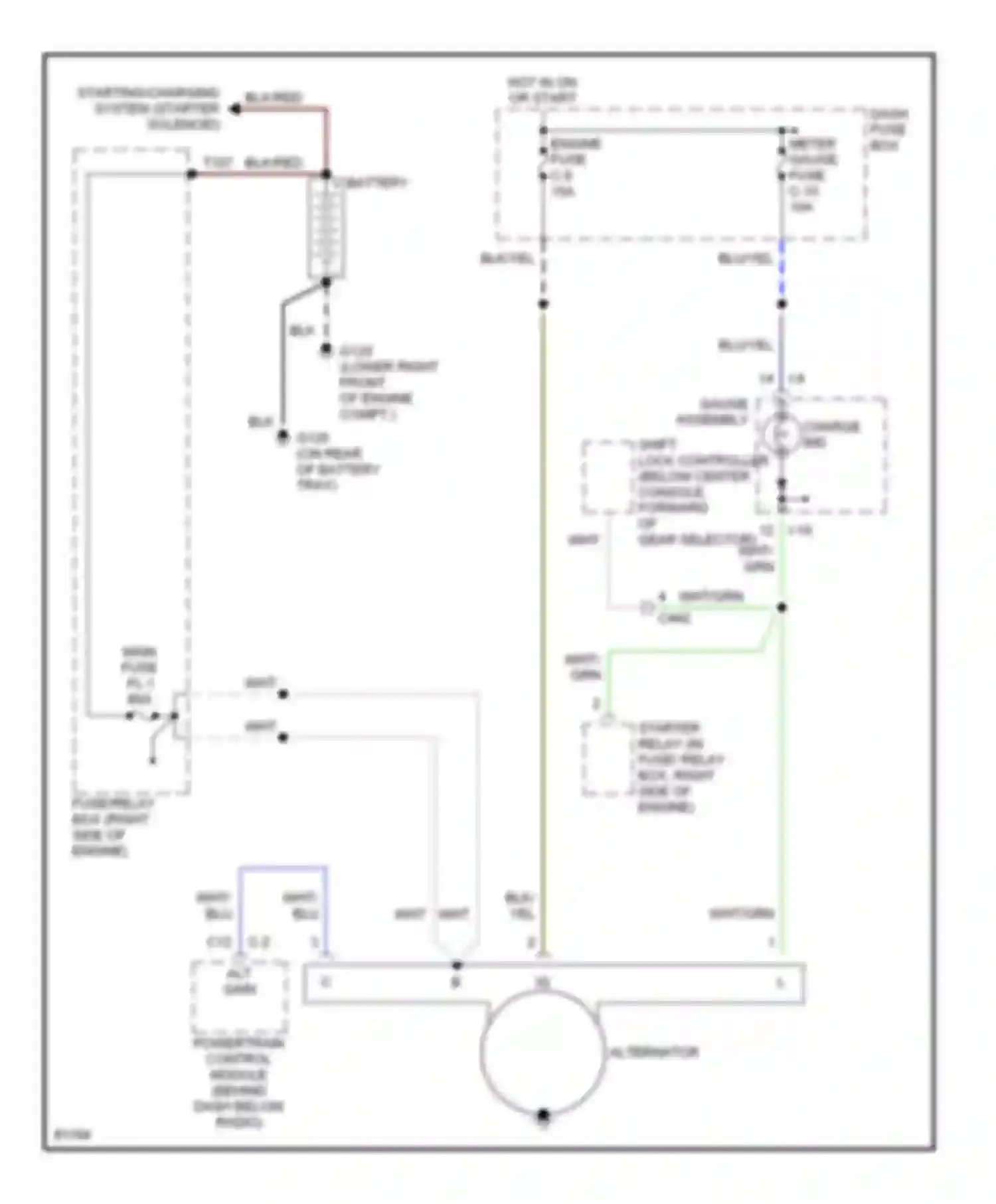

ALT GAIN ALTERNATOR BATTERY BLK WIRE BLK/RED WIRE BLK/YEL WIRE BLU WIRE BLU/YEL WIRE C-2 DASH FUSE BOX ENGINE FUSE C-8 FUSE/RELAY BOX (RIGHT SIDE OF ENGINE) GRN WIRE HOT IN ON OR START I-10 I-9 GAUGE ASSEMBLY CHARGE IND MAIN FUSE FL-1 METER GAUGE FUSE C-10 POWERTRAIN CONTROL MODULE (BEHIND DASH BELOW RADIO) SHIFT LOCK CONTROLLER (BELOW CENTER CONSOLE, FORWARD OF GEAR SELECTOR) STARTER RELAY (IN FUSE/ RELAY BOX, RIGHT SIDE OF ENGINE) STARTING/CHARGING SYSTEM (STARTER SOLENOID) WHT WIRE WHT/GRN WIRE YEL WIRE
