Acura RSX I facelift (2004-2006) rear window defogger noise condenser Wiring diagrams
This page contains all the electrical diagrams for the component. rear window defogger noise condenser, in which he is found in the car Acura RSX I facelift (2004-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram rear window defogger noise condenser (1 of 2)
A/T
ATP -N
BLK WIRE
BLK/WHT WIRE
BLOWER POWER TRANSISTOR
CANADA
CLIMATE CONTROL UNIT
CLUTCH INTERLOCK SWITCH
CLUTCH PEDAL POSITION SWITCH
FRONT ACCESSORY POWER SOCKET
GAUGE ASSEMBLY
HATCH LATCH SWITCH HIGH MOUNT BRAKE LIGHT
HIGH MOUNT BRAKE LIGHT SHIELD HATCH LATCH SWITCH SHIELD
IGNITION KEY SWITCH/ KEY LIGHT
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN SIGNAL LIGHT
LICENSE PLATE LIGHT LEFT BACKUP LIGHT
M/T
MULTIPLEX CONTROL UNIT
NOISE CONDENSER/ HATCH LOCK ACTUATOR SHIELD
PASSENGER'S DOOR KEY CYLINDER SWITCH
PASSENGER'S DOOR LOCK KNOB SWITCH PASSENGER'S DOOR LOCK SWITCH
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER NOISE CONDENSER
REAR WINDOW WIPER MOTOR
REAR WINDOW WIPER MOTOR SHIELD
RED WIRE
RIGHT BACKUP LIGHT
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN SIGNAL LIGHT
SEAT HEATER RELAY SEAT HEATER SWITCH
SHIFT LOCK RELAY
TRAILER LIGHTING CONNECTOR
TRANSMISSION GEAR SELECTION SWITCH
WHT WIRE
Go to component -> Ground distribution circuit (3 of 3) -> REAR WINDOW DEFOGGER NOISE CONDENSER

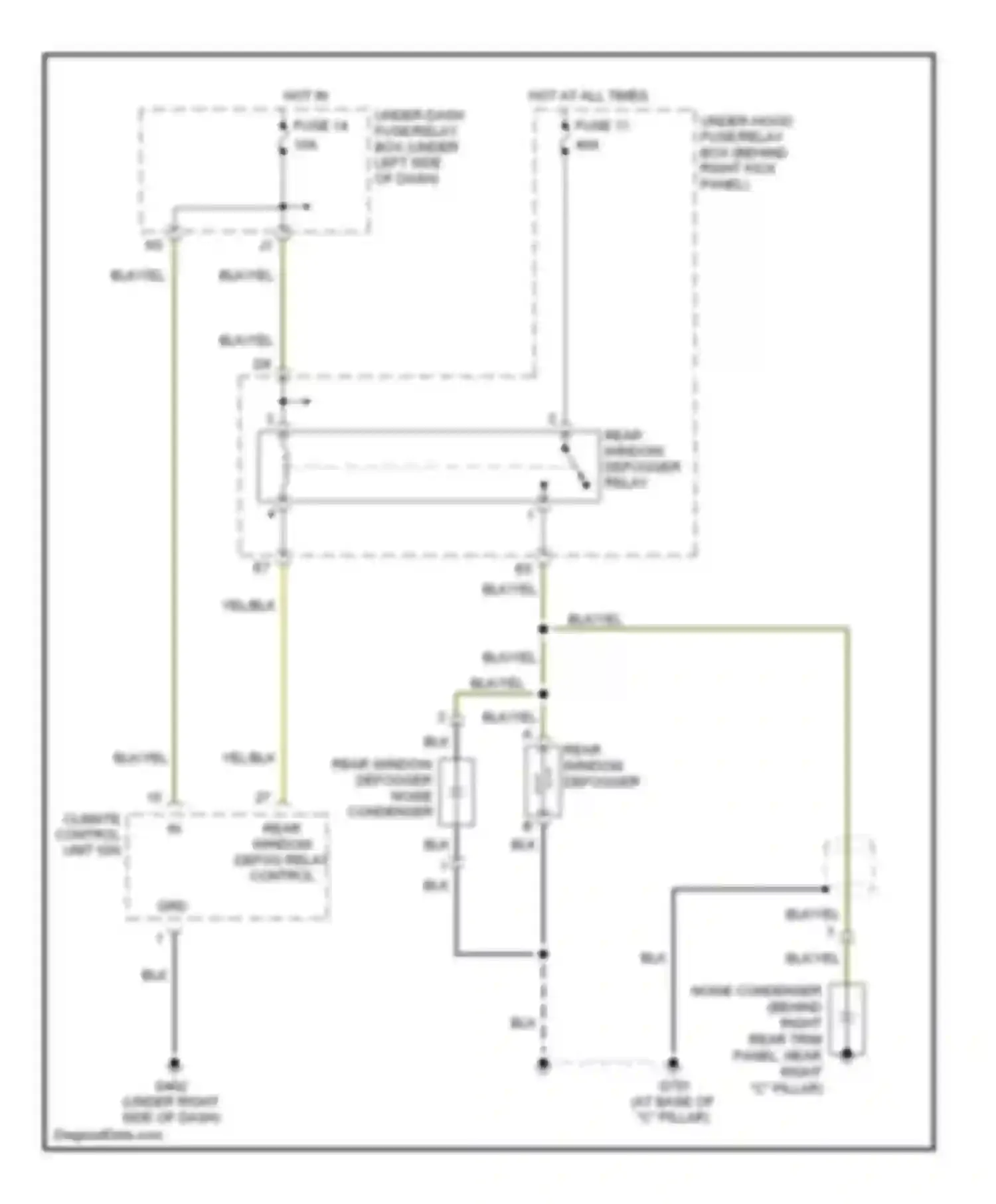

Wiring diagram rear window defogger noise condenser (2 of 2)
BLK WIRE
BLK/YEL WIRE
CLIMATE CONTROL UNIT IGN IN
FUSE 11
FUSE 14
GRD
HOT AT ALL TIMES
HOT IN ON
NOISE CONDENSER (BEHIND RIGHT REAR TRIM PANEL, NEAR RIGHT "C" PILLAR)
REAR WINDOW DEFOG RELAY CONTROL
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER NOISE CONDENSER
REAR WINDOW DEFOGGER RELAY
UNDER-DASH FUSE/RELAY BOX (UNDER LEFT SIDE OF DASH)
UNDER-HOOD FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
YEL/BLK WIRE
Go to component -> Rear defogger circuit -> REAR WINDOW DEFOGGER NOISE CONDENSER
