Acura RL II (2004-2008) seat heater switch light Wiring diagram
This page shows the only wiring diagram for the component.seat heater switch light, which is found in the car Acura RL II (2004-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

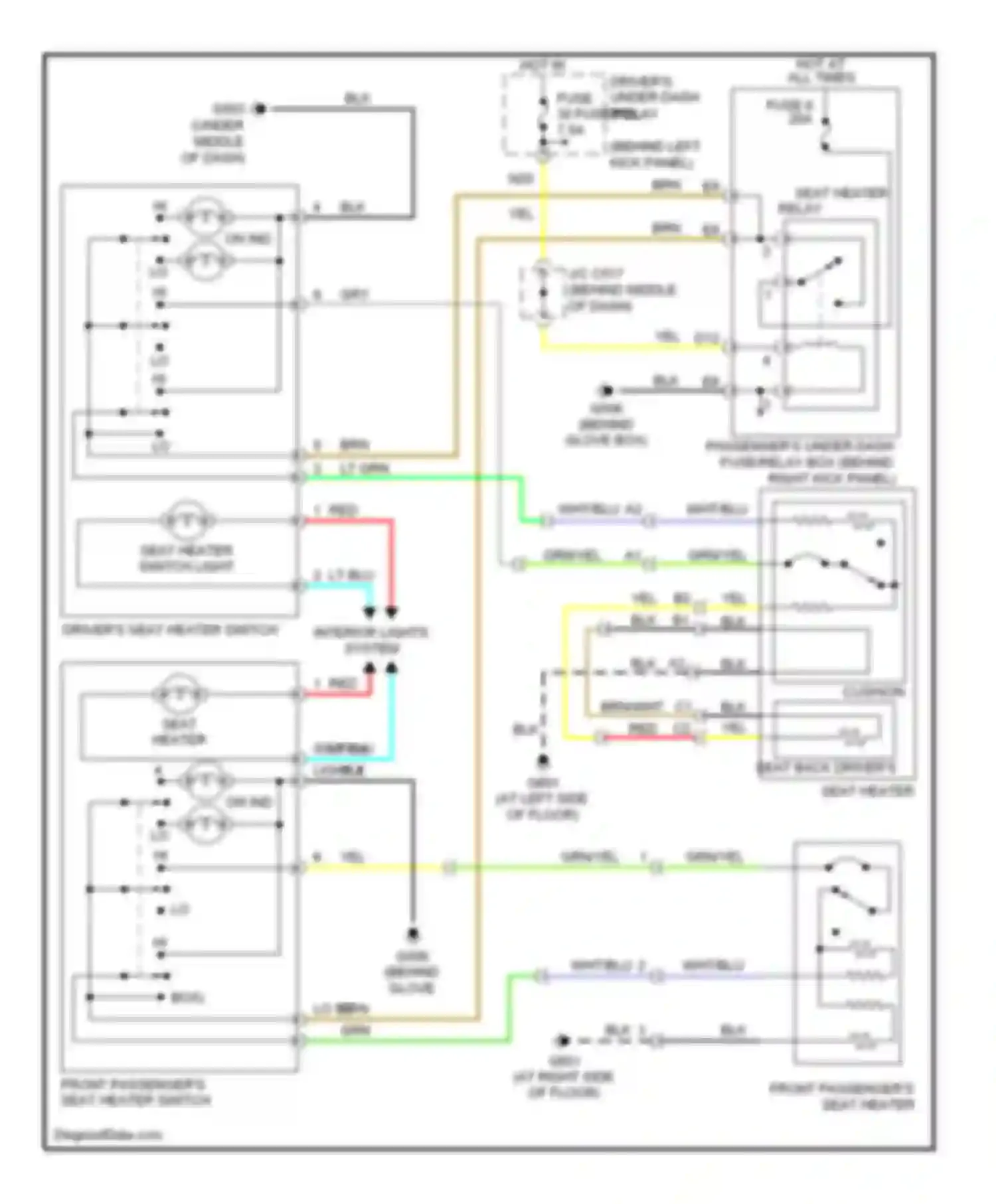

Wiring diagram seat heater switch light (1 of 1)
BLK WIRE
BRN WIRE
BRN/WHT WIRE
CUSHION)
DRIVER'S SEAT HEATER SWITCH
DRIVER'S UNDER-DASH
FRONT PASSENGER'S SEAT HEATER
FRONT PASSENGER'S SEAT HEATER SWITCH
FUSE 30 FUSE/RELAY BOX
FUSE 6
GRN WIRE
GRN/YEL WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON
LO HI
LT BLU WIRE
LT GRN WIRE
ON IND.
PASSENGER'S UNDER- DASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
RED WIRE
RELAY
SEAT HEATER
SEAT HEATER SWITCH LIGHT
SEAT HEATER SWITCH LIGHT 2 4 HI
SEAT-BACK DRIVER'S SEAT HEATER
WHT/BLU WIRE
YEL WIRE
Go to component -> Heated seats circuit -> SEAT HEATER SWITCH LIGHT
