Acura RL II (2004-2008) left brake light/ taillight Wiring diagrams
This page contains all the electrical diagrams for the component. left brake light/ taillight, in which he is found in the car Acura RL II (2004-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

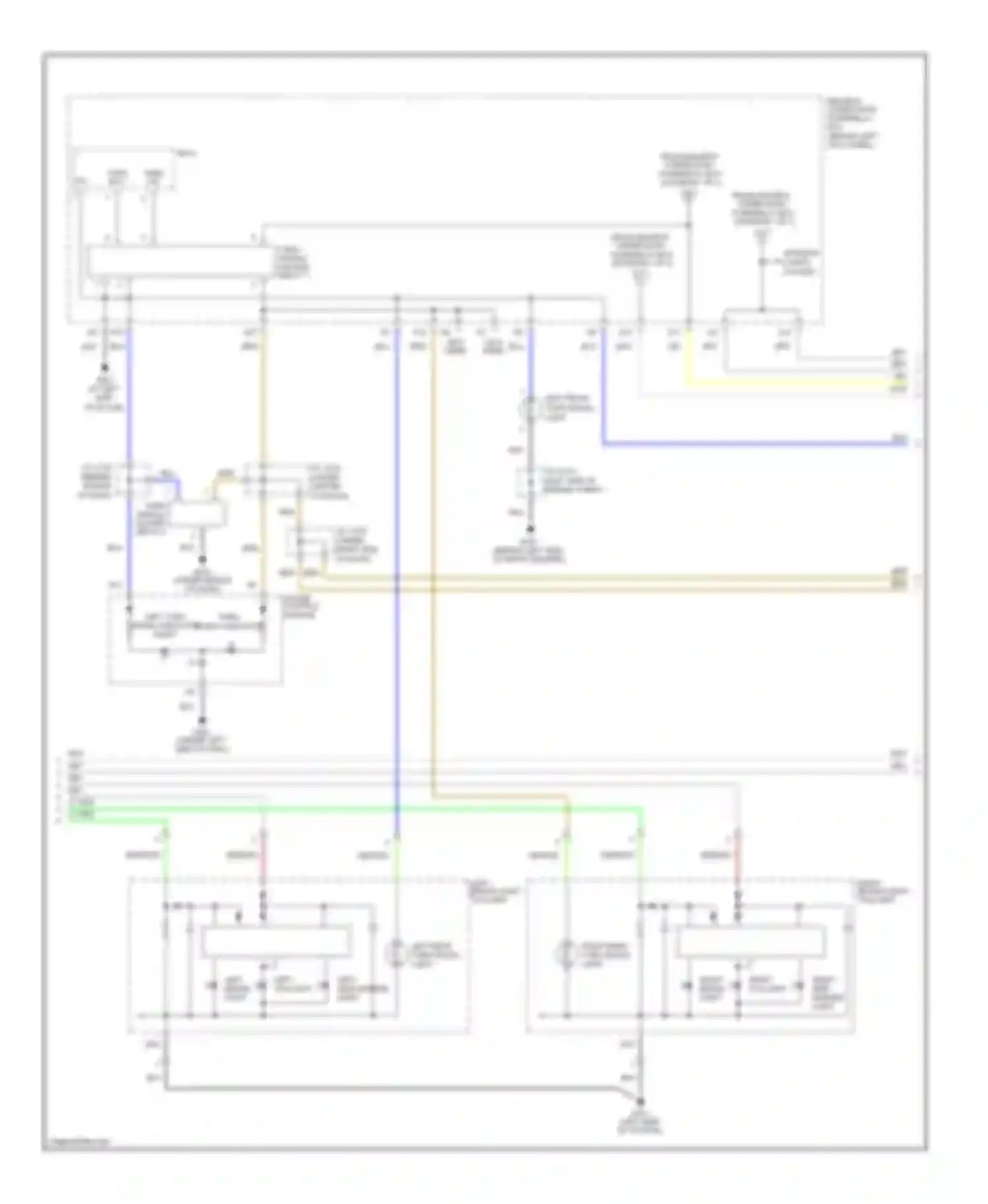

Wiring diagram left brake light/ taillight (1 of 3)
BLK WIRE
BLU WIRE
BRN WIRE
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FROM DRIVER'S UNDER-DASH
FUSE/RELAY BOX
GAUGE CONTROL MODULE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
LEFT BRAKE LIGHT
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT FRONT TURN SIGNAL LIGHT
LEFT REAR TURN SIGNAL LIGHT
LEFT TAILLIGHT LEFT SIDE MARKER LIGHT
LEFT TURN SIGNAL INDICATOR RIGHT TURN SIGNAL INDICATOR
LT GRN WIRE
MICU
RED/BLK WIRE
RIGHT BRAKE LIGHT
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT SIDE MARKER LIGHT
RIGHT TAILLIGHT
TURN SIGNAL/ HAZARD RELAY 1
TURN SIGNAL/ HAZARD RELAY 2
TURN SW L PG
TURN SW R
WHT WIRE
YEL WIRE
Go to component -> Exterior lamps circuit, without technology package (2 of 3) -> LEFT BRAKE LIGHT/ TAILLIGHT
Wiring diagram left brake light/ taillight (2 of 3)
BLK WIRE
BLU WIRE
BRN WIRE
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FROM DRIVER'S UNDER-DASH
FUSE/RELAY BOX
GAUGE CONTROL MODULE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
LEFT BRAKE LIGHT
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT FRONT TURN SIGNAL LIGHT
LEFT REAR TURN SIGNAL LIGHT
LEFT TAILLIGHT LEFT SIDE MARKER LIGHT
LEFT TURN SIGNAL INDICATOR RIGHT TURN SIGNAL INDICATOR
LT GRN WIRE
MICU
RED/BLK WIRE
RIGHT BRAKE LIGHT
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT SIDE MARKER LIGHT
RIGHT TAILLIGHT
TURN SIGNAL/ HAZARD RELAY 1
TURN SIGNAL/ HAZARD RELAY 2
TURN SW L PG
TURN SW R
WHT WIRE
YEL WIRE
Go to component -> Exterior lamps circuit, with technology package (2 of 3) -> LEFT BRAKE LIGHT/ TAILLIGHT
Wiring diagram left brake light/ taillight (3 of 3)
ACCESSORY POWER SOCKET RELAY
AUTOMATIC DIMMING INSIDE MIRROR
BLK WIRE
DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/ DOOR SWITCH
DRIVER'S DOOR OUTER HANDLE LIGHT/ TOUCH SENSOR
DRIVER'S LUMBAR SUPPORT SWITCH
DRIVER'S MPCS UNIT
DRIVER'S SEAT BACK FAN MOTOR (CANADA)
DRIVER'S SEAT BELT SWITCH
DRIVER'S SEAT CUSHION FRONT FAN MOTOR (CANADA)
DRIVER'S SEAT CUSHION REAR FAN MOTOR (CANADA)
DRIVER'S SEAT HEATER (USA)
DRIVER'S SEAT VENTILATION CONTROL UNIT (CANADA)
DRIVER'S UNDER-DASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
DRIVER'S VANITY MIRROR LIGHT
DRIVING POSITION MEMORY SWITCH
E-TENSIONER UNIT (TECHNOLOGY PACKAGE)
FRONT PASSENGER'S VANITY MIRROR LIGHT
HIGH MOUNT BRAKE LIGHT
J/C
KEYLESS ANSWER BACK BUZZER
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT POWER MIRROR
LEFT REAR ASHTRAY LIGHT
LEFT REAR POWER WINDOW SWITCH
MICU
MICU SERVICE CHECK CONNECTOR
MOONROOF CONTROL UNIT
PG SG-2
POWER SEAT CONTROL UNIT
PPL
REAR INDIVIDUAL MAP LIGHTS
REAR WINDOW DEFOGGER
RED WIRE
RIGHT ACURALINK CONTROL UNIT (XM RECEIVER) (USA) BRAKE LIGHT/ TAILLIGHT
ROOF CONSOLE
TRUNK LID LATCH SWITCH
TRUNK LID OPENER/ FUEL LID OPENER SWITCH
TURN SIGNAL/ HAZARD RELAY 1
WHT WIRE
Go to component -> Ground distribution circuit (3 of 4) -> LEFT BRAKE LIGHT/ TAILLIGHT
