Acura RL II (2004-2008) driver's under-dash Wiring diagrams

This page contains all the electrical diagrams for the component. driver's under-dash, in which he is found in the car Acura RL II (2004-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram driver's under-dash (1 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (1 of 6)

Get access

BACKWARD BLK WIRE BRN WIRE DRIVER'S LUMBAR SUPPORT MOTOR DRIVER'S LUMBAR SUPPORT SWITCH DRIVER'S UNDER-DASH FORWARD/ FUSE 15 FUSE/RELAY BOX (BEHIND LEFT KICK PANEL) HOT AT ALL TIMES PNK WIRE RED WIRE RED/WHT WIRE WHT/BLU WIRE WHT/RED WIRE

Go to component -> Driver"s lumbar circuit -> DRIVER'S UNDER-DASH

Wiring diagram driver's under-dash (2 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (2 of 6)

Get access

BLK WIRE BLK/GRN WIRE BLK/RED WIRE BRAKE PEDAL POSITION SWITCH 1) PEDAL BRN WIRE COMBINATION LIGHT SWITCH COMBINATION SWITCH CONTROL UNIT DRIVER'S UNDER-DASH FUSE 21 FUSE 7 FUSE/RELAY BOX GRN WIRE GRY WIRE HAZARD SW HAZARD WARNING SWITCH HAZARD WARNING SWITCH LIGHT HEADLIGHT SWITCH 0) OFF 1) PARK 2) HEAD HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES HOT IN ON OR START LT BLU WIRE LT GRN WIRE MICU PCM (UNDER MIDDLE OF DASH) PNK WIRE PRESSED (NEAR BRAKE PEDAL) RED WIRE RED/BLK WIRE RED/WHT WIRE SG-1 B-CAN STOP SW TO DRIVER'S UNDER-DASH TURN SIGNAL LIGHT SWITCH VBU WHT WIRE WHT/BLK WIRE WIPER/ WASHER SWITCH YEL WIRE

Go to component -> Exterior lamps circuit, without technology package (1 of 3) -> DRIVER'S UNDER-DASH

Wiring diagram driver's under-dash (3 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (3 of 6)

Get access

ADAPTIVE CRUISE CONTROL RELAY AUXILIARY UNDER-HOOD RELAY BOX (LEFT REAR OF ENGINE COMPT) BLK WIRE BLK/GRN WIRE BLK/RED WIRE BLU WIRE BRAKE PEDAL POSITION SWITCH 1) PEDAL BRN WIRE COMBINATION LIGHT SWITCH COMBINATION SWITCH CONTROL UNIT CONTROL UNIT (BEHIND RIGHT SIDE OF GLOVE BOX) DRIVER'S UNDER-DASH FUSE 21 FUSE 29 FUSE 7 FUSE/RELAY BOX GRN WIRE GRY WIRE HAZARD SW HAZARD WARNING SWITCH HEADLIGHT SWITCH 0) OFF 1) PARK 2) HEAD HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES HOT IN ON OR START LT GRN WIRE MICU ORG/ WIRE PCM (UNDER MIDDLE OF DASH) PNK WIRE PRESSED (NEAR BRAKE PEDAL) RED WIRE RED/BLK WIRE RED/WHT WIRE SG-1 B-CAN STOP SW TO DRIVER'S UNDER-DASH TURN SIGNAL LIGHT SWITCH VBU WHT WIRE WHT/BLK WIRE WIPER/ WASHER SWITCH YEL WIRE

Go to component -> Exterior lamps circuit, with technology package (1 of 3) -> DRIVER'S UNDER-DASH

Wiring diagram driver's under-dash (4 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (4 of 6)

Get access

ADAPTIVE FRONT LIGHTING CONTROL AFS OFF/ VSA OFF/ CMBS OFF/ SWITCH AUDIO UNIT BLK WIRE BLK/WHT WIRE BLOWER GLOVE POWER BOX LIGHT TRANSISTOR BLU WIRE BRAKE FLUID LEVEL SWITCH CABLE REEL CONSOLE LIGHT CONTROL UNIT (TECHNOLOGY PACKAGE) CONTROL UNIT) DASH CLIMATE LIGHTS CONTROL BRIGHTNESS CONTROLLER UNIT DATA LINK CONNECTOR DRIVER'S SEAT HEATER SWITCH DRIVER'S UNDER-DASH DRIVER'S UNDER-DASH FUSE/RELAY BOX (BEHIND LEFT KICK PANEL) DRL CONTROL UNIT (USA) ECPS CONTROL UNIT FRONT ACCESSORY POWER SOCKET FRONT COIN PASSENGER'S POCKET LIGHT SEAT HEATER FUSE/RELAY BOX (BEHIND LEFT KICK PANEL) FUSE/RELAY HEADLIGHT BOX WASHER (BEHIND RIGHT RELAY KICK PANEL) GAUGE CONTROL MODULE IGNITION SWITCH CONTROL UNIT IN-CAR TURN TEMPERATURE SIGNAL/ SENSOR HAZARD RELAY 2 INTERFACE DIAL J/C KEYLESS ACCESS CONTROL UNIT KNOB SWITCH/ DOOR SWITCH LIGHT/ TOUCH SENSOR LOCK ACTUATOR MES CONNECTOR MICU MILLIMETER WAVE RADAR (TECHNOLOGY PACKAGE) MILLIMETER WAVE RADAR SHIELD (TECHNOLOGY PACKAGE) OUTER HANDLE PARK PIN SWITCH PASSENGER'S UNDER-DASH POWER MIRROR SWITCH POWER TILT/ TELESCOPIC STEERING PPL RADIATOR FAN CONTROL UNIT REAR ACCESSORY POWER SOCKET RIGHT POWER MIRROR SEAT FUEL HEATER FILL RELAY DOOR OPENER RELAY SECURITY HOOD SWITCH SOUNDER- SRS UNIT SWITCH (USA: TRANSMISSION GEAR SELECTION SWITCH TRUNK LID OPENER MAIN SWITCH UNIT) USA WHT WIRE WIND- SHIELD WIPER MOTOR WIPER/ WASHER SWITCH

Go to component -> Ground distribution circuit (2 of 4) -> DRIVER'S UNDER-DASH

Wiring diagram driver's under-dash (5 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (5 of 6)

Get access

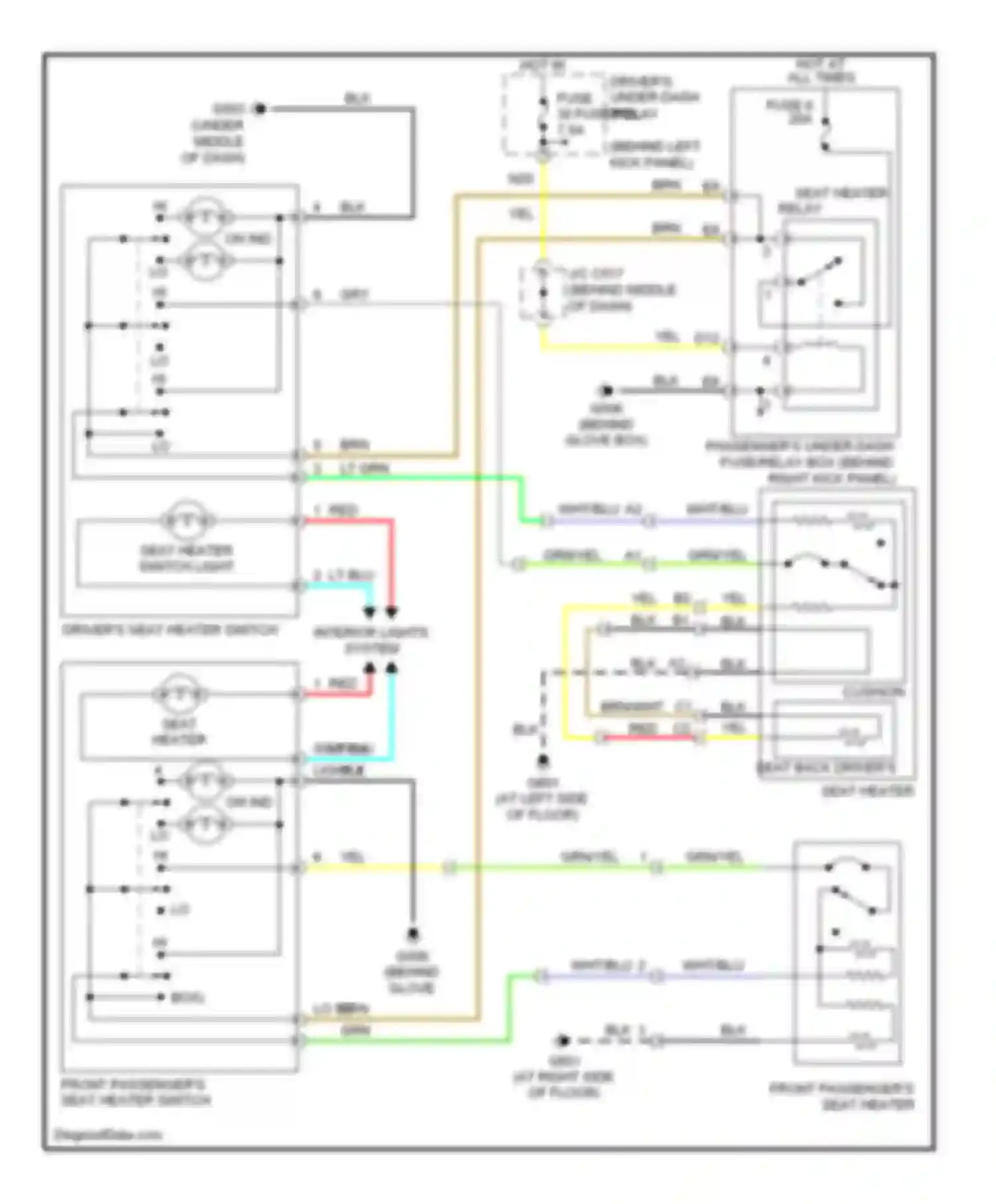

BLK WIRE BRN WIRE BRN/WHT WIRE CUSHION) DRIVER'S SEAT HEATER SWITCH DRIVER'S UNDER-DASH FRONT PASSENGER'S SEAT HEATER FRONT PASSENGER'S SEAT HEATER SWITCH FUSE 30 FUSE/RELAY BOX FUSE 6 GRN WIRE GRN/YEL WIRE GRY WIRE HOT AT ALL TIMES HOT IN ON LO HI LT BLU WIRE LT GRN WIRE ON IND. PASSENGER'S UNDER- DASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL) RED WIRE RELAY SEAT HEATER SEAT HEATER SWITCH LIGHT SEAT HEATER SWITCH LIGHT 2 4 HI SEAT-BACK DRIVER'S SEAT HEATER WHT/BLU WIRE YEL WIRE

Go to component -> Heated seats circuit -> DRIVER'S UNDER-DASH

Wiring diagram driver's under-dash (6 of 6)

Wiring diagram driver's under-dash for Acura RL II (2004-2008) (6 of 6)

Get access

BACKWARD BLK WIRE BRN WIRE DRIVER'S UNDER-DASH FORWARD/ FRONT PASSENGER'S LUMBAR SUPPORT MOTOR FRONT PASSENGER'S LUMBAR SUPPORT SWITCH FUSE 15 FUSE/RELAY BOX (BEHIND LEFT KICK PANEL) HOT AT ALL TIMES PNK WIRE RED WIRE RED/WHT WIRE WHT/BLU WIRE WHT/RED WIRE

Go to component -> Passenger"s lumbar circuit -> DRIVER'S UNDER-DASH
