Acura RDX II (2013-2015) engine controls system ppl Wiring diagrams
This page contains all the electrical diagrams for the component. engine controls system ppl, in which he is found in the car Acura RDX II (2013-2015). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram engine controls system ppl (1 of 2)
A/C COMPRESSOR CLUTCH RELAY
A/C CONDENSER FAN MOTOR (CENTER FRONT OF ENGINE COMPT)
A/C CONDENSER FAN RELAY
BLK WIRE
BLOWER MOTOR (BEHIND RIGHT SIDE OF DASH)
BLOWER MOTOR RELAY
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DIODE
ECT SENSOR 1 (TOP LEFT REAR OF ENGINE)
ECT SENSOR 2 (LOWER LEFT SIDE OF RADIATOR)
ENGINE CONTROLS SYSTEM PPL
FAN CONTROL RELAY
FUSE
FUSE 11
FUSE 2-10
FUSE FUSE FUSE 15 2-6 2-8
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LT BLU WIRE
LT GRN WIRE
PGM-FI SUB- RELAY
PNK WIRE
POWERTRAIN CONTROL MODULE (PCM) (RIGHT SIDE OF ENGINE COMPT)
PPL
RADIATOR FAN MOTOR (LEFT FRONT OF ENGINE COMPT)
RADIATOR FAN RELAY
RED WIRE
UNDER-HOOD FUSE/RELAY BOX (LEFT REAR OF ENGINE COMPT)
WHT WIRE
YEL WIRE
Go to component -> Automatic a/c circuit (3 of 3) -> ENGINE CONTROLS SYSTEM PPL

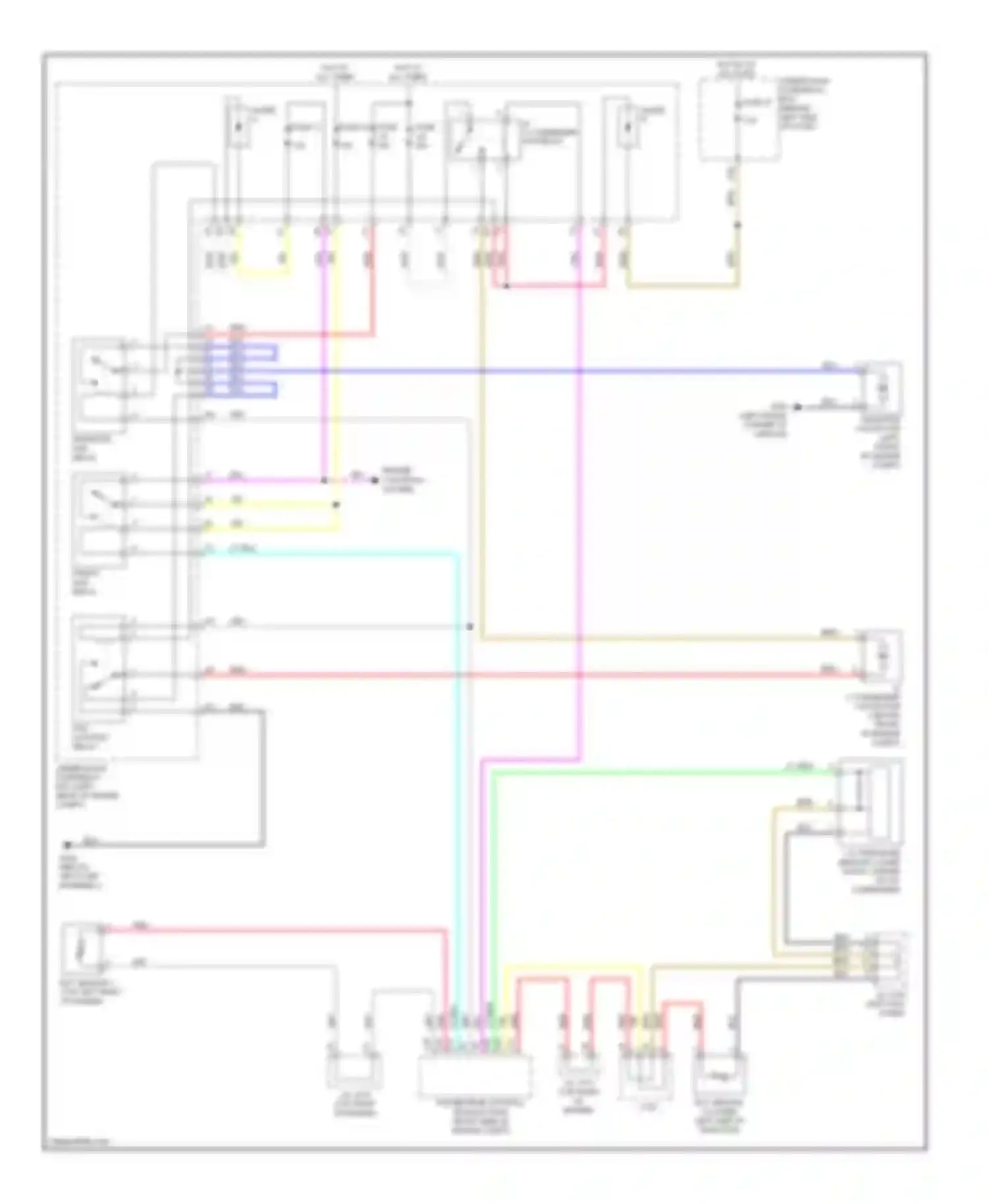

Wiring diagram engine controls system ppl (2 of 2)
A/C CONDENSER FAN MOTOR (CENTER FRONT OF ENGINE COMPT)
A/C CONDENSER FAN RELAY
A/C PRESSURE SENSOR (LOWER RIGHT CORNER ON A/C CONDENSER)
BLK WIRE
BLU WIRE
BRN WIRE
DIODE
ECT SENSOR 1 (TOP LEFT REAR OF ENGINE)
ECT SENSOR 2 (LOWER LEFT SIDE OF RADIATOR)
ENGINE CONTROLS SYSTEM PPL
FAN CONTROL RELAY
FUSE 11
FUSE 15
FUSE 2-6 FUSE 2-8
FUSE 22
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR START
LT BLU WIRE
LT GRN WIRE
PGM-FI SUB- RELAY
PNK WIRE
POWERTRAIN CONTROL MODULE (PCM) (RIGHT SIDE OF ENGINE COMPT)
PPL
RADIATOR FAN MOTOR (LEFT FRONT OF ENGINE COMPT)
RADIATOR FAN RELAY
RED WIRE
UNDER-DASH FUSE/RELAY BOX (BEHIND LEFT SIDE OF DASH)
UNDER-HOOD FUSE/RELAY BOX (LEFT REAR OF ENGINE COMPT)
WHT WIRE
YEL WIRE
Go to component -> Cooling fan circuit -> ENGINE CONTROLS SYSTEM PPL
