Acura RDX I (2006-2009) tilt swing Wiring diagram
This page shows the only wiring diagram for the component.tilt swing, which is found in the car Acura RDX I (2006-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

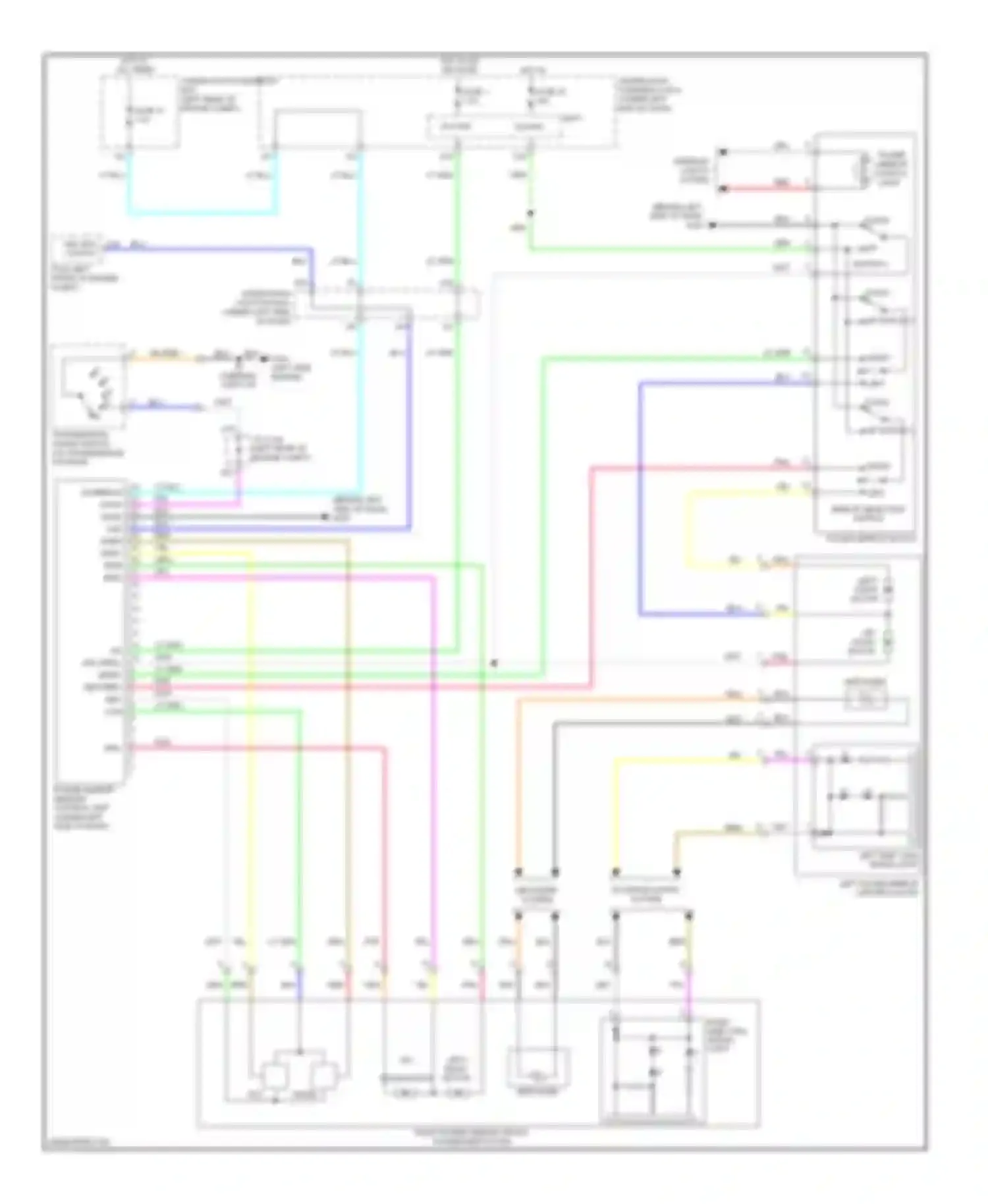

Wiring diagram tilt swing (1 of 1)
BLK WIRE
BLU WIRE
BRN WIRE
CONTROL UNIT (UNDER LEFT SIDE OF DASH)
DEFOGGER
DEFOGGER SYSTEM
DOWN
FUSE 1
FUSE 22
FUSE 36
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON
HOT IN ON OR START
LEFT
LEFT POWER MIRROR (DRIVER'S DOOR)
LEFT SIDE TURN SIGNAL LIGHT
LEFT/ RIGHT MOTOR
LEFT/ RIGHT MOTOR UP/ DOWN MOTOR
LT BLU WIRE
LT GRN WIRE
MICU
MIRROR SELECTION SWITCH
MUL MRDL MRDR SEN FEED SEN COM
ORG/ WIRE
PCM (LEFT FRONT OF ENGINE COMPT)
PNK RMV WIRE
PNK WIRE
POWER MIRROR MEMORY
POWER MIRROR SWITCH
POWER MIRROR SWITCH LIGHT
PPL
RED WIRE
RIGHT
RIGHT POWER MIRROR (FRONT PASSENGER'S DOOR)
RIGHT SIDE TURN SIGNAL LIGHT
SWITCH 1
TILT SWING
TRANSMISSION RANGE SWITCH (ON TRANSMISSION HOUSING)
UNDER-DASH FUSE/RELAY BOX (UNDER LEFT END OF DASH)
UNDER-DASH JUNCTION BOX (UNDER LEFT SIDE OF DASH)
UNDER-HOOD FUSE/RELAY BOX (LEFT REAR OF ENGINE COMPT)
UP SWITCH 2
UP SWITCH 3
UP/ DOWN MOTOR
VEH SPD OUTPUT
WHT WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Memory mirrors circuit -> TILT SWING
