Acura MDX IV (2021-2024) wht Wiring diagrams

ACTIVE VIBRATION CONTROL UNIT BLK WIRE BLU WIRE BODY CONTROL MODULE COMPUTER DATA LINES SYSTEM DRIVER'S CENTER JUNCTION BOX A FRONT ACCELERATION SENSOR (AVC) FRONT ACTIVE DYNAMIC DAMPER FUSE 28 FUSE 8 FUSE HOLDER A GRN WIRE GRY WIRE HOT AT ALL TIMES HOT W/ LT BLU WIRE LT GRN WIRE PNK WIRE PPL REAR ACCELERATION SENSOR (AVC) REAR ACTIVE DYNAMIC DAMPER RED WIRE RIGHT END OF DASH) UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

ADAPTIVE DAMPER CONTROL UNIT BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM ELECTRONIC AIR SUSPENSION CONTROL UNIT FUSE 18 FUSE 5 FUSE/RELAY HOLDER B GRN WIRE HOT AT ALL TIMES HOT W/ LEFT FRONT DAMPER ACTUATOR LEFT FRONT SUSPENSION STROKE SENSOR LT BLU WIRE LT GRN WIRE PNK WIRE PPL PPL PPL RED WIRE RIGHT FRONT DAMPER ACTUATOR RIGHT FRONT SUSPENSION STROKE SENSOR UNDER-DASH FUSE/RELAY BOX WHT WIRE YEL WIRE

3.0L TURBO 3.5L BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 25 FUSE 27 FUSE 28 FUSE 29 FUSE 4 FUSE 4-2 FUSE 4-4 FUSE 5-2 FUSE B (+) FUSE HOLDER A FUSE HOLDER B FUSE/ RELAY HOLDER A GRN WIRE GRY WIRE HOT AT ALL TIMES HOT W/ HOT W/ DC-DC CONVERTER LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR LT BLU WIRE LT GRN WIRE NCA WIRE PNK WIRE PPL RED WIRE RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR UNDER- DASH FUSE/ RELAY BOX UNDER-HOOD FUSE/RELAY BOX VSA MODULATOR CONTROL UNIT WHT WIRE YEL WIRE

3.0L TURBO 3.5L APPLY SWITCH BLK WIRE BLU WIRE BODY CONTROL MODULE (LEFT SIDE OF DASH) BRAKE LIGHT RELAY BRAKE PEDAL POSITION SWITCH BRN WIRE COMPUTER DATA LINES SYSTEM ELECTRIC PARKING BRAKE SWITCH FUSE 36 FUSE/RELAY HOLDER C GRN WIRE GRY WIRE LEFT REAR ELECTRIC PARKING BRAKE ACTUATOR LT BLU WIRE LT GRN WIRE NCA WIRE PCM PNK WIRE PPL RED WIRE RELAY CIRCUIT BOARD RELEASE SWITCH RIGHT REAR ELECTRIC PARKING BRAKE ACTUATOR UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

3.0L TURBO 3.5L A/C CONDENSER FAN MOTOR/ RFC UNIT 2 BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 15 FUSE HOLDER A FUSE/RELAY HOLDER C FUSE/RELAY HOLDER D GRN WIRE HOT AT ALL TIMES LSI LT GRN WIRE PCM PNK WIRE PPL PPL/GRY WIRE PPL/PNK WIRE RADIATOR FAN MOTOR/ RFC UNIT 1 RED WIRE RFC RELAY 1 RFC RELAY 2 UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

3.0L TURBO 3.5L A/C PRESSURE SENSOR BLK WIRE BRN WIRE ECT SENSOR 2 FTP SENSOR (3.5L) FUSE 28 FUSE 6 FUSE 7 FUSE HOLDER B HOT AT ALL TIMES HOT W/ PPL PPL/BLK WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/PNK WIRE PPL/RED WIRE PPL/WHT WIRE RED WIRE UNDER-DASH FUSE/RELAY BOX WHT WIRE

3.0L TURBO 3.5L A/C CONDENSER FAN MOTOR BLK WIRE BLU WIRE BRN WIRE ECT SENSOR 1 FUSE 16 FUSE 3-3 FUSE 38 FUSE 6 FUSE HOLDER A FUSE/RELAY HOLDER C FUSE/RELAY HOLDER D GRN WIRE GRY WIRE HOT AT ALL TIMES HOT W/ PGM-FI MAIN RELAY 1 ENERGIZED PNK WIRE PPL PPL/GRY WIRE PPL/PNK WIRE RADIATOR FAN MOTOR RELAY CIRCUIT BOARD UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

3.0L TURBO 3.5L BLK WIRE BLU WIRE BODY CONTROL MODULE BRAKE LIGHT RELAY CIRCUIT BRAKE PEDAL STROKE SENSOR BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S DOOR LATCH ELECTRIC BRAKE BOOSTER ELECTRIC SERVO BRAKE CONTROL UNIT/ PEDAL FEEL SIMULATOR FUSE 27 FUSE 36 FUSE 5 FUSE B (+) FUSE HOLDER B FUSE/RELAY HOLDER A FUSE/RELAY HOLDER C GRN WIRE GRY WIRE HALL SENSOR HOT AT ALL TIMES HOT W/ HOT W/ DC-DC CONVERTER MOTOR PNK WIRE PPL RED WIRE RELAY CIRCUIT BOARD TANDEM MOTOR CYLINDER (LEFT SIDE OF ENGINE COMPT) UNDER- DASH FUSE/ RELAY BOX UNDER-HOOD FUSE/RELAY BOX VSA MODULATOR CONTROL UNIT WHT WIRE YEL WIRE

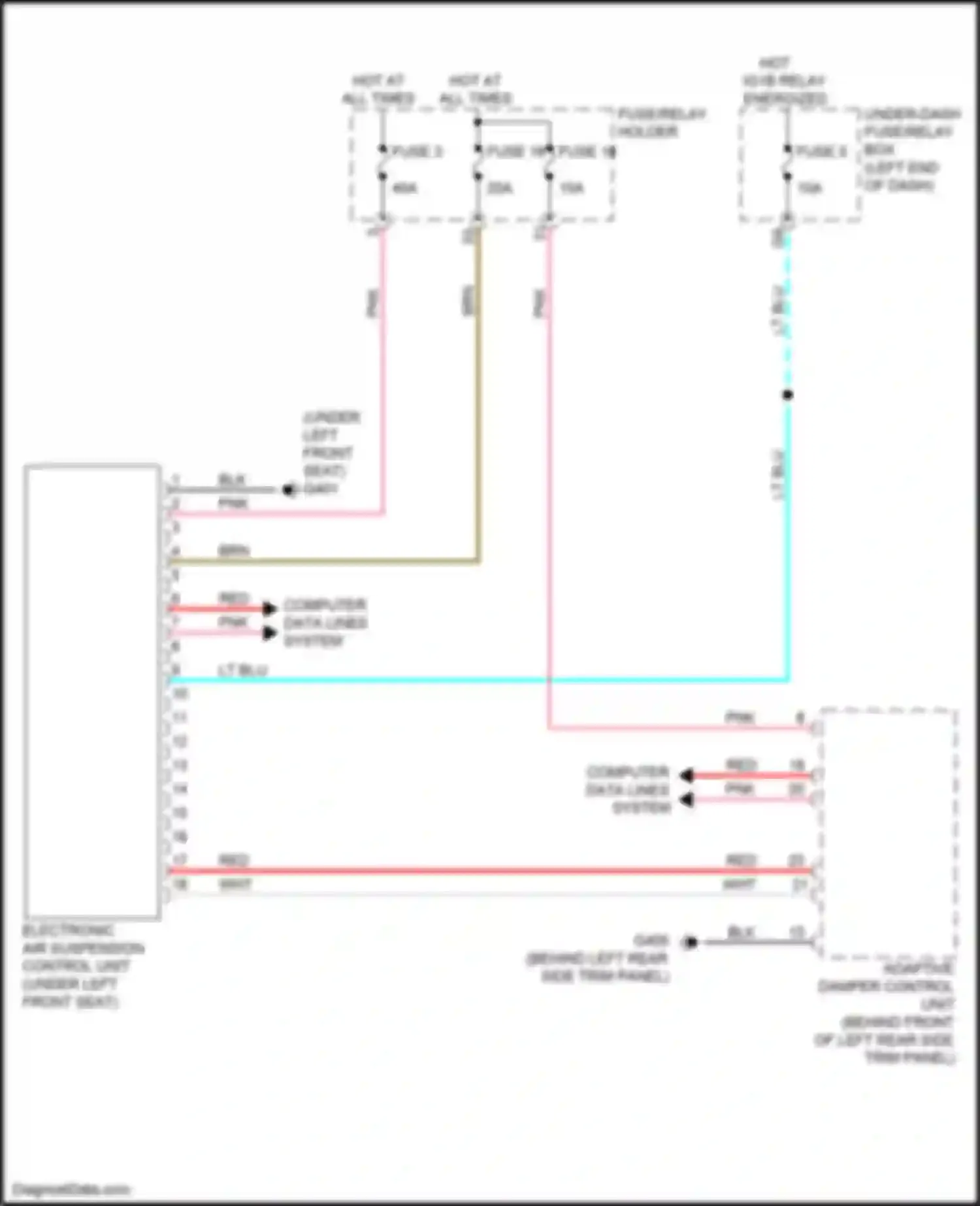

ADAPTIVE DAMPER CONTROL UNIT BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM ELECTRONIC AIR SUSPENSION CONTROL UNIT FUSE 16 FUSE 18 FUSE 3 FUSE 5 FUSE/RELAY HOLDER B HOT AT ALL TIMES HOT W/ LT BLU WIRE PNK WIRE RED WIRE UNDER-DASH FUSE/RELAY BOX WHT WIRE

BLK WIRE BLU WIRE BODY CONTROL MODULE (LEFT SIDE OF DASH) BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S CENTER JUNCTION BOX A DRIVER'S JUNCTION BOX A DRIVER'S POWER SEAT CONTROL UNIT FRONT PASSENGER'S POWER SEAT CONTROL UNIT FUSE 2 FUSE 20 FUSE 22 FUSE 38 FUSE 5 FUSE/RELAY HOLDER B GRN WIRE GRY WIRE HOT AT ALL TIMES LEFT TAILGATE PINCH SENSOR LT BLU WIRE LT GRN WIRE PNK WIRE POWER DISTRIBUTION SYSTEM POWER TAILGATE CONTROL UNIT POWER TAILGATE DRIVE UNIT (LEFT SIDE OF TAILGATE) POWER TAILGATE INSIDE BUZZER POWER TAILGATE MOTOR POWER TAILGATE SENSOR PPL RED WIRE RELAY ENERGIZED RIGHT TAILGATE PINCH SENSOR SUPPLEMENTAL RESTRAINTS SYSTEM TAN WIRE UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE
