Acura MDX IV (2021-2024) brn Wiring diagrams
This page contains all the electrical diagrams for the component. brn, in which he is found in the car Acura MDX IV (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

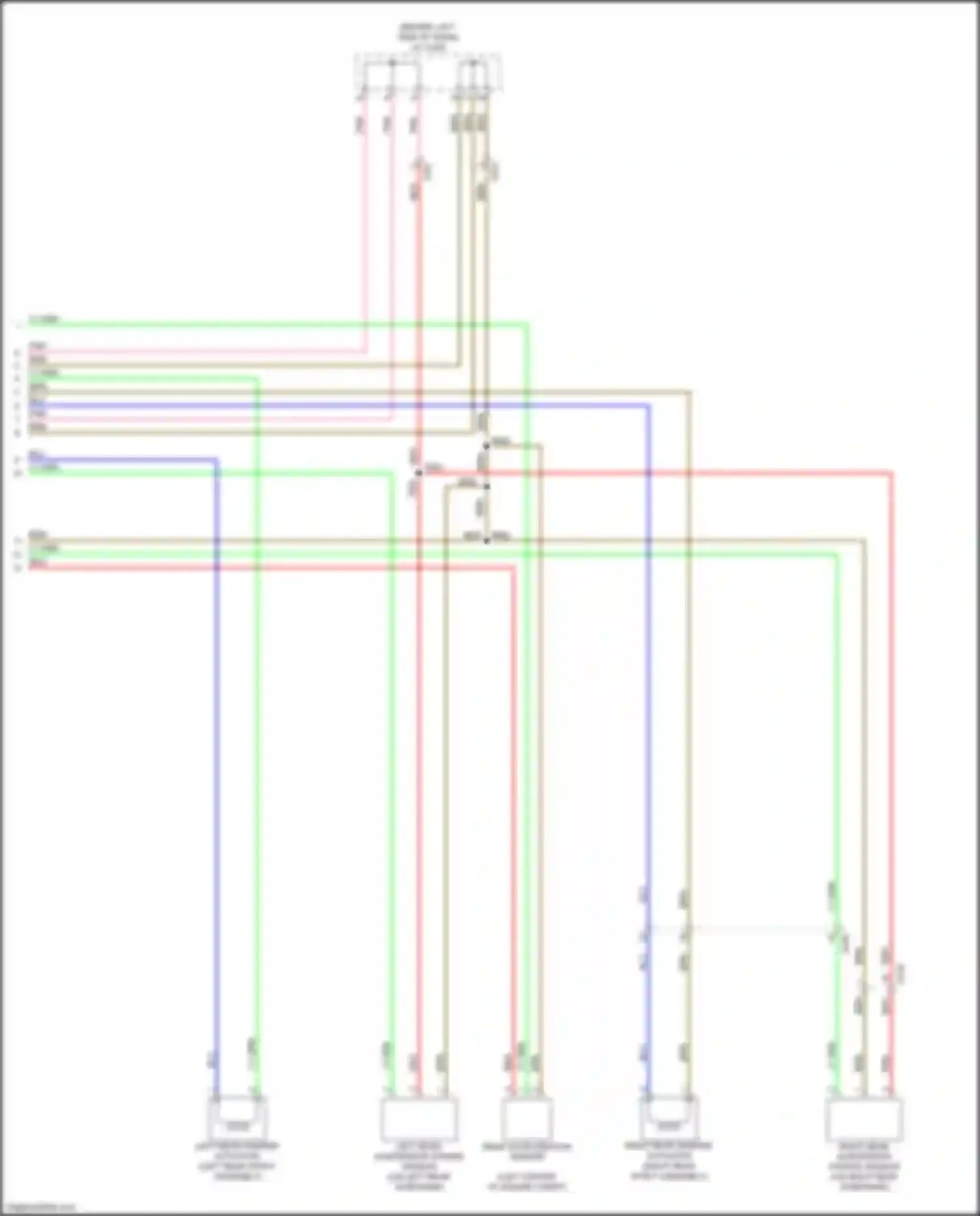

Wiring diagram brn (112 of 147)
3.0L TURBO
3.5L
AUTOMATIC LIGHTING/ RAIN SENSOR
BLK WIRE
BLU WIRE
BRN WIRE
CAN GATEWAY (RIGHT END OF DASH)
DATA LINK CONNECTOR (DLC)
DRIVER'S CENTER JUNCTION BOX A
DRIVER'S JUNCTION BOX A
FUSE 11
FUSE 20
FUSE 33
FUSE HOLDER A
GRN WIRE
HOT AT ALL TIMES
HOT W/
LT BLU WIRE
LT GRN WIRE
PASSENGER'S CENTER JUNCTION BOX C
PASSENGER'S CENTER JUNCTION BOX D
PCM
PNK WIRE
PPL
RED WIRE
RIGHT END OF DASH)
UNDER-DASH FUSE/RELAY BOX
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
WINDSHIELD WIPER CONTROL UNIT/ MOTOR
YEL WIRE
Go to component -> Computer data lines circuit (1 of 8) -> BRN WIRE

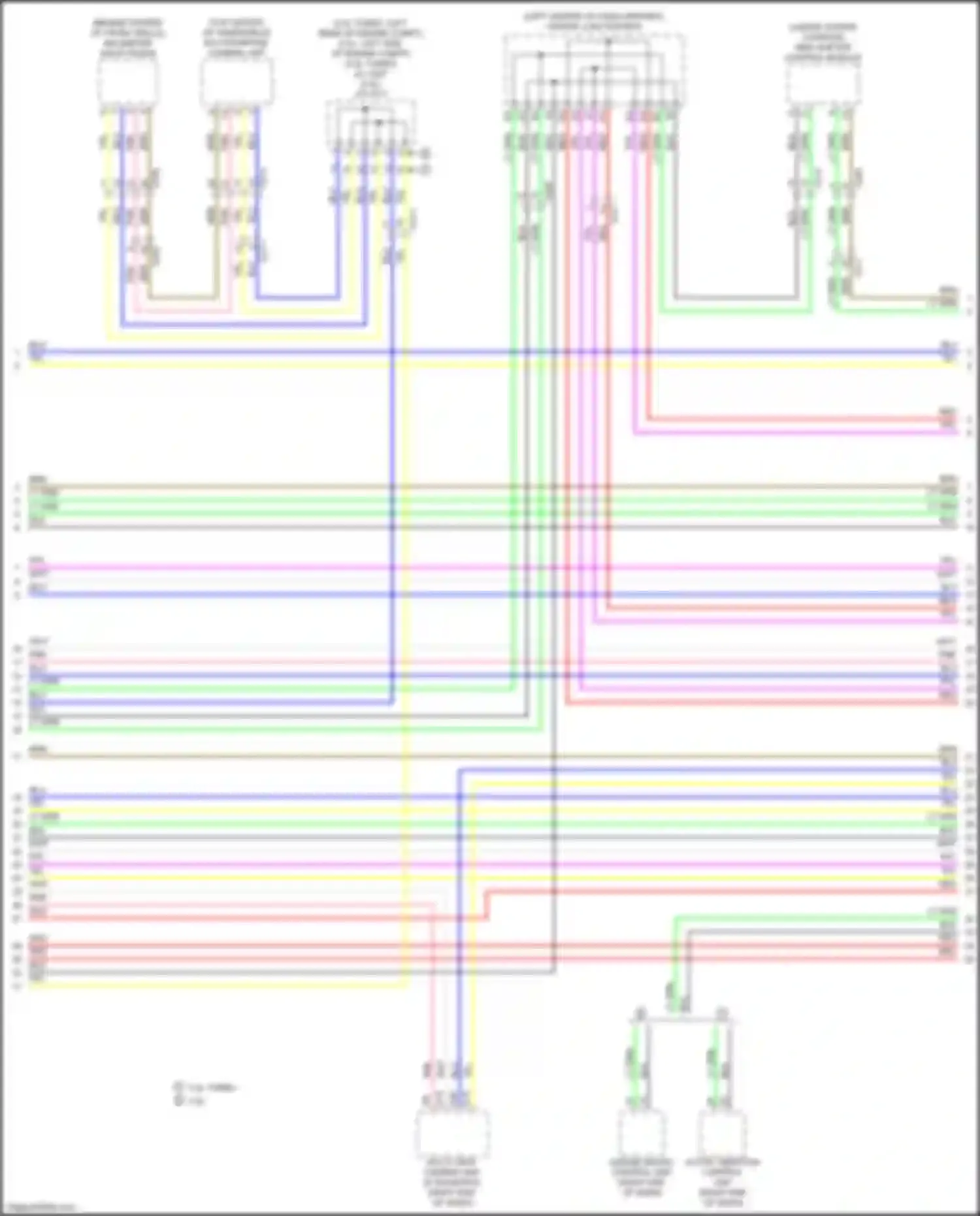

Wiring diagram brn (114 of 147)
3.0L TURBO
3.5L
3.5L AWD, 3.0L TURBO
ADAPTIVE DAMPER CONTROL UNIT
BLK WIRE
BLU WIRE
BRN WIRE
CENTER DISPLAY UNIT
EPS CONTROL UNIT
FRONT PASSENGER'S WEIGHT SENSOR (FRONT INNER SIDE)
FRONT PASSENGER'S WEIGHT SENSOR (REAR INNER SIDE)
GRY WIRE
LT GRN WIRE
PASSENGER'S CENTER JUNCTION BOX C
PNK WIRE
PPL
RED WIRE
SH-AWD CONTROL UNIT
TELEMATICS CONTROL UNIT
TRANSMISSION CONTROL MODULE (TCM)
WHT WIRE
WIRELESS CHARGER
YEL WIRE
Go to component -> Computer data lines circuit (4 of 8) -> BRN WIRE
Wiring diagram brn (115 of 147)
12 VOLT BATTERY FAN MOTOR
3.0L TURBO
3.5L
ACTIVE EXHAUST VALVE ACTUATOR
ALTERNATOR
BLU WIRE
BRN WIRE
CENTER INSTRUMENT PANEL AMBIENT LIGHT
DC-DC CONVERTER
DRIVER'S DOOR INNER HANDLE LIGHT
DRIVER'S DOOR POCKET LIGHT
DRIVER'S FOOTWELL LIGHT
DRIVER'S INSTRUMENT PANEL AMBIENT LIGHT
FRONT PASSENGER'S DOOR LOWER AMBIENT LIGHT
FRONT PASSENGER'S DOOR POCKET LIGHT
FRONT PASSENGER'S DOOR UPPER AMBIENT LIGHT
FRONT PASSENGER'S FOOTWELL LIGHT
GRN WIRE
GRY WIRE
LEFT CONSOLE BOX LIGHT
LT BLU WIRE
LT GRN WIRE
PASSENGER'S INSTRUMENT PANEL AMBIENT LIGHT
PPL
PPL/BLU WIRE
RED WIRE
RIGHT CONSOLE BOX LIGHT
RIGHT REAR DOOR LOWER AMBIENT LIGHT
RIGHT REAR DOOR POCKET LIGHT
SHUTTER GRILLE
TAN WIRE
WHT WIRE
YEL WIRE
Go to component -> Computer data lines circuit (7 of 8) -> BRN WIRE
Wiring diagram brn (116 of 147)
3.0L TURBO
3.5L
A/C CONDENSER FAN MOTOR/ RFC UNIT 2
BLK WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
FUSE 15
FUSE HOLDER A
FUSE/RELAY HOLDER C
FUSE/RELAY HOLDER D
GRN WIRE
HOT AT ALL TIMES
LSI
LT GRN WIRE
PCM
PNK WIRE
PPL
PPL/GRY WIRE
PPL/PNK WIRE
RADIATOR FAN MOTOR/ RFC UNIT 1
RED WIRE
RFC RELAY 1
RFC RELAY 2
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Cooling fan circuit (1 of 3) -> BRN WIRE
Wiring diagram brn (118 of 147)
3.0L TURBO
3.5L
A/C CONDENSER FAN MOTOR
BLK WIRE
BLU WIRE
BRN WIRE
ECT SENSOR 1
FUSE 16
FUSE 3-3
FUSE 38
FUSE 6
FUSE HOLDER A
FUSE/RELAY HOLDER C
FUSE/RELAY HOLDER D
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ PGM-FI MAIN RELAY 1 ENERGIZED
PNK WIRE
PPL
PPL/GRY WIRE
PPL/PNK WIRE
RADIATOR FAN MOTOR
RELAY CIRCUIT BOARD
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Cooling fan circuit (3 of 3) -> BRN WIRE
Wiring diagram brn (119 of 147)
BLK WIRE
BLU WIRE
BODY CONTROL MODULE (LEFT SIDE OF DASH)
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S CENTER JUNCTION BOX A
DRIVER'S JUNCTION BOX A
DRIVER'S POWER SEAT CONTROL UNIT
FRONT PASSENGER'S POWER SEAT CONTROL UNIT
FUSE 2
FUSE 20
FUSE 22
FUSE 38
FUSE 5
FUSE/RELAY HOLDER B
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LEFT TAILGATE PINCH SENSOR
LT BLU WIRE
LT GRN WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
POWER TAILGATE CONTROL UNIT
POWER TAILGATE DRIVE UNIT (LEFT SIDE OF TAILGATE)
POWER TAILGATE INSIDE BUZZER
POWER TAILGATE MOTOR
POWER TAILGATE SENSOR
PPL
RED WIRE
RELAY ENERGIZED
RIGHT TAILGATE PINCH SENSOR
SUPPLEMENTAL RESTRAINTS SYSTEM
TAN WIRE
UNDER-DASH FUSE/RELAY BOX
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Power tailgate circuit (1 of 2) -> BRN WIRE
Wiring diagram brn (120 of 147)
BLK WIRE
BLU WIRE
BRN WIRE
CLOSER MOTOR
DRIVER'S POWER TAILGATE SWITCH
FULL LATCH SWITCH
GRN WIRE
GRY WIRE
HALF LATCH SWITCH
HANDSFREE ACCESS POWER TAILGATE CONTROL UNIT/SENSOR
LICENSE PLATE LIGHT
LT GRN WIRE
NEUTRAL SWITCH
OPTION CONNECTOR (TRAILER)
PNK WIRE
POWER TAILGATE CLOSER UNIT (CENTER OF TAILGATE)
POWER TAILGATE INSIDE SWITCH
PPL
RATCHET SWITCH
RED WIRE
TAILGATE OUTER HANDLE SWITCH
TAILGATE OUTER HANDLE/ LOCK SWITCH/LICENSE PLATE LIGHT TAILGATE LOCK SWITCH
TAN WIRE
YEL WIRE
Go to component -> Power tailgate circuit (2 of 2) -> BRN WIRE
