Acura MDX III facelift (2015-2016) wht Wiring diagrams
This page contains all the electrical diagrams for the component. wht, in which he is found in the car Acura MDX III facelift (2015-2016). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram wht (91 of 132)
Go to component -> A/t circuit (1 of 2) -> WHT WIRE
Wiring diagram wht (92 of 132)
Go to component -> Computer data lines circuit, w/ auto idle stop (1 of 5) -> WHT WIRE
Wiring diagram wht (93 of 132)
Go to component -> Computer data lines circuit, w/ auto idle stop (2 of 5) -> WHT WIRE
Wiring diagram wht (94 of 132)
Go to component -> Computer data lines circuit, w/ auto idle stop (4 of 5) -> WHT WIRE
Wiring diagram wht (95 of 132)
Go to component -> Computer data lines circuit, w/o auto idle stop (1 of 4) -> WHT WIRE
Wiring diagram wht (96 of 132)
Go to component -> Computer data lines circuit, w/o auto idle stop (3 of 4) -> WHT WIRE
Wiring diagram wht (97 of 132)
Go to component -> Front heated seats circuit -> WHT WIRE

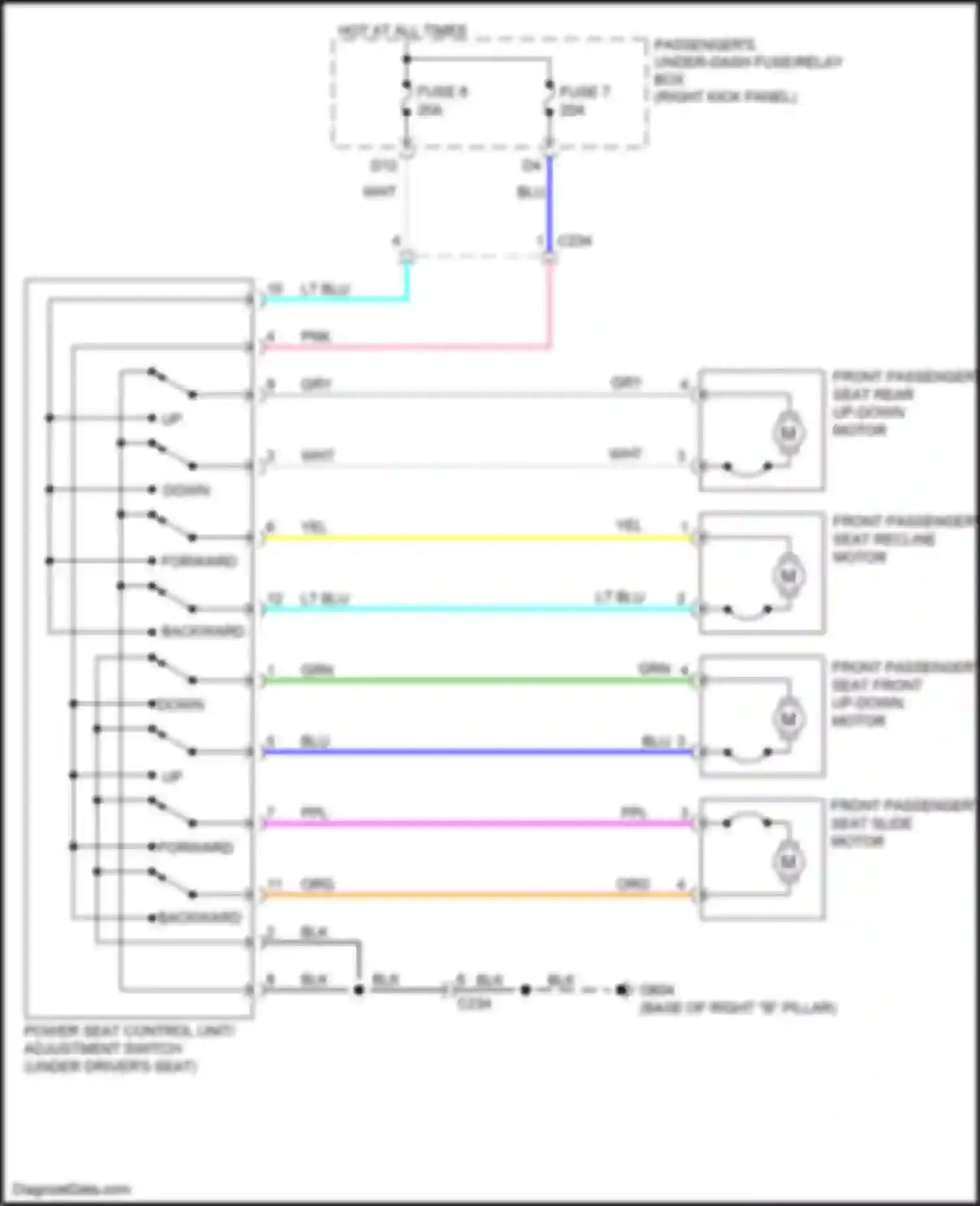

Wiring diagram wht (98 of 132)
Go to component -> Front passenger power seat circuit -> WHT WIRE

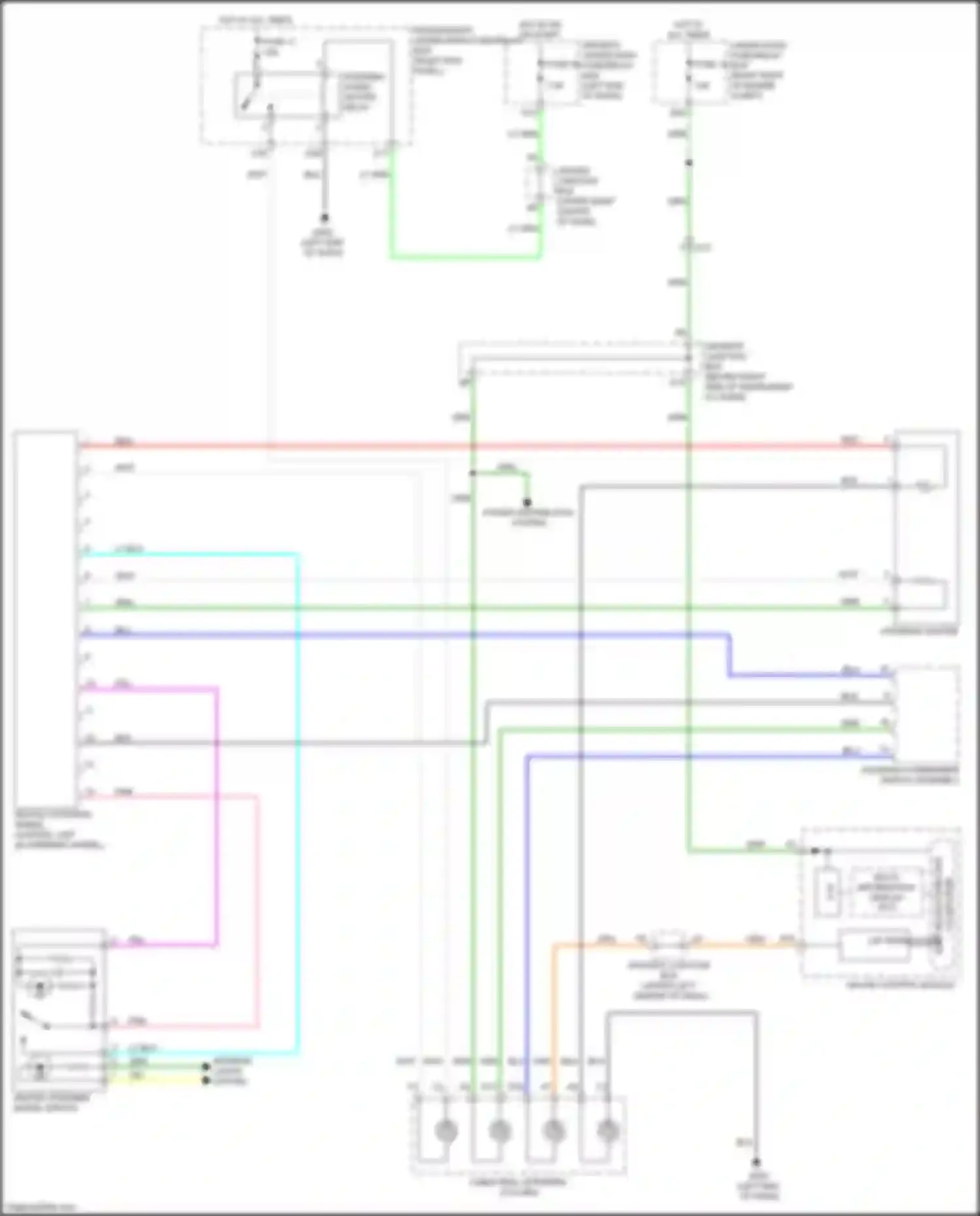

Wiring diagram wht (99 of 132)
Go to component -> Heated steering wheel circuit -> WHT WIRE

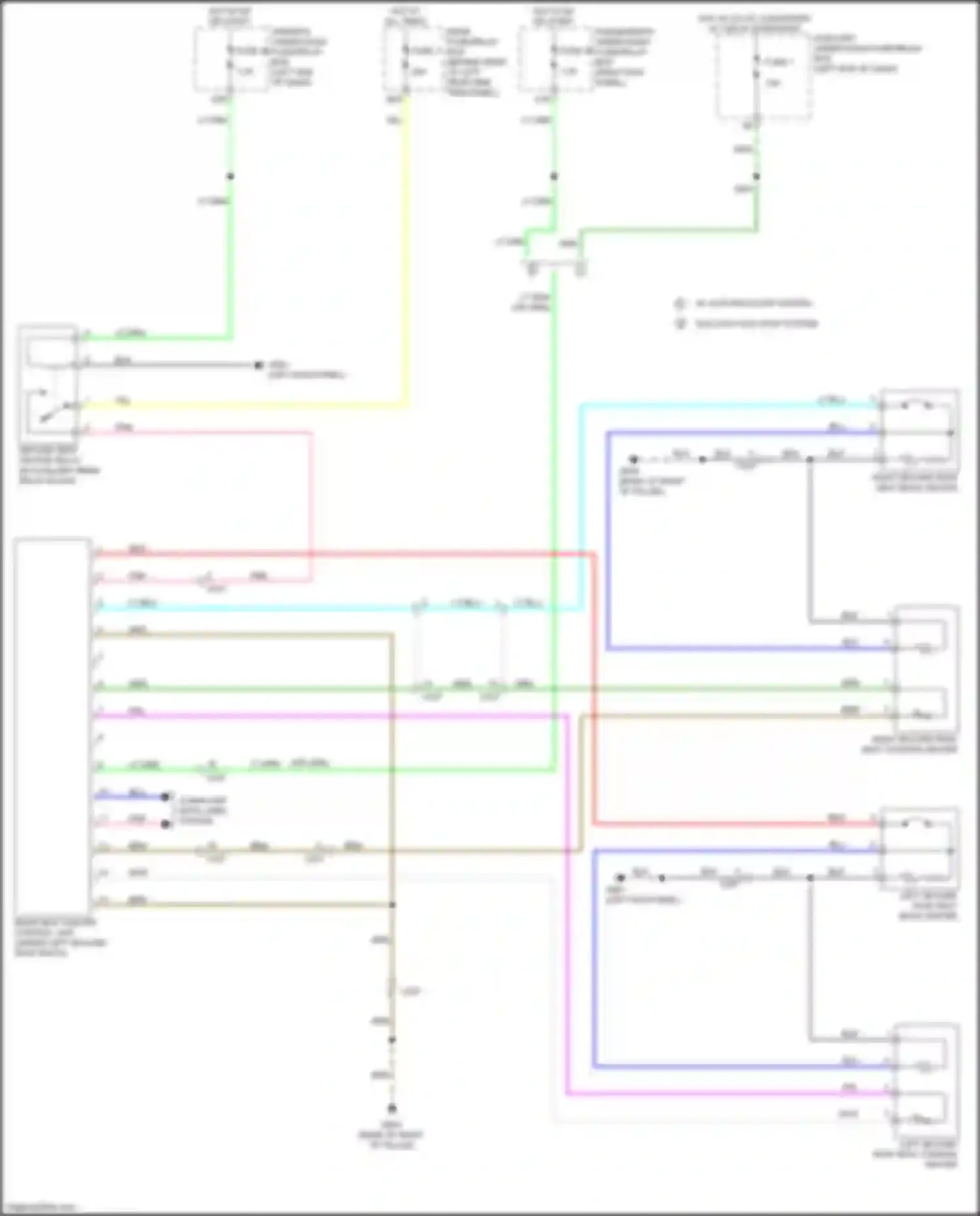

Wiring diagram wht (100 of 132)
Go to component -> Rear heated seats circuit -> WHT WIRE
