Acura MDX III facelift (2015-2016) brn Wiring diagrams

BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S DOOR SWITCH DRIVER'S UNDER-DASH FUSE/RELAY BOX DRIVER'S VANITY MIRROR LIGHT EXCEPT BASE FRONT PASSENGER'S DOOR SWITCH FUSE 11 FUSE 13 FUSE 30 GRN WIRE GRY WIRE HOT AT ALL TIMES INSTRUMENT ILLUMINATION CIRCUIT INTERIOR LIGHT CUT RELAY LEFT REAR DOOR SWITCH LEFT REAR INDIVIDUAL MAP LIGHT (LED) LT BLU WIRE MAP LIGHT SWITCH MICU OPTION CONNECTOR (FOR LEFT LED) OPTION CONNECTOR (FOR RIGHT LED) ORG/ WIRE PASSENGER'S VANITY MIRROR LIGHT PNK WIRE PPL REAR FUSE/ RELAY BOX REAR MICU RED WIRE RELAY ENERGIZED RIGHT END OF DASH) RIGHT REAR DOOR SWITCH RIGHT REAR INDIVIDUAL MAP LIGHT (LED) WHT WIRE WHT/PNK WIRE YEL WIRE

AUTO (OR) INT LOW OFF AUTO (OR) INT OFF LOW HIGH MIST AUTOMATIC LIGHTING/ RAIN SENSOR AUXILIARY UNDER-DASH FUSE/RELAY BOX BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S JUNCTION BOX A DRIVER'S UNDER-DASH FUSE/RELAY BOX EXCEPT CANADA FUSE 11 FUSE 2 FUSE 30 FUSE 31 FUSE 4 GRN WIRE HOT AT ALL TIMES HOT IN ON OR START INTERMITTENT DWELL TIME CONTROLLER LT BLU WIRE LT GRN WIRE MICU MIST HIGH OFF ORG/ WIRE PNK WIRE RED WIRE UNDER- HOOD FUSE/ RELAY BOX W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM WASH WASHER SWITCH WHT WIRE WIPER MOTOR RELAY WIPER SWITCH WIPER/WASHER SWITCH YEL WIRE

AUXILIARY UNDER-DASH FUSE/RELAY BOX B-CAN H B-CAN L B-CAN TRANSCEIVER BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 7 GAUGE CONTROL MODULE GRN WIRE GRY WIRE HOT W/ DC-DC LT BLU WIRE LT GRN WIRE PNK WIRE REAR WINDOW WASHER MOTOR RELAY RED WIRE RELAY CONTROL MODULE RELAY ENERGIZED W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM WASHER FLUID LEVEL SWITCH WHT WIRE WINDSHIELD WASHER MOTOR RELAY WINDSHIELD WIPER CONTROL UNIT/MOTOR WINDSHIELD WIPER HIGH/LOW RELAY WINDSHIELD WIPER INTERMITTENT RELAY WINDSHIELD/REAR WINDOW WASHER MOTOR WIP YEL WIRE

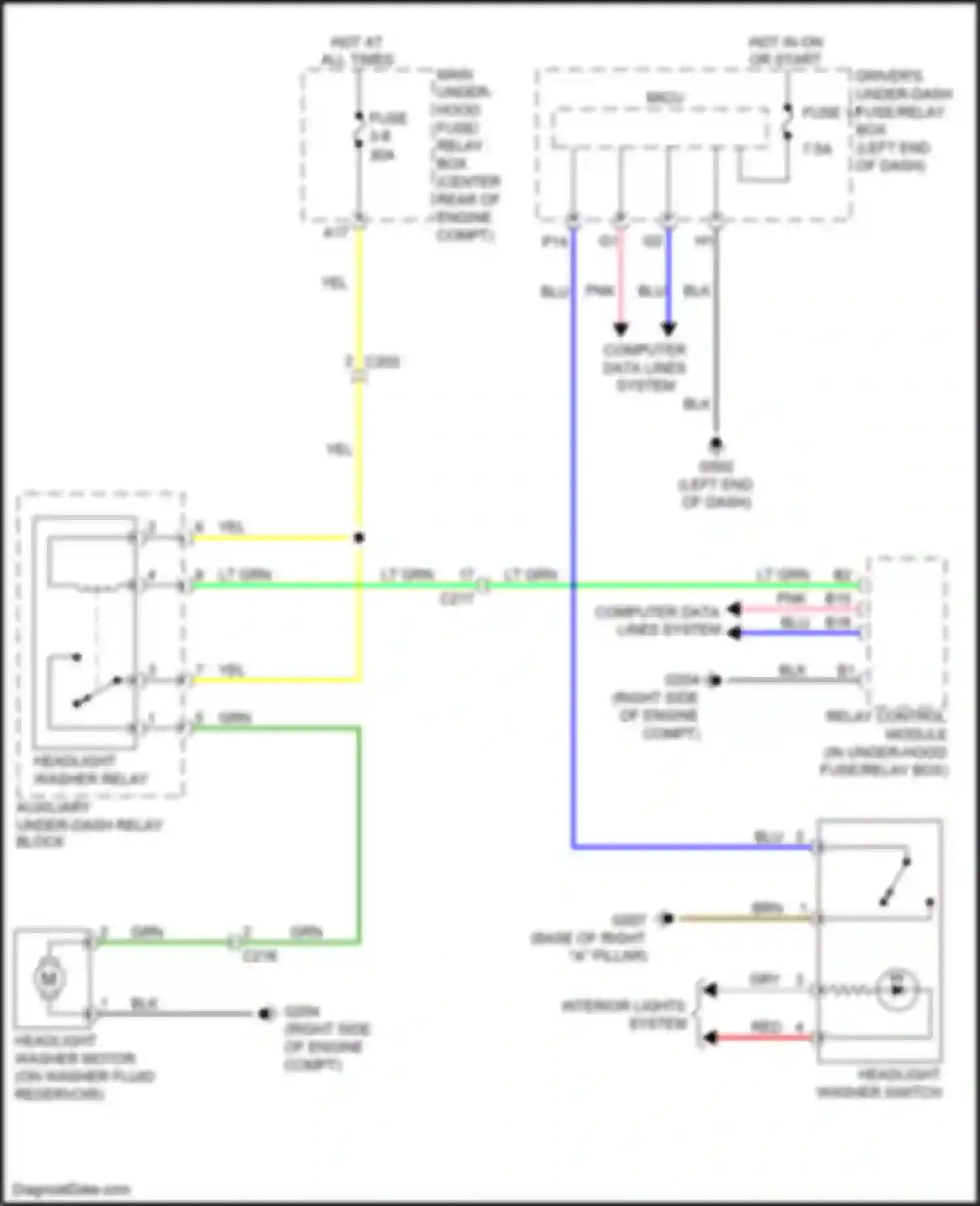

AUXILIARY UNDER-DASH RELAY BLOCK A BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S UNDER-DASH FUSE/RELAY BOX FUSE 11 FUSE 3-8 GRN WIRE GRY WIRE HEADLIGHT WASHER MOTOR HEADLIGHT WASHER RELAY HEADLIGHT WASHER SWITCH HOT AT ALL TIMES HOT IN ON OR START LT GRN WIRE MAIN UNDER- HOOD FUSE/ RELAY BOX MICU PNK WIRE RED WIRE RELAY CONTROL MODULE YEL WIRE

AUXILIARY UNDER-DASH FUSE BOX BLK WIRE BLU WIRE BRN WIRE CENTER SWITCH PANEL/ INTERFACE DIAL CLIMATE CONTROL SWITCH CONSOLE BOX LIGHT DC-DC CONVERTER DRIVER'S FOOT LIGHT DVD PLAYER UNIT FRONT PASSENGER'S FOOT LIGHT FUSE 11 FUSE 22 FUSE 25 GLOVE BOX LIGHT GRN WIRE GRY WIRE HOT AT ALL TIMES IDLE STOP OFF SWITCH INTEGRATED DYNAMICS SYSTEM SWITCH LT GRN WIRE MAIN UNDER- HOOD FUSE BOX ORG/ WIRE PASSENGER'S UNDER-DASH FUSE/RELAY BOX POWER DISTRIBUTION SYSTEM RED WIRE RELAY CONTROL MODULE SBW SHIFTER CONTROL MODULE SMALL LIGHT RELAY UNDER-HOOD FUSE/RELAY BOX W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM

AUXILIARY UNDER-DASH FUSE/RELAY BOX BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM CONTROL BLOCK DOOR LOCK DRIVER'S DOOR LOCK SWITCH DRIVER'S DOOR SWITCH DRIVER'S POWER WINDOW MASTER SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/KNOB SWITCH FRONT PASSENGER'S DOOR LOCK KNOB SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FUSE 6 FUSE 7 GRN WIRE GRY/YEL WIRE HOT AT ALL TIMES IND KEYLESS BUZZER KNOB LOCK LT BLU WIRE LT GRN WIRE ORG/ WIRE PASSENGER'S UNDER-DASH FUSE/RELAY BOX PNK WIRE PPL RIGHT REAR DOOR LOCK ACTUATOR/KNOB SWITCH RIGHT REAR DOOR LOCK KNOB SWITCH UNLOCK WHT WIRE YEL WIRE

B-CAN B-CAN B-CAN TRANSCEIVER BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM ENGINE START/STOP SWITCH GAUGE CONTROL MODULE GRN WIRE GRN/WHT WIRE GRY WIRE GRY/YEL WIRE IMMOBILIZER I/F IMMOBILIZER INDICATOR KEYLESS ACCESS SYSTEM INDICATOR LEFT REAR DOOR SWITCH LF ANTENNA LT BLU WIRE MALFUNCTION INDICATOR LAMP (MIL) MULTI INFORMATION DISPLAY (TFT) PNK WIRE POWER SEAT CONTROL UNIT PPL REAR FUSE/RELAY BOX REAR MICU RED WIRE RIGHT REAR DOOR SWITCH SECURITY INDICATOR W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM WARNING DRIVE CIRCUIT WHT WIRE WHT/PNK WIRE YEL WIRE

ACC RELAY BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER'S DOOR POWER TAILGATE/ FUEL FILL DOOR OPENER SWITCH FUSE 3-2 FUSE 3-5 FUSE 3-7 FUSE 8 GRN WIRE GRY WIRE HOT AT ALL TIMES KEYLESS ACCESS/TPMS CONTROL UNIT (RIGHT SIDE OF DASH) LEFT REAR DOOR OUTER HANDLE LOCK SWITCH LT BLU WIRE LT GRN WIRE MAIN UNDER- HOOD FUSE BOX NCA WIRE ORG/ WIRE PNK WIRE POWER TAILGATE CONTROL UNIT POWER TAILGATE SWITCH PPL RED WIRE RIGHT REAR DOOR OUTER HANDLE TAILGATE LATCH SWITCH TOUCH SENSOR UNDER-DASH SUBRELAY BOX WHT WIRE YEL WIRE

2-WAY TRANSCEIVER BLK WIRE BLU WIRE BRN WIRE DRIVER'S DOOR OUTER HANDLE FRONT INTERIOR LF ANTENNA/ INITIATOR FRONT PASSENGER'S DOOR OUTER HANDLE GRN WIRE GRY WIRE KEYLESS ACCESS/ TPMS CONTROL UNIT LEFT FRONT LF ANTENNA/ INITIATOR LEFT REAR LF ANTENNA/ INITIATOR LOCK SWITCH LT BLU WIRE LT GRN WIRE NCA WIRE OPTION CONNECTOR (FOR TRAILER) ORG/ WIRE PNK WIRE PPL REAR CENTER LF ANTENNA/ INITIATOR RED WIRE RIGHT FRONT LF ANTENNA/ INITIATOR RIGHT REAR LF ANTENNA/INITIATOR STEERING ANGLE SENSOR TOUCH SENSOR TRANSMISSION CONTROL MODULE W/ ELECTRIC STEERING LOCK W/O ELECTRIC STEERING LOCK WHT WIRE XM ANTENNA YEL WIRE

AUXILIARY UNDER-DASH FUSE/RELAY BOX B-CAN H B-CAN L B-CAN TRANSCEIVER BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DIODE A DIODE B DRIVER'S UNDER-DASH FUSE/RELAY BOX FUSE 11 FUSE 12 FUSE 7 GAUGE CONTROL MODULE GRN WIRE HOT IN ON OR START HOT W/ DC-DC LT BLU WIRE LT GRN WIRE MICU PNK WIRE REAR FUSE/RELAY BOX REAR MICU REAR WINDOW WIPER RELAY RELAY ENERGIZED REVERSE RELAY TRANSMISSION CONTROL MODULE W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM WHT WIRE WIP INT WIP INT WIP ON OFF WASH WASH WIP ON OFF WASH WASH WIPER/WASHER SWITCH
