Wiring diagram gry (171 of 203)
A/C CONDENSER FAN MOTOR
A/C CONDENSER FAN RELAY
A/C DIODE B
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DIODE C
DRIVER'S UNDER-DASH FUSE/RELAY BOX
ECT SENSOR 1
ECT SENSOR 2
EXCEPT HYBRID
EXCEPT HYBRID HYBRID
FAN CONTROL RELAY
FUSE 21
FUSE 26
FUSE 28
FUSE 29
FUSE 30
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR START
HOT W/ PGM-FI MAIN RELAY 1 ENERGIZED
PCM
PNK WIRE
RADIATOR FAN MOTOR
RADIATOR FAN RELAY
RED WIRE
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Cooling fan circuit -> GRY WIRE
Wiring diagram gry (172 of 203)
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S DOOR SWITCH
DRIVER'S UNDER-DASH FUSE/RELAY BOX
DRIVER'S VANITY MIRROR LIGHT
FRONT PASSENGER'S DOOR SWITCH
FUSE 11
FUSE 13
FUSE 30
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
INSTRUMENT ILLUMINATION CIRCUIT
INTERIOR LIGHT CUT RELAY
LEFT REAR DOOR SWITCH
LEFT REAR INDIVIDUAL MAP LIGHT (LED)
LT BLU WIRE
MAP LIGHT SWITCH
MICU
OPTION CONNECTOR (FOR LEFT LED)
OPTION CONNECTOR (FOR RIGHT LED)
ORG/ WIRE
PASSENGER'S VANITY MIRROR LIGHT
PNK WIRE
PPL
REAR FUSE/ RELAY BOX
REAR MICU
RED WIRE
RELAY ENERGIZED
RIGHT END OF DASH)
RIGHT REAR DOOR SWITCH
RIGHT REAR INDIVIDUAL MAP LIGHT (LED)
TAN WIRE
W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM
WHT WIRE
WHT/PNK WIRE
YEL WIRE
Go to component -> Entry light timer circuit (1 of 3) -> GRY WIRE
Wiring diagram gry (173 of 203)
AUXILIARY UNDER-DASH FUSE BOX
AUXILIARY UNDER-DASH FUSE/RELAY BOX
BLU WIRE
BRN WIRE
CENTER SWITCH PANEL/ INTERFACE DIAL
CLIMATE CONTROL SWITCH
DC-DC CONVERTER
DRIVER'S FOOT LIGHT
DVD PLAYER UNIT
FRONT PASSENGER'S FOOT LIGHT
FUSE 1
FUSE 11
FUSE 2
FUSE 22
FUSE 25
GLOVE BOX LIGHT
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
IDLE STOP OFF SWITCH
INTEGRATED DYNAMICS SYSTEM SWITCH
LEFT CONSOLE BOX LIGHT
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
RELAY CONTROL MODULE
RIGHT CONSOLE BOX LIGHT
SBW SHIFTER CONTROL MODULE
SMALL LIGHT RELAY
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM
Go to component -> Instrument illumination circuit, except hybrid (1 of 4) -> GRY WIRE
Wiring diagram gry (174 of 203)
32-BIT MICROCOMPUTER + FLASH ROM
B-CAN
BLK WIRE
BLU WIRE
BRN WIRE
CABLE REEL
COLOR
COMPUTER DATA LINES SYSTEM
CONSTANT
CRUISE CONTROL COMBINATION SWITCH
CURRENT DRIVER
DIMMING CIRCUIT
DRIVER'S DOOR POWER TAILGATE/FUEL FILL DOOR OPENER SWITCH
DRIVER'S JUNCTION BOX A
DRIVER'S POWER WINDOW MASTER SWITCH
DRIVING POSITION MEMORY SWITCH
FOR DIAL/SCALE
FOR POINTER
FOR TFT
FUSE 16
GAUGE CONTROL MODULE
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
ILLUMINATION CONTROL
LEFT REAR DOOR INNER HANDLE LIGHT
LIN I/F
LT BLU WIRE
MICU
ORG/ WIRE
PADDLE SHIFTER+ (UP SHIFT SWITCH)
PNK WIRE
POWER MIRROR SWITCH
REAR CLIMATE CONTROL PANEL
REAR CONSOLE BOX LIGHT
RED WIRE
RES AUXILIARY JACK ASSEMBLY
RIGHT REAR DOOR INNER HANDLE LIGHT
STEERING COLUMN)
STEERING COMMANDER SWITCH ASSEMBLY
TRANSCEIVER/
UNDER-HOOD FUSE/RELAY BOX
W/ AUTO IDLE STOP SYSTEM W/O AUTO IDLE STOP SYSTEM
WHITE
YEL WIRE
Go to component -> Instrument illumination circuit, except hybrid (4 of 4) -> GRY WIRE
Wiring diagram gry (175 of 203)
20 PIN CONNECTOR
AIR CONDITIONING SYSTEM
BLK WIRE
BLU WIRE
CENTER JUNCTION BOX
CLIMATE CONTROL SWITCH
CLIMATE CONTROL UNIT
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX B
DRIVER'S POWER WINDOW MASTER SWITCH
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 26
FUSE 6
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LEFT POWER MIRROR
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER MIRROR DEFOGGER
POWER MIRROR SWITCH
POWER WINDOWS SYSTEM
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER SWITCH/ POWER MIRROR DEFOGGER SWITCH
REAR WINDOW DEFOGGER SWITCH/ POWER MIRROR DEFOGGER SWITCH INDICATOR (LED)
RELAY CONTROL MODULE
RELAY ENERGIZED
RIGHT POWER MIRROR
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
W/ MVCS
W/ MVCS W/O MVCS
WHT WIRE
Go to component -> Mirror heater & rear defogger circuit, except hybrid -> GRY WIRE
Wiring diagram gry (176 of 203)
20 PIN CONNECTOR
AIR CONDITIONING SYSTEM
BLK WIRE
BLU WIRE
CENTER JUNCTION BOX
CLIMATE CONTROL SWITCH
CLIMATE CONTROL UNIT
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX B
DRIVER'S POWER WINDOW MASTER SWITCH
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 2-4
FUSE 26
FUSE 6
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
JOINT 1
LEFT POWER MIRROR
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER MIRROR DEFOGGER
POWER WINDOWS SYSTEM
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER/MIRROR DEFOGGER SWITCH
REAR WINDOW DEFOGGER/MIRROR DEFOGGER SWITCH INDICATOR (LED)
RELAY CONTROL MODULE
RELAY ENERGIZED
RIGHT POWER MIRROR
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
W/ MVCS W/O MVCS
WHT WIRE
YEL WIRE
Go to component -> Mirror heater & rear defogger circuit, hybrid -> GRY WIRE
Wiring diagram gry (177 of 203)
AUXILIARY UNDER-DASH RELAY BLOCK C
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FUSE 26
FUSE 4
GRY WIRE
HEATED WINDSHIELD WIPER AREA
HEATED WINDSHIELD WIPER AREA RELAY
HEATED WINDSHIELD WIPER AREA/CMBS OFF SWITCH
HOT AT ALL TIMES
HOT W/
LT GRN WIRE
MICU
OFF
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
RED WIRE
RELAY CONTROL MODULE
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Wiper deicer circuit, except hybrid -> GRY WIRE

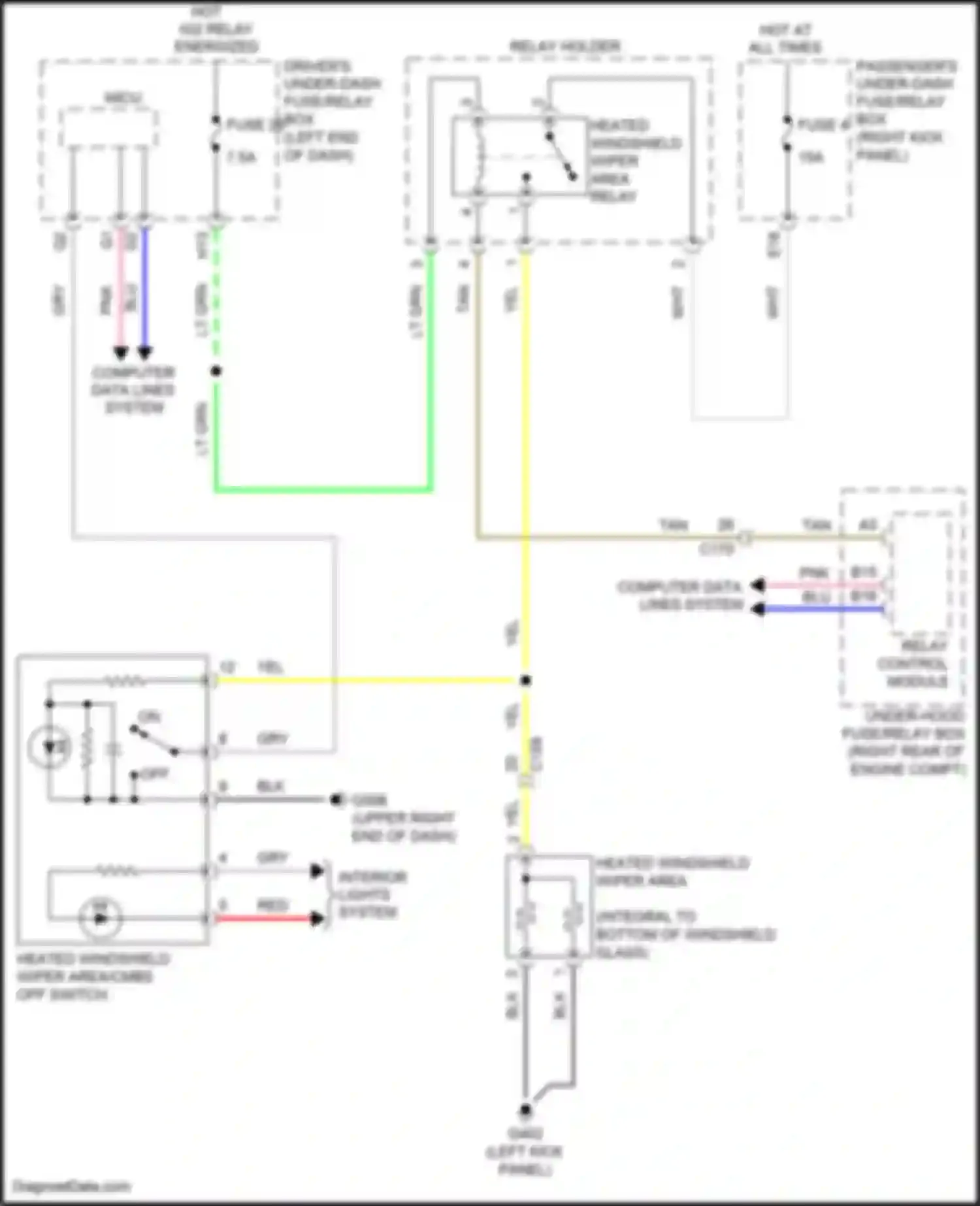

Wiring diagram gry (178 of 203)
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FUSE 26
FUSE 4
GRY WIRE
HEATED WINDSHIELD WIPER AREA
HEATED WINDSHIELD WIPER AREA RELAY
HEATED WINDSHIELD WIPER AREA/CMBS OFF SWITCH
HOT AT ALL TIMES
HOT W/
LT GRN WIRE
MICU
OFF
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
RED WIRE
RELAY CONTROL MODULE
RELAY HOLDER D
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Wiper deicer circuit, hybrid -> GRY WIRE
Wiring diagram gry (179 of 203)
ATF TEMPERATURE SENSOR
BLK WIRE
BLU WIRE
BRN WIRE
ECT SENSOR 1
EVAP CANISTER PURGE VALVE 1
EVEN GEAR SHAFT SPEED SENSOR
FUSE 3
GRN WIRE
GRY WIRE
HOT W/
LT BLU WIRE
LT GRN WIRE
MAP SENSOR
OUTPUT SHAFT SPEED SENSOR
PNK WIRE
PPL
RED WIRE
ROCKER ARM OIL PRESSURE SENSOR
ROCKER ARM OIL PRESSURE SWITCH A (BANK 1)
ROCKER ARM OIL PRESSURE SWITCH A (BANK 2)
TAN WIRE
THROTTLE ACTUATOR
THROTTLE OPEN SENSOR
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Wiring diagram engine performance 3.0l hybrid, engine controls circuit (7 of 8) -> GRY WIRE
Wiring diagram gry (180 of 203)
12 VOLT CHARGING SYSTEM INDICATOR
32 BIT MICROPROCESSOR, FLASH ROM
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
F-CAN H
F-CAN L
F-CAN TRANSCEIVER
GAUGE CONTROL MODULE
GRN WIRE
GRY WIRE
ILLUMINATION CONTROL
LT BLU WIRE
LT GRN WIRE
NCA WIRE
ORG/ WIRE
PNK WIRE
POWER SYSTEM INDICATOR
PPL
RED WIRE
TAN WIRE
WARNING DRIVE CIRCUIT
WHT WIRE
YEL WIRE
Go to component -> Wiring diagram engine performance 3.0l hybrid, hybrid system circuit (5 of 8) -> GRY WIRE
