Acura MDX III facelift 2 (2016-2021) acoustic vehicle alerting control unit Wiring diagrams
This page contains all the electrical diagrams for the component. acoustic vehicle alerting control unit, in which he is found in the car Acura MDX III facelift 2 (2016-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram acoustic vehicle alerting control unit (1 of 4)
Go to component -> Computer data lines circuit, hybrid (3 of 6) -> ACOUSTIC VEHICLE ALERTING CONTROL UNIT
Wiring diagram acoustic vehicle alerting control unit (2 of 4)
Go to component -> Ground distribution circuit, hybrid (1 of 6) -> ACOUSTIC VEHICLE ALERTING CONTROL UNIT
Wiring diagram acoustic vehicle alerting control unit (3 of 4)
Go to component -> Power distribution circuit, hybrid (8 of 8) -> ACOUSTIC VEHICLE ALERTING CONTROL UNIT

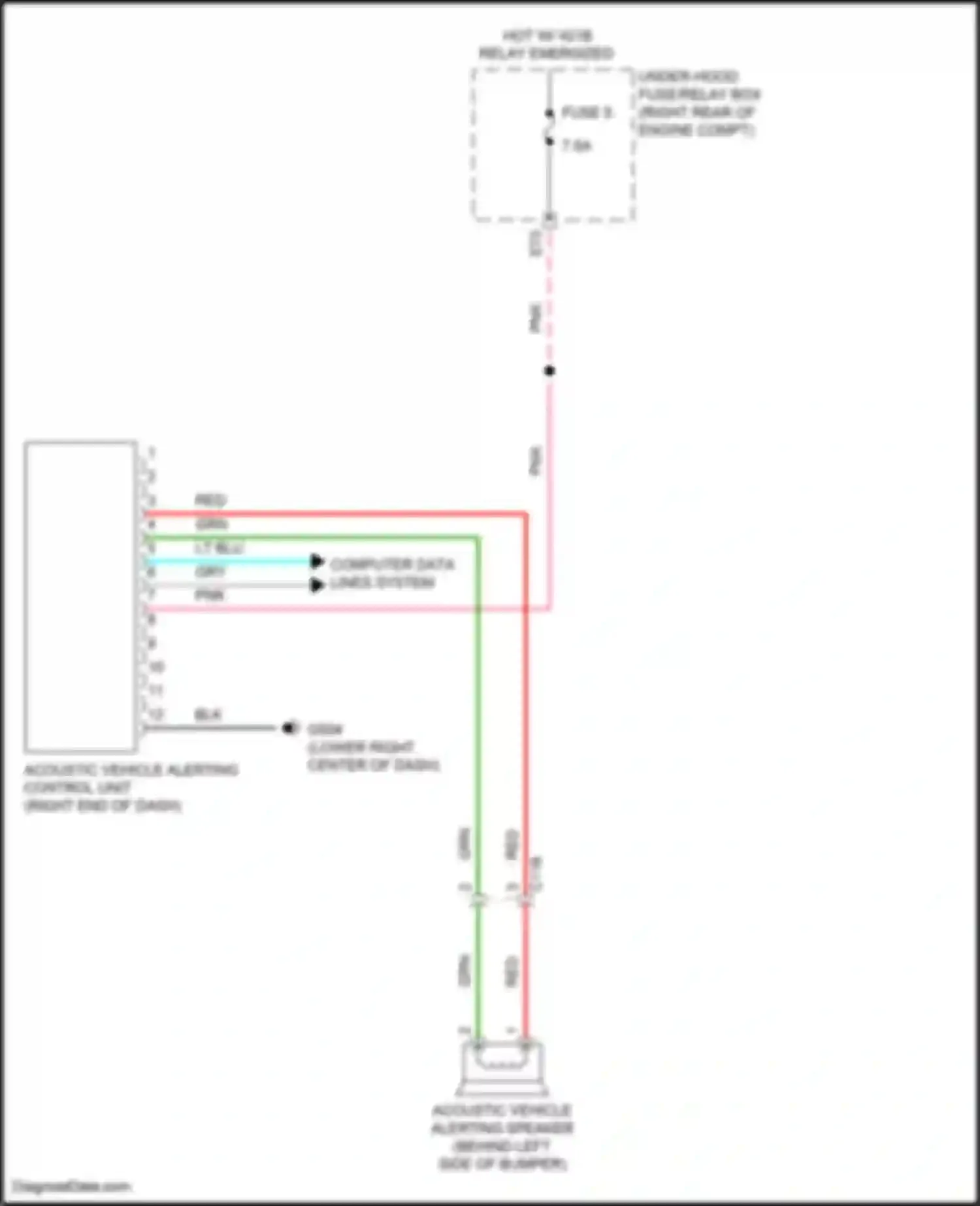

Wiring diagram acoustic vehicle alerting control unit (4 of 4)
Go to component -> Wiring diagram engine performance 3.0l hybrid, virtual engine sound system circuit -> ACOUSTIC VEHICLE ALERTING CONTROL UNIT
