Acura MDX III facelift 2 (2016-2021) 20 pin connector Wiring diagrams
This page contains all the electrical diagrams for the component. 20 pin connector, in which he is found in the car Acura MDX III facelift 2 (2016-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram 20 pin connector (1 of 7)
20 PIN
20 PIN CONNECTOR
AUXILIARY UNDER-DASH FUSE BOX
BLK WIRE
BLU WIRE
BRN WIRE
CANADA HYBRID
COMPUTER DATA LINES SYSTEM
CONNECTOR
DC-DC CONVERTER
DRIVER'S JUNCTION BOX B
DRIVER'S UNDER-DASH FUSE/RELAY BOX
EXCEPT HYBRID HYBRID W/ MVCS W/O MVCS
EXCEPT HYBRID W/ AUTO IDLE STOP SYSTEM
EXCEPT HYBRID W/O AUTO IDLE STOP SYSTEM USA HYBRID
FUSE 1
FUSE 11
FUSE 16
FUSE 22
GRN WIRE
GRY WIRE
HAZARD WARNING SWITCH
HAZARD WARNING SWITCH LIGHT
HOT AT ALL TIMES
LEFT INNER TAILLIGHT
LEFT LICENSE PLATE LIGHT
LEFT POWER MIRROR
LEFT TAILLIGHT
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
MICU
NCA WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
RELAY CONTROL MODULE
RIGHT INNER TAILLIGHT
RIGHT LICENSE PLATE LIGHT
RIGHT TAILLIGHT
SMALL LIGHT RELAY
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Exterior lamps circuit (1 of 4) -> 20 PIN CONNECTOR
Wiring diagram 20 pin connector (2 of 7)
0) OFF 1) PARK 2) AUTO 3) HEAD
20 PIN
20 PIN CONNECTOR
32 BIT MICROPROCESSOR, FLASH ROM
32-BIT MICROCOMPUTER + FLASH ROM
AUXILIARY UNDER-DASH FUSE/RELAY BOX
BLK WIRE
BLU WIRE
BRAKE PEDAL POSITION SWITCH
BRN WIRE
COMBINATION LIGHT SWITCH
COMPUTER DATA LINES SYSTEM
CONNECTOR
DRIVER'S JUNCTION BOX A
DRIVER'S UNDER-DASH FUSE/RELAY BOX
EXCEPT HYBRID
F-CAN H
F-CAN L
F-CAN TRANSCEIVER
FUSE 11
FUSE 7
GAUGE CONTROL MODULE
GRN WIRE
GRN/WHT WIRE
GRY WIRE
HEADLIGHT SWITCH
HOT W/ DC-DC
LEFT TURN SIGNAL IND
LT GRN WIRE
MICU
PCM
PNK WIRE
PPL
RED WIRE
RELAY ENERGIZED
RIGHT POWER MIRROR
RIGHT TURN SIGNAL IND
TAN WIRE
TURN SIGNAL SWITCH
W/ AUTO IDLE STOP SYSTEM EXCEPT HYBRID HYBRID W/ MVCS W/O MVCS
WHT WIRE
YEL WIRE
Go to component -> Exterior lamps circuit (4 of 4) -> 20 PIN CONNECTOR
Wiring diagram 20 pin connector (3 of 7)
20 PIN CONNECTOR
4-PIN CONNECTOR
AUTO TURN
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DEFOGGER SYSTEM
DRIVER'S POWER WINDOW MASTER SWITCH
EXCEPT HYBRID
EXCEPT HYBRID HYBRID W/ MVCS W/O MVCS
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 6
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
JOINT 1 (HYBRID)
LEFT POWER MIRROR
LEFT/RIGHT MOTOR
LT BLU WIRE
LT GRN WIRE
MIRROR ACTUATOR
MIRRORS SYSTEM
NAVIGATION SYSTEM
NCA WIRE
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POSITION SENSOR
POWER SEAT CONTROL UNIT
POWER TILT/ TELESCOPIC STEERING CONTROL UNIT
PPL
RED WIRE
RETRACT ACTUATOR
RIGHT POWER MIRROR
SWING (HORIZONTAL)
TAN WIRE
TILT (VERTICAL)
UNIT)
UP/DOWN MOTOR
WHT WIRE
YEL WIRE
Go to component -> Memory mirrors circuit (2 of 2) -> 20 PIN CONNECTOR
Wiring diagram 20 pin connector (4 of 7)
20 PIN CONNECTOR
AIR CONDITIONING SYSTEM
BLK WIRE
BLU WIRE
CENTER JUNCTION BOX
CLIMATE CONTROL SWITCH
CLIMATE CONTROL UNIT
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX B
DRIVER'S POWER WINDOW MASTER SWITCH
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 26
FUSE 6
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LEFT POWER MIRROR
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER MIRROR DEFOGGER
POWER MIRROR SWITCH
POWER WINDOWS SYSTEM
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER SWITCH/ POWER MIRROR DEFOGGER SWITCH
REAR WINDOW DEFOGGER SWITCH/ POWER MIRROR DEFOGGER SWITCH INDICATOR (LED)
RELAY CONTROL MODULE
RELAY ENERGIZED
RIGHT POWER MIRROR
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
W/ MVCS
W/ MVCS W/O MVCS
WHT WIRE
Go to component -> Mirror heater & rear defogger circuit, except hybrid -> 20 PIN CONNECTOR
Wiring diagram 20 pin connector (5 of 7)
20 PIN CONNECTOR
AIR CONDITIONING SYSTEM
BLK WIRE
BLU WIRE
CENTER JUNCTION BOX
CLIMATE CONTROL SWITCH
CLIMATE CONTROL UNIT
COMPUTER DATA LINES SYSTEM
DRIVER'S JUNCTION BOX B
DRIVER'S POWER WINDOW MASTER SWITCH
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 2-4
FUSE 26
FUSE 6
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
JOINT 1
LEFT POWER MIRROR
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK WIRE
POWER MIRROR DEFOGGER
POWER WINDOWS SYSTEM
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER/MIRROR DEFOGGER SWITCH
REAR WINDOW DEFOGGER/MIRROR DEFOGGER SWITCH INDICATOR (LED)
RELAY CONTROL MODULE
RELAY ENERGIZED
RIGHT POWER MIRROR
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
W/ MVCS W/O MVCS
WHT WIRE
YEL WIRE
Go to component -> Mirror heater & rear defogger circuit, hybrid -> 20 PIN CONNECTOR
Wiring diagram 20 pin connector (6 of 7)
20 PIN
20 PIN CONNECTOR
4 PIN
AUDIO UNIT/AUDIO NAVIGATION UNIT
AUXILIARY UNDER-DASH FUSE BOX
AUXILIARY UNDER-DASH FUSE/RELAY BOX
BLK WIRE
BLU WIRE
BRN WIRE
CENTER JUNCTION BOX
CENTER SWITCH PANEL/ INTERFACE DIAL
COMPUTER DATA LINES SYSTEM
CONNECTOR
DC-DC CONVERTER
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT CAMERA
FUSE 1
FUSE 2
FUSE 26
FUSE 7
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ DC-DC
LEFT POWER MIRROR
LEFT SIDE CAMERA
LT BLU WIRE
LT GRN WIRE
MULTI VIEW CAMERA UNIT
NCA WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
POWER MIRROR SWITCH
REAR VIEW CAMERA
RED WIRE
RELAY ENERGIZED
RIGHT POWER MIRROR
RIGHT SIDE CAMERA
TAN WIRE
WHT WIRE
YEL WIRE
Go to component -> Multi camera circuit, except hybrid -> 20 PIN CONNECTOR

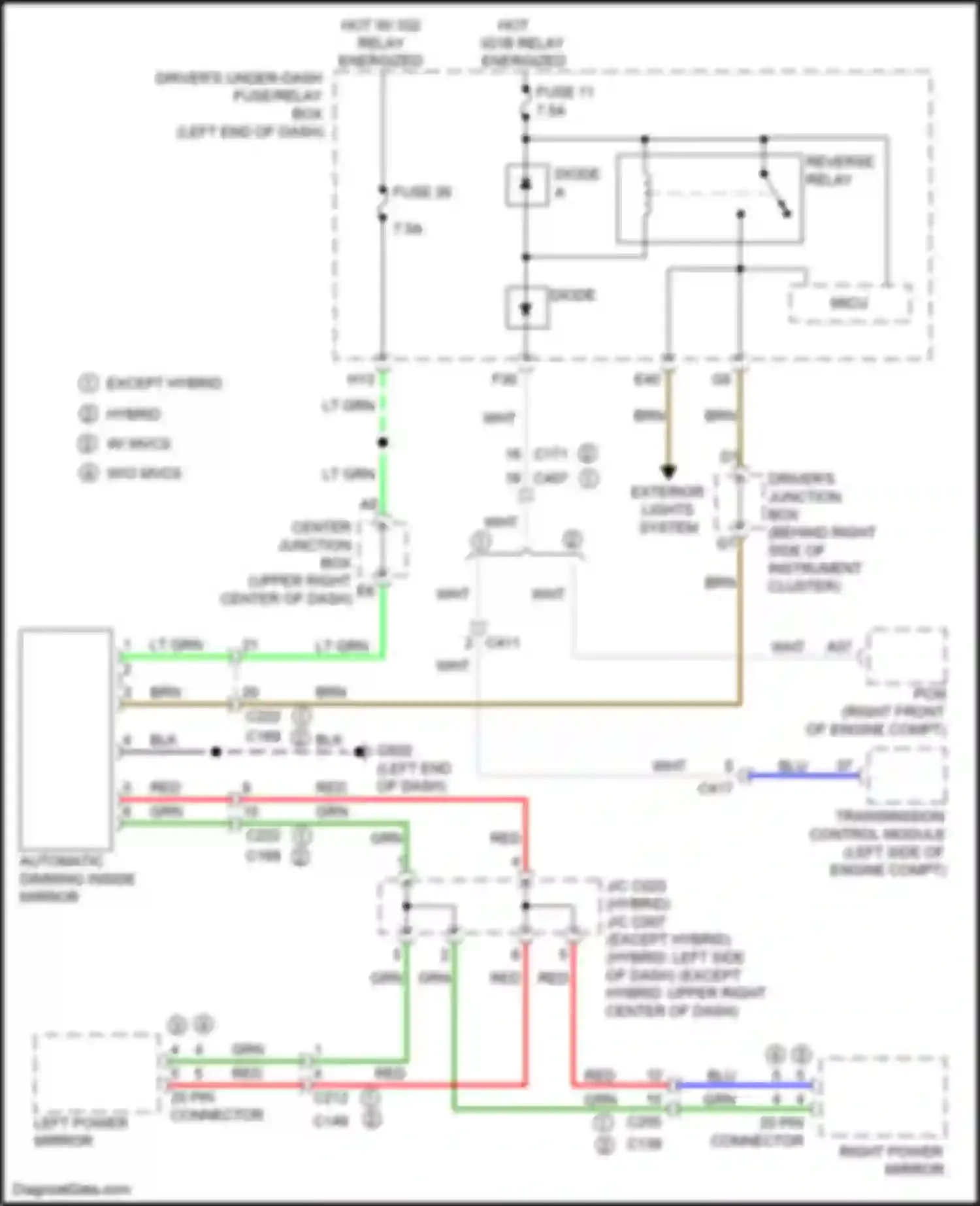

Wiring diagram 20 pin connector (7 of 7)
20 PIN CONNECTOR
AUTOMATIC DIMMING INSIDE MIRROR
BLK WIRE
BLU WIRE
BRN WIRE
CENTER JUNCTION BOX
DIODE A
DIODE B
DRIVER'S JUNCTION BOX A
DRIVER'S UNDER-DASH FUSE/RELAY BOX
EXCEPT HYBRID
FUSE 11
FUSE 26
GRN WIRE
HOT W/
HYBRID W/ MVCS W/O MVCS
LEFT POWER MIRROR
LT GRN WIRE
MICU
PCM
RED WIRE
RELAY ENERGIZED
REVERSE RELAY
RIGHT POWER MIRROR
TRANSMISSION CONTROL MODULE
WHT WIRE
Go to component -> Power mirrors circuit -> 20 PIN CONNECTOR
