Horn circuit for Acura MDX I (2000-2006)

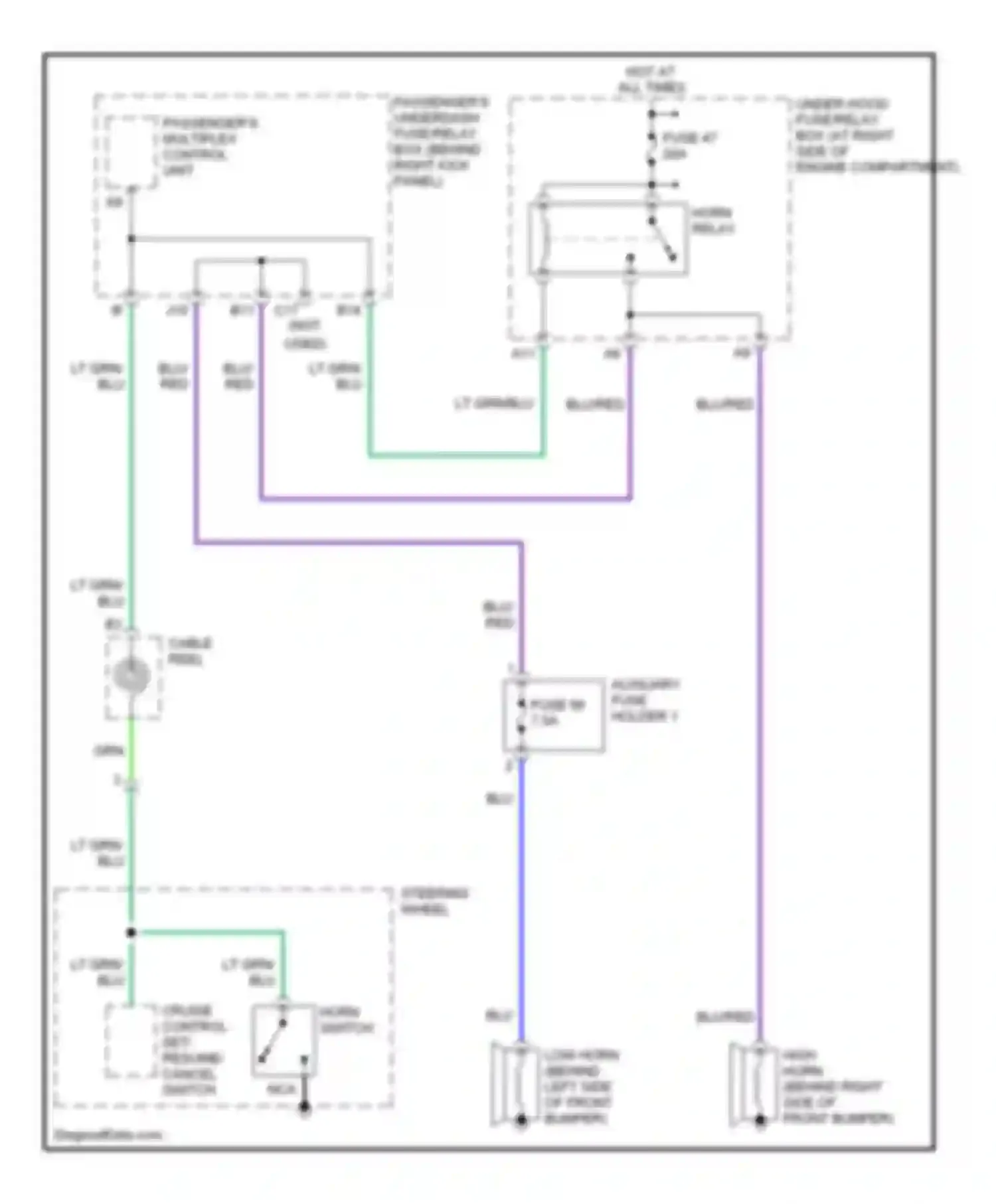

Horn circuit
AUXILIARY FUSE HOLDER 1
BLU WIRE
BLU/RED WIRE
CABLE REEL
CRUISE CONTROL SET/ RESUME CANCEL SWITCH
FUSE 47
FUSE 90
GRN WIRE
HIGH HORN
HORN RELAY
HORN SWITCH
HOT AT ALL TIMES
LOW HORN (BEHIND LEFT SIDE OF FRONT BUMPER)
LT GRN WIRE
LT GRN/BLU WIRE
NCA WIRE
PASSENGER'S MULTIPLEX CONTROL UNIT
PASSENGER'S UNDERDASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
RED WIRE
STEERING WHEEL)
UNDER-HOOD FUSE/RELAY BOX (AT RIGHT SIDE OF ENGINE COMPARTMENT)
