Acura ILX I facelift (2015-2018) center junction box 2 Wiring diagrams

AUDIO UNIT (W/O NAVIGATION) AUDIO- NAVIGATION UNIT (W/ NAVIGATION) AUTOMATIC DIMMING INSIDE MIRROR BLK WIRE BLU WIRE BRN WIRE CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 DIODE C DIODE D FUSE 22 FUSE 5 GRY WIRE HOT IN ON HOT IN ON OR START PCM PPL REVERSE RELAY SHIFT POSITION INDICATOR TRANSMISSION RANGE SWITCH UNDER-DASH FUSE/RELAY BOX WHT WIRE

ANC/ACTIVE SOUND CONTROL UNIT AUDIO REMOTE SWITCH BACK BLK WIRE BLU WIRE BRN WIRE CABLE REEL CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 CH- COMPUTER DATA LINES SYSTEM FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FUSE 29 GRN WIRE GRY WIRE HANDSFREELINK CONTROL UNIT HOT AT ALL TIMES LT GRN WIRE MODE NCA WIRE OFF HOOK ON HOOK PNK WIRE RED WIRE TAN WIRE TUNER UNIT UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX VOL DOWN TALK VOL UP WHT WIRE YEL WIRE

ANC/ACTIVE SOUND CONTROL UNIT (RIGHT SIDE OF DASH) BLK WIRE BLU WIRE BRN WIRE CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 COMPUTER DATA LINES SYSTEM FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FUSE 29 GRN WIRE GRY WIRE HOT AT ALL TIMES LT BLU WIRE LT GRN WIRE PNK WIRE PPL RED WIRE UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

ANC/ ACTIVE SOUND CONTROL UNIT AUDIO DISPLAY UNIT AUDIO UNIT AUDIO- NAVIGATION UNIT BATTERY SENSOR BLU WIRE BRAKE LIGHT RELAY UNDER-DASH RELAY HOLDER B BRAKE PEDAL POSITION SWITCH BRN WIRE CENTER DISPLAY UNIT CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 DATA LINK CONNECTOR (DLC) DAYTIME RUNNING LIGHT RELAY FOG LIGHT RELAY FROM FUSE 1-6 (DIAGRAM 1 OF 6) FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 28 FUSE 29 GAUGE CONTROL MODULE GRN WIRE HAZARD WARNING SWITCH HOME LINK UNIT HORN RELAY IGNITION COIL RELAY INTERIOR LIGHT CUT RELAY UNDER-DASH RELAY HOLDER A LT BLU WIRE LT GRN WIRE MICU MULTI-PURPOSE CAMERA UNIT PGM-FI SUB- RELAY POWER SEAT CONTROL UNIT POWER WINDOW MASTER SWITCH RELAY HOLDER C INJECTOR RELAY RELAY HOLDER C UNDER-HOOD FUSE/RELAY BOX SUNLIGHT SENSOR TELEMATICS CONTROL UNIT UNDER-DASH FUSE/RELAY BOX UNDER-DASH RELAY HOLDER B UNDER-DASH RELAY HOLDER C W/ CMBS W/ NAVIGATION W/O NAVIGATION WHT WIRE YEL WIRE

AUDIO REMOTE SWITCH AUDIO- NAVIGATION UNIT BLU WIRE CABLE REEL CENTER DISPLAY UNIT CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 CLIMATE CONTROL UNIT CMBS OFF SWITCH CRUISE CONTROL COMBINATION SWITCH DRIVER'S POWER SEAT ADJUSTMENT SWITCH DRIVER'S SEAT HEATER RELAY (HIGH) DRIVER'S SEAT HEATER RELAY (LOW) DRIVER'S SEAT HEATER SWITCH DRIVER'S SEAT RELAY HOLDER EPS CONTROL UNIT FROM UNDER-DASH SUB RELAY BOX (DIAGRAM 6 OF 6) FROM UNDER-HOOD FUSE/RELAY BOX (DIAGRAM 1 OF 6) FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR FRONT PASSENGER'S SEAT HEATER RELAY (HIGH) FRONT PASSENGER'S SEAT HEATER RELAY (LOW) FRONT PASSENGER'S SEAT HEATER SWITCH FRONT PASSENGER'S SEAT RELAY HOLDER FRONT PASSENGER'S WEIGHT SENSOR UNIT FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 24 FUSE 29 FUSE 31 FUSE 35 GLOVE BOX LIGHT GRN WIRE GRY WIRE HAZARD WARNING SWITCH INTERFACE DIAL LDW OFF SWITCH LT BLU WIRE LT GRN WIRE MICU MOONROOF CONTROL UNIT/ MOTOR OPTIONAL CONNECTOR PNK WIRE POWER SEAT CONTROL UNIT PPL RED WIRE RELAY CIRCUIT BOARD ROOF CONSOLE MODULE SHIFT POSITION INDICATOR STEERING ANGLE SENSOR TAILLIGHT RELAY TAN WIRE TO FUSE 34 (DIAGRAM 4 OF 6) VSA MODULATOR CONTROL UNIT VSA OFF SWITCH W/ MEMORY W/ NAVIGATION W/O MEMORY YEL WIRE

A/C COMPRESSOR CLUTCH RELAY RELAY HOLDER B A/C DIODE B ACCESSORY RELAY AUDIO UNIT (W/O NAVIGATION) AUDIO- NAVIGATION UNIT AUTOMATIC DIMMING INSIDE MIRROR BLK WIRE BLOWER MOTOR RELAY BLU WIRE BRN WIRE CENTER DISPLAY UNIT CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 CLIMATE CONTROL UNIT CONSOLE ACCESSORY POWER SOCKET CONSOLE ACCESSORY POWER SOCKET RELAY DRIVER'S SEAT HEATER SWITCH FROM FUSE 41 (DIAGRAM 1 OF 6) FROM KEYLESS ACCESS/TPMS CONTROL UNIT (DIAGRAM 6 OF 6) FROM UNDER-DASH SUB RELAY BOX (DIAGRAM 6 OF 6) FROM UNDER-HOOD FUSE/RELAY BOX (DIAGRAM 6 OF 6) FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT HEATER SWITCH FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 27 FUSE 44 GRN WIRE HVAC DISPLAY UNIT INTERFACE DIAL MICU ORG/ WIRE POWER MIRROR SWITCH POWER WINDOW MASTER SWITCH PPL REAR WINDOW DEFOGGER RELAY RELAY CIRCUIT BOARD SHIFT POSITION INDICATOR TELEMATICS CONTROL UNIT UNDER-DASH RELAY HOLDER A UNDER-HOOD FUSE/RELAY BOX W/ NAVIGATION W/NAVIGATION W/O NAVIGATION WHT WIRE YEL WIRE

ANC/ACTIVE SOUND CONTROL UNIT (RIGHT SIDE OF DASH) BLK WIRE BLU WIRE BRN WIRE CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 COMPUTER DATA LINES SYSTEM FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FUSE 29 GRN WIRE GRY WIRE HOT AT ALL TIMES LT BLU WIRE LT GRN WIRE PNK WIRE PPL RED WIRE UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

ANC/ACTIVE SOUND CONTROL UNIT (RIGHT SIDE OF DASH) BLK WIRE BRN WIRE CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 COMPUTER DATA LINES FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FUSE 29 GRN WIRE GRY WIRE HOT AT ALL TIMES LT BLU WIRE LT GRN WIRE ORG/ WIRE PNK WIRE PPL RED WIRE SYSTEM UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

AUDIO-NAVIGATION UNIT (W/ NAVIGATION) AUDIO UNIT (W/O NAVIGATION) BLK WIRE BLU WIRE BRN WIRE CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 FUSE 29 GRN WIRE GRY WIRE HOT AT ALL TIMES LT GRN WIRE REAR VIEW CAMERA RED WIRE UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

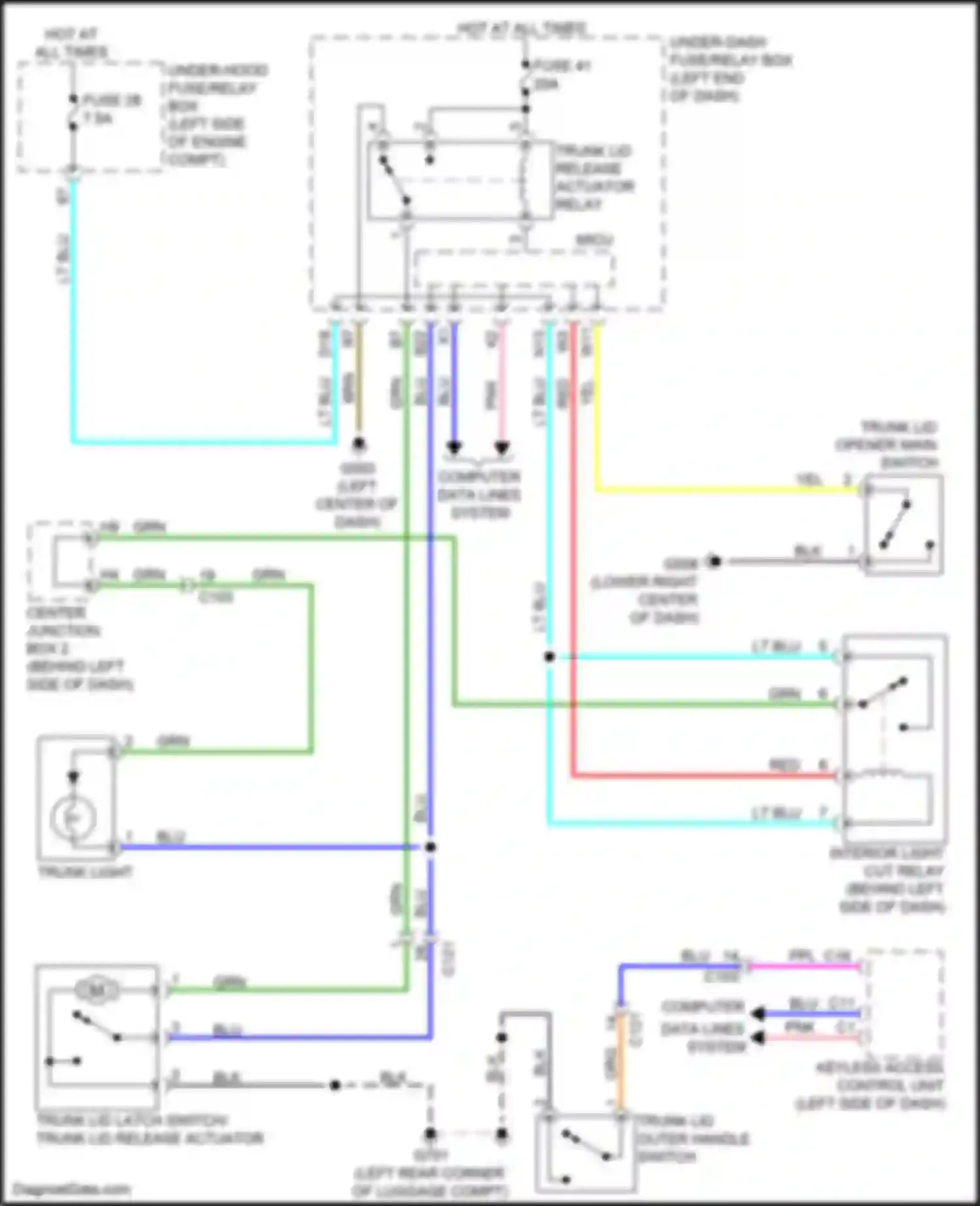

BLK WIRE BLU WIRE BRN WIRE CENTER JUNCTION BOX 2 COMPUTER DATA LINES SYSTEM FUSE 28 FUSE 41 GRN WIRE HOT AT ALL TIMES INTERIOR LIGHT CUT RELAY KEYLESS ACCESS CONTROL UNIT LT BLU WIRE MICU ORG/ WIRE PNK WIRE PPL RED WIRE TRUNK LID LATCH SWITCH/ TRUNK LID RELEASE ACTUATOR TRUNK LID OPENER MAIN SWITCH TRUNK LID OUTER HANDLE SWITCH TRUNK LID RELEASE ACTUATOR RELAY TRUNK LIGHT UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX YEL WIRE
