Acura ILX I (2012-2015) keyless access control unit Wiring diagrams
This page contains all the electrical diagrams for the component. keyless access control unit, in which he is found in the car Acura ILX I (2012-2015). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram keyless access control unit (1 of 6)
BLK WIRE
BLU WIRE
BRN WIRE
CEILING LIGHT
COMPUTER DATA LINES SYSTEM
CONTROL UNIT)
DRIVER'S DOOR KEY CYLINDER SWITCH
DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/ KEY CYLINDER SWITCH
DRIVER'S DOOR LOCK KNOB SWITCH
EXCEPT HYBRID
FUSE 28
GRN WIRE
HOT AT ALL TIMES
KEY/ DOOR LOCK KNOB
KEYLESS ACCESS CONTROL UNIT
LT BLU WIRE
LT GRN WIRE
ON OFF
PNK WIRE
POWER WINDOW MASTER SWITCH
RED WIRE
REMOTE +
RF UNIT 1
RF UNIT 2
UNDER-HOOD FUSE/RELAY BOX (HYBRID: LEFT REAR OF ENGINE COMPT)
WHT WIRE
YEL WIRE
Go to component -> Entry light timer circuit (2 of 2) -> KEYLESS ACCESS CONTROL UNIT
Wiring diagram keyless access control unit (2 of 6)
2.0L
2.4L
BACKUP CONTROL UNIT
BLK WIRE
BRN WIRE
CENTER JUNCTION BOX
CKP SENSOR
DATA LINK CONNECTOR (DLC)
DRIVER JUNCTION BOX 1
IGNITION COIL 1
IGNITION COIL 2
IGNITION COIL 4
IGNITION IGNITION COIL 3 COIL 2
IGNITION IGNITION COIL 3 COIL 4
KEYLESS ACCESS CONTROL UNIT
KNOCK SENSOR SHIELD
LEFT FOG LAMP
PCM
PCM SHIELD
RIGHT FOG LAMP
RIGHT FRONT SIDE MARKER WINDSHIELD LIGHT WIPER MOTOR
RIGHT FRONT TURN SIGNAL LIGHT
ROCKER ARM OIL CONTROL SOLENOID
ROCKER ARM OIL PRESSURE SWITCH
SECONDARY
SENSOR 2 SHIELD
SRS UNIT
STEERING GEAR BOX
TRANSMISSION RANGE SWITCH
WINDSHIELD WASHER MOTOR
YEL WIRE
Go to component -> Ground distribution circuit, except hybrid (2 of 4) -> KEYLESS ACCESS CONTROL UNIT

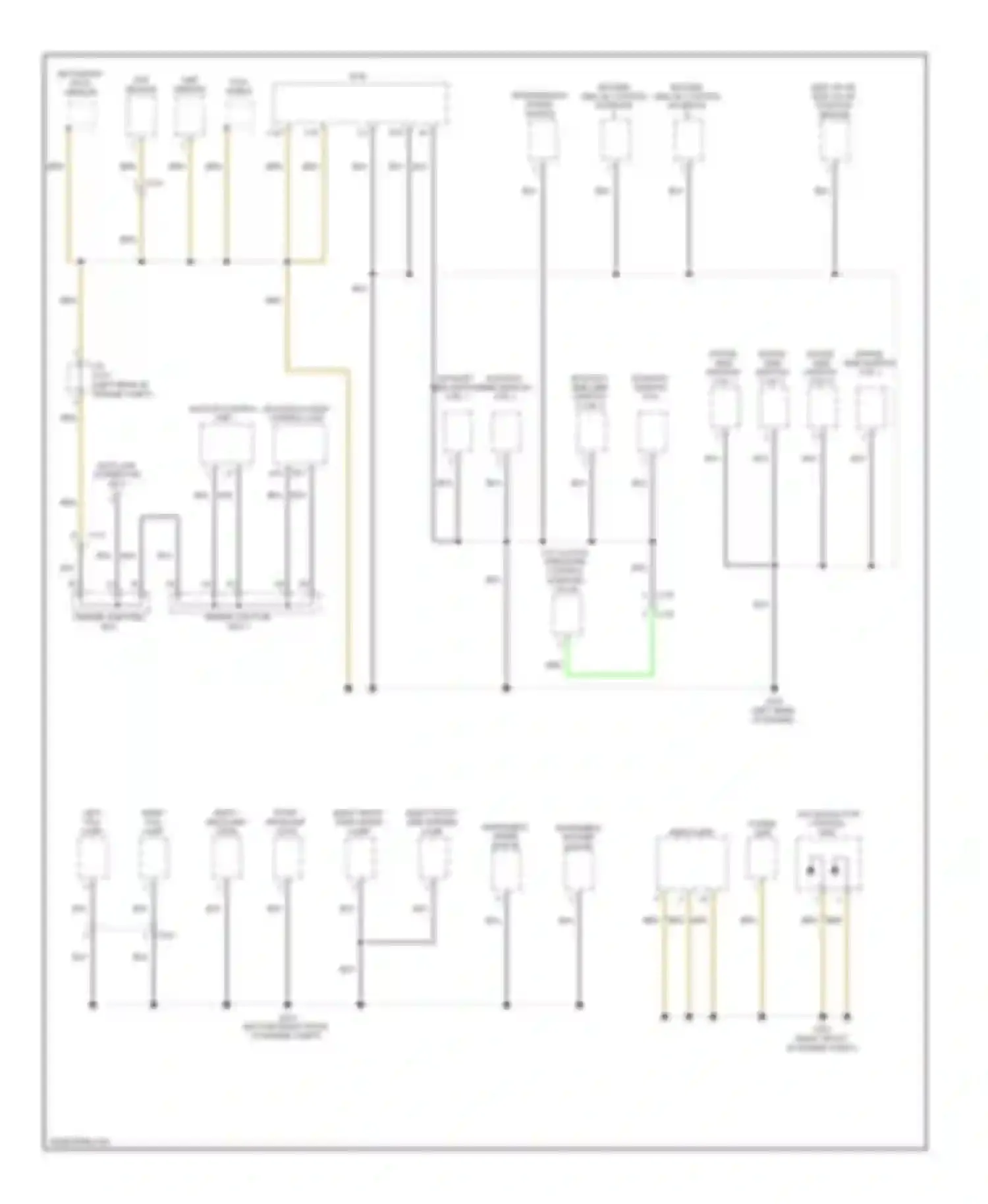

Wiring diagram keyless access control unit (3 of 6)
BACKUP CONTROL UNIT
BLK WIRE
BRN WIRE
CENTER JUNCTUIN BOX
CKP SENSOR
CMP SENSOR
CVT CLUTCH PRESSURE CONTROL SOLENOID VALVE
DATA LINK CONNECTOR (DLC)
DRIVER JUNCTUIN BOX 1
EGR VALVE/ EGR VALVE POSITION SENSOR
EXHAUST EXHAUST SIDE SIDE IGNITION IGNITION COIL 3 COIL 4
EXHAUST SIDE IGNITION COIL 1
EXHAUST SIDE IGNITION COIL 2
GRN WIRE
INTAKE INTAKE SIDE SIDE IGNITION IGNITION COIL 3 COIL 4
INTAKE SIDE IGNITION COIL 1
INTAKE SIDE IGNITION COIL 2
J/C
KEYLESS ACCESS CONTROL UNIT
LEFT RIGHT FOG FOG LAMP LAMP
PCM
PCM SHIELD
POWER UNIT
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT TURN SIGNAL LAMP
RIGHT HEADLAMP (HIGH)
RIGHT HEADLAMP LOW
ROCKER ARM OIL CONTROL SOLENOID A
ROCKER ARM OIL CONTROL SOLENOID B
SECONDARY
SENSOR 2
SERVO UNIT
TRANSMISSION RANGE SWITCH
VSA MODULATOR CONTROL UNIT
WINDSHIELD WASHER MOTOR
WINDSHIELD WIPER MOTOR
Go to component -> Ground distribution circuit, hybrid (2 of 4) -> KEYLESS ACCESS CONTROL UNIT

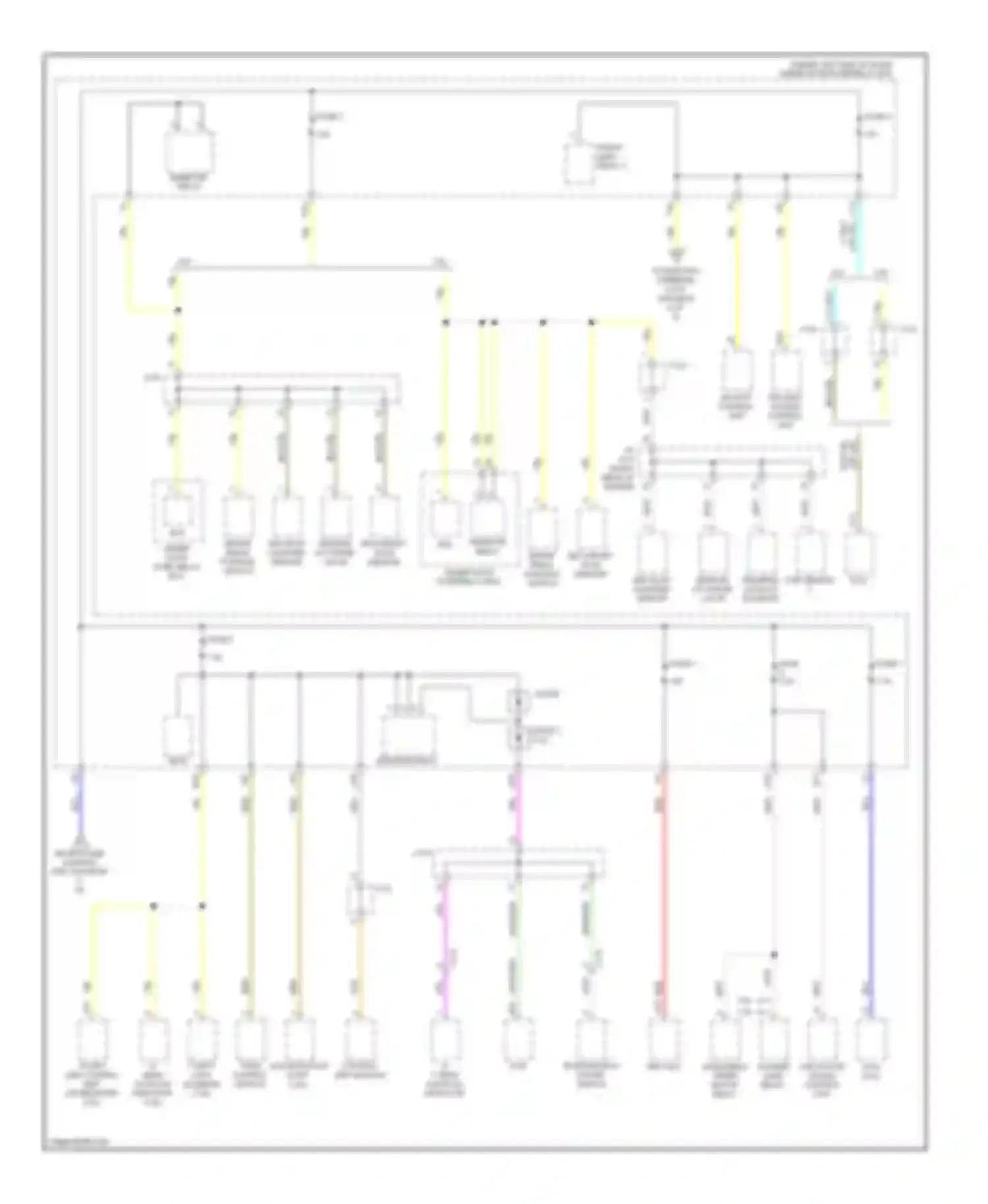

Wiring diagram keyless access control unit (4 of 6)
2.0L
2.4L
2.4L 2.0L
A/T GEAR POSITION INDICATOR
A/T SHIFT GEAR LOCK POSITION SOLENOID INDICATOR (2.0L) (2.0L)
ACURA LINK CONTROL UNIT (XM RECEIVER) (2.0L)
BACKUP CONTROL UNIT
BLK/YEL WIRE
BLU WIRE
BRAKE PEDAL POSITION SWITCH
BRN WIRE
DIODE C (2.0L)
DIODE D
ELD
FROM POWER CONTROL UNIT (DIAGRAM 6 OF 6)
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6 FUSE 7
GRY WIRE
INHIBITOR RELAY
J/C
KEYLESS ACCESS CONTROL UNIT
LT BLU WIRE
MAF EVAP SENSOR/ CANISTER IAT PURGE SENSOR VALVE
MICU
PCM
PCM CMP SENSOR A
PGM-FI MAIN RELAY 2
PPL
RED WIRE
REVERSE LOCKOUT SOLENOID
REVERSE RELAY
SECONDARY
SENSOR 2
SRS UNIT
TAN WIRE
TO ELECTRIC STEERING LOCK (DIAGRAM 6 OF 6)
TPMS GAUGE BACKUP CONTROL CONTROL LIGHT UNIT MODULE SWITCH (2.4L)
TRANSMISSION RANGE SWITCH
UNDER- HOOD FUSE/ RELAY BOX
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
WHT/GRN WIRE
YEL WIRE
Go to component -> Power distribution circuit, except hybrid (4 of 6) -> KEYLESS ACCESS CONTROL UNIT

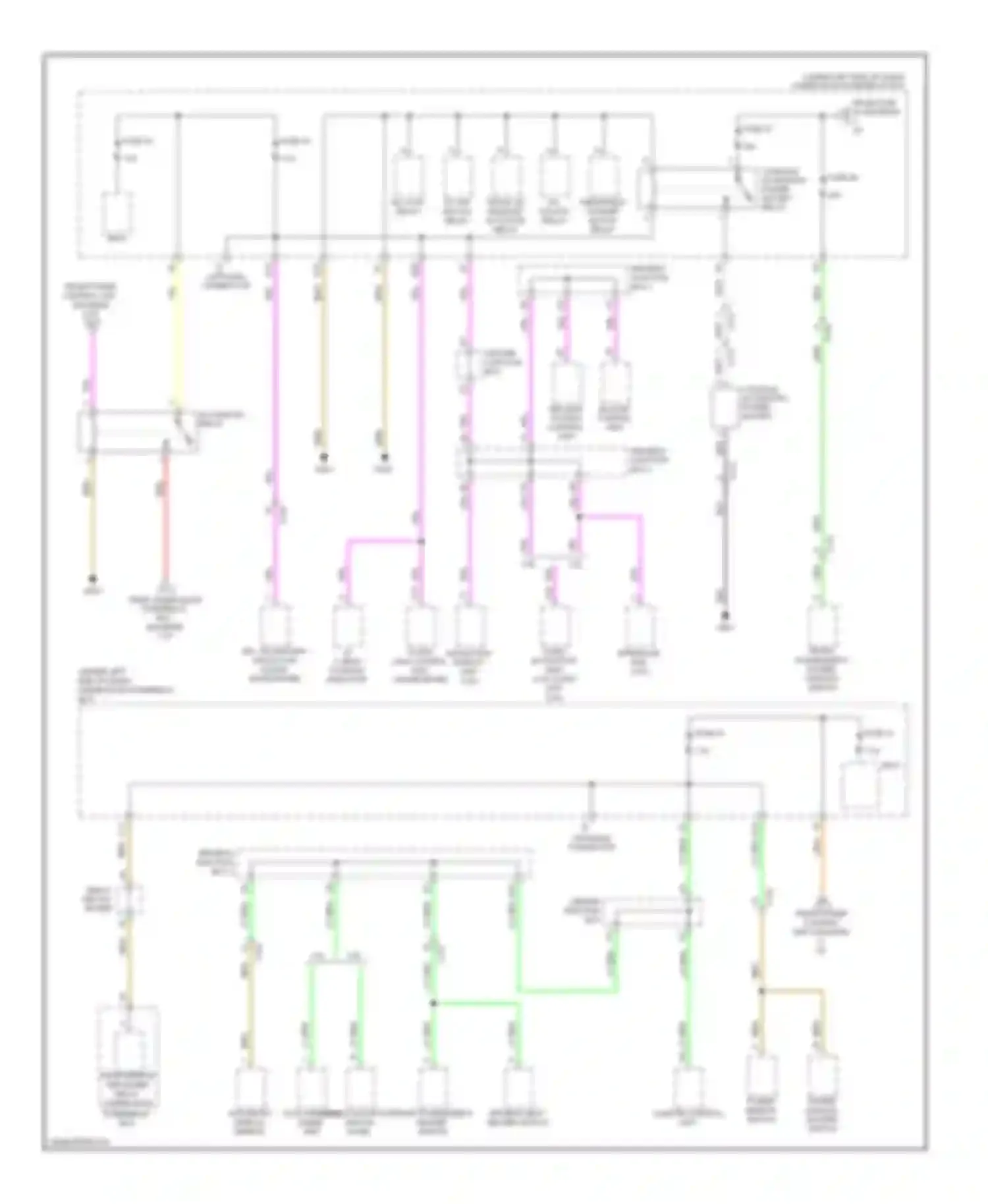

Wiring diagram keyless access control unit (5 of 6)
2.0L
2.4L
2.4L 2.0L
A/T GEAR POSITION INDICATOR
ACCESSORY RELAY
ACURA LINK CONTROL UNIT (XM RECEIVER)
AUDIO NAVIGATION SWITCH PANEL
AUDIO NAVIGATION UNIT (2.0L) AUDIO UNIT (2.4L)
AUTOMATIC HVAC DIMMING DISPLAY INSIDE MIRROR UNIT
BACKUP CONTROL UNIT
BLK WIRE
BRN WIRE
CENTER JUNCTION BOX
CLIMATE CONTROL UNIT
CONSOLE ACCESSORY POWER SOCKET
CONSOLE ACCESSORY POWER SOCKET RELAY
D/L DR UNLOCK RELAY
D/L LOCK RELAY
D/L UNLOCK RELAY
DRIVER'S JUNCTION BOX 1
DRIVER'S JUNCTION BOX 2
DRIVER'S SEAT HEATER SWITCH
FROM FUSE 25 (DIAGRAM 1 OF 6)
FROM POWER CONTROL UNIT (DIAGRAM 6 OF 6)
FROM UNDER-DASH FUSE/RELAY BOX (DIAGRAM 1 OF 6)
FRONT PASSENGER'S HEATER SWITCH
FRONT PASSENGER'S POWER WINDOW SWITCH
FUSE 19
FUSE 20
FUSE 21
FUSE 22
FUSE 27
FUSE 44
GRN WIRE
HFL- NAVIGATION- ANC/ACTIVE SOUND MICROPHONE
INTERFACE DIAL (2.0L)
KEYLESS ACCESS CONTROL UNIT
LT GRN WIRE
MICU
NAVIGATION DISPLAY UNIT (2.0L)
ORG/ WIRE
POWER MIRROR SWITCH
POWER WINDOW MASTER SWITCH
PPL
REAR WINDOW DEFOGGER RELAY UNDER-HOOD FUSE/RELAY BOX
RED WIRE
RELAY CIRCUIT BOARD
TRUNK LID RELEASE ACTUATOR RELAY
WHT WIRE
WINDSHIELD WASHER MOTOR RELAY
YEL WIRE
Go to component -> Power distribution circuit, except hybrid (5 of 6) -> KEYLESS ACCESS CONTROL UNIT

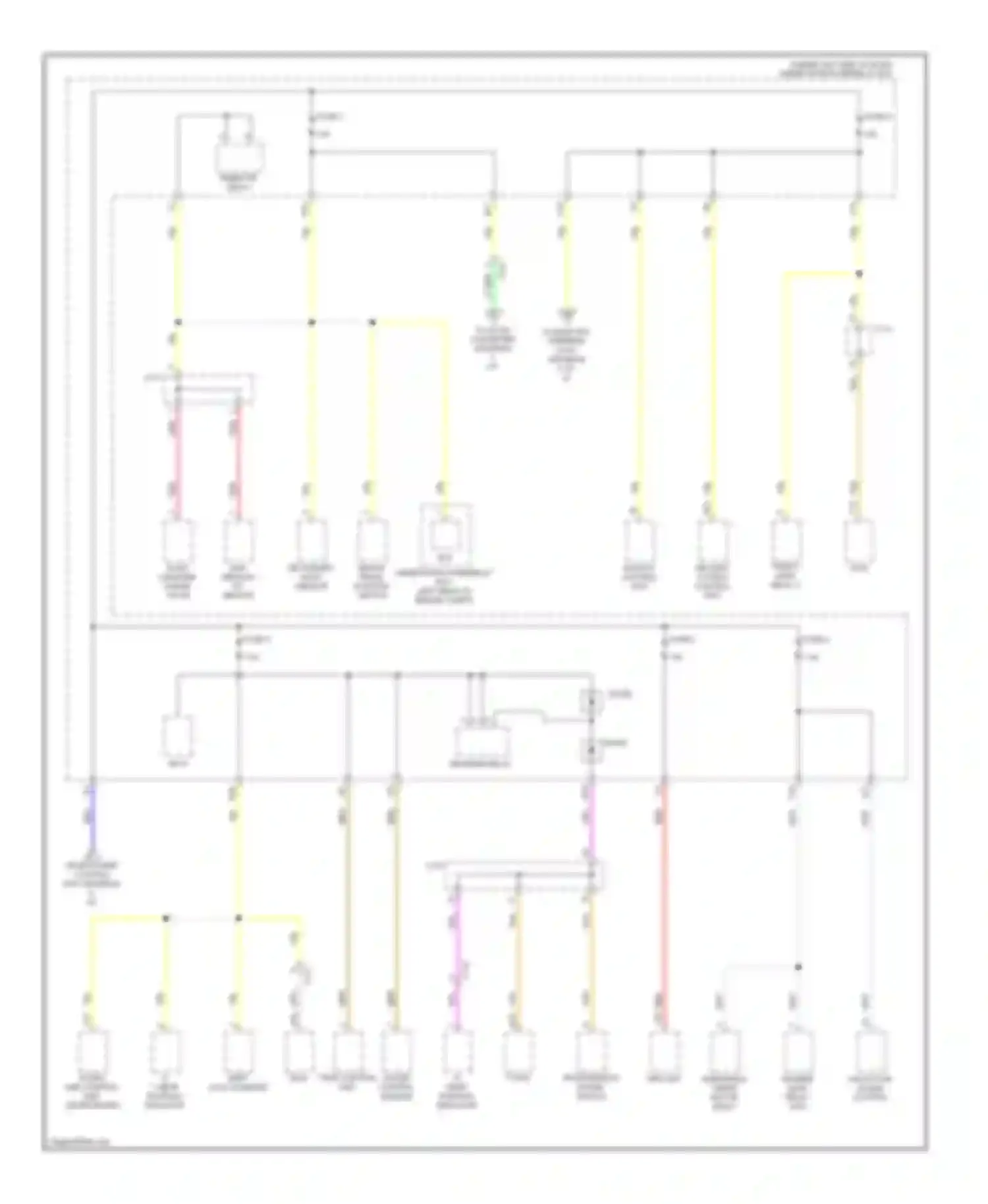

Wiring diagram keyless access control unit (6 of 6)
A/T GEAR POSITION INDICATOR
A/T PCM GEAR POSITION INDICATOR
ACURA LINK CONTROL UNIT (XM RECEIVER)
ANC/ACTIVE SOUND CONTROL
BACKUP CONTROL UNIT
BLU WIRE
BRAKE PEDAL POSITION SWITCH
BRN WIRE
DIODE C
DIODE D
ELD
EVAP CANISTER PURGE VALVE
FROM POWER CONTROL UNIT (DIAGRAM 6 OF 6)
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
GAUGE CONTROL MODULE
GRY WIRE
INHIBITOR RELAY
KEYLESS ACCESS CONTROL UNIT
LT GRN WIRE
MAF SENSOR/ IAT SENSOR
MCM TPMS CONTROL UNIT
MICU
PCM
PGM-FI MAIN RELAY 2
PNK WIRE
PPL
RED WIRE
REVERSE RELAY
SECONDARY
SENSOR 2
SHIFT LOCK SOLENOID
SRS UNIT
TAN WIRE
TO DC-DC CONVERTER (DIAGRAM 3 OF 6)
TO ELECTRIC STEERING LOCK (DIAGRAM 6 OF 6)
TRANSMISSION RANGE SWITCH
UNDER-HOOD FUSE/RELAY BOX (LEFT REAR OF ENGINE COMPT)
WASHER MAIN RELAY UNIT
WHT WIRE
WINDSHIELD WIPER MOTOR RELAY
YEL WIRE
Go to component -> Power distribution circuit, hybrid (4 of 6) -> KEYLESS ACCESS CONTROL UNIT
